Fortinet FCSS_EFW_AD-7.4 - FCSS - Enterprise Firewall 7.4 Administrator

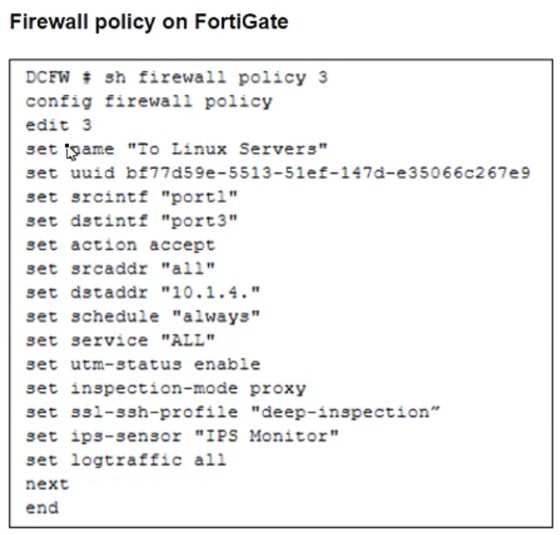

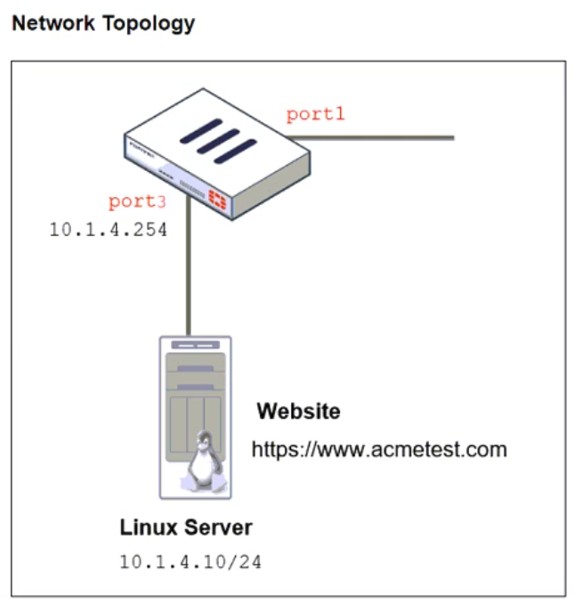

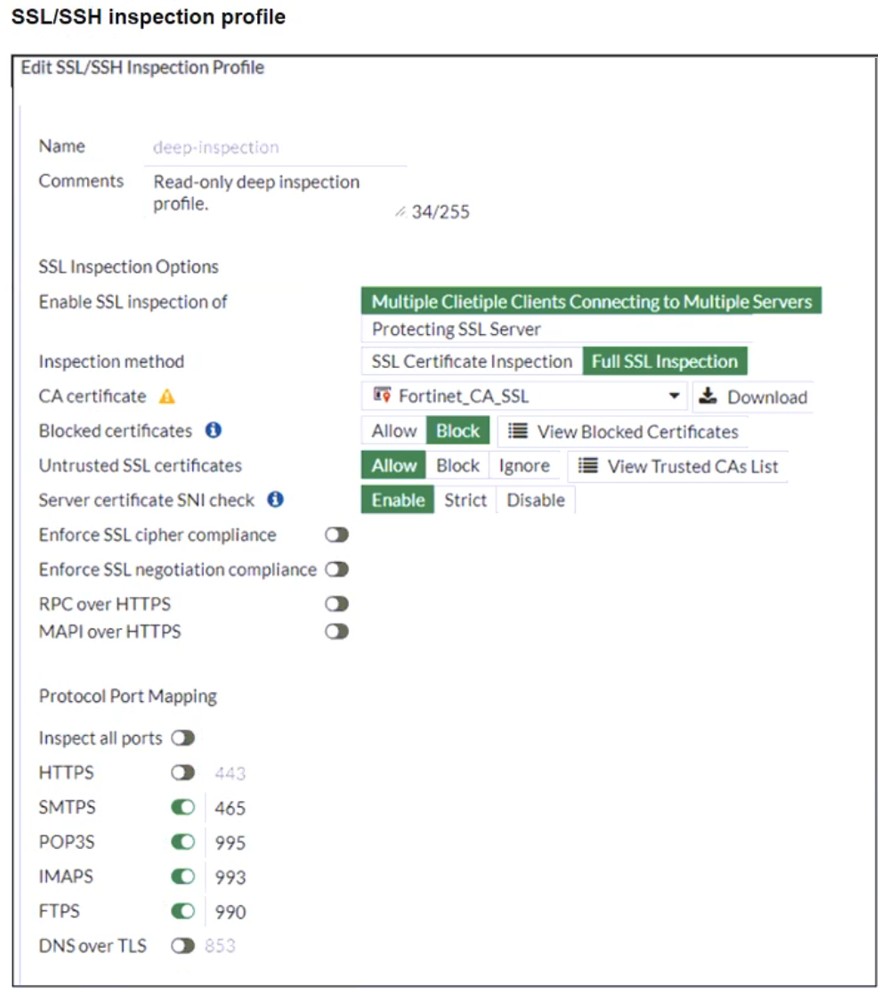

The FortiGateSSL/SSH inspection profileis configured forFull SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewallpolicy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profileonly applies to client-side SSL inspection.

To detect HTTPS-based attacks targeting the Linux server:

●FortiGate must act as an SSL intermediaryto inspect encrypted traffic destined for the web server.

● The administratormust upload the SSL certificate of the Linux web serverto FortiGate so that theserver-side SSL inspectioncan decrypt incoming HTTPS traffic before analyzing it.

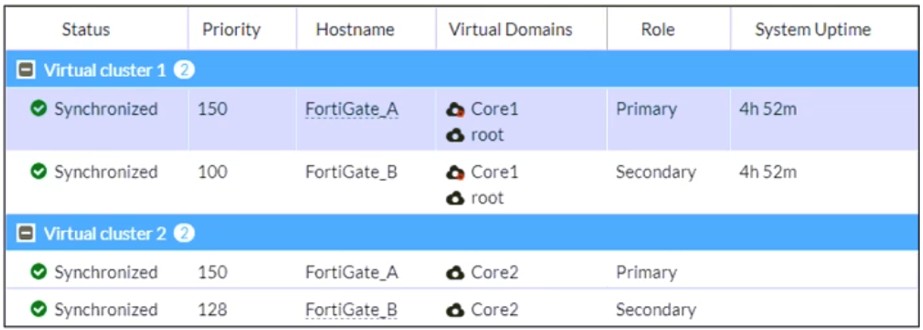

The exhibit shows anactive-passive HA (high availability) clusterwith two virtual clusters, where FortiGate_A is the primary device for both Core1 and Core2. If the goal is to haveFortiGate_B take over Core2 traffic, itspriority must be higherthan FortiGate_A forVirtual Cluster 2.

Currently, FortiGate_A has a priority of150for Core2, while FortiGate_B has128. IncreasingFortiGate_B’s priority to 200ensures it becomes theprimary for Virtual Cluster 2, taking over the Core2 VDOM traffic while keeping Core1 traffic on FortiGate_A.

Disabling override would prevent forced failovers but wouldn’t change the role distribution. Adjusting the load-balancing method is irrelevant in anactive-passive setup, as it only applies to active-active configurations.

IKEv2 (Internet Key Exchange version 2) is an improvement over IKEv1, offering enhanced security, efficiency, and flexibility in VPN configurations.

It includes stronger Diffie-Hellman (DH) groups, such as Elliptic Curve (ECP) groups.

IKEv2 supports stronger cryptographic algorithms, includingElliptic Curve Diffie-Hellman (ECDH)groups such asECP256 and ECP384, providing improved security compared to IKEv1.

It supports the extensible authentication protocol (EAP).

IKEv2 natively supports EAP authentication, which allows integration with external authentication mechanisms such asRADIUS, certificates, and smart cards. This is particularly useful forremote access VPNswhere user authentication must be flexible and secure.

FortiGate devices withNP6 (Network Processor 6) accelerationoffload traffic directly to hardware, bypassing the CPU for improved performance. Whenauto-asic-offloadis enabled in a firewall policy, most of the trafficdoes not reach the CPU, which means it won't be captured by the standard sniffer trace command.

Since NP6-accelerated traffic is handled entirely in hardware, onlya small portion of initial packets(such as session setup packets or exceptions) might be seen in the sniffer output. To capture all packets, the administrator must disable hardware offloading using:

config firewall policy

edit

set auto-asic-offload disable

end

Disabling ASIC offload forces traffic to be processed by the CPU, allowing the sniffer tool to capture all packets.

Whenstandardizing the deployment of FortiGate devices across branchesusing FortiManager, thebest practiceis to usemetadata variables. This allows fordynamic interface configurationwhile maintaining asingle, consistent policy packagefor all branches.

●Metadata variablesin FortiManager enableinterface roles and configurations to be dynamically assignedbased on the specific FortiGate device.

● This ensuresscalabilityandconsistent security policy enforcementacross all branches without manually adjusting interface settings for each device.

● When a new branch FortiGate is deployed, metadata variables automaticallymap to the correct physical interfaces, reducing manual configuration errors.

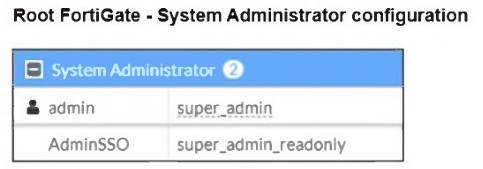

From theRoot FortiGate - System Administrator Configurationexhibit:

● TheAdminSSOaccount has thesuper_admin_readonlyrole.

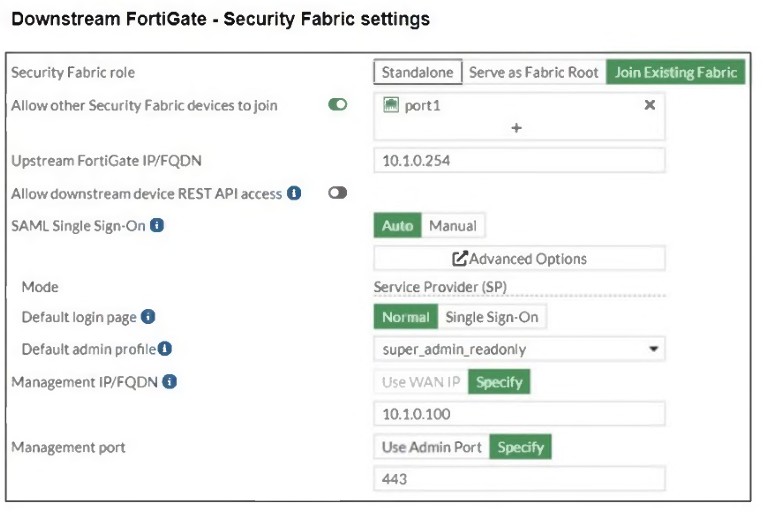

From theDownstream FortiGate - Security Fabric Settingsexhibit:

● TheSecurity Fabric roleis set toJoin Existing Fabric, meaning it will authenticate with the root FortiGate.

●SAML Single Sign-On (SSO) is enabled, and thedefault admin profileis set tosuper_admin_readonly.

When theAdminSSOuser logs into the downstream FortiGate usingSSO, the authentication request is sent to the root FortiGate, where AdminSSO hassuper_admin_readonlypermissions. Since the downstream FortiGate inherits this permission through the Security Fabric configuration, the user will be grantedsuper_admin_readonlyaccess.

False positives inIntrusion Prevention System (IPS)analysis can disrupt legitimate traffic and negatively impact user experience. To reduce false positives while maintaining security, administrators can:

●Use IPS profile extensions to fine-tune the settings based on the organization's environment.

●Select the correct operating system, protocol, and application typesto ensure that IPS signatures match the network's actual traffic patterns, reducing false positives.

●Customize signature selectionbased on the network’s specific services, filtering out unnecessary or irrelevant signatures.
