Fortinet FCSS_NST_SE-7.4 - FCSS - Network Security 7.4 Support Engineer

Fortinet FCSS_NST_SE-7.4 Premium Access     Download Demo
Page: 1 / 2
Total 66 questions

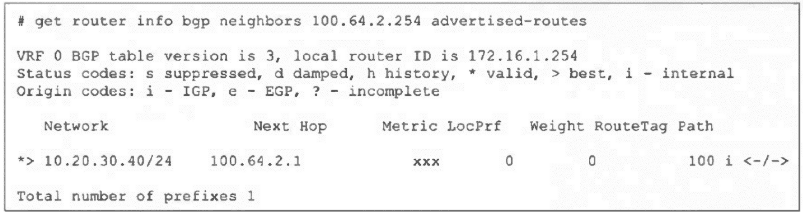

Refer to the exhibit, which shows the output of the command get router info bgp neighbors 100.64.2.254 advertised-routes.

What can you conclude from the output?

A.

The BGP state of the two BGP participants is OpenConfirm.

B.

The router ID of the neighbor is 100.64.2.254.

C.

The BGP neighbor is advertising the 10.20.30.40/24 network to the local router.

D.

The local router is advertising the 10.20.30.40/24 network to its BGP neighbor.

An administrator wants to capture encrypted phase 2 traffic between two FotiGate devices using the built-in sniffer.

If the administrator knows that there Is no NAT device located between both FortiGate devices, which command should the administrator run?

A.

diagnose sniffer packet any 'udp port 500'

B.

diagnose sniffer packet any 'lp proto 50'

C.

diagnose sniffer packet any 'udp port 4500'

D.

diagnose sniffer packet any 'ah'

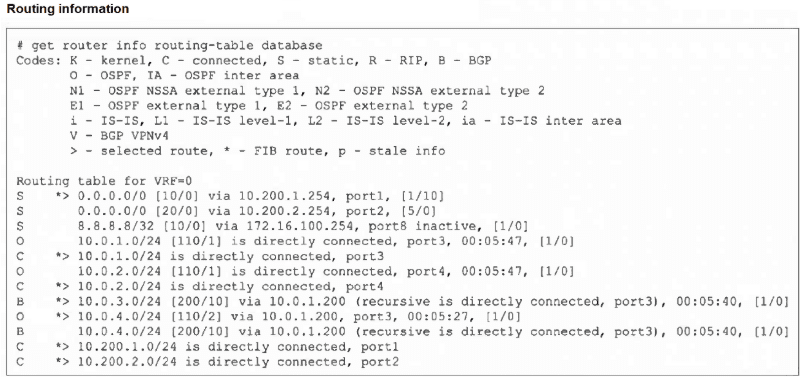

Refer to the exhibit, which shows the modified output of the routing kernel.

Which statement is true?

A.

The egress interface associated with static route 8.8.8.8/32 is administratively up.

B.

The default static route through 10.200.1.254 is not in the forwarding information base.

C.

The default static route through port2 is in the forwarding information base.

D.

The BGP route to 10.0.4.0/24 is not in the forwarding information base.

Which authentication option can you not configure under config user radius on FortiOS?

A.

mschap

B.

pap

C.

mschap2

D.

eap

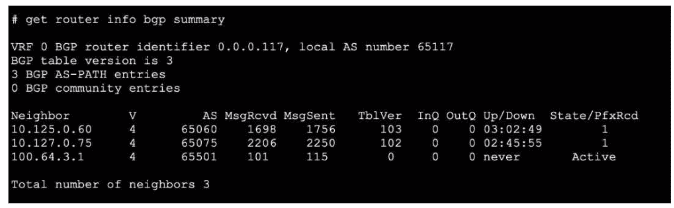

Refer to the exhibit, which shows the output of a BGP debug command.

What can you conclude about the router in this scenario?

A.

The router 100.64.3.1 needs to update the local AS number in its BGP configuration in order to bring up the 8GP session with the local router.

B.

An inbound route-map on local router is blocking the prefixes from neighbor 100.64.3.1.

C.

All of the neighbors displayed are part of a single BGP configuration on the local router with the neighbor-range set to a value of 4.

D.

The BGP session with peer 10.127.0.75 is up.

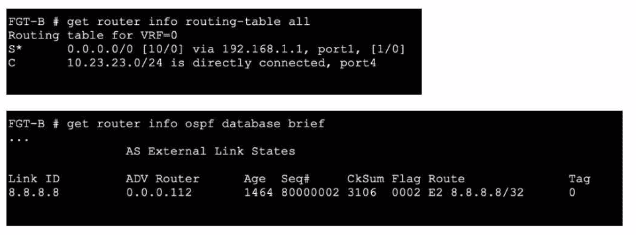

Refer to the exhibits.

An administrator Is expecting to receive advertised route 8.8.8.8/32 from FGT-A. On FGT-B, they confirm that the route is being advertised and received, however, the route is not being injected into the routing table. What is the most likely cause of this issue?

A.

A batter route to the 8.8.8.8/32 network exists in the routing table.

B.

FGT-B is configured with a prefix list denying the 8.8.8.8/32 network to be injected into the routing table.

C.

The administrator has misconfigured redistribution of routes on FGT-A.

D.

FGT-8 is configured with a distribution list denying the 8.8.8.8/32 network to be injected into the routing table.

Exhibit.

Refer to the exhibit, which shows a partial web fillet profile configuration.

Which action does FortiGate lake if a user attempts to access www. dropbox. com, which is categorized as File Sharing and Storage?

A.

FortiGate allows the connection, based on the URL Filter configuration.

B.

FortiGate blocks the connection as an invalid URL.

C.

FortiGate exempts the connection, based on the Web Content Filter configuration.

D.

FortiGate blocks the connection, based on the FortiGuard category based filter configuration.

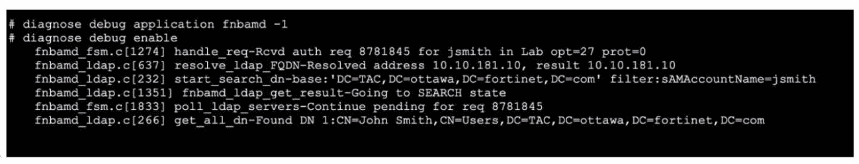

Refer to the exhibit, which shows a truncated output of a real-time LDAP debug.

What two conclusions can you draw from the output? (Choose two.)

A.

The name of the configured LDAP server is Lab.

B.

The user is authenticating using CN=John Smith.

C.

FortiOS is able to locate the user in step 3 (Bind Request) of the LDAP authentication process.

D.

FortiOS is performing the second step (Search Request) in the LDAP authentication process.

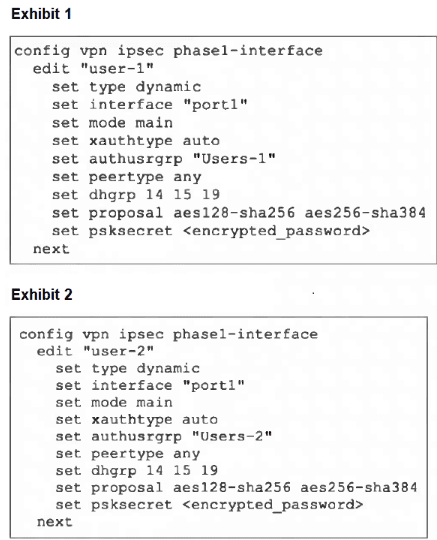

Refer to the exhibits, which contain the partial configurations of two VPNs on FortiGate.

An administrator has configured two VPNs for two different user groups. Users who are in the Users-2 group are not able to connect to the VPN. After running a diagnostics command, the administrator discovers that FortiGate is not matching the user-2 VPN for members of the Users-2 group.

Which two changes must the administrator make to fix the issue? (Choose two.)

A.

Change to aggressive mode on both VPNs.

B.

Enable XAuth on both VPNs.

C.

Use different pre-shared keys on both VPNs.

D.

Set up specific peer IDs on both VPNs.

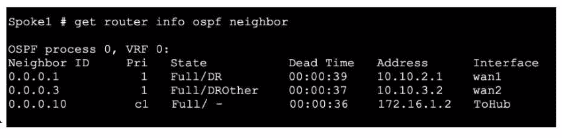

Refer to the exhibit, which shows the output of get router info ospf neighbor.

What can you conclude from the command output?

A.

The network type connecting the local Fortigate and OSPF neighbor 0.0.0.10 is point-to-point.

B.

All neighbors are in area 0.0.0.0.

C.

The local FortiGate is the BDR.

D.

The local FortiGate is not a DROther.
