Huawei H12-351_V1.0 - HCIE-WLAN (Written) V1.0

The WPA3 transition mode applies to both WPA3-Enterprise and WPA3-Personal. In this mode, WPA3 and WPA2 can coexist for a period of time in the future to enable WPA3-incapable STAs to access a WPA3-configured network.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/wpa3-transition-mode

According to the Huawei documents and resources, 802.1X authentication using port-based access control is a method that allows only one user to access the network through a port at a time. If a user is authenticated successfully on a port, subsequent users on this port can access the network without authentication. When the authenticated user goes offline, all other users are denied access to the network1. Therefore, A is the correct answer. References: 1: https://support.huawei.com/enterprise/en/doc/EDOC1100086527

Fingerprint-based positioning technology is a method that uses the signal strength or phase difference of wireless signals to locate objects. There are two types of fingerprint-based positioning technology: virtual fingerprint-based positioning and real fingerprint-based positioning. In virtual fingerprint-based positioning, the positioning engine generates a virtual fingerprint library through calculations based on the AP deployment and environment information. In real fingerprint-based positioning, the fingerprint map is obtained through onsite information collection.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/fingerprint-based-positioning-technology

According to the Huawei documents and resources, the VRRP preemption delay is the time that an AC waits before preempting another AC with a lower priority. If the VRRP preemption delay is set to a small value, the following problems may occur after a master/backup switchover:

B. A master/backup switchback is triggered too quickly. If the master AC recovers soon after a switchover, it may preempt the backup AC again and become the master AC. This may cause frequent switchovers and affect network stability1.

C. Backup information is incomplete. If the backup AC takes over services from the master AC too quickly, it may not have received all the data synchronized from the master AC through HSB. This may cause service interruption or data loss2.

Therefore, B and C are the correct answers. References: 1: https://support.huawei.com/enterprise/en/doc/EDOC1100064368/80fc2ebd/example-for-configuring-vrrp-hsb  2: https://support.huawei.com/enterprise/en/doc/EDOC1100096325/1a753937/vrrp-hsb-configuration

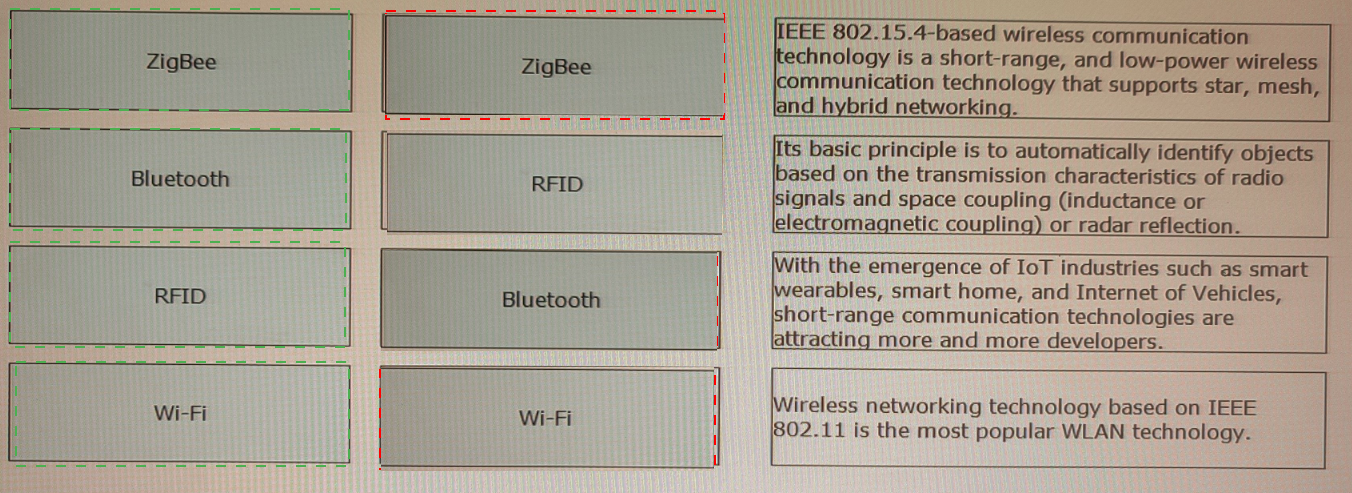

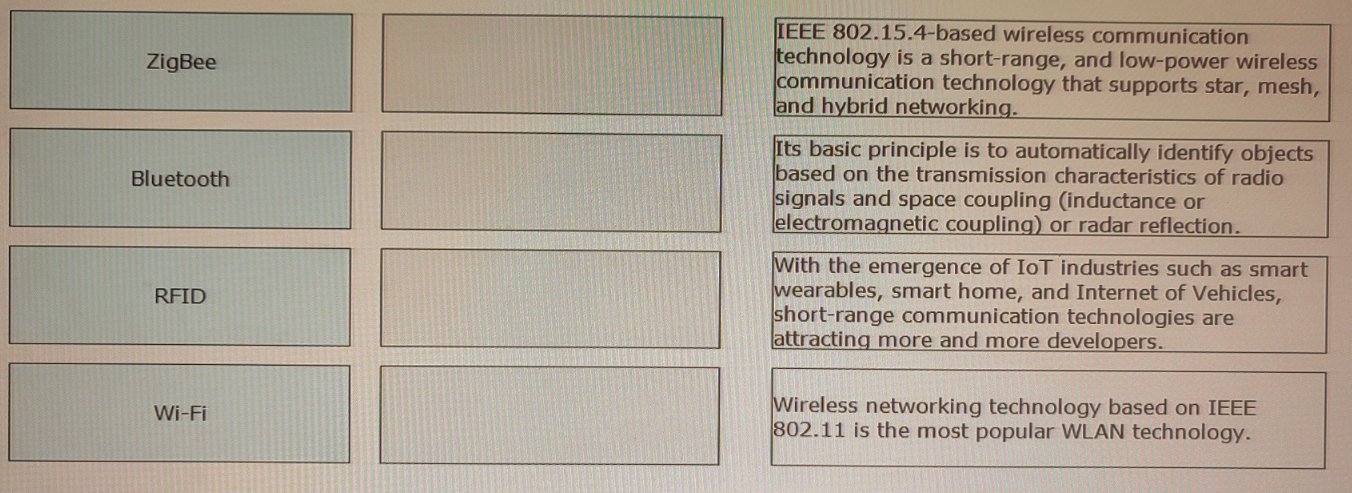

According to the Huawei documents and resources, the definitions of the short-range wireless IoT technologies are as follows:

ZigBee: IEEE 802.15.4-based wireless communication technology is a short-range, and low-power wireless communication technology that supports star, mesh, and hybrid networking.

Bluetooth: With the emergence of IoT industries such as smart wearables, smart home, and Internet of Vehicles, short-range communication technologies are attracting more and more developers.

REID: Its basic principle is to automatically identify objects based on the transmission characteristics of radio signals and space coupling (inductance or electromagnetic coupling) or radar reflection.

Wi-Fi: Wireless networking technology based on IEEE 802.11 is the most popular WLAN technology.

Therefore, ZigBee - 1, Bluetooth - 3, REID - 2, Wi-Fi - 4 is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/zigbee : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/bluetooth : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/rfid : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/wi-fi

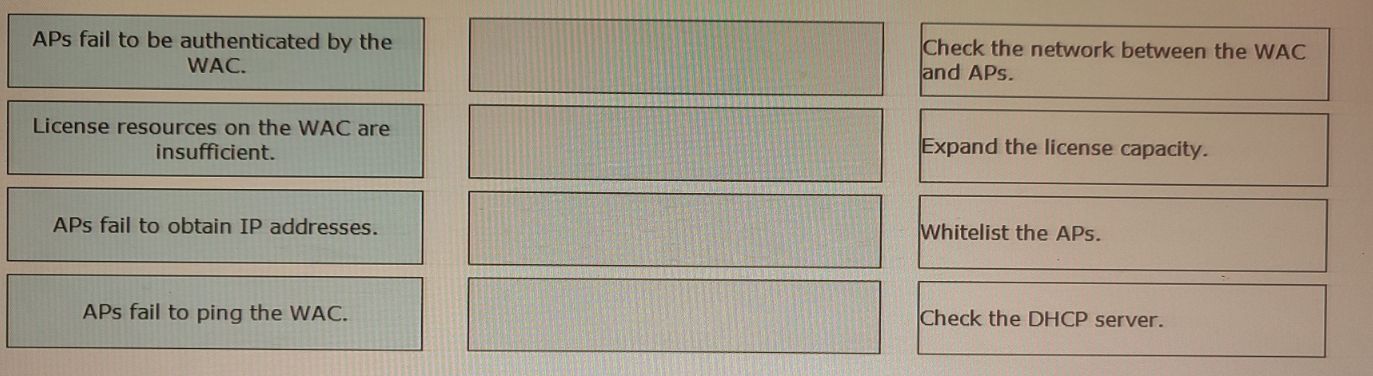

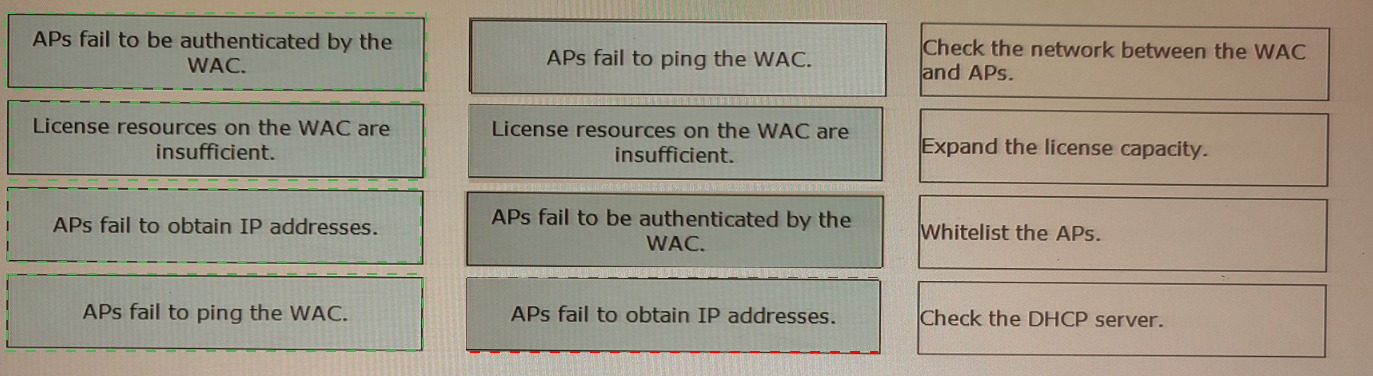

According to the Huawei documents and resources, the troubleshooting operations for the AP onboarding failures are as follows:

APS fail to be authenticated by the WAC: Whitelist the APS. The WAC can authenticate APs based on their MAC addresses or SNs. If an AP is not whitelisted on the WAC, it cannot be authenticated and onboarded.

License resources on the WAC are insufficient: Expand the license capacity. The WAC can manage a limited number of APs based on its license. If the license resources are insufficient, some APs cannot be onboarded.

APS fail to obtain IP addresses: Check the DHCP server. The APs need to obtain IP addresses from a DHCP server before they can communicate with the WAC. If the DHCP server is not configured or reachable, the APs cannot obtain IP addresses and onboard.

APS fail to ping the WAC: Check the network between the WAC and APS. The APs need to ping the WAC to discover its IP address and establish a CAPWAP tunnel. If there is a network problem between the WAC and APs, such as incorrect VLAN configuration or firewall blocking, the APs cannot ping the WAC and onboard.

Therefore, APS fail to be authenticated by the WAC - c, License resources on the WAC are insufficient - b, APS fail to obtain IP addresses - d, APS fail to ping the WAC - a is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/ap-onboarding-failures

C is not a tool commonly used for WLAN network planning, acceptance, or health evaluation. eDesk is a tool for remote fault diagnosis and rectification on WLAN networks.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/wlan-planner https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/imaster-nce-campusinsight https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/cloudcampus-app

BSS coloring is a feature introduced in Wi-Fi 6 that assigns different colors to different BSSs to reduce co-channel interference. BSS coloring provides the following advantages:

Higher packet rate on the air interface: BSS coloring reduces collisions between packets from different BSSs on the same channel, improving packet transmission efficiency.

More efficient channel use: BSS coloring allows spatial reuse of channels by different BSSs, increasing channel utilization.

Higher concurrency in high-density scenarios: BSS coloring reduces interference among neighboring APs and improves network performance in high-density scenarios.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/bss-coloring
