Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

Detailed Explanation:

• Option A: Incorrect. UDP (User Datagram Protocol) does not use SYN or ACK flags, as it is a connectionless protocol and does not establish a connection before data transfer. SYN and ACK flags are features of TCP (Transmission Control Protocol), which establishes connections using a three-way handshake. (Reference: HCIA-Datacom Training Material, Transport Layer Protocols)

• Option B: Incorrect. UDP is suitable for delay-sensitive traffic (such as video or voice) because of its low overhead. However, UDP does not have a sequence number field or support reassembly, as it does not guarantee packet order or reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

• Option C: Correct. TCP requires a three-way handshake to establish a connection and a four-way handshake to terminate it, involving SYN, ACK, FIN flags for reliability. (Reference: HCIA-Datacom Training Material, TCP Connection Establishment and Termination)

• Option D: Correct. The well-known port number range is defined as 0 to 1023, and these are reserved for widely used protocols such as HTTP, FTP, and DNS. (Reference: HCIA-Datacom Training Material, Port Numbering)

Comprehensive Explanation: In OSPF, an Area Border Router (ABR) is a router that has interfaces in more than one OSPF area, facilitating communication between different areas. If a router has interfaces in only one OSPF area, it is not an ABR. Based on the network structure, it is incorrect to assume that all routers except RTA are ABRs. A router can only be considered an ABR if it has interfaces connecting to multiple OSPF areas. If a router only connects within one area, it is not an ABR.

An access port is a switch port assigned to a single VLAN and used to connect end devices (such as PCs or printers).

Access ports do not send VLAN tags. They remove the VLAN tag before forwarding frames to the connected device because most end devices do not support VLAN tagging.

Option A (Incorrect): Tagged frames are sent only by trunk ports, not access ports.

Option B (Correct): The access port strips the VLAN tag before forwarding the frame to ensure compatibility with non-VLAN-aware devices.

Option C (Incorrect): VLAN tags are not exchanged between inbound and outbound ports.

Option D (Incorrect): The access port does not attach PVID information to the frame when sending it out.

Thus, the correct answer is B.

In STP, a port moves from Learning to Forwarding state after the Forward Delay timer has expired. This delay ensures stability by allowing time for the topology to converge before the port begins forwarding user traffic, thereby preventing loops in the network during the transition​.

Detailed Explanation:The default preference of static routes on Huawei routers is 0. This means that if a static route is present, it will always take precedence over routes with higher preferences, such as dynamically learned routes, unless a lower preference is manually assigned​​.

The tracert (Trace Route) command is a network diagnostic tool used to trace the path that packets take from the source device to the destination.

It works by sending ICMP Echo Requests (or UDP packets) with increasing TTL (Time-To-Live) values and recording responses from each hop along the way.

This helps network administrators identify routing issues, network delays, and connectivity problems in the forwarding path.

The command is commonly used in Huawei VRP to diagnose network latency or packet loss between different nodes.

Thus, the correct answer is A (TRUE).

Comprehensive and Detailed Explanation:

NAPT (Network Address Port Translation) maps multiple private IPs to one public IP by modifying the source port.

It differentiates users using:

Source IP

Source Port (TCP/UDP)

Incorrect Statement:

Protocol ID (TCP=6, UDP=17, ICMP=1) is NOT used for differentiation.

Port numbers are used instead.

✅ Reference: HCIA-Datacom NAT Guide – NAPT Functionality

The command defines a static route to the network 10.0.12.0 with a 255.255.255.0 subnet mask, using 192.168.1.1 as the next-hop address. Static routes are manually set routes with fixed paths, and by default, they have higher priority than dynamic routes, but the specific preference value depends on configuration. This setup enables targeted routing for traffic towards the specified destination​.

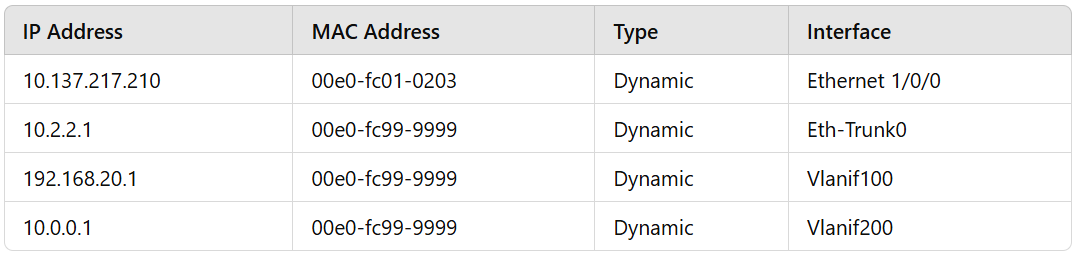

Understanding ARP Entries:

Each ARP entry associates a MAC address with an IP address dynamically or statically.

In the table, the MAC address 00e0-fc99-9999 is linked to multiple IP addresses across different interfaces.

Dynamic MAC Address Assignment:

As the host changes its IP address, the MAC address remains consistent.

Conclusion:

The statement is TRUE because the MAC address 00e0-fc99-9999 appears with three different IP addresses dynamically.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 5: ARP Protocol.
