Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

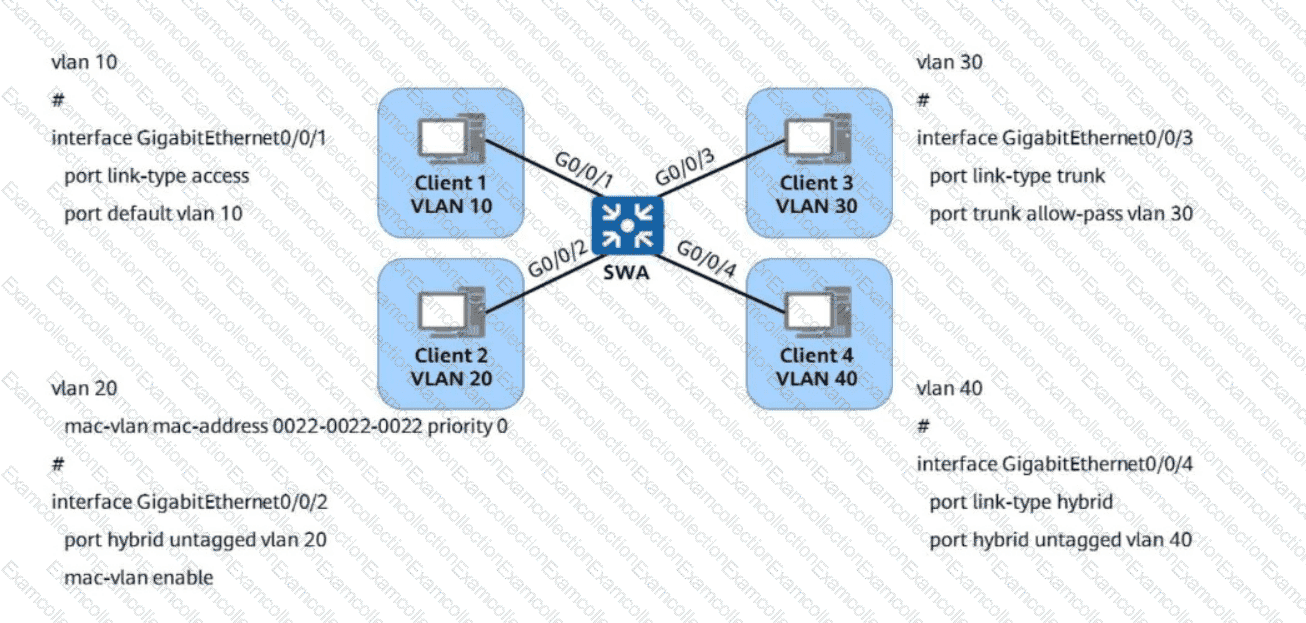

To determine which statements are true, we need to analyze the VLAN configurations on the Huawei switch (SWA) as shown in the diagram and configuration details. We’ll evaluate each client’s VLAN membership and verify the correctness of the VLAN assignment commands based on Huawei switch configuration principles, as outlined in HCIA Datacom documentation. Let’s break it down step by step:

Understanding VLAN Assignment Types on Huawei Switches:

Huawei switches support different port link types for VLAN assignment:

Access Port: Carries traffic for a single VLAN (untagged). Typically used for end devices like PCs.

Trunk Port: Carries traffic for multiple VLANs (tagged, except for the native VLAN, which is untagged). Typically used for interconnecting switches.

Hybrid Port: Similar to a trunk port but can carry untagged traffic for specific VLANs, often used for both end devices and inter-switch links. It can tag or untag traffic based on configuration.

Additionally, Huawei supports MAC address-based VLAN assignment (using the mac-vlan command), which assigns VLAN membership based on a device’s MAC address, overriding port-based VLAN settings.

Analyzing the Configuration for Each Client:Let’s examine the configuration details for each interface connected to the clients and verify the VLAN assignments:

Client 1 (connected to GigabitEthernet0/0/1):

Configuration:

text

WrapCopy

vlan 10

#

interface GigabitEthernet0/0/1

port link-type access

port default vlan 10

The port is configured as an access port with port link-type access and assigned to VLAN 10 using port default vlan 10.

Access ports carry untagged traffic for a single VLAN, so Client 1 belongs to VLAN 10.

The commands are correct for an access port assignment to VLAN 10.

Statement C (“Client 1 belongs to VLAN 10, and the commands for VLAN assignment on the switch are correct”) is true.

Client 2 (connected to GigabitEthernet0/0/2):

Configuration:

text

WrapCopy

vlan 20

mac-vlan mac-address 0022-0022-0022 priority 0

#

interface GigabitEthernet0/0/2

port hybrid untagged vlan 20

mac-vlan enable

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 20 using port hybrid untagged vlan 20.

Additionally, mac-vlan mac-address 0022-0022-0022 priority 0 and mac-vlan enable are configured, indicating MAC address-based VLAN assignment for a device with MAC address 0022-0022-0022.

However, the diagram does not specify the MAC address of Client 2. If Client 2’s MAC address is not 0022-0022-0022, the MAC-VLAN assignment does not apply, and the port’s default VLAN (VLAN 20, untagged) determines its membership.

If Client 2 has MAC address 0022-0022-0022, it would belong to the VLAN specified by the mac-vlan command (VLAN 20, as no specific VLAN is mentioned in the mac-vlan command, implying it uses the port’s default VLAN or another configured VLAN). But since the MAC address is not provided, we assume the port-based VLAN assignment (VLAN 20) applies.

The commands appear correct for a hybrid port with untagged VLAN 20 and MAC-VLAN enabled, but the effectiveness of the MAC-VLAN depends on Client 2’s MAC address.

Statement B (“Client 2 belongs to VLAN 20, and the commands for MAC address-based VLAN assignment on the switch are correct”) is potentially true if Client 2’s MAC is 0022-0022-0022, but without confirmation, we must consider the port’s default VLAN 20. However, the MAC-VLAN priority is set to 0, which is unusual (priority 0 typically indicates the lowest priority, and Huawei recommends non-zero values for MAC-VLAN). This suggests a potential configuration error or ambiguity.

Given the lack of MAC address confirmation and the unusual priority 0, Statement B is not definitively true, as the MAC-VLAN assignment may not function as intended or may conflict with port-based VLAN 20.

Client 3 (connected to GigabitEthernet0/0/3):

Configuration:

text

WrapCopy

vlan 30

#

interface GigabitEthernet0/0/3

port link-type trunk

port trunk allow-pass vlan 30

The port is configured as a trunk port with port link-type trunk and allows VLAN 30 traffic using port trunk allow-pass vlan 30.

Trunk ports carry tagged traffic for specified VLANs. For Client 3 (an end device, typically not a switch), the trunk port configuration is unusual because end devices usually connect via access ports, not trunk ports. However, if Client 3 is configured to send tagged frames for VLAN 30 (e.g., a VLAN-aware device like a phone or IP camera), it can belong to VLAN 30.

The commands are correct for a trunk port allowing VLAN 30, assuming Client 3 is configured to handle tagged VLAN 30 traffic.

Statement D (“Client 3 belongs to VLAN 30, and the commands for VLAN assignment on the switch are correct”) is true, assuming Client 3 supports VLAN tagging for VLAN 30.

Client 4 (connected to GigabitEthernet0/0/4):

Configuration:

text

WrapCopy

vlan 40

#

interface GigabitEthernet0/0/4

port link-type hybrid

port hybrid untagged vlan 40

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 40 using port hybrid untagged vlan 40.

Hybrid ports can carry untagged traffic for specific VLANs, so Client 4 belongs to VLAN 40 (untagged).

The commands are correct for a hybrid port assignment to VLAN 40.

Statement A (“Client 4 belongs to VLAN 40, and the commands for VLAN assignment on the switch are correct”) is true.

Evaluating Each Statement:

A: True – Client 4 belongs to VLAN 40 (untagged on a hybrid port), and the commands are correct.

B: Not definitively true – Client 2 belongs to VLAN 20 based on the port’s hybrid untagged VLAN 20, but the MAC-VLAN configuration with priority 0 is ambiguous without Client 2’s MAC address, and the priority 0 may indicate a configuration error. Thus, we cannot confirm the MAC address-based VLAN assignment is correct.

C: True – Client 1 belongs to VLAN 10 (access port), and the commands are correct.

D: True – Client 3 belongs to VLAN 30 (trunk port, assuming tagged traffic), and the commands are correct for a trunk port allowing VLAN 30.

Conclusion:

Statements A, C, and D are true based on the configuration and VLAN assignment rules. Statement B is not definitively true due to the ambiguity of Client 2’s MAC address and the unusual priority 0 in the MAC-VLAN configuration.

Answer: A, C, D

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access, Trunk, and Hybrid Port Configurations

HCIA Datacom V3.0, Chapter 4: MAC Address-Based VLAN Assignment – mac-vlan Command and Priority Settings

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – Port Link Types and VLAN Assignment Rules

Analysis of Possible Causes:

Option A: " The administrator account has been disabled " is a possible cause as a disabled account cannot access the system even if Telnet is enabled.

Option B: Incorrect because the Telnet service being disabled would affect all users, not just one administrator.

Option C: " The administrator account has been deleted " is a valid reason as a deleted account cannot log in.

Option D: " The user level of the administrator account has been changed to 0 " is correct. User level 0 typically has insufficient privileges for Telnet access​​.

Comprehensive Explanation: The IEEE 802.11g standard operates exclusively in the 2.4 GHz frequency band, offering data rates up to 54 Mbps. Other standards, such as 802.11a, operate in the 5 GHz band, while 802.11n and 802.11ax support both 2.4 GHz and 5 GHz frequency bands, making 802.11g the only standard in this list that is limited to 2.4 GHz.

The IPv4 header length is variable and is determined by the Header Length (IHL) field in the IPv4 header.

Minimum header size: 20 bytes (5 x 4B) → No options field.

Maximum header size: 60 bytes (15 x 4B) → Includes maximum options.

Option A (Incorrect - 64B): The maximum possible length of an IPv4 header is 60B, so 64B is not possible.

Option B (Correct - 20B): This is the standard IPv4 header size without options.

Option C (Correct - 60B): This is the maximum IPv4 header size with options.

Option D (Correct - 32B): This is a possible IPv4 header size with some options.

Thus, the correct answer is A (64B).

Huawei devices support different authentication modes:

authentication-mode local: Requires a username and password stored locally.

authentication-mode hwtacacs: Uses Huawei TACACS+ authentication, which requires a username and password.

authorization-mode hwtacacs: Refers to authorization (not authentication).

authentication-mode none: Does not require a username or password, meaning no authentication is needed.

Thus, the correct answer is D.

Detailed Explanation:Access Control Lists (ACLs) are processed in sequential order, meaning that once a packet matches a rule, subsequent rules are ignored. To ensure that more specific (strict) conditions are applied, strict rules should be listed first, followed by loose rules. (Reference: HCIA-Datacom Training Material, ACL Configuration and Rule Order)

CAPWAP (Control and Provisioning of Wireless Access Points) is a protocol that enables centralized control of Fit APs by an AC (Access Controller).

Option A (Incorrect): CAPWAP tunnels only control traffic, while data traffic can be sent via direct forwarding or tunneled forwarding.

Option B (Incorrect): A Fit AP can discover an AC via multiple methods, including broadcast, static configuration, or DHCP Option 43.

Option C (Correct): APs encapsulate user data into CAPWAP packets and send them to the AC for further processing.

Option D (Incorrect): CAPWAP is based on UDP, not TCP, for better efficiency and lower latency.

Thus, the correct answer is C.

In Spanning Tree Protocol (STP), the Port ID consists of:

8-bit Port Priority

8-bit Port Number

This results in a total length of 16 bits.

B, C, and D are incorrect since they do not represent the full length of the Port ID.

Thus, the correct answer is A (16 bits).

Command Output Overview:

The command display startup is used to check the configuration of the startup system software, configuration files, license files, and other related settings on Huawei routers. The output in this case provides details about:

The current system software (ar2220-v200r003c00spc200.cc).

The next startup system software (ar222b-v200r003c00spc200.cc).

Backup and saved configuration files, which are not defined (null).

Analysis of Options:

Option A: " The system file for next startup cannot be modified. " This statement is false because the system file for the next startup can be modified using the startup system-software command. The file path for the next startup system software (ar222b- v200r003c00spc200.cc) indicates that it has been configured and can be changed by the administrator. The command syntax is supported as per Huawei ' s documentation​​.

Option B: " The startup system software < startup-software-name > command can be used to modify the system software for next startup. " This is true and matches the functionality provided by Huawei ' s routers. The command allows administrators to specify the software package to be used at the next system reboot​​.

Option C: " The running configuration file is not saved. " This is true as the Startup saved-configuration file is listed as null, meaning that no configuration file has been saved for startup. Saving the running configuration is necessary to ensure settings persist after a reboot​​.

Option D: " The system file used for the current startup is ar2220-v200r003c00spc200.cc. " This is true as per the output under Startup system software, which confirms the system file used in the current boot process​​.

Correct Statement Selection:Based on the analysis, the statement " The system file for next startup cannot be modified " is false. This matches the system ' s behavior, where administrators are allowed to modify the next startup file using relevant commands.
