Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

Comprehensive and Detailed Explanation:

A default route is used when no specific route matches a destination IP.

The correct syntax for a default static route is:

ip route-static 0.0.0.0 0.0.0.0 < next-hop IP >

✅ Correct Option:

A. [Huawei] ip route-static 0.0.0.0 0.0.0.0 192.168.1.1

This correctly sets 192.168.1.1 as the next-hop for all unknown destinations.

❌ Incorrect Options:

B. 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid because 0.0.0.0 cannot be a next-hop.

C. 0.0.0.0 255.255.255.255 192.168.1.1 → Invalid because the mask must be 0.0.0.0 for a default route.

D. [Huawei-Serial0] ip route-static 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid interface syntax.

✅ Reference: HCIA-Datacom Routing Guide – Default Route Configuration

Detailed Explanation:The command forward-mode direct-forward is used to configure the AC to enable direct forwarding, meaning that the AP will forward user data packets directly to the network without tunneling them through the AC, improving efficiency by reducing the load on the AC​.

A " Length/Type " field value of 0x0806 indicates an ARP (Address Resolution Protocol) frame, which is part of the Ethernet II frame standard. The source MAC address cannot be a broadcast address (FFFF-FFFF-FFFF), as ARP requests are sent from specific hosts. This field helps identify the protocol type used by the Ethernet frame​.

Detailed Explanation:Using DHCP provides several advantages:

It helps prevent IP address conflicts because the DHCP server dynamically assigns IP addresses, ensuring each device gets a unique one.

IP addresses can be reused by setting lease times, allowing the DHCP server to recycle addresses from devices that no longer need them.

Centralized configuration management is also possible. If network configuration details such as the DNS server change, the administrator can update these settings on the DHCP server, and all DHCP clients will automatically receive the new information​​.

Comprehensive and Detailed Explanation:

The first command:

ip route-static 10.1.1.0 24 12.1.1.1 permanent

Sets a static route to 10.1.1.0/24 via next-hop 12.1.1.1 and marks it permanent (remains in the table even if unreachable).

The second command:

ip route-static 10.1.1.0 24 13.1.1.1

Configures a backup route to 10.1.1.0/24 via next-hop 13.1.1.1.

This route only becomes active if the primary route (12.1.1.1) fails.

✅ Reference: HCIA-Datacom Routing Guide – Static Route Configuration

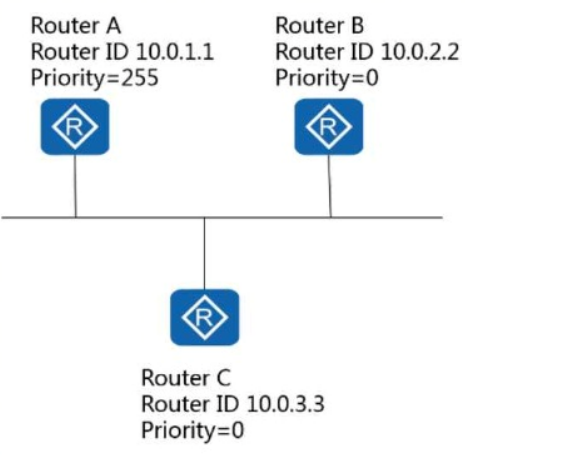

Statement A (Correct): DR and BDR must form an adjacency relationship to maintain routing information exchange.

Statement B (Incorrect): The router with the higher priority is elected as DR, not the lower one.

Statement C (Incorrect): DR is elected by routers within a broadcast/multi-access network, not necessarily all routers in the same network segment.

Statement D (Correct): If two routers have the same priority, the one with the higher Router ID becomes the DR.

Detailed Explanation:The protocol number for TCP in the IPv4 header is 6. Since Telnet uses TCP as its transport layer protocol, the protocol field in the IPv4 header will contain the value 6​​.

A Layer 2 ACL primarily matches Layer 2 information, such as source and destination MAC addresses. However, it does not match Layer 3 information like IP addresses, as Layer 2 ACLs are designed to control traffic based on MAC addresses rather than IP-based criteria. Layer 3 ACLs would be used to match IP addresses​.

Comprehensive and Detailed In-Depth Explanation:

In OSPF (Open Shortest Path First), the stable states of OSPF neighbor relationships are:

Full State: This is the highest state where routers have fully exchanged link-state information and formed an adjacency.

2-Way State: This indicates that two OSPF routers recognize each other as neighbors, but they may not necessarily exchange full routing information (especially if they are not designated routers).

Incorrect Options:

Down (B): This is an unstable state indicating no OSPF communication.

Attempt (C): This is only used in NBMA (Non-Broadcast Multi-Access) networks when a neighbor is manually configured but has not responded yet.
