Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

Detailed Explanation:

Probe Request: Sent by the client to detect nearby APs.

Probe Response: Sent by APs in response to the client’s request.

Beacon: Periodically broadcast by APs to announce their presence and SSID. The Discovery packet type does not exist in the 802.11 standard.

(Reference: HCIA-WLAN Training Material, WLAN Packet Types)

Comprehensive Explanation: The interface configuration shows that VLANs 2, 3, and 100 are tagged, meaning frames belonging to these VLANs are transmitted with VLAN tags. VLANs 4 and 6 are untagged, meaning frames for these VLANs are transmitted without tags. The command port hybrid tagged vlan 2 to 3 100 specifies that data frames for VLANs 2, 3, and 100 are transmitted with tags, while port hybrid untagged vlan 4 6 configures the interface to transmit untagged frames for VLANs 4 and 6.

Private vs Public IPs:

192.168.1.2 belongs to the private IP range (192.168.0.0/16).

Private IP addresses cannot be routed on the Internet and must be translated.

Network Address Translation (NAT):

NAT converts private IP addresses to a public IP so that the device can access the Internet.

Conclusion:

NAT is required to access the Internet from a private IP, making the statement TRUE.

Comprehensive Explanation: Fit APs (Access Points) are designed to work in conjunction with an Access Controller (AC). They rely on the AC for configuration, management, and control of their wireless services. Without an AC, a Fit AP cannot function independently or provide wireless services. This is in contrast to Fat APs, which have their own management capabilities and can operate independently.

SNMP Agent Functionality:Each network device running SNMP includes an agent process that collects and manages information about the device ' s operations. This process interfaces with the SNMP manager to provide network monitoring and management capabilities​​.

Comprehensive Explanation: A routing table contains several key elements:

Cost: Also known as metric, this indicates the cost associated with reaching a specific destination, such as the number of hops or link speed.

Next-hop address: This is the IP address of the next device along the route that packets should be forwarded to.

Protocol: The routing protocol (e.g., OSPF, RIP) that determined the route.

Interface: The physical or logical interface through which the router sends packets to reach the destination.

Destination/Mask: The destination network or subnet and the associated subnet mask define the range of IP addresses for which this route is valid. These elements together allow routers to efficiently forward traffic to the correct destinations.

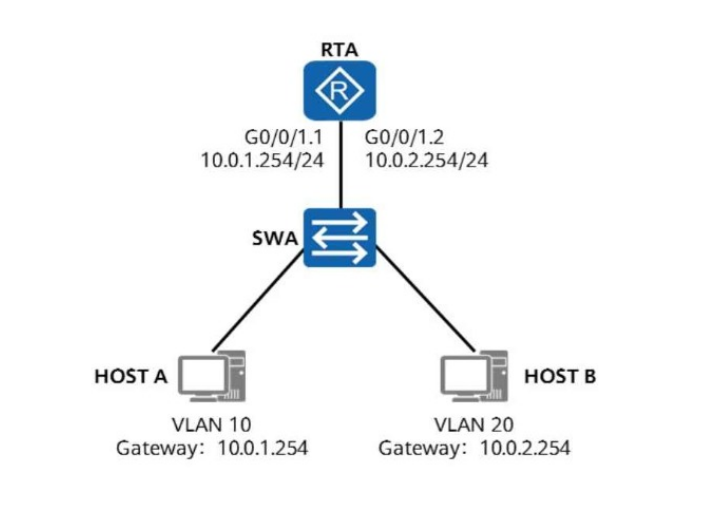

In one-arm routing (or router-on-a-stick) mode, a single physical link (with sub-interfaces) can carry traffic between multiple VLANs, reducing the number of physical links required. This approach minimizes cabling and port usage while still enabling inter-VLAN communication. However, it does not inherently reduce IP address usage, routing table entries, or the number of devices required​.

Comprehensive Explanation: When a switch port receives an untagged frame, the port adds the default VLAN ID, known as the PVID (Port VLAN ID), to the frame. This ensures that the frame is associated with a specific VLAN before it is forwarded. The PVID represents the VLAN to which the port belongs and is used when the port receives untagged traffic. This behavior is typical for access and hybrid ports in a VLAN-enabled switch configuration.

LACP Active Interface Election Overview:In LACP mode, active interfaces are elected based on interface priorities. If the interface priorities are identical, the system compares the interface numbers, and the one with the smaller number is preferred.

Analysis of Options:

Option A: Incorrect because interface priorities alone are insufficient when multiple interfaces share the same priority.

Option B: Device priorities are not used in this scenario for selecting active interfaces.

Option C: Correct. This process aligns with the behavior described for LACP, where interface priorities are compared first, and interface numbers are used as a tie-breaker.

Option D: Incorrect because interface numbers are only used as a secondary criterion.

Correct Answer:C. Interface priorities are compared first. If priorities of interfaces on the Actor are the same, interfaces with smaller interface numbers are elected as active interfaces​​.
