Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

When a Windows host first boots up and does not have an IP address, it sends a DHCP Discover message to find a DHCP server.

The source IP address of this packet is 0.0.0.0, meaning the host does not yet have an assigned IP.

The destination IP address is 255.255.255.255, which is a broadcast address.

Option A (Incorrect - 127.0.0.1): This is the loopback address, used for internal testing.

Option B (Incorrect - 169.254.2.33): This belongs to the APIPA (Automatic Private IP Addressing) range, assigned when a DHCP server is unavailable.

Option C (Correct - 0.0.0.0): The correct source IP for the initial DHCP Discover packet.

Option D (Incorrect - 255.255.255.255): This is used as the destination IP for broadcasting, not the source.

Thus, the correct answer is C.

An Ethernet II frame has a standard length range of 64 to 1518 bytes, including the Ethernet header. This range accounts for both the minimum frame size (to prevent collisions) and the maximum frame size (to avoid excessive delay). This specification is in line with IEEE 802.3 standards for Ethernet frames​.

Wireless networks commonly use Access Controllers (ACs) and Access Points (APs) to manage user connectivity.

Option A (Incorrect): Fat APs operate independently and do not require an AC to function. Instead, Fit APs require ACs to manage them centrally.

Option B (Correct): An AC (Access Controller) is usually deployed at the aggregation layer of a network. It provides centralized control over Fit APs, ensuring high-speed, secure, and reliable WLAN services. This is the standard design in enterprise WLAN architectures.

Option C (Incorrect): Fit APs do not handle authentication and forwarding on their own. Instead, they rely on an AC for these functions.

Option D (Incorrect): Many wireless devices (including APs and ACs) have wired interfaces for uplink connectivity to switches or other network devices.

Thus, the correct answer is B. An AC is usually deployed at the aggregation layer of a network to provide high-speed, secure, and reliable WLAN services.

Direct Route (C): This has the highest priority because it represents networks directly connected to a router’s interfaces.

Static Route (B): These are manually configured but have lower priority than direct routes.

OSPF Route (D): OSPF dynamically learns routes and assigns them based on cost, but it has lower priority than direct and static routes.

RIP Route (A): RIP has the lowest priority due to its high administrative distance (120).

Priority order (from highest to lowest):Direct Route > Static Route > OSPF Route > RIP Route.

Thus, the correct answer is C (Direct Route).

Comprehensive and Detailed Explanation:

BPDU (Bridge Protocol Data Unit) packets are exchanged only on ports in Blocking, Listening, and Learning states.

Ports in Forwarding state DO NOT receive BPDU packets (BPDUs are only processed by non-designated ports).

If a forwarding port starts receiving BPDUs, it goes back to Listening state to re-evaluate STP topology.

✅ Reference: HCIA-Datacom Switching Guide – STP Port States

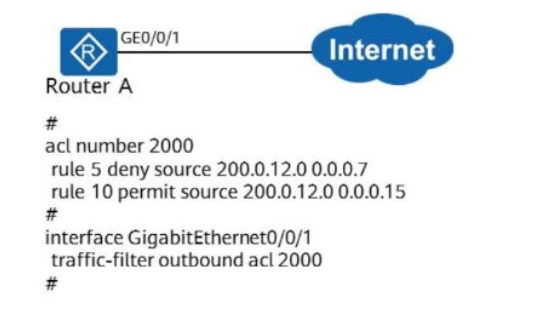

To determine which statement is incorrect, we need to analyze the ACL configuration on Router A and understand how it filters outbound traffic to the Internet. Let's break down the configuration step by step, referencing HCIA Datacom principles for ACL processing and traffic filtering.

1. Understanding the ACL Configuration

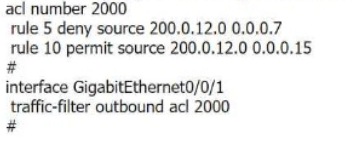

The configuration on Router A is as follows:

text

WrapCopy

acl number 2000

rule 5 deny source 200.0.12.0 0.0.0.7

rule 10 permit source 200.0.12.0 0.0.0.15

#

interface GigabitEthernet0/0/1

traffic-filter outbound acl 2000

#

ACL Number 2000: This is a basic ACL used to filter traffic based on source IP addresses.

Rule 5: deny source 200.0.12.0 0.0.0.7

The wildcard mask 0.0.0.7 translates to a subnet mask of /29 (255.255.255.248).

The IP range for 200.0.12.0 0.0.0.7 is calculated as:

Network address: 200.0.12.0

Broadcast address: 200.0.12.7

Usable host addresses: 200.0.12.1 to 200.0.12.6 (6 usable addresses in a /29 subnet).

Therefore, this rule denies traffic from any source IP in the range 200.0.12.1–200.0.12.6.

Rule 10: permit source 200.0.12.0 0.0.0.15

The wildcard mask 0.0.0.15 translates to a subnet mask of /28 (255.255.255.240).

The IP range for 200.0.12.0 0.0.0.15 is:

Network address: 200.0.12.0

Broadcast address: 200.0.12.15

Usable host addresses: 200.0.12.1 to 200.0.12.14 (14 usable addresses in a /28 subnet).

Therefore, this rule permits traffic from any source IP in the range 200.0.12.1–200.0.12.14.

Interface Configuration: The ACL 2000 is applied outbound on interface GigabitEthernet0/0/1, meaning it filters traffic leaving Router A toward the Internet.

2. ACL Processing Logic (HCIA Datacom Reference)

According to HCIA Datacom documentation (e.g., Huawei ACL fundamentals), ACLs are processed in sequential order, and the first matching rule determines the action (permit or deny). If no rule matches, the implicit deny rule at the end of the ACL blocks the traffic. In this case:

Rule 5 denies traffic from 200.0.12.1–200.0.12.6.

Rule 10 permits traffic from 200.0.12.1–200.0.12.14.

Since Rule 5 is processed before Rule 10, any IP in the overlap (i.e., 200.0.12.1–200.0.12.6) will be denied by Rule 5, even though Rule 10 would permit it.

IPs outside 200.0.12.1–200.0.12.6 but within 200.0.12.1–200.0.12.14 are permitted by Rule 10.

Any IP not matching Rule 5 or Rule 10 is implicitly denied (but no such IPs are listed in the options).

3. Evaluating Each Option

Now, let’s check each host IP address against the ACL rules to determine if they can access the Internet:

A. The host with the source IP address 200.0.12.6 cannot access the Internet.

200.0.12.6 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

B. The host with the source IP address 200.0.12.8 cannot access the Internet.

200.0.12.8 does not fall within the range 200.0.12.1–200.0.12.6 (denied by Rule 5).

It does fall within the range 200.0.12.1–200.0.12.14 (permitted by Rule 10).

Therefore, 200.0.12.8 is permitted to access the Internet, making this statement incorrect.

C. The host with the source IP address 200.0.12.2 cannot access the Internet.

200.0.12.2 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

D. The host with the source IP address 200.0.12.4 cannot access the Internet.

200.0.12.4 falls within the range 200.0.12.1–200.0.12.6, which is denied by Rule 5.

Therefore, this statement is correct (the host cannot access the Internet).

4. Conclusion

The only incorrect statement is B, as the host with the source IP address 200.0.12.8 can access the Internet because it is permitted by Rule 10 and not denied by Rule 5.

5. HCIA Datacom References

This analysis aligns with the HCIA Datacom curriculum, specifically:

ACL Fundamentals: Huawei’s documentation on basic ACLs (e.g., ACL 2000–2999 for IPv4) and their rule processing order (first match wins).

Traffic Filtering: Outbound ACL application on interfaces, as described in Huawei router configuration guides.

Wildcard Mask Calculation: Standard IP addressing and subnetting principles for determining IP ranges (e.g., /29 and /28 subnets).

These principles are detailed in the HCIA Datacom V1.0 training materials, particularly in the sections on ACL configuration, IP addressing, and interface-based traffic control.

In IPv6, addresses with the FE80::/10 prefix are Link-Local Addresses.

Option A (Incorrect - Global unicast address): These have prefixes such as 2000::/3.

Option B (Incorrect - Multicast address): Multicast addresses start with FF00::/8.

Option C (Correct - Link-local address): FE80::/10 is reserved for Link-Local addresses, used for communication within a local link.

Option D (Incorrect - Anycast address): Anycast addresses are assigned to multiple interfaces but are not identified by a specific prefix.

Thus, the correct answer is C.

Comprehensive Explanation: In Spanning Tree Protocol (STP), the Message Age in the BPDU (Bridge Protocol Data Unit) sent by the root bridge is set to 0. As BPDUs are forwarded by non-root switches, the Message Age is incremented. This timer is used to ensure that outdated information is not propagated indefinitely through the network. If the Message Age reaches a configured maximum value, the BPDU is discarded, and the network topology is recalculated.
