Huawei H12-811_V1.0 - HCIA-Datacom V1.0 Exam

Comprehensive Explanation: The PVID (Port VLAN ID) is the VLAN to which untagged data frames are assigned on a hybrid port. In this configuration, the port hybrid untagged vlan 4 6 command indicates that VLANs 4 and 6 are untagged, and the PVID will be the lowest untagged VLAN, which is VLAN 4. Tagged frames for VLANs 2, 3, and 100 will be forwarded as tagged, but untagged traffic will belong to VLAN 4 by default.

Device Interconnection Requirements:

Device interconnection (such as point-to-point links) requires only two IP addresses: one for each device.

A subnet mask of /30 (255.255.255.252) provides four total addresses (2 usable, 1 network, 1 broadcast).

Efficiency:

Using a /30 subnet avoids wasting IP addresses, making it ideal for point-to-point links.

Why Other Options Are Incorrect:

B (32): /32 is used for single-host IP addresses, not links.

C (24): /24 is excessive for point-to-point links, providing 254 usable addresses.

D (16): /16 provides 65,534 addresses, which is highly inefficient.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 3: IP Addressing.

IP Address Uniqueness on VLANIF Interfaces:Each VLANIF interface represents a different logical interface, often tied to distinct subnets. IP addresses for VLANIF interfaces must be unique on the same switch to prevent address conflicts and routing issues​​.

Correct Answer:TRUE. The IP addresses of VLANIF interfaces on the same switch must be different.

Detailed Explanation:The priority (preference) of static routes can indeed be manually specified in Huawei devices. By default, static routes have a preference of 60, but this can be changed to create backup routes or prioritize certain routes over others.

A broadcast address, with all host bits set to 1, is used for broadcasting messages to all devices within a network segment. It cannot be assigned to a specific host, as its purpose is to reach every device in the subnet. Therefore, it is reserved for broadcast communication and cannot serve as an individual host address​.

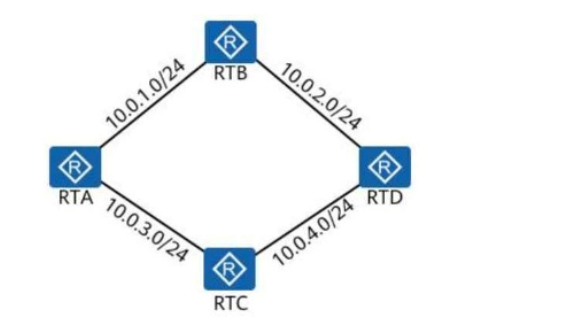

In OSPF networks, a DR (Designated Router) is elected for each broadcast domain, such as each Ethernet segment. Given the topology where there are multiple Ethernet segments, a DR will be elected in each segment, resulting in three DRs based on the configuration and network design​.

Huawei AR G3 series routers support all SNMP versions (v1, v2c, and v3) by default.

SNMPv3 provides enhanced security features compared to SNMPv1 and SNMPv2c.

Thus, the correct answer is A (TRUE).

The BSSID (Basic Service Set Identifier) serves as the MAC address identifier for each Virtual Access Point (VAP) on an AP. Each BSSID uniquely identifies an SSID on a specific radio of an AP, allowing clients to associate with the correct access point in a multi-AP environment​.

B (Correct) - HTTP: Uses TCP port 80 for web traffic.

C (Correct) - FTP: Uses TCP ports 20/21 for file transfer.

A (Incorrect) - TFTP: Uses UDP port 69, not TCP.

D (Incorrect) - Ping: Uses ICMP, which is neither TCP nor UDP.

Thus, the correct answers are B and C.
