Huawei H12-831_V1.0 - HCIP-Datacom-Advanced Routing & Switching Technology V1.0

Comprehensive and Detailed In-Depth Explanation:

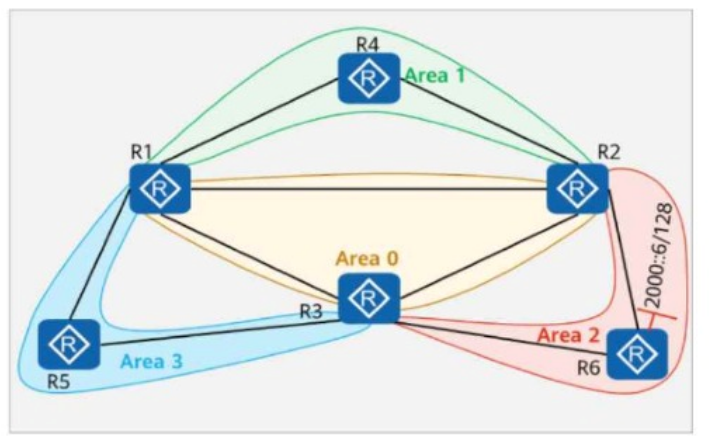

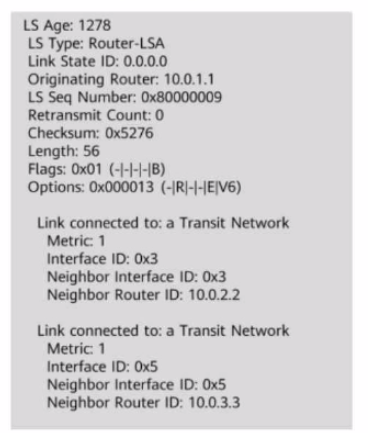

Understanding OSPFv3 Areas and Routing Behavior

OSPFv3 Area Types in the Network:

Area 1 (Stub Area): Does not accept external LSAs (Type 5) but can receive Inter-Area-Prefix-LSAs (Type 3).

Area 2 (Common Area): Fully functional area that allows both Type 3 (Inter-Area) and Type 5 (External) LSAs.

Area 3 (NSSA - Not-So-Stubby Area): Does not accept Type 5 (External) LSAs but allows ASBRs to inject external routes using Type 7 LSAs, which are later converted to Type 5 in other areas.

Effect of stub no-summary Command on Area 1 (Configured on R2):

This command prevents Type 3 LSAs from entering Area 1, meaning R4 will not learn about 2000::6/128 from other areas.

R4 only has a default route (::/0) provided by R2 but not individual routes like 2000::6/128.

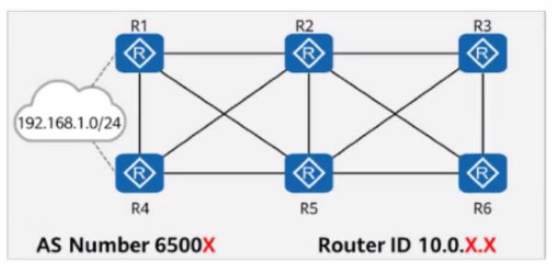

Route and Packet Flow Analysis

A. "The LSDB of R4 contains the Inter-Area-Prefix-LSA that is generated by R1 and describes 2000::6/128." ❌ (False)

R4 is in Area 1 (a totally stub area), which does not receive Type 3 LSAs.

Since 2000::6/128 is an external route from Area 2, it will not be present in R4’s LSDB.

Thus, R4 does NOT have the Inter-Area-Prefix-LSA for 2000::6/128.

❌ Statement A is incorrect.

B. "The path for data packets from R4 to 2000::6 is R4 -> R1 -> R5 -> R3 -> R6." ❌ (False)

R4 is in a totally stub area (Area 1), and it does not have a specific route for 2000::6/128.

It only has a default route (::/0) pointing to R2.

If R4 forwards traffic, it will send it to R2, NOT via R1, R5, and R3.

❌ Statement B is incorrect.

C. "The routing table of R4 does not contain the route 2000::6/128." ✅ (True - Correct Answer)

R4 is in a totally stub area (Area 1), meaning it only receives a default route from R2 (::/0).

It does NOT receive specific routes like 2000::6/128.

✅ Statement C is correct.

D. "The path for data packets from R4 to 2000::6 is R4 -> R2 -> R6." ❌ (False)

While R4 does forward all unknown traffic to R2 (due to the default route), R2 will NOT directly forward to R6.

R2 is an ABR (Area Border Router), and the actual path to 2000::6 must traverse Area 2, likely through other routers.

❌ Statement D is incorrect.

Final Conclusion:

✅ C. The routing table of R4 does not contain the route 2000::6/128.

Thus, the correct answer is: C. The routing table of R4 does not contain the route 2000::6/128.

Comprehensive and Detailed In-Depth Explanation:

Step 1: Analyzing the Primary Path

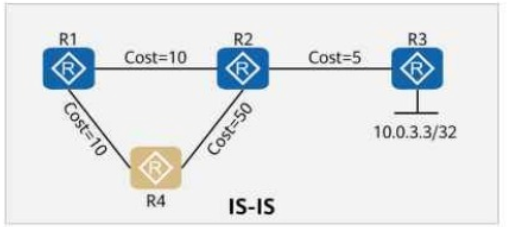

The given network uses IS-IS Auto FRR, which ensures a backup route in case of failure.

The shortest path from R1 to 10.0.3.3/32 is calculated based on the OSPF link costs:

Path 1 (Primary Path): R1 → R2 → R3

Cost: 10 (R1→R2) + 5 (R2→R3) = 15 ✅

Step 2: Checking the Backup Path

The statement claims that the backup path is R1 → R4 → R2 → R3. Let's calculate the cost:

Path 2 (Backup Path via R4): R1 → R4 → R2 → R3

Cost: 10 (R1→R4) + 50 (R4→R2) + 5 (R2→R3) = 65 ❌ (Too high)

The backup path should be an alternative shortest path that is as close as possible to the primary path in cost.

R1 → R4 → R2 → R3 is not a feasible backup path because the cost (65) is significantly higher than the primary path (15).

Step 3: Correct Backup Path Selection

If IS-IS Auto FRR is enabled, a feasible backup path should have a cost close to the primary path.

In this scenario, no viable alternative path meets the Auto FRR requirements efficiently.

The given backup path is incorrect.

Final Answer: ✅ FALSE (Option B)

References:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 – IS-IS Auto FRR Mechanism

OSPF Route Selection and Fast Reroute Principles

OSPF and IS-IS Path Cost Calculation

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) packets are directly encapsulated in IPv6 without using UDP or TCP.

The Next Header field in IPv6 is similar to the Protocol field in IPv4, indicating the protocol type of the payload.

IANA (Internet Assigned Numbers Authority) has assigned protocol number 89 to OSPF.

OSPFv3 packets always use Next Header value = 89 inside IPv6 headers.

📖 Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPFv3 Packet Encapsulation

Comprehensive and Detailed In-Depth Explanation:

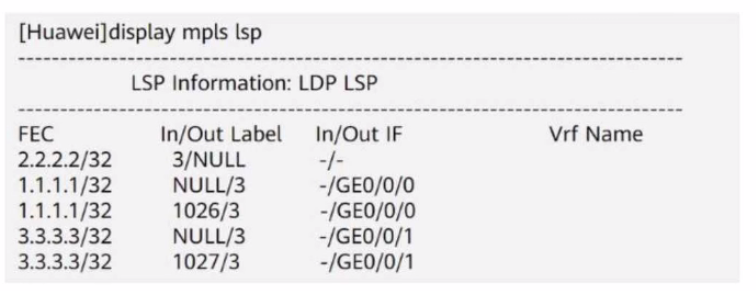

MPLS packet forwarding is based on label information stored in the LFIB (Label Forwarding Information Base).

The role of different tables in MPLS:✅ RIB (Routing Information Base): Stores routing information, but does not handle MPLS label forwarding.✅ LIB (Label Information Base): Stores label bindings but is used for control-plane operations.✅ FIB (Forwarding Information Base): Used for IP forwarding, not MPLS forwarding.✅ LFIB (Label Forwarding Information Base): The correct table, which maps incoming labels to outgoing labels (or actions like swap, push, pop) and is used for actual MPLS packet forwarding.

📖 Reference: HCIP-Datacom Advanced Routing & Switching Technology – MPLS LFIB and Label Forwarding
