Huawei H12-841_V1.5 - HCIP-Datacom-Campus Network Planning and Deployment V1.5

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

NQA on Huawei devices is designed to actively measure network performance by simulating service traffic and monitoring protocol behavior. It supports commonconnectivity and routing-related protocolsto detect delay, jitter, packet loss, and reachability.

NQA supportsICMP, which is widely used to test network connectivity and latency, makingoption D correct. It also supportsrouting protocol detection, including OSPF, enabling administrators to monitor routing convergence and path availability, validatingoption A.

DHCP and SNMP are management and configuration protocols rather than traffic or routing performance protocols. NQA does not actively simulate or monitor DHCP address allocation behavior or SNMP management communication, makingoptions B and C incorrect.

Thus, NQA focuses on traffic forwarding and routing health rather than control-plane management protocols.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Telemetry is a next-generation network data collection technology designed to overcome the limitations of traditional SNMP polling. One of its major advantages is that it ismodel-driven, relying onYANG modelsto define structured and extensible data formats. This allows Telemetry to support various data types and provides stronger semantic meaning than SNMP MIBs, makingoption A correct.

Another key advantage ishigh-frequency data collection. Telemetry supportssecond-level or even sub-second-level reporting, enabling more precise and real-time network monitoring. This capability is critical for intelligent O&M scenarios such as fault prediction, traffic analysis, and SLA assurance. SNMP, by contrast, typically relies on periodic polling with much lower precision. Therefore,option D is correct.

Telemetry does not establish sessions based on SSH. Instead, it typically uses protocols such asgRPCover secure transport channels like TLS. Hence,option B is incorrect.

Option C is also incorrect because Telemetry focuses ondata subscription and reporting, not on configuring or managing device databases. Configuration management remains the responsibility of controllers or network management systems, not the Telemetry mechanism itself.

According to HCIP Datacom Campus Network documentation, Telemetry’s strengths lie in model-driven data representation and high-precision, real-time monitoring, making A and D the correct answers.

In the Huawei CloudCampus Solution, the architecture is typically divided into themanagement layerand thenetwork layer. The management layer, represented by platforms such as iMaster NCE-Campus, is responsible for centralized configuration, monitoring, policy delivery, and intelligent O&M. Communication between these two layers relies on standardizedmanagement and control protocols.

NETCONFis a key protocol used between the management layer and network devices. It provides a structured and reliable mechanism for delivering configurations, querying device status, and performing automated service deployment. NETCONF works closely with data models to ensure consistency and accuracy in configuration management.

SNMPis also widely used in the CloudCampus Solution for monitoring and fault management. Through SNMP, network devices report performance data, alarms, and status information to the management platform, enabling real-time visibility and proactive maintenance.

YANGis not a transport protocol but a data modeling language; however, it plays a critical role in management-layer communication. YANG models define the structure of configuration and operational data exchanged between the controller and devices, typically carried over NETCONF. Therefore, YANG-related information is effectively exchanged between the management and network layers.

RADIUS, on the other hand, is used for user authentication, authorization, and accounting. It operates between network devices and authentication servers, not between the management layer and the network layer.

Thus, the correct options areNETCONF, SNMP, and YANG.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

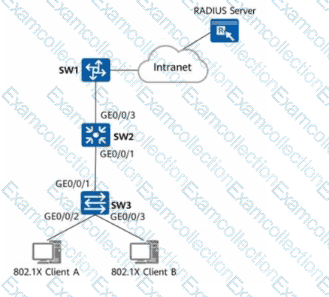

To deploy802.1X authenticationon Huawei campus switches and use aRADIUS serverfor user authentication and authorization, several core configuration components are mandatory. All four options listed are required for a complete and functional deployment.

Anauthentication domainis mandatory because it defines where user authentication requests are processed and which AAA schemes are used. Without a domain, the switch cannot determine how to handle authentication requests, makingoption A mandatory.

Anauthentication profileis also required. This profile binds authentication methods (such as 802.1X), authentication domains, and access policies together. Interfaces reference the authentication profile to determine how users are authenticated, sooption B is mandatory.

An802.1X access profiledefines detailed 802.1X parameters, such as authentication mode, reauthentication behavior, and client handling. This profile is bound to interfaces to enable 802.1X authentication on specific ports, makingoption C mandatory.

Finally, anAAA schemeis essential because it defines the authentication, authorization, and accounting methods used by the device, including RADIUS server configuration. Without an AAA scheme, the device cannot communicate with the RADIUS server or obtain user authorization information. Therefore,option D is mandatory.

According to HCIP Datacom Campus Network documentation, all four configuration steps are required to successfully enable 802.1X authentication with RADIUS-based access control.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Huawei’s free mobility solution is based onsecurity group–based policy control. In this architecture, users are dynamically associated with security groups after authentication. These security group identifiers are thencarried in user trafficas metadata when packets traverse the campus network.

When traffic reaches apolicy enforcement device, such as an edge node or border node, the device does not rely on traditional attributes like IP address, MAC address, or port number to make forwarding decisions. Instead, it extracts thesource and destination security group informationembedded in the traffic and matches it against the security policy matrix configured on the controller.

This mechanism enables identity-based and location-independent access control. Even if a user moves to a different access point or changes an IP address, the same security policies continue to apply as long as the user remains in the same security group. This is the core advantage of free mobility in Huawei campus networks.

Port numbers, MAC addresses, and IP addresses are traditional Layer 2 and Layer 3 identifiers, but they do not provide sufficient context for identity-based policy enforcement. According to HCIP Datacom Campus Network documentation, security group information is the key attribute used for policy lookup and enforcement in free mobility solutions. Therefore, option A is correct.

Huawei’s free mobility solution is designed to provide consistent user access control and policy enforcement across the campus network, regardless of user location. According to HCIP Datacom Campus Network documentation, the solution is built around severalclearly defined core roles, each with specific responsibilities.

Theauthentication deviceis a core role. It performs user authentication using methods such as 802.1X, MAC authentication, or portal authentication, and associates user identity information with IP addresses or security groups.

Thepolicy enforcement deviceis also a core role. It enforces security and access control policies based on IP-security group information, ensuring that traffic complies with defined policies wherever the user is connected.

iMaster NCE-Campusis another core component of the free mobility solution. It acts as the centralized management and control platform, responsible for policy definition, IP-security group management, and coordination of information distribution between authentication points and policy enforcement points.

Thepolicy control device, however, isnot a core roleexplicitly defined in Huawei’s free mobility architecture. Policy control functions are integrated into iMaster NCE-Campus rather than implemented as a separate standalone device role. Therefore, “policy control device” is not recognized as a core role in the free mobility solution.

As a result, option B is the correct answer, while the other options represent essential components of Huawei’s free mobility solution as defined in HCIP Datacom Campus Network materials.

In the Huawei CloudCampus Solution, switches must be able toautomatically connect to and be managed by iMaster NCE-Campus. To achieve this, Huawei provides specificdeployment and onboarding modesthat allow switches to discover the controller and establish a management relationship. According to HCIP Datacom Campus Network documentation, Huawei switches supportHuawei registration centerandDHCP Option 148as standard deployment modes.

TheHuawei registration centeris a cloud-based mechanism that enables devices to automatically register with iMaster NCE-Campus after they are powered on and connected to the network. Once registered, the controller can identify, authenticate, and centrally manage the switches without requiring manual configuration. This mode is commonly used in cloud-managed or large-scale deployments where zero-touch provisioning is required.

DHCP Option 148is another supported deployment mode. Through this option, the DHCP server provides the address information of iMaster NCE-Campus to the switch during IP address allocation. After receiving this information, the switch automatically establishes a management connection with the controller. This method is widely used in enterprise campus environments where DHCP services are already available.

In contrast, theWeb interfaceandCLIare local device management methods, not deployment modes in the CloudCampus architecture. They are mainly used for basic configuration, troubleshooting, or initial setup, rather than for controller-based deployment.

Therefore, the correct deployment modes supported by Huawei switches in the CloudCampus Solution areHuawei registration centerandDHCP Option 148.

BGP EVPN is an extension of the BGP protocol designed to support large-scale Layer 2 and Layer 3 virtualization, such as VXLAN-based campus and data center networks. To achieve this, BGP EVPN defines multipleEVPN route typesthrough BGP extensions, including MAC/IP Advertisement routes, Inclusive Multicast routes, Ethernet Segment routes, and IP Prefix routes. Therefore, statement A is correct.

In BGP EVPN, routing information is carried using theMP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information)attribute. EVPN-specific NLRI formats are encapsulated within MP_REACH_NLRI, making statement C correct.

Each EVPN route includes aRoute Distinguisher (RD), which is part of the EVPN NLRI itself. The RD is used to ensure route uniqueness across different EVPN instances. Since the EVPN NLRI is carried inside MP_REACH_NLRI, the RD is effectively carried through MP_REACH_NLRI as well, which makes statement B correct.

Statement D is incorrect.Route Targets (RTs)are not carried in MP_REACH_NLRI. Instead, RTs are transmitted usingBGP extended community attributes, which control route import and export policies between EVPN instances. RTs are used for VPN membership control, not for route reachability advertisement.

In summary, BGP EVPN relies on BGP extensions and MP_REACH_NLRI to transport EVPN routing information and RDs, while RTs are carried separately as extended community attributes. Hence, the correct answers are A, B, and C.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In IPsec, bothAuthentication Header (AH)andEncapsulating Security Payload (ESP)are implemented as IP protocols and are identified by specificIP protocol numbersin the IP header. These protocol numbers allow receiving devices to determine how the packet payload should be processed.

The protocol number assigned toAH is 51. AH provides data origin authentication, data integrity, and anti-replay protection but does not offer encryption. When an IP packet contains AH, the protocol field in the IP header is set to 51 so that the receiver can correctly process the AH header.

The protocol number assigned toESP is 50. ESP provides data confidentiality through encryption and can also provide integrity and authentication. Packets protected by ESP use protocol number 50 in the IP header.

The other options are incorrect because protocol number6represents TCP and17represents UDP, which are transport-layer protocols rather than IPsec protocols. Protocol number57is unrelated to IPsec.

According to HCIP Datacom Campus Network documentation and standard IP protocol assignments, the correct protocol numbers are AH = 51 and ESP = 50, making option B the correct answer.

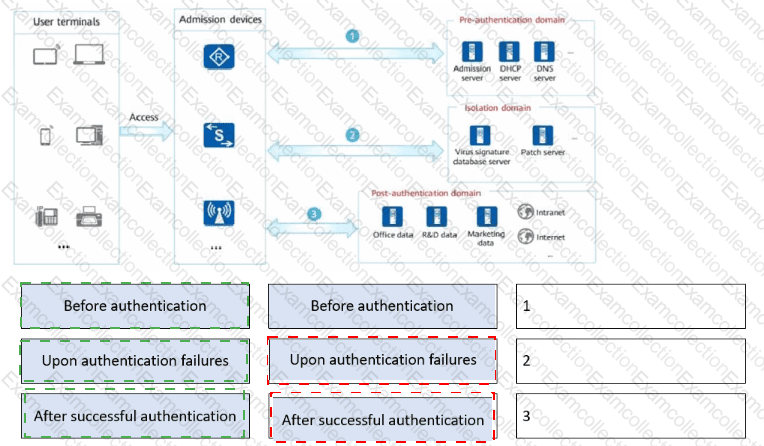

Position 1 → Before authenticationBefore users are authenticated, they are placed in thepre-authentication domain. At this stage, access is strictly limited to basic network services such as theAdmission server,DHCP server, andDNS server. This allows users to obtain IP addresses and reach authentication-related services only.

Position 2 → Upon authentication failuresIf user authentication fails or security posture checks (such as antivirus or patch verification) do not pass, users are redirected to theisolation domain. In this domain, access is restricted to remediation resources likevirus signature database serversandpatch servers, preventing users from accessing business services while allowing problem resolution.

Position 3 → After successful authenticationAfter authentication succeeds, users enter thepost-authentication domain. At this stage, full or role-based access is granted to enterprise resources such asoffice data,R&D data,marketing systems, as well asintranet or Internet services, based on assigned policies.

This mapping reflects Huawei’s standardNAC domain-based access control model, ensuring secure, staged network access.
