Huawei H12-841_V1.5 - HCIP-Datacom-Campus Network Planning and Deployment V1.5

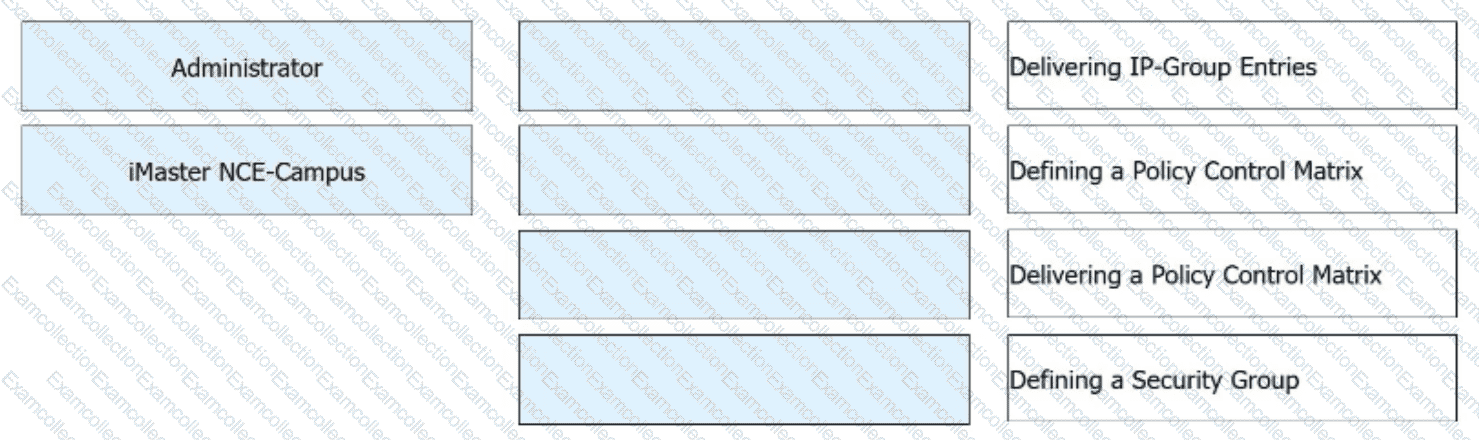

Administrator:

– Defining a Security Group

– Defining a Policy Control Matrix

iMaster NCE-Campus:

– Delivering IP-Group Entries

– Delivering a Policy Control Matrix

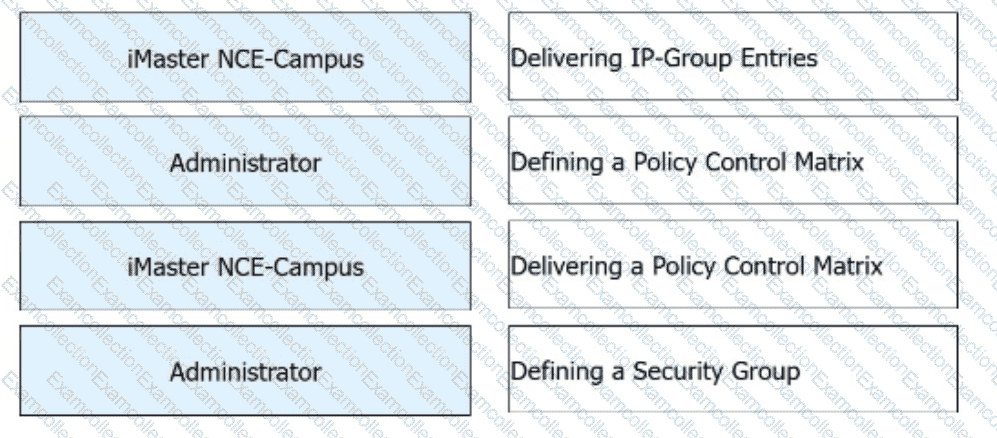

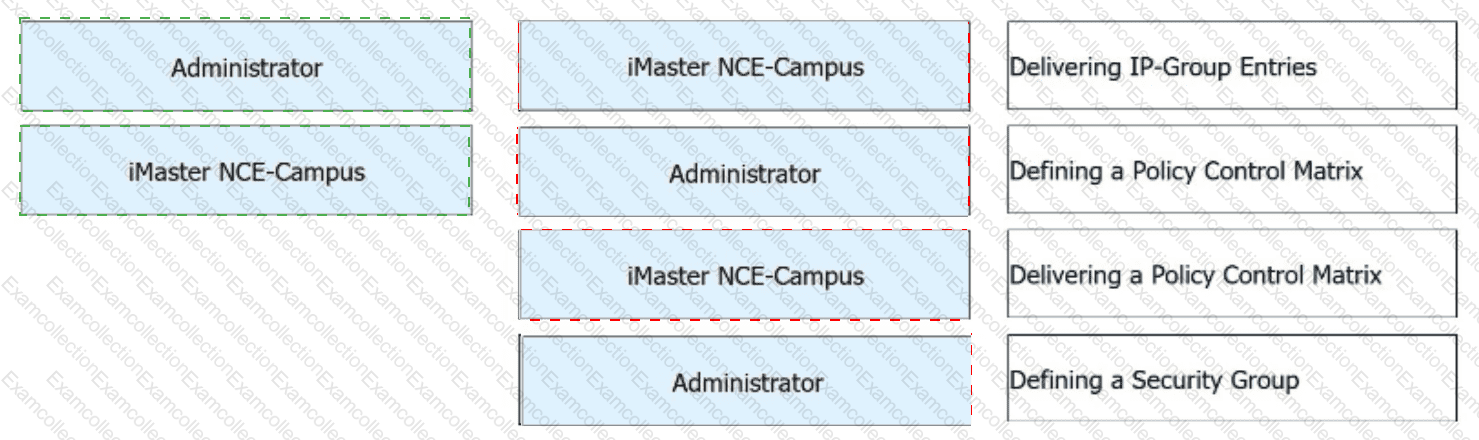

In Huawei’s free mobility solution, responsibilities are clearly divided betweenadministratorsandiMaster NCE-Campusto achieve centralized control with automated policy delivery. Administrators are responsible forpolicy and security intent definition, while iMaster NCE-Campus handlesautomatic distribution and enforcement coordination.

Administrators firstdefine security groups, which represent logical user or terminal categories such as employees, guests, or IoT devices. These security groups form the basis of identity-based access control in the campus network. Administrators alsodefine the policy control matrix, which specifies communication permissions between different security groups, such as allow, deny, or redirect. This step represents business intent and security requirements and must be manually planned and configured.

Once these definitions are complete,iMaster NCE-Campus takes over the execution phase. It automaticallydelivers the policy control matrixto authentication points and policy enforcement points, translating high-level policies into device-level configurations. This ensures consistent policy enforcement across the entire campus network.

In addition, iMaster NCE-Campus automaticallydelivers IP-group entries, which bind user IP addresses to security groups. These entries are dynamically generated based on authentication results and are distributed to relevant devices so that traffic can be correctly identified and controlled as users move.

This division of labor aligns with HCIP Datacom Campus Network design principles, enabling simplified administration, reduced manual configuration, and truly seamless free mobility across the campus network.

In Huawei campus WLAN solutions, different WLAN architectures are designed to meet varying network scales, cost requirements, and management complexity. The architecture described in this question matches theLeader APsolution.

ALeader APcan operate independently without a dedicated wireless controller, while also having the capability to manage asmall number of subordinate APs. The Leader AP takes on lightweight control functions, such as basic configuration management and simple roaming coordination among the managed APs. This allows wireless users to roam between APs with minimal service interruption, meeting basic mobility requirements.

According to HCIP Datacom Campus Network documentation, the Leader AP architecture is characterized bylow deployment cost and simple maintenance. Since no separate AC is required and the number of APs is limited, network planning and configuration are straightforward. This significantly reduces the technical skill level required for daily operation and maintenance, making it suitable for small campuses, retail stores, branch offices, and small enterprises.

In contrast,Fat APsoperate completely independently and do not support centralized roaming management.AC + Fit AParchitectures are designed for medium to large networks and require higher investment and professional maintenance.Agile distributed APsolutions focus on centralized APs and RUs, which do not align with the independent AP management described.

Therefore, the WLAN architecture that best fits the given characteristics isLeader AP, making optionAthe correct answer.

Comprehensive and Detailed Explanation (200–250 words):

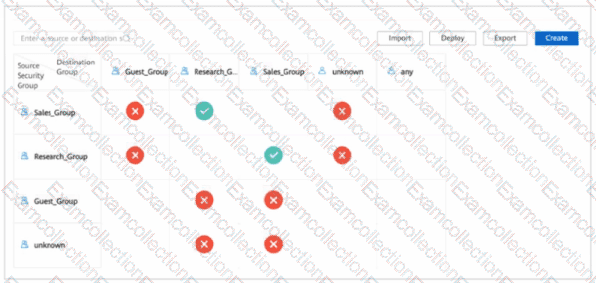

In an iMaster NCE-Campus policy control matrix, rows representsource security groupsand columns representdestination security groups. A green check mark indicates that communication is allowed, while a red cross indicates that communication is denied. This matrix enables fine-grained user access control in VXLAN-based virtualized campus networks.

From the figure, communication betweenGuest_Group and Research_Groupis explicitly denied in both directions, as indicated by red crosses. Therefore, statementsAandDare both correct. The matrix also shows a green check mark forSales_Group communicating with itself, meaning intra-group communication is permitted, makingstatement B correct.

Theunknowngroup represents users that are not classified into Guest_Group, Research_Group, or Sales_Group. In the matrix, the unknown group is not completely blocked from all resources by default; access behavior depends on explicit policy configuration. Since the figure does not indicate a universal deny policy for unknown users toward all destinations,statement C is incorrect.

According to HCIP Datacom Campus Network policy control design, security group–based access control allows administrators to precisely define which user groups can communicate, improving security and service isolation. Hence, the correct answers areA, B, and D.

WLAN planning and design aim to minimize co-channel and adjacent-channel interference while maximizing spectrum utilization and user experience. According to HCIP Datacom Campus Network WLAN design principles, proper channel planning is a core task, especially in environments with high user density.

On the2.4 GHz frequency band, only three non-overlapping channels—1, 6, and 11—are traditionally recommended. These channels do not overlap in frequency, which helps reduce interference between adjacent APs. Inhigh-density scenarios, to further improve spectrum utilization,channels 1, 5, 9, and 13can be used. This approach shortens the channel spacing but is acceptable when transmit power is well controlled and AP placement is carefully planned, enabling higher AP density while keeping interference manageable.

On the5 GHz frequency band, there are more available channels and less interference compared to 2.4 GHz. HCIP Datacom documentation recommendsstaggering high-frequency and low-frequency channels between adjacent APs. This staggered channel allocation reduces the likelihood of co-channel interference and improves overall throughput and roaming performance, especially in large or high-density campus deployments.

These channel planning strategies are standard WLAN design best practices supported by Huawei and are widely applied in enterprise campus networks. Therefore, the statement accurately reflects recommended WLAN planning principles and isTRUE.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In a CloudCampus virtualized campus network,Virtual Networks (VNs)provide service isolation, whilesecurity groupsenable identity-based access control. Even when inter-VN routing is technically available, communication between users in different VNs isnot permitted by default. Access permissions are controlled bysecurity group–based policies.

To allowR&D personnel and sales personnelto communicate, the network administrator must explicitly define thesecurity policy relationshipbetween the two security groups. This is achieved by deploying apolicy control matrixon iMaster NCE-Campus. The policy control matrix specifies whether traffic between source and destination security groups is allowed or denied and enforces the policy on relevant network devices.

Deploying an external network is unnecessary because communication is required within the campus network. Configuring access management relates to authentication and authorization during network access, not inter-group communication control. Configuring inter-VN communication enables routing capability but does not definewhethercommunication is permitted at the security policy level.

According to HCIP Datacom Campus Network documentation,security group communication permissions are controlled through the policy control matrix, making optionAthe correct task to meet the requirement.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In VXLAN-based networks, inter-subnet communication and external network access requireLayer 3 forwarding capabilities. ALayer 3 VXLAN gatewayperforms routing between different VXLAN segments (VNIs) and enables traffic to exit the VXLAN overlay toward traditional non-VXLAN networks.

The NVE interface is responsible only for VXLAN encapsulation and decapsulation and does not perform routing. VLANIF interfaces are used in traditional VLAN environments and do not provide VXLAN interworking. A Layer 2 VXLAN gateway supports bridging only and cannot route between subnets.

Therefore, the Layer 3 VXLAN gateway is the correct solution for inter-subnet communication and external access.

In a VXLAN-based campus or data center network, different node roles are defined to ensure proper traffic forwarding between traditional networks, the VXLAN overlay, and external networks. According to HCIP Datacom Campus Network documentation,edge nodes(also known as VTEPs) are responsible for encapsulating and decapsulating traffic between traditional Layer 2 or Layer 3 networks and the VXLAN overlay network. This allows legacy networks to communicate with virtualized VXLAN segments.

However, when traffic needs to leave the VXLAN fabric and accessexternal networks, such as a WAN, Internet, or another non-VXLAN domain, theborder nodeis used. The border node sits at the boundary of the VXLAN fabric and provides interconnection between the VXLAN network and external routing domains. It performs functions such as VXLAN termination, route advertisement, and traffic forwarding between overlay and underlay or external networks.

In BGP EVPN-based VXLAN deployments, the border node typically participates in BGP routing to exchange reachability information with external devices, ensuring seamless communication between VXLAN tenants and outside networks. This architectural separation improves scalability, simplifies network design, and enhances control over traffic entering or leaving the VXLAN fabric. Therefore, the correct node through which a VXLAN network accesses an external network is theBordernode.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Huawei iMaster NCE-Campus supports advanced networking solutions tailored for industry-specific scenarios, including thefinancial SD-WAN SRv6 solution. This solution leverages Segment Routing over IPv6 (SRv6) to enable precise traffic steering, deterministic forwarding, and end-to-end service scheduling across the network.

Because SRv6 introduces enhanced forwarding capabilities and control-plane features beyond standard campus networking functions, Huawei licenses these capabilities separately. To activate SRv6-based financial SD-WAN features on iMaster NCE-Campus, customers must obtain theSRv6 function package license. Without this license, SRv6-specific orchestration, scheduling, and optimization functions cannot be enabled.

According to HCIP Datacom Campus Network documentation, licensing ensures controlled feature activation and aligns with Huawei’s modular service enablement strategy. Therefore, the statement is TRUE, and option A is correct.

In Huawei campus networks, access authentication and authorization are implemented based on the AAA framework. After a user is successfully authenticated, the network enforces anauthorization result, which defines what network resources the user is allowed to access and how traffic is controlled. These authorization results are typically delivered by the authentication server or configured locally on network devices.

According to HCIP Datacom Campus Network documentation,authorization results focus on policy and access control attributes, not basic network parameter assignment. Common authorization items includeVLAN assignment,security group assignment, andACL application. VLANs determine the user’s logical network location, security groups enable group-based policy control, and ACLs restrict or permit traffic based on predefined rules. These elements directly affect access permissions and security enforcement.

AnIP address, however, does not need to be defined in the authorization result. In campus networks, IP addresses are usually assigned dynamically throughDHCP, either by a DHCP server or a DHCP relay function on network devices. The IP address allocation process is independent of user authorization and does not represent an access control policy.

Separating IP address assignment from authorization simplifies network design and improves scalability. It allows users to obtain IP addresses automatically while access rights are enforced consistently through identity-based policies. Therefore, among the given options,IP addressis not an item that must be defined in the authorization result.

Hence, the correct answer isB.

In this scenario, O&M personnel need toview packet exchange processesduring Wi-Fi access and precisely locate the root cause of the failure. According to HCIP Datacom Campus Network documentation, theProtocol Tracefunction of iMaster NCE-CampusInsight is specifically designed for this purpose.

Protocol trace allows administrators to analyzereal packet interaction processesbetween clients, APs, gateways, and servers during key access phases such as authentication, IP address assignment, and service establishment. By tracing protocols like DHCP, ARP, and authentication exchanges, O&M personnel can clearly identify where the access process fails.

In the given case, mobile terminals fail to obtain IP addresses due toDHCP address pool exhaustion. This problem can only be accurately identified by observing the DHCP request and response flow, such as repeated DHCP Discover messages without successful Offer messages. Protocol trace visualizes this interaction step by step, making it easy to confirm that the DHCP server cannot allocate new IP addresses.

Other options do not match the scenario.Simulation feedbackis used to simulate access behavior rather than analyze real traffic.Issue analysisfocuses on aggregated fault statistics and trend analysis, not detailed packet-level inspection.Client journeytracks the overall user access path and experience stages but does not provide deep protocol packet visibility.

Therefore, the function used by O&M personnel to view packet exchange processes and identify DHCP pool exhaustion isProtocol trace, making optionAthe correct answer.
