Huawei H12-841_V1.5 - HCIP-Datacom-Campus Network Planning and Deployment V1.5

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Huawei campus switches support multiple flexible VLAN assignment methods to meet diverse access control and service deployment requirements. The most basic method isinterface-based VLAN assignment, where a physical or logical port is statically assigned to a specific VLAN. This method is simple and widely used in traditional access layer designs.

Huawei switches also supportMAC address–based VLAN assignment, allowing devices to be dynamically placed into VLANs based on their MAC addresses. This is useful in scenarios where users frequently move between access ports but require consistent VLAN membership.

Protocol-based VLAN assignmentenables traffic to be classified into VLANs based on upper-layer protocol types, which can be useful in special service separation scenarios. Additionally,IP subnet–based VLAN assignmentallows switches to assign VLANs according to the source IP address of packets, enabling logical grouping of users based on network layer addressing rather than physical location.

These VLAN assignment mechanisms enhance network flexibility, simplify user mobility, and improve access-layer service management. According to HCIP Datacom Campus Network documentation, Huawei switches indeed support VLAN assignment based on interface, MAC address, protocol, and IP address. Therefore, the statement is TRUE, and option A is correct.

VXLAN uses theVXLAN Network Identifier (VNI)to identify and isolate virtual Layer 2 or Layer 3 networks in an overlay environment. The VNI field is24 bits long, which allows a theoretical maximum of2²⁴ (approximately 16 million) VNIs. This is a significant improvement over traditional VLAN technology, which supports only 4094 VLAN IDs, and is one of the main reasons VXLAN is adopted in large-scale campus and data center networks.

It is correct thata tenant can be mapped to one or more VNIs. For example, a tenant may use multiple VNIs to represent different broadcast domains or service segments, such as separate VNIs for different subnets or application tiers. However, the statement becomes incorrect when it claims that VXLAN supports a maximum of12 million tenants.

VXLAN does not directly define a fixed maximum number of tenants. VNIs represent virtual networks, not tenants themselves. The actual number of tenants supported depends on how VNIs are allocated and how the network design maps tenants to VNIs. In theory, the upper limit of VNIs is close to 16 million, not 12 million, and the number of tenants is typically much lower and design-dependent.

Therefore, while the description of VNIs being 24 bits long is correct, the conclusion about supporting a maximum of 12 million tenants is incorrect, making the overall statement false.

The displayed entries match the format of EVPN routes that carryVTEP reachability informationrather than host MAC/IP bindings or IP prefixes. The key clue is the field naming style shown asNetwork(EthTagId/IpAddrLen/OriginalIp)along with values like0:32:1.1.1.0, which indicates an IP address with a /32 length carried as the “OriginalIp”. In Huawei VXLAN BGP EVPN implementations described in HCIP Datacom Campus Network materials, this type of information corresponds toEVPN Route Type 3 (Inclusive Multicast Ethernet Tag Route).

Type 3 routes are used by VTEPs to signal membership information for a broadcast domain and to supportBUM (Broadcast, Unknown unicast, Multicast)forwarding behavior in the VXLAN fabric. Practically, they also provide the remote VTEP IP information needed so that, once the underlay can reach that VTEP IP address at Layer 3 (for example via IGP/BGP underlay routes), the local device can establish VXLAN encapsulation forwarding to that peer.

By contrast,Type 2routes would display MAC address information (and possibly a host /32 IP together with the MAC), andType 5routes would show IP prefixes like /24 or /30 used for inter-subnet routing.Type 1routes are related to Ethernet segments for multihoming (ESI), which is not what this output shows. Therefore, only statement A is true.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

IPsec defines two standard encapsulation modes that determine how IP packets are protected during transmission:Tunnel modeandTransport mode. Tunnel mode encapsulates the entire original IP packet within a new IP header and is typically used forsite-to-site VPNs. Transport mode encrypts only the payload of the IP packet and is commonly used forhost-to-host communication.

Switching mode and routing mode are not valid IPsec encapsulation modes and are unrelated to IPsec protocol behavior.

According to HCIP Datacom Campus Network documentation, onlyTunnel mode and Transport modeare supported in IPsec, makingoptions B and C correct.

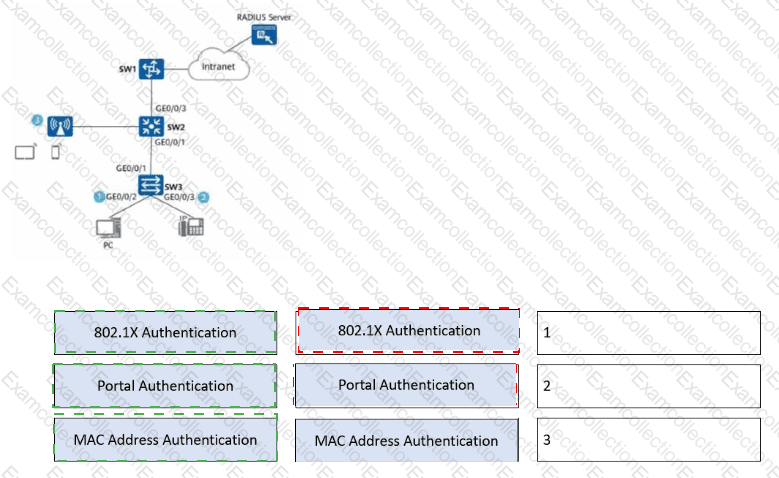

Explanation (Based on HCIP Datacom Campus Network Design)

Position 1 → 802.1X AuthenticationThis authentication point corresponds to aPC connected to an access switch. PCs typically support 802.1X clients, making802.1X authenticationthe preferred and most secure method for wired user access. It provides strong identity-based access control using a RADIUS server.

Position 2 → Portal AuthenticationThis point representswireless user access. Portal authentication is commonly used for wireless terminals, especially guest or mobile users, where browser-based authentication is required. Users authenticate through a web page redirected by the access device.

Position 3 → MAC Address AuthenticationThis point corresponds tonon-802.1X-capable terminals, such as IP phones or printers. These devices cannot initiate 802.1X or Portal authentication, soMAC address authenticationis used to identify and authenticate them based on their MAC addresses.

This authentication deployment aligns with Huawei NAC best practices:

802.1X for capable wired terminals

Portal for wireless or guest access

MAC authentication for dumb or IoT devices

In a centralized VXLAN gateway architecture, all inter-subnet traffic is forwarded to a centralized Layer 3 gateway, typically deployed on a core or aggregation device. This design simplifies network planning, gateway configuration, and policy enforcement because routing, security, and traffic control are all handled at a single centralized point. From an operational perspective, deployment and management are straightforward, which makes centralized gateways suitable for small- to medium-sized campus networks or environments with limited endpoints.

However, according to HCIP Datacom Campus Network documentation, this architecture introduces scalability limitations. Since the centralized gateway performs Layer 3 forwarding for all VXLAN segments, it must maintain ARP entries for every terminal in the network. As the number of endpoints increases, the ARP table on the Layer 3 gateway grows rapidly. Hardware resources such as memory and processing capacity limit the maximum number of ARP entries that can be supported.

In large-scale campus scenarios with a high density of terminals—such as universities, hospitals, or enterprise office campuses—this ARP scalability bottleneck can impact performance and stability. Excessive ARP entries may lead to increased CPU utilization, delayed ARP resolution, and reduced forwarding efficiency. For such environments, HCIP Datacom recommends distributed VXLAN gateways, which distribute ARP and routing responsibilities across multiple devices. Therefore, the statement is correct, and the centralized VXLAN gateway is not suitable for scenarios with a large number of terminals.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In a VXLAN-based virtualized campus network, theunderlay networkis responsible for providing basic IP connectivity between VXLAN Tunnel Endpoints (VTEPs). Statement D correctly describes this fundamental role of the underlay. Statement C is also correct, as VXLAN usesMAC-in-UDP encapsulationto overlay Layer 2 networks on top of a traditional IP infrastructure.

When iMaster NCE-Campus is used for automatic orchestration of the underlay routing domain,multiple routing protocols can be supported, depending on the solution version and design. Therefore, statementA is false, because OSPF is not the only supported routing protocol.

Statement B is correct in the context of standard automated deployment: iMaster NCE-Campus supportsOSPF single-area deploymentfor simplified orchestration and maintenance of the underlay network.

According to HCIP Datacom Campus Network architecture principles, the underlay must be stable, simple, and highly available, but it is not limited to a single routing protocol. Thus,option Ais the incorrect statement and the correct answer.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In Huawei campus access authentication designs, network access is divided intopre-authentication,isolation, andpost-authenticationdomains to control user access at different stages of authentication.

Thepre-authentication domainprovides users with only the most basic network services required to initiate authentication. These services typically includeDHCPandDNS. DHCP allows unauthenticated terminals to obtain IP addresses and basic network parameters, while DNS enables domain name resolution so that users can reach authentication portals or admission servers. Therefore,DHCP and DNS servers are essential components of the pre-authentication domain, making optionsC and D correct.

AnFTP serveris a general-purpose file transfer service and is not required for user authentication. Anantivirus serverbelongs to theisolation domain, where users are redirected if authentication fails or if their devices do not meet security posture requirements, such as outdated virus signatures. These servers provide remediation resources but are not part of the pre-authentication process.

According to HCIP Datacom Campus Network documentation, limiting the pre-authentication domain to only essential services reduces security risks while ensuring successful user onboarding.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

In Huawei iMaster NCE-Campus and CloudCampus management systems, different log types are designed to record different categories of events to support auditing, troubleshooting, and security analysis. When anMSP administrator creates a tenant account, this action is considered amanagement operationperformed through the system’s management interface.

Such administrative actions are recorded in theOperation Log. Operation logs documentuser-initiated configuration and management activities, including tenant creation, modification, deletion, policy changes, and administrative actions performed by operators or administrators. These logs are essential for operation auditing and responsibility tracing in multi-tenant environments.

System logsmainly record internal system events, such as service startup, module status changes, or system exceptions, and do not track administrator operations.Security logsfocus on security-related events, such as login failures, abnormal access attempts, or permission violations, rather than routine administrative operations.Device channel logsrecord communication events between devices and controllers, such as device registration or channel status changes, and are unrelated to tenant management actions.

According to HCIP Datacom Campus Network and CloudCampus O&M documentation, tenant account creation performed by an MSP administrator is clearly categorized as anoperation behavior, and therefore it is recorded in theOperation Log.
