Huawei H35-580_V2.0 - HCIA-5G-RNP&RNO V2.0

A link budget is an accounting of all the power gains and losses that a communication signal experiences in a telecommunication system 8. A link budget can be used to determine the received signal-to-interference-plus-noise ratio (SINR), which is a measure of the quality of the signal at the receiver. The SINR demodulation threshold is the minimum SINR required to demodulate the signal successfully. The SINR demodulation threshold depends on the modulation and coding scheme (MCS) used by the transmitter, which in turn depends on the service rate or data rate required by the application 9. Generally, the higher the service rate, the higher the MCS level, and therefore the higher the SINR demodulation threshold. Thus, statement A is incorrect. The other statements are correct. The interference margin is relatively small on high frequency bands because there are fewer co-channel interferers due to smaller cell sizes 10. The shadow fading margin is related to the edge coverage rate because it accounts for the variation of signal strength due to obstacles in the propagation path 11. The antenna gain of the 64T64R AAU is approximately 24 dBi according to Huawei’s product specifications 12.

 According to the Career Certification - Huawei Enterprise, DUB8P, DUPEU, and DUMPT are boards in a base station that support CPU usage measurement, which correspond to options B, C, and D. DFAN is a fan board that does not support CPU usage measurement, which corresponds to option A.

According to the HCIA-5G - Huawei Enterprise Support Community, overlapping coverage is likely to occur in areas such as inside a tunnel, crossroads in dense urban areas, and high-rise buildings, which correspond to options A, B, and C. These areas have complex propagation environments and multiple paths for signals to reach the UE. Around areas with water, overlapping coverage is unlikely to occur because water can reflect signals and reduce interference from other cells, which corresponds to option D.

According to the HCIA-5G V2.0 Exam Outline, base station receive diversity gain is a factor that affects uplink coverage, not downlink coverage. Downlink coverage is affected by factors such as downlink path loss, downlink transmit power, and antenna gain, which correspond to options B, C, and D.

According to the HCIA-5G V2.0 Exam Outline, the uplink maximum MIMO layers for 2T4R UEs is 2, which corresponds to option B.

According to the NR-ARFCN (NR absolute radio frequency channel number), the NR-ARFCN value consists of two components: the band indicator and the channel number. The band indicator represents the frequency band on which the carrier frequency lies, while the channel number represents the specific carrier frequency within that band. The NR-ARFCN value is calculated by the following formula:

NR-ARFCN = FREF-Offs + NREF-Offs + ΔFGlobal * (Fcarrier - FREF-Offs) / AFGIobal

where FREF-Offs is the reference frequency offset, NREF-Offs is the reference NR-ARFCN offset, ΔFGlobal is the global frequency raster, Fcarrier is the carrier frequency, and AFGIobal is the absolute frequency granularity.

Given that AFGIobal is 15 kHz, FREF-Offs is 3000 MHz, and NREF-Offs is 600000, we can plug in these values and Fcarrier = 3300 MHz into the formula and get:

NR-ARFCN = 3000 + 600000 + 5 * (3300 - 3000) / 0.015 NR-ARFCN = 633000

Therefore, the correct answer is A.

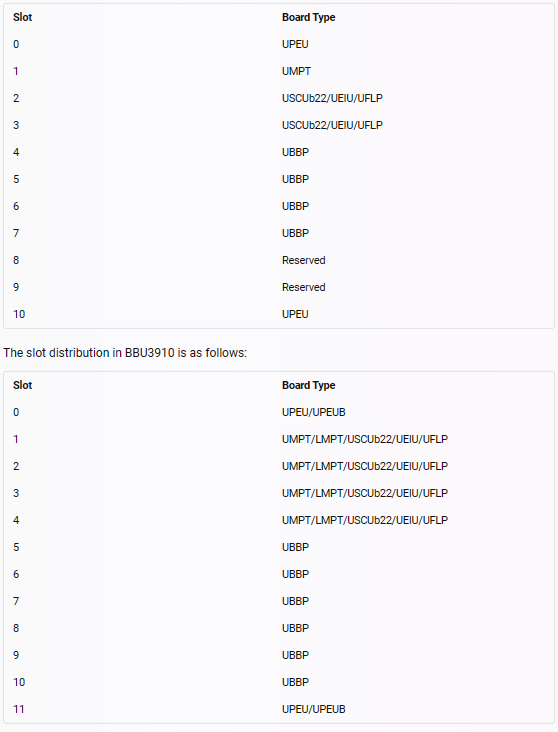

 According to the Hardware Description: Bbu5900 V100r013c10, the slot distribution in BBU5900 is not the same as that in BBU3910. The BBU5900 has 11 slots, while the BBU3910 has 12 slots. The slot distribution in BBU5900 is as follows:

A screenshot of a computer Description automatically generated

According to the HCIA-5G V2.0 Exam Outline, SS-RSRP is the reference signal received power of the synchronization signal block (SSB) in NR systems. It can be used for measurement evaluation in idle mode during coverage problem analysis, which corresponds to option D. OPMI is an indicator of uplink interference power measurement, CSI-RSRP is the reference signal received power of the channel state information reference signal (CSI-RS), and SRS is the sounding reference signal. These indicators are used for measurement evaluation in connected mode, not idle mode, which correspond to options A, B, and C.

According to the 5G NR Protocol Structure Changes - An Overview, the PCFICH and PHICH channels have been deleted from the physical layer in 5G compared with LTE, because they are no longer needed due to the flexible frame structure and numerology of 5G NR.
