HP HPE6-A70 - Aruba Certified Mobility Associate Exam

HP HPE6-A70 Premium Access     Download Demo
Page: 2 / 4
Total 131 questions

When an Aruba solution uses AirMatch, which device generates the channel and power plan for an AP?

A.

the AirWave Management Platform

B.

the Mobility Master (MM)

C.

the Mobility Controller (MC) for the AP

D.

the AP itself

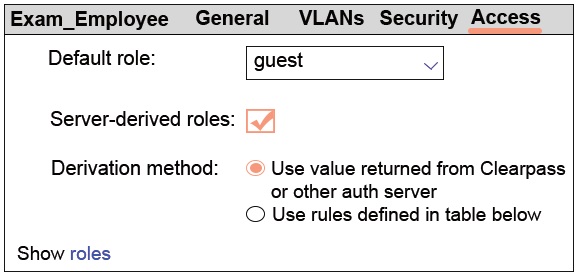

Refer to the exhibit.

A network administrator sets up the Exam_Employees WLAN on an Aruba solution with a default role of guest, as shown in the exhibit. To which users does the guest role apply?

A.

users who successfully authenticate and are assigned to the default role by the RADIUS server

B.

users who successfully authenticate and are not assigned a different role by the RADIUS server

C.

users who have connected to the SSID, but have not yet attempted authentication

D.

users who fail authentication

A company plans to deploy a Mobility Master (MM). The MM will manage 50 Mobility Controller (MC) appliances that will control a total of 700 APs, and 10 Virtual Mobility Controllers (VMCs) that will control a total of 200 APs.

How many MM licenses does the company require?

A.

60

B.

210

C.

900

D.

960

A company has an Aruba Mobility Master (MM)-based solution with a WLAN that assigns users to VLANs 10–19. The company wants the Aruba solution to act at Layer 3 to route wireless user traffic.

What must network administrators configure to permit the solution to forward traffic correctly?

A.

VLAN 10–19 interfaces and proper IP settings on the MM nodes

B.

trunk ports that support VLANs 10–19 on the managed Mobility Controllers (MCs)

C.

VLAN 10–19 interfaces on the Mobility Controllers (MCs) as the default gateway for wireless users

D.

trunk ports that support VLANs 10-19 on the MM nodes

A network administrator creates an employee WLAN on an Aruba solution that uses WLAN WPA2-Enterprise security and an external RADIUS server. When the administrator tests the WLAN, the test client receives limited connectivity and cannot access any resources, but the RADIUS server shows that the user authenticated successfully.

What should the administrator check as a possible source of this issue?

A.

the connectivity between the AP that the client is associated to and the MC

B.

the firewall role and policy that apply to this user

C.

the certificate on the RADIUS server

D.

the connectivity between the Master Controller (MC) for the client and the RADIUS server

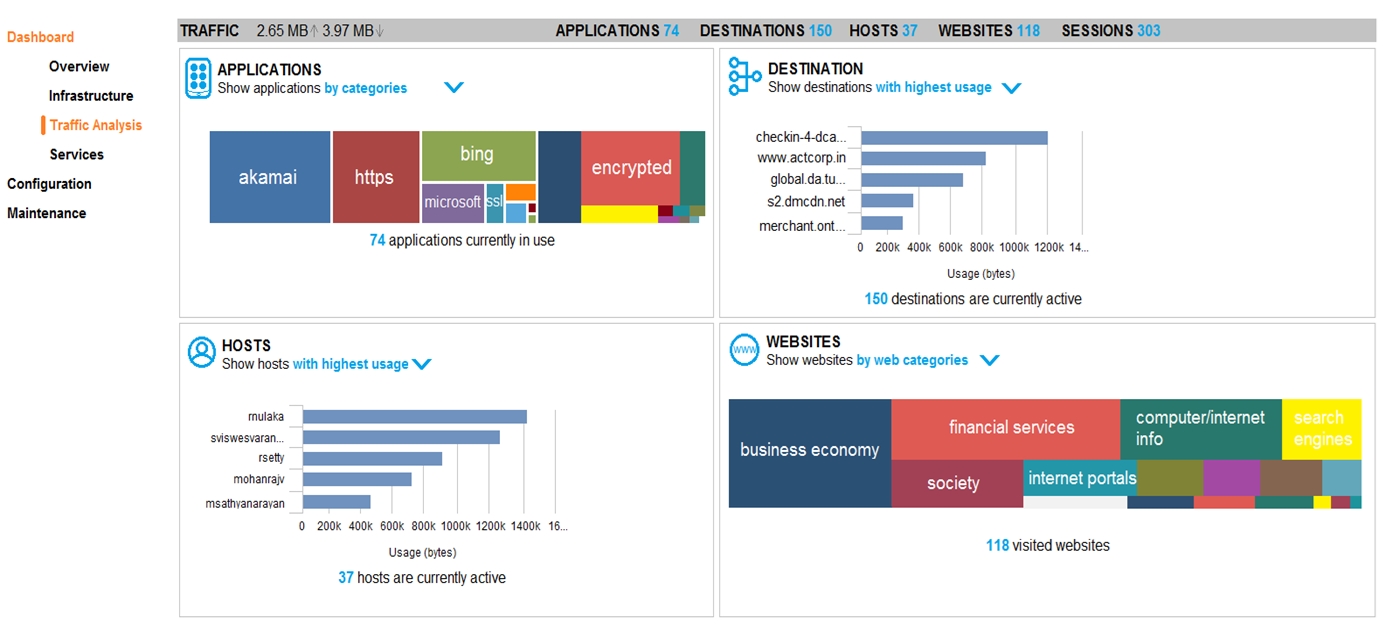

Refer to the exhibit.

The exhibit shows output from a Mobility Master (MM) dashboard. What is a valid reason for the administrator to click the akamai square under applications?

A.

to see the break down for only the roles, destinations, WLANs, and devices that use this application

B.

to download a report about the usage of this application over time

C.

to create filter rules in order to control wireless user access to this application

D.

to set up bandwidth rule in order to control wireless user access to this application

A company has an Aruba solution. The company wants to support a guest WLAN with the internal captive portal, but the company also wants to develop their own custom portal pages.

What correctly describes the level of customization that the internal captive portal supports?

A.

The internal captive portal must use the default pages without modification, but administrators can upload pages developed externally.

B.

Administrators can modify the default internal captive portal pages, but cannot upload pages developped externally.

C.

Administrators can modify the default internal captive portal pages or upload pages developped externally.

D.

The internal captive portal must use the default pages without modification, and administrators cannot upload pages developped externally.

What is one reason for a network administrator to visit the Dashboard > Usage window on an Aruba Mobility Master (MM)?

A.

to check license usage and determine the need for additional licenses

B.

to analyze short terms trends in network usage by client, AP, and application

C.

to view system usage statistics for the MM and troubleshoot potential issues

D.

to generate reports about traffic patterns and network usage over the past several months

A company has a Mobility Master (MM)-based solution. A network administrator wants to monitor the types of applications in use in the wireless network.

Which dashboard page in the MM interface should the administrator visit?

A.

Security

B.

Performance

C.

Traffic Analysis

D.

Network

What is the minimum space between channels in the 2.4GHz range to prevent overlap?

A.

1 channel

B.

3 channels

C.

5 channels

D.

7 channels
