HP HPE6-A70 - Aruba Certified Mobility Associate Exam

Page: 3 / 4
Total 131 questions

A company has an Aruba solution and wants to provide guests with wireless access. The company wants to assign guests IP addresses in subnets that exist only within the Aruba solution.

Which feature should network administrators set up so guests can send traffic on the Internet without changes to the company routing solution?

A.

Enable NAT on the VLAN assigned to the guest WLAN.

B.

Set up a dynamic default gateway on the Mobility Controllers (MCs).

C.

Create destination NAT rules for the guest role.

D.

Enable policy-based routing for the guest traffic.

If the decrypt-tunnel forwarding mode is selected in an employee WLAN, where is the user traffic decrypted?

A.

at the switch

B.

at the AP

C.

at the controller

D.

at the RADIUS server

NO: 69

A company plans to deploy a Mobility Master (MM) solution with two MM nodes. The MM solution will manage 20 Mobility Controller (MC) appliances that will control a total of 800 APs.

How should the network administrator install the AP licenses?

A.

40 AP licenses on the MM

B.

400 AP licenses on the MM

C.

800 AP licenses on each MC

D.

800 AP licenses on the MM and 40 AP licenses on each MC

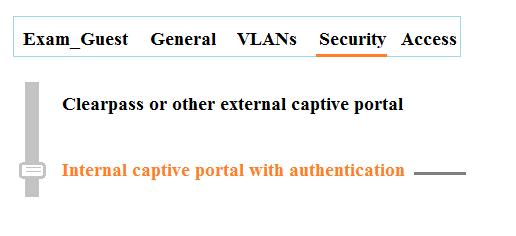

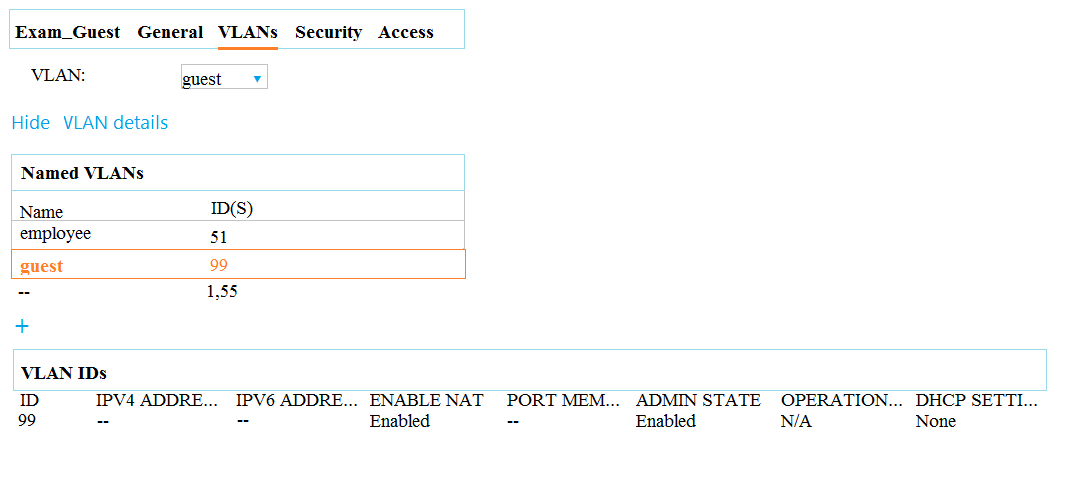

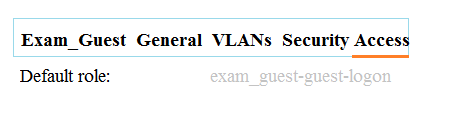

Refer to the exhibits.

Exhibit 1

Exhibit 2

Exhibit 3

A network administrator creates a guest WLAN on an Aruba Mobility Manager (MM). The exhibits show some of the settings for the WLAN. The administrator does not change the policies for those roles.

How does the firewall control guest clients when they first connect to the WLAN?

A.

It permits them to send any DHCP traffic and DNS and web traffic to the Internet. It redirects web traffic destined to the private network to a login portal.

B.

It permits them to send any DHCP and DNS and it redirects all web traffic to a login portal.

C.

It permits them to send any DHCP and RADIUS traffic. It redirects all web traffic destined to the Internet to a login portal and drops web traffic destined to the private network.

D.

It does not permit them to send any traffic until they are authenticated.

A company plans to deploy a Mobility Master (MM) solution with two MM nodes. The MM solution will manage 10 Mobility Controller (MC) appliances that will control a total of 400 APs.

How should the network administrator install the AP licenses?

A.

40 AP licenses on the MM and no licenses on the MC

B.

400 AP licenses on the MM and no licenses on the MC

C.

800 AP licenses on each MC and no licenses on the MC

D.

800 AP licenses on the MM and 40 AP licenses on each MC

Which APs operate in an autonomous or standalone mode?

A.

remote APs (RAPs)

B.

spectrum analyzers (SAs)

C.

mesh points (APs)

D.

instant AP (IAP) clusters

What is one setting that a network administrator can configure for user roles in an Aruba solution?

A.

DHCP pool

B.

ClientMatch rules

C.

source NAT

D.

Maximum session

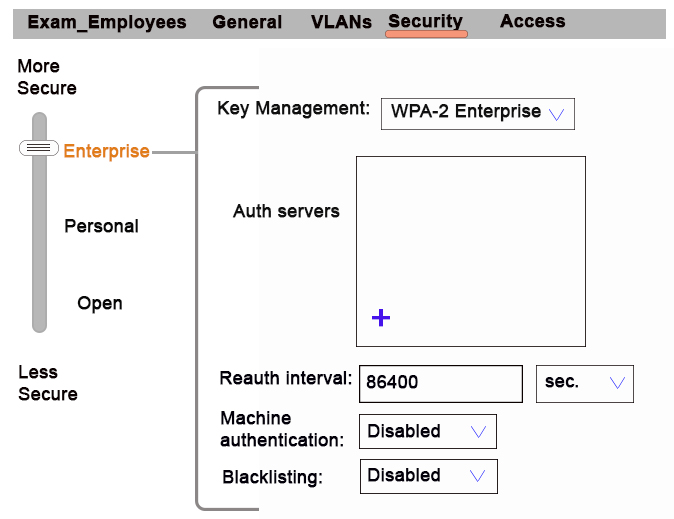

Refer to the exhibit.

Network administrators need to set up a WLAN that uses WPA2 encryption and authenticates users with a preshared key (PSK) that is the same for all users. Administrators do not see where they should specify the option for the preshared key.

What should the administrators do?

A.

Click Personal in the slide bar.

B.

Click the + icon in the Authentication server section

C.

Return to the first page in the wizard and select the guest option

D.

Configure an L3 authentication profile after the WLAN wizard is complete

Which authentication server option would the network administrator choose to authenticate a wireless user directly against an Active Directory (AD) domain controller without NPS or IAS?

A.

LDAP server

B.

RFC 3576 server

C.

TACACS server

D.

RADIUS server

A network administrator creates a user account on an Aruba Mobility Master (MM) with the guest-provisioning role. Which task does this user have the rights to perform?

A.

set up portal pages

B.

create guest user accounts

C.

monitor guest clients

D.

create guest WLANs
