HP HPE6-A73 - Aruba Certified Switching Professional Exam

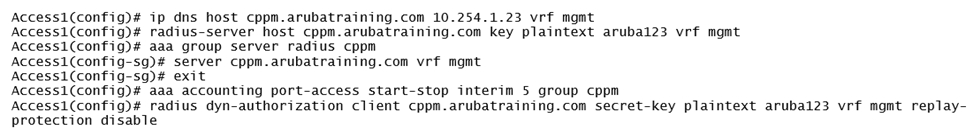

An administrator implements interim accounting for guest users so that ClearPass can track the amount of bandwidth that guests upload and download. Guests that abuse bandwidth consumption should be disconnected from the network. The administrator configures the following on the AOS-CX access switches:
After performing this configuration, the administrator notices that guest users that have exceeded the guest bandwidth limit are not being disconnected. Upon further investigation, Access Tracker in ClearPass indicates a disconnect CoA message is being sent to the AOS-CX switch.
What is causing this issue?
An administrator is concerned about the security of the control plane connection between an AOS-CX switch and an Aruba Mobility Controller (MC) when implementing user-based tunneling. How should the administrator protect this traffic?
When implementing user-based tunneling on an AOS-CX switch, which component defines the primary and backup Aruba gateways?
An administrator is replacing the current access switches with AOS-CX switches. The access layer switches
must authenticate user and networking devices connecting to them. Some devices support no form of
authentication, and some support 802.1X. Some ports have a VoIP phone and a PC connected to the same
port, where the PC is connected to the data port of the phone and the phone’s LAN port is connected to the switch.
Which statement is correct about this situation?
What is true regarding VSX and keepalives on AOS-CX switches?
A network administrator is implementing a configuration plan in NetEdit. The administrator used NetEdit to push the configuration plan to the switch. Which option in the NetEdit planning section should the administrator select to save the configuration running on the switch to the startup-config?
What is the correct way of associating a VRF instance to either a VLAN or an interface?
An administrator of a company has concerns about upgrading the access layer switches. The users rely
heavily on wireless and VoIP telephony. Which is the best recommendation to ensure a short downtime for the users during upgrading the access layer switches?
The network is configured for OSPF with the following attributes:
Core1 and Core2 and ABRs
Area 1 has 20 networks in the 10.1.0.0/16 range
Area 0 has 10 networks in the 10.0.0.0/16 range
Area 2 has 50 networks in the 10.2.0.0/16 range
The ASBR is importing a static route into Area 1
Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area

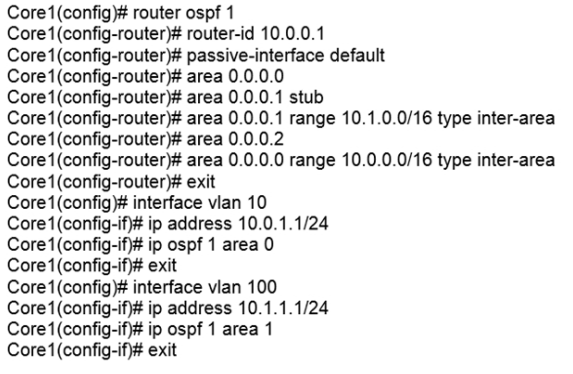

Here is the OSPF configuration performed on Core1:
Based on the above information, what is correct?
A company has a third-party AAA server solution. The campus access layer was just upgraded to AOS-CX
switches that perform access control with MAC-Auth and 802.1X. The company has an Aruba Mobility
Controller (MC) solution for wireless, and they want to leverage the firewall policies on the controllers for the wired traffic.
What is correct about how the company should implement a security solution where the wired traffic is
processed by the gateways?
