HP HPE7-A01 - Aruba Certified Campus Access Professional Exam

This is the correct statement about what happens when a client attempts to join the network and the WLAN is configured with OWE (Opportunistic Wireless Encryption). OWE is a standard that provides encryption for open networks without requiring any authentication or credentials from the client or the network. OWE uses a Diffie-Hellman key exchange mechanism to establish a secure session between the client and the AP without exchanging any authentication information. The other options are incorrect because they either describe scenarios that require authentication or encryption methods that are not used by OWE. References: https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf

The correct answers are C and D.

MPSK (Multi Pre-Shared Key) is a feature that allows multiple PSKs to be used on a single SSID, providing device-specific or group-specific passphrases for enhanced security and deployment flexibility for headless IoT devices 1 . MPSK requires MAC authentication against a ClearPass Policy Manager server, which returns the encrypted passphrase for the device in a RADIUS VSA 2 . ClearPass Policy Manager is a platform that provides role- and device-based network access control for any user across any wired, wireless and VPN infrastructure 3 . ClearPass Policy Manager can also use device profiling and posture assessment to assign roles based on device fingerprint information 4 .

MPSK Local is a variant of MPSK that allows the user to configure up to 24 PSKs per SSID locally on the device, without requiring ClearPass Policy Manager 5 . MPSK Local can be combined with EAP-TLS (Extensible Authentication Protocol-Transport Layer Security), which is a secure authentication method that uses certificates to encrypt the wireless traffic between the IoT devices and the access points 6 . EAP-TLS can also use device certificates to perform role-based access control 6 .

Therefore, both ClearPass Policy Manager and MPSK Local with EAP-TLS can meet the customer’s requirements for wireless authentication, encryption, unique passphrase, and role-based access for their IoT devices.

MPSK and an internal RADIUS server is not a valid solution, because MPSK does not support internal RADIUS servers and requires ClearPass Policy Manager 7 8 9 . MPSK Local with MAC Authentication is not a valid solution, because MAC Authentication does not encrypt the wireless traffic or use fingerprint information for role-based access 2 . Local User Derivation Rules are not a valid solution, because they do not provide unique passphrase per device or use fingerprint information for role-based access 10 11 12 .

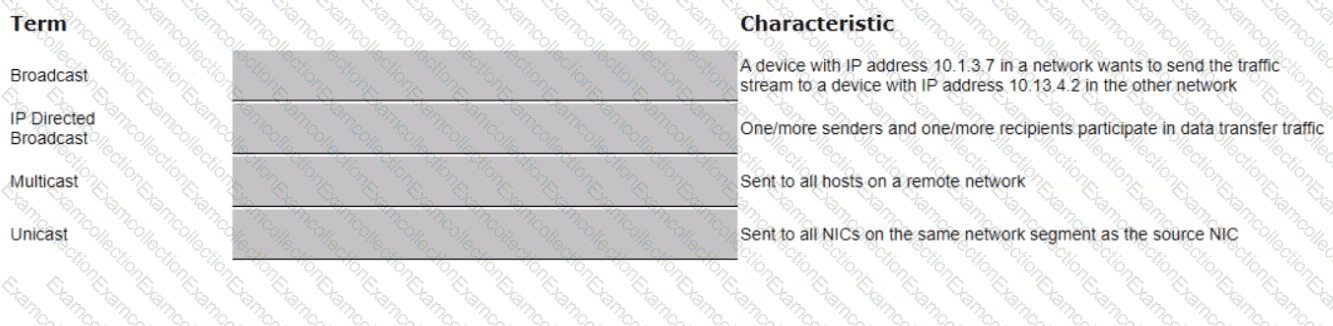

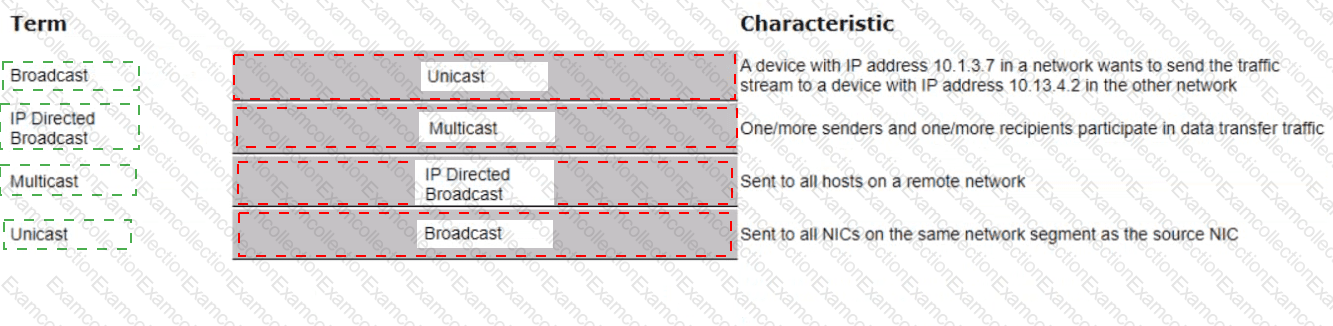

a) A device with IP address 10.1.3.7 in a network wants to send the traffic stream to a device with IP address 10.13.4.2 in the other network - >   Unicast

b) One/more senders and one/more recipients participate in data transfer traffic - >   Multicast

c) Sent to all hosts on a remote network - >   IP Directed Broadcast

d) Sent to all NICs on the same network segment as the source NIC - >   Broadcast

The standard that is supported by some Aruba APs and can enable a customer to accurately locate wireless client devices within a few meters is A. 802.11mc.

802.11mc is an IEEE standard that enables computing devices to measure the distance to nearby Wi-Fi access points using a technique called Fine Timing Measurement (FTM). FTM uses precise timestamps to calculate the round-trip time of Wi-Fi frames between the device and the access point, and then converts it to a distance estimate. By using multiple access points and triangulation methods, the device can determine its location with high accuracy 1 .

According to the Aruba document 802.11mc Support , this feature is supported on 500 Series, 510 Series, 530 Series, 550 Series, 560 Series and 570 Series access points. These APs act as FTM responders to time measurement queries sent from a client. To configure the AP to send FTM responses, you need to enable the ftm-responder-enable parameter in the WLAN SSID profile 1 .

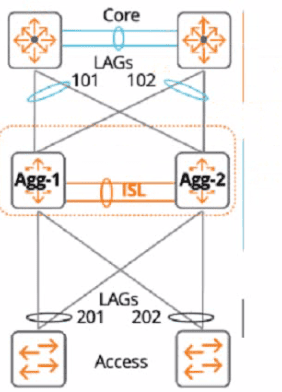

Active Gateway is the first-hop protocol feature that is used for VSX L3 gateway as per Aruba recommendation. Active Gateway is a feature that allows both VSX peers to act as active gateways for different subnets, eliminating the need for VRRP or other first-hop redundancy protocols. Active Gateway also provides fast failover and load balancing for L3 traffic across the VSX peers. The other options are incorrect because they are either not recommended or not supported by Aruba CX VSX. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch07.html https://www.arubanetworks.com/resource/aruba-virtual-switching-extension-vsx/
