HP HPE7-A03 - HPE Aruba Networking Certified Network Architect - Campus Access

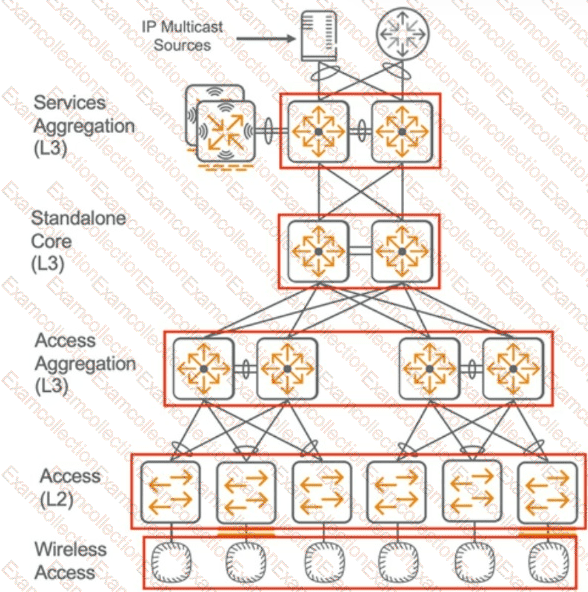

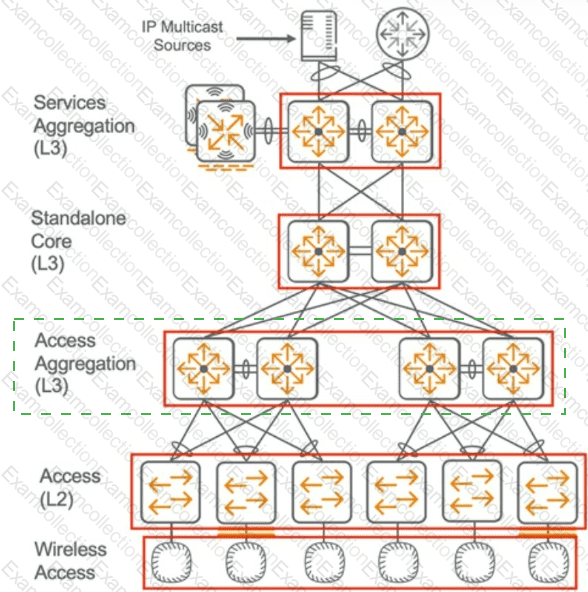

Place the + in the layer where IGMP Snooping should be activated. The correct area encompasses the entire layer Anywhere in the layer will be marked correctly.

You are responding to the customer's RFP and are at the point of documenting design decisions that were not specified in the RFP or the RFP questions. What are valid examples of assumptions made that should be presented to the customer during the response? (Select three >

A global cruise line company needs to refresh its current fleet. They will refresh the "insides" of the ship to be cost-effective and increase their sustainability. They will replace the complete WLAN/LAN hardware of the ship. In this refresh, the company will not refresh its current security requirements. The CIO also wants to limit the number of unused ports in the switches. Future expansion will always mean a refresh of hardware. They start with the smallest ship with a maximum of 800 guests.

Each ship has a LAN infrastructure consisting of two core switches, up to 10 redundant distribution switches, and up to 500 access switches (400 cabins, 100 technical rooms). The core switches are located in the MDF of the ship and the distribution switches are located in the IDFs of the ship. Each cabin and technical room gets one single access switch.

The cabling structure of the ship will not be refreshed. Each IDF is connected to the MDF by SMF, of which two pairs are available for the interconnect between the core and distribution. The length of SM fiber between MDF and IDF is less than 300 meters (930 ft) and the type used is OS1. Each cabin is connected by a single OM2 pair to the IDF, the maximum length is 60 meters (200 ft). Each technical room is connected by a single OM2 pair to the IDF, with lengths between 100 and 150 meters (320 and 500 ft).

For each cabin/technical room the customer is looking to replace their current fan-less 2530/2540 without changing the requirements, except they need to upgrade the uplink to distribution switch to 10 GbE to handle the increased network traffic, and the technical rooms need redundant power.

The WLAN infrastructure will be 1:1 refreshed without new cabling or new AP locations. Their WLAN infrastructure is based on the 200/300 series indoor and outdoor APs running InstantOS (less than 300 APs). The customer has no change in WLAN requirements.

The cruise line company will replace its current Internet connection before the LAN/WLAN refresh. The new Internet connection will provide a 99.8% uptime, which is needed to ensure the paid guest Wi-Fi is always operational. With this new internet connection, the CIO of the cruise line wants to base the design on the ESP architecture from Aruba because Internet connection is guaranteed.

Based on best practices, what should you recommend as the most cost-effective switch model for the cabins?

ACME retail has 38 locations spread out across Ave US states and two provinces in Canada. They are looking to grow 20% over the next two years. They have an HO with a staff of 200 employees. The organization has eight Regional Managers and two VPs who work from home and the road. Stores typically have 17 employees on average per location.

The two warehouses have a remote loading system and 20 employees each to load the trucks and fulfill the online orders. The warehouse has 40-foot ceilings and large metal racks to store inventory. The main location is 240K sq ft (22300 st) m) and the Canadian warehouse Is 130K sq ft (12100 sq ml. The forkllfts on the loading docks are equipped with a wireless tablet on board.

A typical store Is reportedly about 60.000 sq ft (5575 sqm) and smaller stores are planned at 25.000 sq ft '2320 sq mi. The locations need to expand the abilities to vendors that need to add setup displays or Interactive kiosks in the stores. The current Infrastructure was installed In 2015 and used wireless N technology in a coverage model. The wiring is CatS. and they are unsure of the fiber connections. The inventory is all placed on the floor when it is delivered to the local store.

Inventory control is handled through Zebra barcode scanners, and they have had a lot of issues in getting signals throughout the stores and this makes monthly inventory difficult. The organization has a small help desk to troubleshoot issues that happen at the retail locations and PC support for the office. The company is looking to upgrade away from the current pbx system later this year. With the need to grow and cut costs, they are interested in moving the data to the cloud but need to get almost real-time inventory control for the online service to function.

The network has all been wired over the last ten years, but with the new systems being all wireless, they have seen the trend to offer wireless to all the vendors for their needs but also would like to allow employees, guests, and contractors all to use it. With the new IT director starting next week, the project has been set by the CTO of the company. The marketing group has asked how they can interact with the customers and get more info, while the IT support desk needs to cut staff in halt.

The. office has an MDF and two IDFs located on floors one and two. The HOF is in the basement, and you have multiple WAN circuits for the HO links. Each store has a local handoff from the cable company (ethernet) In the middle of the store in the office, so distance for the wiring is not an issue.

The customer has budget concerns but does want something that could last 7+ years.

Based on the scenario, where would you look to add additional items to the BOM to aid the company goals'(Select three.)

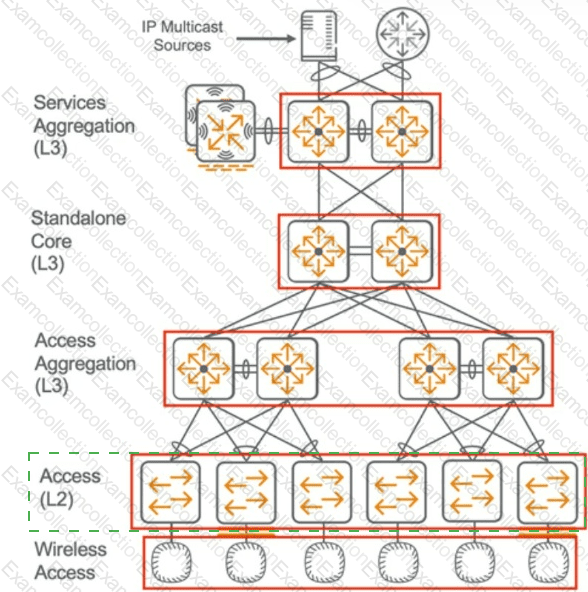

Place the + in the layer where IGMP Snooping should be activated. The correct area encompasses the entire layer Anywhere in the layer will be marked correctly.

A global furniture retail company called 'No-Stair Inc.' requests you design their new WLAN Infrastructure for a global footprint. Each location of 'No-Stair Inc ' has a similar layout: three small manager offices, a warehouse, and a 'retail' area. The 'retail' area and the warehouse together amount to 95% of the location. The IT department of the company is minimally engaged in their LAN refresh so the CTO of the company has shared the Information below.

Current WLAN Infrastructure is based on the 802.11 n "WIFI4Less' access-points series (both model 2013-INT (2.4 only internal antenna) and model 2019-EXT (dual-band external antenna only}). These AP models are standalone without any centralized management. Last year 'No-Stair Inc' ran a project called 'secure-it' ensuring that all needed network security was implemented to be fully compliant with their security standards. During this project, they also upgraded the AAA infrastructure to handle the increased AAA requests. No additional Wi-Fi or security requirements are listed for this WLAN refresh, which means that 'No-Stair Inc.' will continue to use bridged SSlDs. with local breakout into different VLANs.

The CTO of "No-Stair Inc.' understands the need for you to ask additional questions to deliver the design. The questions may be sent in written form and will be answered within two weeks

What is a possible constraint?

A large multinational financial institution has contracted you to design a new full-stack wired and wireless network for their new 6-story regional office building. The bottom two floors of this facility will be retail space for a large banking branch. The upper floors will be carpeted office space for corporate users, each floor being approximately 100,000 sq ft (9290 sqm). Data centers are all off site and will be out of scope for this project.

The customer is underserved by its existing L2-based network infrastructure and would like to take advantage of modern best practices in the new design. The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.

The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for customer service, and there will be a mix of wired and wireless devices throughout the retail floors. The corporate users will primarily use wireless for connectivity, but several wired clients, printers, and hard VoIP phones will be in use.

The customer is also planning on renovating the corporate office space in order to take advantage of smart office technology. These improvements will drive Blue Dot wayfinding, presence analytics, and other location-based services.

The client wants to ensure redundant RADIUS resources in each of their three geographical regions (AMER, EMEA, and APAC). A large office location is available in each region with sufficient VMware resources available.

Each region has between 4,435 and 5,859 clients, all of which will need to do either 802.1X wired or wireless authentications, as well as 802.1X authentication for a single personal device on Wi-Fi.

All of the non-personal devices will also need to validate health with a local agent.

A total of 500 guests are expected to be connected on average, with a maximum of 700 simultaneous connections making use of the Guest Portal for internet access.

TACACS authentication will also be configured for a total of 1,200 NADs (evenly dispersed).

How many OnGuard licenses are required in this scenario?

Select the appropriate fiber optic standard for the given link speed.
