HP HPE7-A07 - Aruba Certified Campus Access Mobility Expert Written Exam

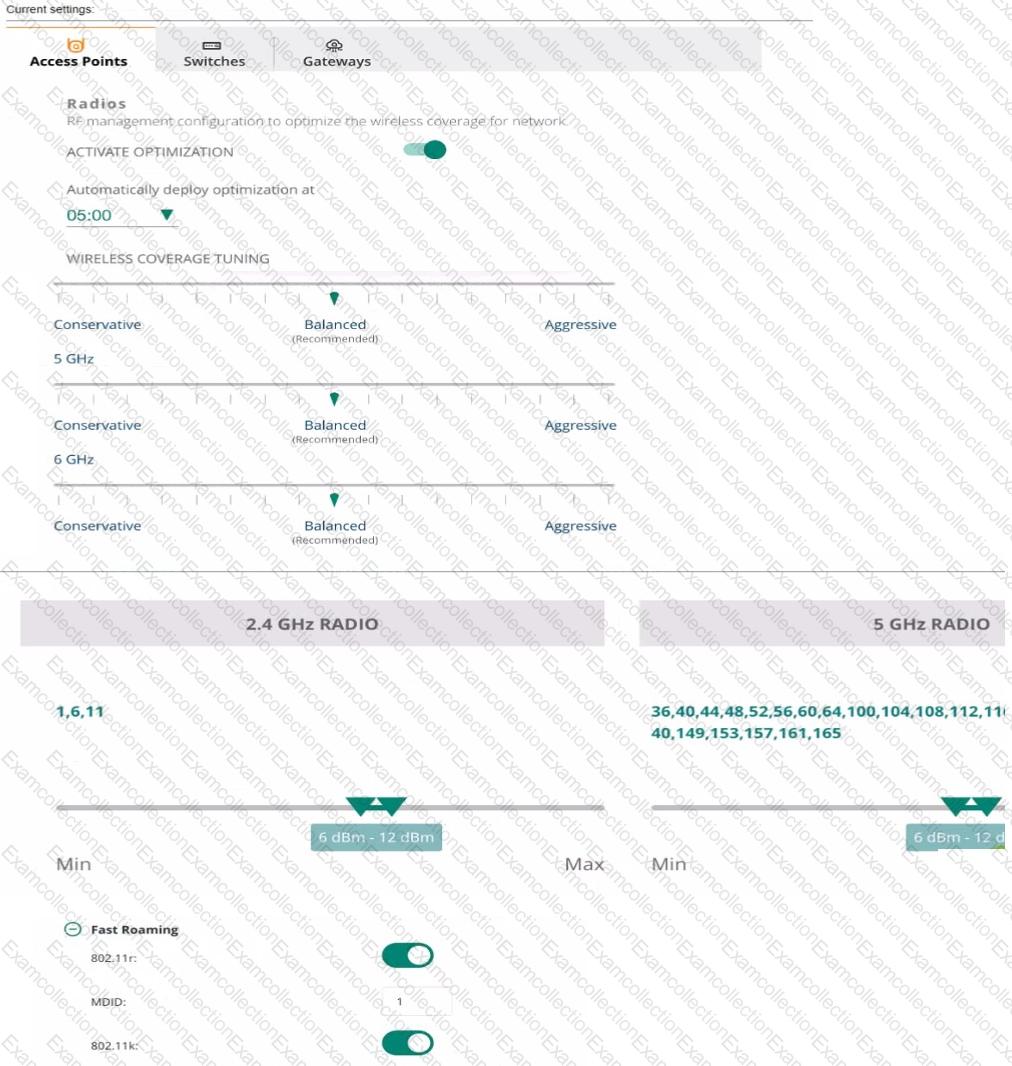

To address connectivity issues when students are working outdoors, increasing the transmission (TX) power range for the 5GHz radios can help improve signal strength and coverage. The setting shown indicates a conservative approach to power settings, which might not provide sufficient coverage for outdoor areas. By increasing the power range, you can extend the wireless signal reach, which aligns with best practices for outdoor wireless coverage.

Comprehensive and Detailed Explanation From Exact Extract of HPE Aruba Networking Switching:

On Aruba switches (AOS-CX/AOS-S), multiple IPv4 networks can be configured on the same VLAN interface (SVI) by assigning a primary address and one or more secondary addresses. The VLAN remains one Layer-2 broadcast domain; adding more IP subnets does not create subinterfaces and does not split the broadcast domain.

Exact extract:

“A VLAN interface may be configured with a primary IP address and additional secondary IP addresses to host multiple subnets on the same Layer-2 broadcast domain.”

“A VLAN is a single broadcast domain. Broadcast and unknown unicast frames are flooded to all ports belonging to the VLAN.”

“Hosts in different IP subnets on the same VLAN still require Layer-3 routing to communicate; sharing the VLAN only means they share the same L2 broadcast domain.”

Therefore, when a second subnet is added to the same VLAN, broadcasts (ARP, DHCP, etc.) from devices in either subnet will be flooded to all member ports of that VLAN, making option C correct.

Options A (subinterfaces) are not used here; B is incorrect because inter-subnet traffic still needs routing; D is not categorically true—IGMP operates per VLAN with multicast routing configuration and is not inherently disabled by multiple subnets.

References of HPE Aruba Networking Switching documents or Study Guide:

Aruba AOS-CX Interface and VLAN Configuration Guide — “Primary and secondary IP addressing on VLAN interfaces; VLANs as broadcast domains.”

Aruba AOS-CX Layer 2 Fundamentals — “Flooding behavior for broadcast/unknown frames within a VLAN.”

Aruba Campus Wired Design Fundamentals — “Multiple IP subnets on one VLAN and routing implications.”

===========

UL MU-MIMO, or Uplink Multi-User Multiple Input Multiple Output, is a technology that allows multiple clients to transmit data to the access point simultaneously, increasing overall throughput and efficiency, especially for upload-heavy scenarios like video file uploads. This technology enables spatially separated clients to access the channel at the same time, which can improve performance for clients when uploading large files.

In OSPF, when a router learns about an external network through both E1 and E2 advertisements, and if both have the same path cost, the router will prefer the E1 path. This is because E1 routes consider both the external cost to reach the external network and the internal cost to reach the ASBR, providing a more comprehensive metric. E2 routes only consider the external cost and ignore the internal cost to the ASBR, which could potentially lead to suboptimal routing. Therefore, the router will choose the E1 path due to its more accurate representation of the total path cost.

When onboarding devices into a centralized management system, each device can have its individual admin password set during the onboarding process. If this password doesn't match what is expected at the group level in the central management platform, login issues such as the one described can occur.

Option A includes all necessary steps for a full setup of an AOS 10 mobility gateway cluster, including setting the system name, switch role, ACP FQDN address, uplink port information, IP address and default gateway, DNS IP address, controller country code, timezone and clock, and admin password. Since the gateways must have static IP addresses and can only communicate on port 443 for a specific URL, this configuration would need to allow for static IP configuration and restrict communication to the required URL.

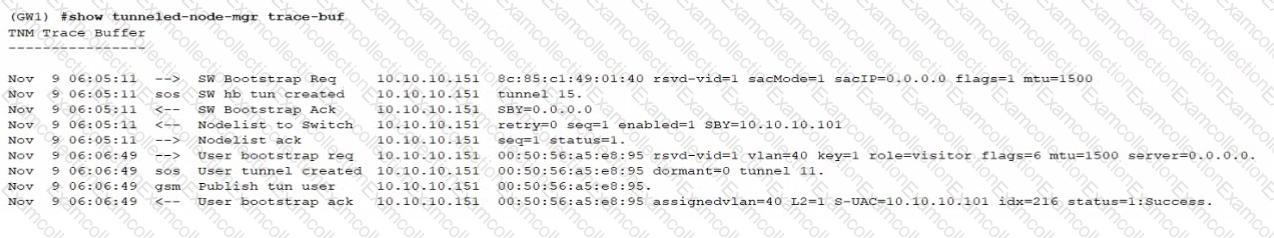

The CLI output indicates a tunnel creation process, where "SW hw tun created" refers to the switch hardware tunnel being created. The line mentioning "BYP-10.10.10.101 -> SW hw tun created to 10.10.10.151 tunnel 15." implies that a tunnel was established to the secondary tunnel endpoint with the IP address 10.10.10.151. This is a common configuration for User-Based Tunneling (UBT) setups where traffic is tunneled to a specific endpoint.
