When competing against IBM FlashSystem, HPE's primary differentiators lie in the intelligence of the management platform and the integration into the broader hybrid cloud ecosystem.

The first major advantage is AIOps for infrastructure, pioneered by HPE InfoSight. While IBM has Storage Insights, HPE InfoSight is widely considered the industry benchmark for deep-stack predictive analytics. It uses machine learning to analyze millions of sensor points across the global install base to predict and prevent up to 86% of problems before they occur. This goes beyond simple storage monitoring; it provides visibility into the "noisy neighbor" VMs and host-side issues that impact storage performance, providing a level of autonomous management that IBM's portfolio currently lacks.

The second advantage is Full stack automation with hybrid cloud. By managing the Alletra 9000 through the HPE GreenLake Data Services Cloud Console (DSCC), the customer transitions from managing a "box" to a cloud-native operational model. This provides a unified API and a consistent management experience whether the data is on-premises or in the cloud. DSCC enables "Intent-Based Provisioning," where the user simply specifies the workload type and the cloud console automatically selects the best-suited array and volume parameters, ensuring optimal performance without manual tuning. This "Cloud Ops" model is a cornerstone of the HPE GreenLake strategy, offering a more streamlined, automated experience than the traditional management software typically associated with the IBM FlashSystem line. While IBM does offer ransomware features (Option C), HPE's focus on AIOps and hybrid cloud integration provides a more transformative operational benefit for most enterprise customers.

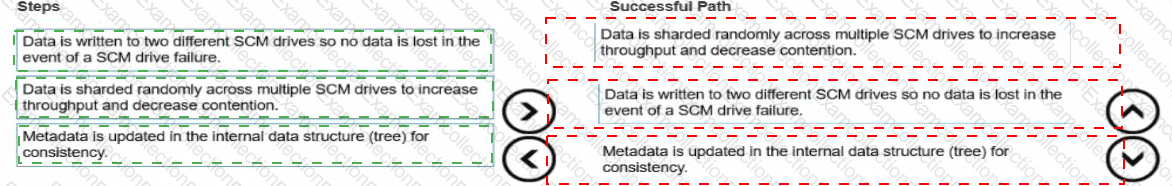

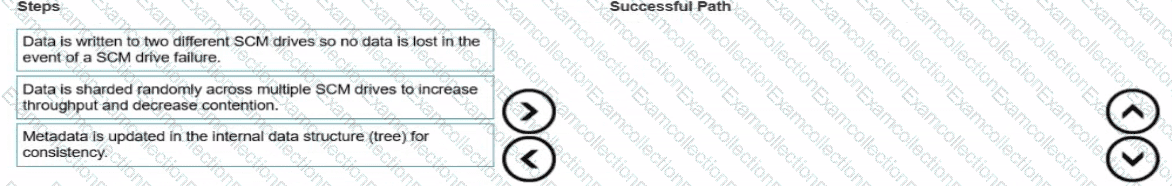

Data is sharded randomly across multiple SCM drives to increase throughput and decrease contention.

Data is written to two different SCM drives so no data is lost in the event of a SCM drive failure.

Metadata is updated in the internal data structure (tree) for consistency.

Comprehensive and Detailed 250 to 300 words of Explanation From Advanced Storage Solutions Architect documents and knowledge guide:

The write data path in HPE GreenLake for File Storage (powered by Alletra MP X10000 hardware and VAST Data software) follows a unique Disaggregated Shared-Everything (DASE) architecture. Unlike legacy NAS systems that use front-end caching or complex controller-to-controller talk, this solution leverages Storage Class Memory (SCM) as a persistent write buffer to provide high-sustained performance without the need for traditional data movement between tiers.

The process begins with sharding. When a NAS write request arrives, the system immediately shards the data randomly across multiple SCM drives in the cluster. This sharding is critical because it eliminates hot spots and contention by ensuring that no single drive or node becomes a bottleneck, effectively parallelizing the IO load across the entire storage fabric.

Once the sharding logic is determined, the data is physically written to the SCM tier. To ensure mission-critical resilience, every write is mirrored (written to two different SCM drives). Because SCM is non-volatile random-access memory (NVRAM), the write is persistent the moment it hits the media. This allows the system to send an immediate acknowledgement back to the client while protecting against a drive or node failure.

Finally, the metadata is updated in the internal data structure (the V-Tree). This step ensures the "View" of the file system remains consistent and that the global namespace reflects the newly written data. After this point, the data is asynchronously moved from SCM to high-capacity NVMe SSDs using wide-stripe erasure coding for long-term, efficient storage. This disaggregated flow allows the Alletra MP X10000 to scale performance and capacity independently while maintaining strict data integrity and consistency at AI-scale.

The integration of Veeam Backup & Replication with HPE StoreOnce via the StoreOnce Catalyst protocol offers specialized features that transform static backup data into active assets for testing and verification. To address the specific requirements of validating restores and creating testing environments, Veeam utilizes the SureBackup and DataLabs features.

Veeam SureBackup is the primary feature used to validate the recoverability of backups. It automates the process of testing a backup by booting the VM directly from the StoreOnce repository in an isolated environment (Virtual Lab). It performs heartbeats, network tests, and application-specific tests (such as checking if a SQL database responds) to ensure the data is not just present, but functional. Because HPE StoreOnce Gen4+ systems feature flash-accelerated metadata and improved random read performance, they are "Veeam Ready" to support the I/O requirements of starting VMs for these verification tasks.

Veeam DataLabs (formerly known as Virtual Lab or On-Demand Sandbox) is the broader orchestration framework that allows customers to leverage their backup data for "Labs." By creating a DataLab, an administrator can spin up an isolated copy of the production environment from the StoreOnce backups. This is used for "validation testing," such as testing security patches, verifying application upgrades, or performing "DevOps" tasks without impacting the production systems. Option C (Immutability) and Option E (Virtual Lock) are critical for ransomware protection but do not directly facilitate the "lab creation" or "validation testing" workflows described. Option A is a general data transfer mechanism. By selecting B and D, the storage architect ensures a solution that not only protects data but proactively proves its readiness for disaster recovery.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

For workloads like NoSQL databases (e.g., MongoDB, Cassandra), Big Data analytics (e.g., Hadoop, Spark), and high-throughput data lakes, the primary performance bottleneck is often the latency and bandwidth between the compute and the storage media. When a customer specifies they are running on bare-metal servers to achieve "most efficient performance," they are looking for a solution that minimizes the overhead of hypervisors and provides direct, high-speed access to storage.

The HPE Alletra Storage Server 4000 series, and specifically the Alletra 4110, is purposefully engineered for this "Data-First" server-based storage market. The Alletra 4110 is a 1U, all-NVMe ultra-dense storage server that supports dual 4th or 5th Gen Intel Xeon Scalable processors and PCIe Gen5 throughput. Unlike traditional storage arrays that connect via a SAN, the Alletra 4110 functions as high-performance Software-Defined Storage (SDS) infrastructure. It is designed to run the application and the data storage on the same high-density nodes, or to act as a high-speed storage tier for bare-metal clusters.

Other options are less suitable for this specific "bare-metal NoSQL" requirement:

HPE SimpliVity (B) is a Hyperconverged Infrastructure (HCI) solution that is inherently tied to a hypervisor (VMware or Hyper-V), which contradicts the customer’s bare-metal requirement.

HPE Alletra dHCI (C) is a disaggregated HCI solution that automates a SAN environment but is also centered around VMware virtualization.

HPE GreenLake for Private Cloud Business Edition (A) is a service-oriented offering primarily for managing virtualized private clouds.

The Alletra 4110 provides the massive I/O throughput (up to 315 GB/s of PCIe Gen5 bandwidth to SSDs) and the low-latency NVMe performance that NoSQL and analytics workloads demand, making it the superior architectural choice for bare-metal, data-intensive environments.

The HPE Peer Motion Utility (PMU) and its integrated counterpart in HPE GreenLake and SSMC are designed for the non-disruptive migration of data between storage systems, such as from an HPE 3PAR to an HPE Alletra 9000 or Primera. A core requirement for the "Online" (non-disruptive) version of this migration is that the storage fabric must support and have N-Port ID Virtualization (NPIV) enabled.

Architecturally, Peer Motion relies on the destination array's ability to "masquerade" as the source array during the transition. When a volume is migrated, the destination array creates virtual ports using NPIV to inherit the identity (WWNs) of the source array's ports. This allows the host's multipathing software to see the new storage paths as if they were additional paths to the original volume, enabling a seamless transition without a server reboot or I/O interruption. According to the HPE Peer Motion Utility User Guide, if the SAN fabric (the switches) does not support NPIV or if NPIV is disabled on the specific ports, the migration utility will default to a Minimally Disruptive Migration (MDM) or an offline migration, both of which involve host-side downtime.

Furthermore, the fabric must be zoned such that the source and destination arrays can "see" each other to establish the Peer Motion relationship and handle the data orchestration. Option B is incorrect because while the management station (running the PMU) requires IP connectivity to send commands, the actual data movement and host-transparent pathing are strictly dependent on the FC fabric's NPIV capability. Option C is incorrect as fabric connections (via switches) are required; direct point-to-point connections between array FC ports are typically not supported for Peer Motion federations.

In a Brocade FCIP (Fibre Channel over IP) environment, an extension trunk (or tunnel) can be composed of multiple circuits to provide both increased bandwidth and high availability. The operational state of these circuits—whether they are active or standby—is determined by the Metric assigned to each individual circuit.

According to the Brocade Fabric OS Extension Configuration Guide, all circuits within a tunnel or trunk have a metric of either 0 or 1.

Metric 0: This is the default value and indicates an active circuit. If multiple circuits are configured with Metric 0, they will operate in an active-active mode, and the load will be balanced across them.

Metric 1: This indicates a standby (or passive) circuit. Standby circuits with Metric 1 are not used for data transmission unless all Metric 0 circuits within that tunnel/failover group fail.

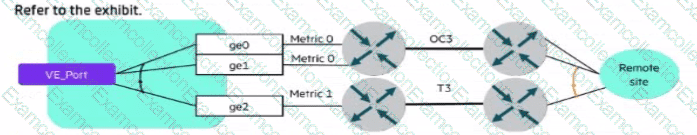

In the provided exhibit, there is a single VE_Port (Virtual E_Port) trunking three individual IP circuits:

ge0 is configured with Metric 0 (Active).

ge1 is configured with Metric 0 (Active).

ge2 is configured with Metric 1 (Standby).

Therefore, this is a valid configuration where the system will utilize the two Metric 0 circuits (ge0 and ge1) simultaneously for data traffic, providing an active-active load-balanced connection. The third circuit (ge2) will remain in a standby state, only becoming active to maintain the link if both primary circuits go offline. Options A and B are incorrect because trunks do not require an even number of circuits, and FCIP trunks are specifically established over Ethernet (ge) ports, not native Fibre Channel ports.

The HPE Alletra MP B10000 (Block storage) represents a paradigm shift in HPE's high-end storage strategy by utilizing a modular, disaggregated architecture. One of the most significant technical advantages of this platform is its Advanced Erasure Coding and the way it handles data layout across the disaggregated NVMe capacity.

According to the HPE Alletra MP technical deep-dive documents, the system does not use traditional fixed RAID groups. Instead, it uses a massive, distributed stripe mechanism. The software is capable of varying the stripe width dynamically based on the number of available drives and nodes in the cluster. This allows the system to achieve industry-leading capacity efficiency. Specifically, the system can utilize stripe sizes ranging from a minimum of 16+3 to a maximum of 146+3. This high data-to-parity ratio (e.g., 146 data segments for every 3 parity segments) allows customers to realize significantly higher usable capacity from their raw NVMe investment compared to traditional RAID 6 (6+2 or 8+2) or even typical erasure coding in competitive mid-range arrays.

Option A is technically incorrect because, in the Alletra MP, data is typically committed to persistent NVMe media or SCM (Storage Class Memory) in a way that doesn't rely on legacy battery-backed volatile DRAM in the same manner as older controllers. Option C is incorrect because Locally Decodable Erasure Coding is actually designed to reduce rebuild times by requiring fewer IOPS to reconstruct a missing fragment. Option D, while "Workload Simulator" is a tool used in sizing (NinjaStars), the most "important" architectural feature listed that differentiates the Alletra MP’s efficiency is its unique and massive scaling stripe width.
