Juniper JN0-232 - Security, Associate (JNCIA-SEC)

An SRX Series Firewall can operate in flow mode or packet mode. Flow mode is the normal security firewall mode, where the SRX analyzes traffic statefully, creates sessions, and applies services such as security policies, NAT, screens, and application security. Packet mode processes traffic on a per-packet basis and is stateless, making the SRX behave more like a router for selected forwarding functions. Juniper documentation specifically identifies these two operating modes for SRX Series Firewalls. Route mode is not an SRX firewall operating mode; routing is a forwarding function within Junos OS. Wireless mode is also not a firewall processing mode. Therefore, the correct answers are flow mode and packet mode.

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT

The packet flow for new traffic on SRX is processed in a defined order:

Screens (Option B, Step 1): Packets are first checked by screens for anomalies such as floods, malformed packets, or protocol violations.

Route Lookup (Step 2): The destination IP is checked in the routing table to determine the egress interface.

Zone Determination (Step 3): Once the ingress and egress interfaces are known, their associated zones are identified.

Security Policies (Step 4): With both zones determined, the packet is evaluated against the configured security policies.

Other options list incorrect sequences, either moving routing later or placing policies before zone determination, which is not possible.

Correct Processing Order: screens → routes → zones → security policies

Static NAT is bidirectional on SRX Series Firewalls. It creates a fixed one-to-one translation between an original address and a translated address, allowing sessions to be initiated from either side of the gateway. Destination NAT, by contrast, allows inbound access to internal resources but is not inherently bidirectional in the same way. Source NAT translates the source address for outbound connections, commonly allowing private hosts to access public networks, and return traffic is handled by the session table. Source NAT without PAT still does not provide the automatic reverse mapping behavior of static NAT. Juniper documentation notes that static NAT mappings allow connections to be established from either side, which makes static NAT the correct answer.

In Junos OS, security zones are the foundation of SRX firewall policy enforcement. Logical interfaces must be assigned to zones. This enables:

Separation of traffic by zone boundaries.

Enforcement of security policies for traffic traversing between zones.

Control of traffic across VLANs, subnets, or functional areas (e.g., trust, untrust, DMZ).

Other options:

Zone assignment is not used to simplify interface configuration (A).

Routing protocols and updates (B) are handled by routing instances, not zones.

SNMP monitoring (D) is enabled under system or services configuration, not zones.

Option B: Correct. Interfaces in the same security zone must belong to the same routing instance; zones cannot span multiple routing instances.

Option D: Correct. A security zone can contain multiple interfaces, allowing grouping of similar trust levels (e.g., multiple LAN subnets in a trust zone).

Option A: Incorrect. An interface can belong to only one zone at a time.

Option C: Incorrect. Interfaces within the same zone cannot be split across routing instances.

Correct Statements: Interfaces in the same zone must share the same routing instance, and a zone can contain multiple interfaces.

The antivirus feature on SRX relies on signature definition files that must be regularly updated. To check the status of these updates, the correct operational command is:

show security utm anti-virus status (Option D). This displays details such as:

Antivirus engine status

Last update time of virus definitions

Version of the signature database

Other options:

Content-filtering statistics (Option A) shows counters for file-type filtering, not antivirus updates.

Anti-spam status (Option B) shows spam filtering engine connectivity.

Web filtering status (Option C) shows SBL/web filter server connection details.

Correct Command: show security utm anti-virus status

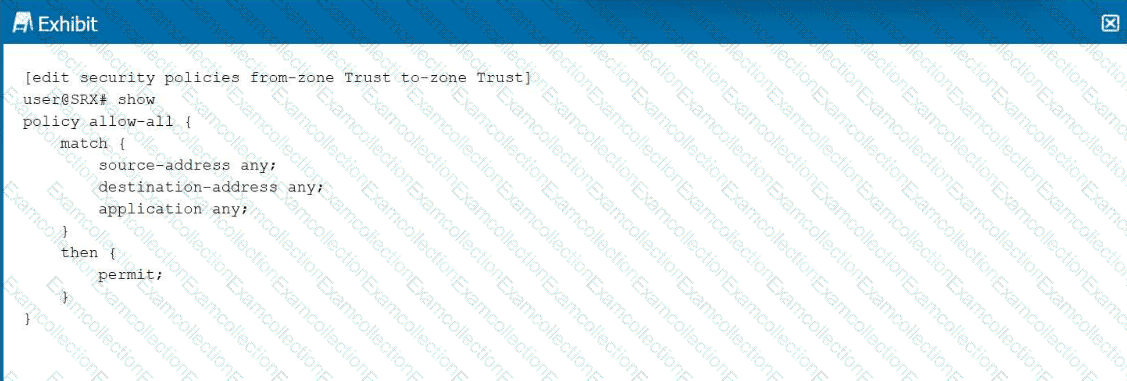

From the exhibit configuration:

[edit security policies from-zone Trust to-zone Trust]

policy allow-all {

match {

source-address any;

destination-address any;

application any;

}

then {

permit;

}

}

The from-zone and to-zone are both set to Trust → Trust .

This means the policy is governing traffic within the same zone .

Policies within the same zone are called intra-zone policies .

Analysis of options:

Global policy (A): Applied universally across zones, not zone-specific. Not the case here.

Inter-zone policy (B): Applies between two different zones (e.g., Trust → Untrust). Not the case here since both zones are Trust.

Intra-zone policy (C): Correct. Applies to traffic within the same zone (Trust → Trust).

Default policy (D): The implicit deny-all policy that applies when no policy matches. Not shown in this exhibit.

Correct Policy Type: Intra-zone policy

Security Director is Juniper’s centralized platform for managing security policies across SRX Series physical and virtual firewalls. Juniper documentation states that Security Director provides centralized security policy lifecycle management, including firewall, Content Security, IPS, VPN, and NAT policy workflows. JIMS, the Juniper Identity Management Service, supports user identity and IP address mapping for SRX Series devices, enabling user firewall and identity-aware policy decisions. In this exam context, Security Director provides the policy management platform, while JIMS supplies identity information used by user-based security policies. Juniper Secure Analytics is primarily analytics and log correlation, not SRX policy management. Juniper Mist can support some cloud-managed networking functions, but it is not the JN0-232 security policy management product paired with SRX policy administration.

Unified security policies (USPs) provide integrated application-aware controls using AppID and extend traditional zone-based policy enforcement.

Option A: Correct. If traffic matches a unified security policy, it is not re-evaluated by traditional security policies. Unified policies take precedence for matched flows.

Option B: Incorrect. Traditional policies rely on Layer 3/4 attributes. Unified policies go deeper by leveraging AppID, which inspects traffic up to Layer 7.

Option C: Incorrect. Traffic matching a traditional policy is unaffected by unified policy unless unified mode is explicitly configured for those flows.

Option D: Correct. Dynamic application recognition in unified policies uses Layer 7 (application-layer) inspection via AppID.

Correct Statements: A and D
