Juniper JN0-352 - Enterprise Routing and Switching, Specialist (JNCIS-ENT)

The intent of this filter is to match and discard traffic from one single, specific host MAC address, which requires the source-mac-address match condition to reference the complete, exact 48-bit address using an explicit /48 mask (or no mask at all, which Junos treats as an implicit full match) so that only that one precise address is matched. As configured, the term instead specifies a /40 mask on 00:12:34:56:00:07, meaning only the first 40 bits (the first five octets, 00:12:34:56:00) are actually significant to the match, while the sixth octet is effectively wildcarded across its full range; this produces an imprecise, overly broad match criterion rather than the single-host match the administrator intended, and is a common configuration mistake that undermines the predictability and correctness of MAC-based filtering. The lesson tested here is that source and destination MAC address match conditions in Junos firewall filters must be specified with the correct, deliberate, and explicit prefix length appropriate to the intended scope — typically /48 for a single exact host — rather than an arbitrary or miscalculated mask value. Firewall filters under family ethernet-switching are fully capable of matching on both source-mac-address and destination-mac-address, which rules out that option entirely. Layer 2 MAC-based filters function correctly on both access and trunk interface modes, so interface type is not a limiting factor here. There is no indication in the exhibit that the filter's application direction (input versus output) is reversed. Reference topics: Junos Enterprise Switching – Layer 2 Security, MAC Address Match Conditions and Prefix Length Precision.

By default, EBGP sessions are built with the expectation that peers are directly connected at Layer 3, and Junos enforces this by sending EBGP packets with a TTL of 1. When loopback addresses are used as the session endpoints instead of the directly connected physical interface addresses, the resulting IP packets must traverse at least one additional router hop between the two loopbacks, and a TTL of 1 will expire in transit before reaching the remote loopback, causing the TCP handshake — and therefore the BGP session — to fail even though a valid route to the peer's loopback exists. The multihop statement (configured as an EBGP multihop parameter with an accompanying TTL value, most commonly set to 2 for a single intermediate hop) instructs Junos to increase the TTL used for that peer's BGP packets so they survive the extra hop count between loopbacks. This is a mandatory addition any time an EBGP session is deliberately built against non-directly-connected addresses, whereas IBGP sessions, by contrast, do not have this default restriction because IBGP already assumes peers may be multiple hops apart within the same AS. Multipath affects load-balancing across equal-cost paths, damping suppresses flapping routes, and passive controls whether a router waits for the remote peer to initiate the TCP connection — none of these resolve the TTL expiration problem inherent to loopback-based EBGP peering. Reference topics: Junos Enterprise Routing – BGP, Configuring EBGP Multihop Sessions.

Once the two candidate routes have equal route preference and equal local preference (both defaulting to 100 unless modified by policy), the Junos BGP algorithm proceeds to its third decision step, which compares the length of each candidate's AS path attribute and selects whichever path carries the shortest AS path, since a shorter path is interpreted as traversing fewer autonomous system hops to reach the origin. This step occurs well before the algorithm ever reaches the specific EBGP-over-IBGP preference rule, which is only evaluated later, after local preference, AS path length, origin type, and MED have all already been compared and found equal between the candidates; because an IBGP-learned copy of a route typically retains the identical AS path that was originally received from the external AS (IBGP does not prepend the local AS number the way crossing an AS boundary does), it is entirely possible, and often the deciding scenario, for AS path length to differ between competing paths well before the algorithm would ever need to fall back on the IBGP-versus-EBGP tiebreak. Selecting a route purely because it was 'learned through IBGP' is not a rule that exists anywhere in the algorithm and would in fact typically be the opposite of Junos's later EBGP-preference tiebreak. Neither next-hop IP address value nor router ID value is compared with a 'highest wins' rule at any point in the standard path selection sequence — where router ID is used at all, Junos prefers the lowest value, not the highest, making both of those distractors doubly incorrect. Reference topics: Junos Enterprise Routing – BGP, Path Selection Order: AS Path Length Precedes EBGP/IBGP Preference.

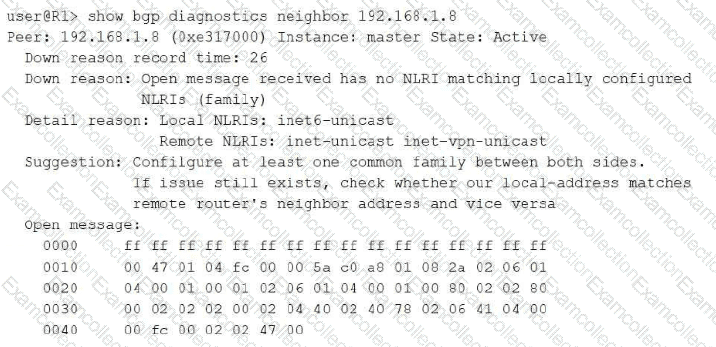

The diagnostic output explicitly states the root cause: the local router has only the inet6-unicast address family configured for this peer, while the remote router advertised inet-unicast and inet-vpn-unicast in its OPEN message, and BGP requires at least one common negotiated address family (NLRI type) between two peers for a session to remain established; with zero overlap between the two sides' configured families, the session is torn down immediately after the OPEN exchange, which is precisely why the peer state shows Active rather than Established. This confirms the mismatched-address-family statement directly and unambiguously from the exhibit's own Down reason and Detail reason fields. The diagnostic tool's own embedded Suggestion text goes further, explicitly advising the administrator to additionally verify that the local-address configured for the peer matches the remote router's configured neighbor address and vice versa — a secondary, commonly encountered condition in which mismatched or effectively duplicated/incorrect address bindings between the two sides' neighbor statements can independently prevent a session from completing correctly, even once the family mismatch is resolved. This is why address-configuration consistency between the peers is flagged as a second concern worth checking in this scenario. Nothing in the exhibit references NTP or time synchronization at all, nor does anything in the output reference authentication, an MD5 mismatch, or any related failure signature; both of those conditions would present through entirely different diagnostic messages than the one shown here. Reference topics: Junos Enterprise Routing – BGP, Address Family Negotiation and the show bgp diagnostics neighbor Command.

Layer 2 MAC learning on an EX Series switch, as on any standard Ethernet bridge, is a passive, frame-driven process rather than an active polling or query-based mechanism. Every time a frame arrives on any interface, the switch inspects the frame's source MAC address field and, if that address is not already present in the Ethernet switching (bridge) table for the associated VLAN, creates a new dynamic entry recording the source MAC address, the VLAN it was learned on, and the specific ingress interface through which the frame arrived. Junos also stamps each learned entry with an aging timestamp, which is refreshed every time a subsequent frame from that same source MAC is received; entries that receive no refreshing traffic within the configured MAC aging interval (300 seconds by default) are eventually purged from the table to keep it current and to reclaim table space from hosts that have moved or gone offline. This source-address-driven, per-frame learning process happens continuously and automatically with no dependency on spanning-tree state changes — although a topology change notification can trigger accelerated aging of the table to flush potentially stale entries faster, learning itself is not gated by or contingent upon such an event occurring. The switch never learns addresses from the destination field of a frame, since the destination address, if already known, is used purely for the forwarding lookup decision, not for populating new table entries. Reference topics: Junos Enterprise Switching – Layer 2 Switching Fundamentals, Source MAC Learning and Table Aging.

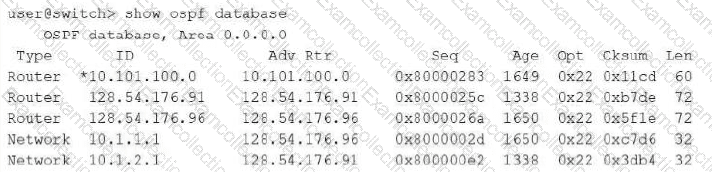

In the output of show ospf database, Junos marks every self-originated link-state advertisement with an asterisk immediately preceding the LSA's link-state ID. A self-originated LSA is one that was created and flooded by the router on which the command is being executed, as opposed to an LSA that was received from and originated by a neighboring router elsewhere in the area. In this exhibit, the asterisked Router LSA has an ID of 10.101.100.0 and an Advertising Router value of the same 10.101.100.0, confirming that this particular Router LSA describes the local device's own links, area membership, and interface costs, and that the local router itself flooded this LSA into the area's link-state database. This distinction matters operationally because when troubleshooting OSPF topology or SPF calculation issues, engineers frequently need to isolate their own router's advertised state from the states advertised by every other router in the area; the asterisk provides an immediate, unambiguous visual cue for that separation without needing to cross-reference the router's own ID separately. It has no relationship to designated router or backup designated router status — DR/BDR roles are indicated elsewhere in interface-level output, not through the asterisk convention in the LSA database dump, and a router that is neither DR nor BDR still self-originates and flags its own Router LSA the same way. Reference topics: Junos Enterprise Routing – OSPF, Interpreting the OSPF Link-State Database.

MACsec (IEEE 802.1AE) secures a point-to-point Ethernet link independently of how the logical unit above it is configured for VLAN tagging, so neither trunk mode nor access mode has any bearing on whether the MACsec Key Agreement (MKA) protocol can establish a secure channel. What does determine success is the pre-shared key material: when static CAK security mode is used, the Connectivity Association Key (CAK) and the Connectivity Association Key Name (CKN) must be configured identically on both ends of the link. If they do not match, MKA never completes the exchange, no secure channel is created, and all traffic on that interface is dropped rather than merely left unencrypted. Equally important, and frequently overlooked, is that MACsec adds up to 32 bytes of overhead per frame for the security tag (SecTAG) and integrity check value (ICV); Juniper's official guidance is to ensure the difference between the interface's physical MTU and the protocol MTU is large enough to absorb this overhead, or frames will be silently discarded once encryption is active, producing symptoms that look identical to a failed session. Both the CAK/CKN and MTU checks are documented first-line troubleshooting steps for MACsec on EX Series switches. Reference topics: Junos Enterprise Switching – Layer 2 Security, Configuring and Troubleshooting MACsec on EX Series Switches.

The factory-default storm control configuration on EX Series switches operates in a purely rate-limiting mode rather than an interface-shutdown mode. When broadcast, multicast, or unknown-unicast traffic on a port exceeds the configured bandwidth-percentage threshold, the default action is simply to police the offending traffic type and silently drop only the packets that exceed that threshold, while all traffic within the allowed rate continues to be forwarded normally and the interface itself remains administratively and operationally up throughout the event. This explains the observed symptom precisely: during the burst of unknown-unicast frames, the switch dropped the excess volume above the configured limit, producing a brief period of packet loss, but as soon as the burst subsided and traffic fell back under the threshold, storm control simply stopped dropping packets and normal forwarding resumed automatically — no administrative shutdown, recovery timer, or manual intervention was ever involved, because the interface was never taken down in the first place. This default drop-only behavior is distinct from the optional interface-shutdown action, which must be explicitly configured if an administrator wants storm control to disable a port outright on violation (as seen in a related scenario requiring the clear ethernet-switching recovery-timeout command). Storm control by default covers broadcast, multicast, and unknown-unicast traffic types together, not multicast alone, and it has no functional relationship to GRES, which governs Routing Engine redundancy rather than Layer 2 traffic policing. Reference topics: Junos Enterprise Switching – Storm Control, Default Drop Behavior Versus Interface Shutdown Action.

Configuring interface-type p2p under an OSPF interface tells Junos to treat that interface as a point-to-point network type regardless of the underlying physical medium, which removes the interface from the standard broadcast-network state machine entirely. On a true broadcast network, two routers must first complete a Designated Router and Backup Designated Router election, wait through the associated timers, and only then proceed through 2-Way, ExStart, Exchange, and Loading before reaching Full — a multi-step process. A point-to-point interface skips DR/BDR election altogether and proceeds directly from 2-Way into ExStart, so adjacencies form measurably faster, which is the first correct benefit. Because there is no DR on a point-to-point interface, Junos also does not generate a Type 2 Network LSA to describe the segment; the connected subnet is instead advertised as a simple stub-network entry inside the Router LSA itself, eliminating an entire LSA type from the area's link-state database and reducing its overall size, which is the second correct benefit. Point-to-point configuration is entirely incompatible with DR election, so a router configured this way cannot 'win' a DR election — there is no DR to win. Advertisement of the connected network happens on any operational OSPF interface irrespective of network type, so that option describes normal OSPF behavior rather than a benefit specific to the point-to-point setting. Reference topics: Junos Enterprise Routing – OSPF Network Types, Configuring OSPF Interface Type.
