In Apstra 5.1, the Active view represents the operational state of the deployed fabric (as opposed to the intended state being edited in Staged). Within Active, the Query function is designed for day-2 operations where an operator needs to quickly locate endpoint-related information and validate forwarding/neighbor state derived from the fabric. The query choices exposed in the UI are focused on operational lookup primitives rather than design objects. Specifically, Apstra supports querying MAC and ARP (and also VMs when virtual infrastructure integration is present).

MAC queries help identify where a Layer 2 endpoint is being learned in the fabric—useful for troubleshooting EVPN-VXLAN fabrics where MAC learning and advertisement can determine reachability and mobility behavior. ARP queries help identify IP-to-MAC bindings and validate whether hosts are being resolved correctly, which is critical when troubleshooting first-hop behavior (for example, IRB gateway adjacency, endpoint onboarding, or unexpected IP conflicts).

By contrast, “Virtual Network” and “Routing Zone” (VRF) are primarily design constructs managed in Staged and validated/assured by analytics and intent checks; they are not the direct query selectors in the Active > Query tool. Therefore, the two correct Active-query aspects from the given options are ARP and MAC.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/query-active.html

In a three-stage eBGP IP Clos, a leaf typically learns the same prefix through multiple spines, and those spines are commonly in different AS numbers (a standard Clos pattern for simplified operations and fault isolation). To install multiple equal-cost eBGP paths for the same destination, Junos requires BGP multipath and, when the candidate paths come from different neighbor ASs, you must use the multiple-as capability (expressed as “multipath multiple-as” in many designs) to bypass the default same-neighbor-AS restriction for multipath selection. This ensures multiple eligible eBGP next-hops can be accepted as equal-cost paths and installed.

Separately, to actually perform load balancing in the forwarding plane across those installed next-hops, Junos uses a load-balancing policy that is applied to the forwarding table via routing-options forwarding-table export . This policy (for example, per-packet or consistent-hash variants, depending on platform and intent) activates the forwarding behavior needed to distribute traffic over the ECMP set.

A “load-balance policy applied to the BGP group” is not the required mechanism for ECMP forwarding behavior in this context, and multihop is unnecessary in a Clos underlay because neighbors are typically directly connected.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/load-balancing-bgp-session.html

In Apstra 5.1, a logical device defines the abstract port layout and capabilities (including supported speeds), while an interface map binds that abstract port layout to the real, vendor-specific front-panel ports. Rack types then consume logical devices and interface maps to model the rack’s leaf/superspine roles. Once a logical device is referenced by interface maps and used inside rack types (and potentially templates that instantiate those rack types), Apstra treats the combination as a consistent contract: port counts, roles, and speeds must remain semantically valid for every object that depends on it.

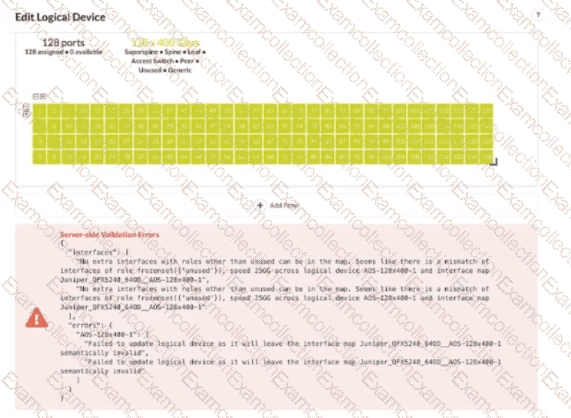

The exhibit’s validation error indicates that after changing interface speeds on the logical device, the existing interface map(s) and their usage in rack types no longer match the logical device definition (for example, the map expects certain ports/speeds/roles, but the updated logical device would leave the map invalid). Because the logical device is being consumed in multiple places, the safest and required way to remove the error is to remove all dependencies—templates (if they reference the rack types), rack types, and interface maps—so Apstra can accept the new logical device definition without violating existing mappings. After updating the logical device, you then recreate or update the interface maps and re-associate them with the rack types/templates so the entire chain remains consistent under the new speed requirements.

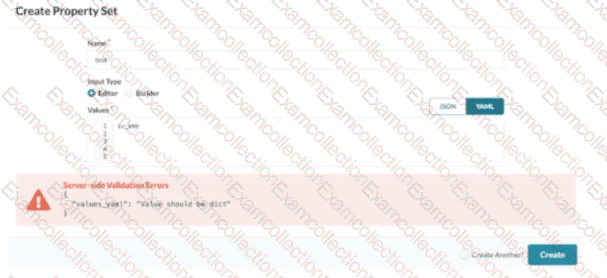

In Apstra 5.1, a property set is a structured data object used to parameterize configlets (config templates). The key point is that Apstra expects the property set “values” to be a dictionary/map so that the configlet can reference variables by name (for example, {{ NTP_SRV1 }} or nested keys). The exhibit shows a server-side validation error indicating that values_yaml “should be dict,” which occurs when the YAML content is entered as a single scalar string (such as try_ksh) instead of a key-value mapping.

To correct this, rewrite the YAML using valid key: value syntax so the top-level structure is a dictionary. For example, a minimal valid property set would look like role: try_ksh (or any meaningful key name aligned to the variables your configlet expects). If multiple variables are needed, add additional keys, and if your configlet uses nested objects, represent them as nested YAML dictionaries. This correction aligns the property set with Apstra’s intent-based model: values are stored as named properties and then rendered deterministically into device configuration. This is independent of Junos v24.4 specifics; Junos becomes relevant when the rendered configlet content is applied to devices, but the property set itself must first validate as a dictionary for Apstra to render the template correctly.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/property-set-datacenter-design-create.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/property-set-datacenter-design.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/ref/property-sets-api.html

In Juniper Apstra 5.1, Root Cause Identification (RCI) is implemented with a currently supported model focused on connectivity. Practically, this means RCI is designed to take telemetry and state learned from the fabric (for example, interface operational status, LLDP neighbor information, and routing session status) and correlate those signals to determine the most likely underlying cause of a connectivity-impacting event. Within an EVPN-VXLAN IP fabric, many operational symptoms can appear similar at the service layer (endpoints cannot reach each other, routes disappear, overlays degrade), but RCI narrows the problem by correlating evidence across the underlay and control plane.

The “connectivity” RCI model targets common failure scenarios that directly break device-to-device reachability, such as a broken link, a miscabled link (wrong LLDP neighbors), or an operator-disabled interface. These conditions often cascade into higher-level symptoms, including BGP sessions dropping over affected links. With Junos v24.4-based leaf-spine fabrics, maintaining stable underlay connectivity is foundational for EVPN signaling and VXLAN forwarding; therefore, Apstra’s connectivity-focused RCI helps operators rapidly isolate whether the primary fault lies in physical adjacency, cabling/neighbor correctness, or administrative shutdown—reducing mean time to repair by pointing to the most probable root cause rather than only listing alarms.

A security policy is the feature that would be used to accomplish the task of controlling access to other virtual networks in the same routing zone using the Juniper Apstra UI. A security policy allows you to define rules that specify which traffic is allowed or denied between different virtual networks, IP endpoints, or routing zones. A security policy can be applied to one or more virtual networks in the same routing zone, and it can use various criteria to match the traffic, such as source and destination IP addresses, protocols, ports, or tags. A security policy can also support DHCP relay, which enables the forwarding of DHCP requests from one virtual network to another. The other options are incorrect because:

A. interface policy is wrong because an interface policy is a feature that allows you to configure the interface parameters for the devices in a blueprint, such as interface names, speeds, types, or descriptions. An interface policy does not affect the access control between different virtual networks in the same routing zone.

B. anti-affinity policy is wrong because an anti-affinity policy is a feature that allows you to prevent certain devices or logical devices from being placed in the same rack or leaf pair in a blueprint. An anti-affinity policy is used to enhance the availability and redundancy of the network, not to control the access between different virtual networks in the same routing zone.

C. routing policy is wrong because a routing policy is a feature that allows you to configure the routing parameters for the devices in a blueprint, such as routing protocols, autonomous system numbers, route filters, or route maps. A routing policy does not affect the access control between different virtual networks in the same routing zone, unless the routing policy is used to filter or modify the routes exchanged between different routing zones. References:

Security Policy

Interface Policy

Anti-Affinity Policy

Routing Policy

According to the Juniper documentation1, an interface map is a configuration template that maps interfaces between logical devices and physical hardware devices (represented with device profiles) while adhering to vendor specifications. An interface map specifies a connection between the interfaces of two devices, such as a leaf and a spine, a leaf and a server, or a leaf and an external gateway. An interface map can also specify port transformations, such as breaking out a 40 GbE port into four 10 GbE ports, or disabling unused ports. An interface map can be used to achieve the intended network configuration rendering and to enable features such as LAG, ESI-LAG, or MLAG. Therefore, the correct answer is B. An interface map specifies a connection between the interfaces of two devices. References: Interface Maps (Datacenter Design)

The attribute that enables Juniper Apstra to scale and manage thousands of devices with a single server instance is that Apstra is a distributed state system. This means that Apstra uses a graph database to store the network topology and configuration data in a distributed and replicated manner across multiple server nodes. This allows Apstra to handle large-scale networks with high performance, reliability, and availability. Apstra also uses a stateful orchestration engine that ensures the network state is always consistent with the intent of the blueprint, which is the logical representation of the network design and behavior. Apstra can automatically detect and resolve any discrepancies between the desired and actual network state, as well as handle any changes or failures in the network. The other options are incorrect because:

A. Apstra is installed as a cloud resource is wrong because Apstra can be installed either as a cloud resource or as an on-premises resource. Apstra is available as a virtual machine image that can be deployed on various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. Apstra can also be deployed on public cloud platforms, such as Amazon Web Services (AWS) or Microsoft Azure. However, the installation method does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

B. Apstra is based on NGINX is wrong because Apstra is not based on NGINX, but on Python and Django. NGINX is a web server and reverse proxy that Apstra uses to serve the web user interface and the REST API. However, NGINX is not the core component of Apstra, and it does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

C. Apstra is available as an OVA is wrong because Apstra is available as an OVF, not an OVA. An OVF (Open Virtualization Format) is a standard format for packaging and distributing virtual machine images. An OVA (Open Virtual Appliance) is a single file that contains the OVF and the virtual disk images. Apstra provides an OVF file that can be imported into various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. However, the availability of Apstra as an OVF does not affect the scalability of Apstra, which is determined by the distributed state system architecture. References:

JUNIPER APSTRA ARCHITECTURE

Apstra Server Requirements/References

Juniper Networks Apstra 4.0 enhances the experience of users and operators

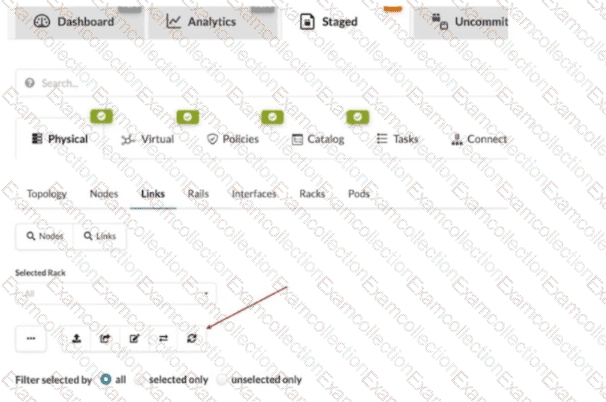

In Apstra 5.1, the Staged > Physical > Links workspace is where you build and validate the cabling (link) intent for the fabric before committing changes. During deployment and day-0/1 build, Apstra can leverage LLDP neighbor discovery from the connected devices to accelerate and validate the cabling map. The indicated toolbar icon in the Links view is used to fetch discovered LLDP data from the devices so Apstra can compare the discovered neighbor relationships with the intended topology and, depending on workflow, help populate or validate link endpoints.

This is particularly important in leaf-spine IP fabrics because correct physical connectivity underpins the entire underlay—interface states, point-to-point addressing, and BGP sessions. In an EVPN-VXLAN design running Junos v24.4, broken or mis-cabled links quickly manifest as missing underlay adjacencies and failed EVPN control-plane signaling. Pulling LLDP discovery into Apstra helps you identify mismatches early (wrong neighbor, wrong port, missing neighbor) and reduces manual cabling errors.

This action is not merely a UI refresh, it does not wipe the cable map, and it does not modify link speeds. Its operational purpose is to import discovered LLDP neighbor information into the blueprint’s physical link view so Apstra can assist with accurate topology validation and deployment readiness.
