When MVRP is enabled, the protocol manages VLAN registration dynamically. In forbidden mode, VLANs are neither registered nor declared on the interface, meaning it prevents VLANs from being learned or propagated.

References:

Juniper Networks Configuration Guide on MVRP

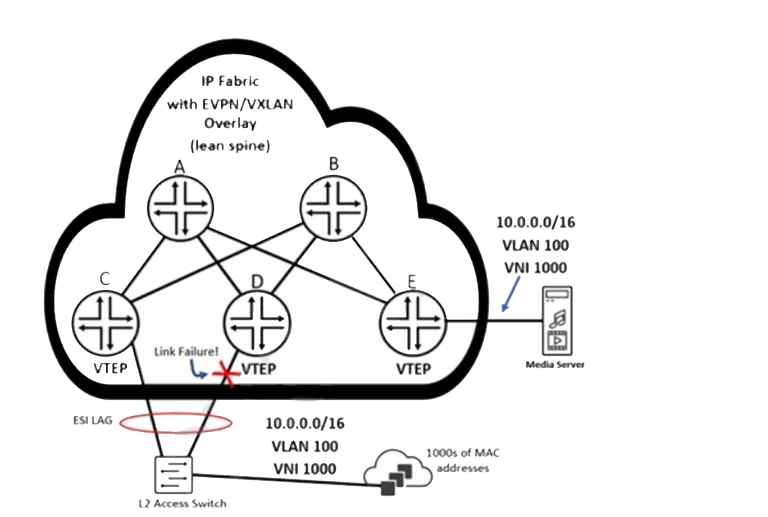

Understanding EVPN Route Types:

EVPN routes facilitate Layer 2 and Layer 3 connectivity across data centers.

Layer 2 and Layer 3 Connectivity:

For Layer 3 connectivity across data centers, where Layer 2 does not extend, IP prefixes need to be communicated.

Type 5 Routes:

Type 5 (IP Prefix Route):

Used to distribute IP prefixes between data centers.

Ensures that Layer 3 connectivity is established without extending Layer 2 domains.

References:

Juniper EVPN Type 5 Routes

Configuring EVPN for Data Center Interconnect

Understanding the Problem:

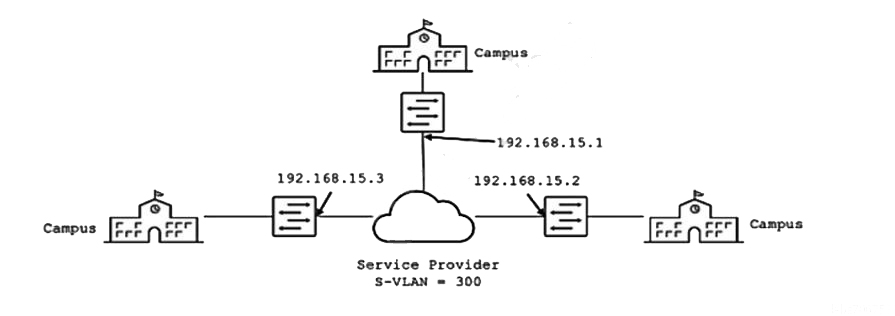

The requirement is to provide Layer 2 connectivity between campus sites using Ethernet switches through a metro Ethernet service provider who is using Q-in-Q tagging.

Design Considerations:

VXLAN Implementation:

VXLAN (Virtual Extensible LAN) can be used to extend Layer 2 networks over Layer 3 networks. It is often used to provide scalability and flexibility in modern data center networks. In this case, VXLAN could be used to encapsulate Layer 2 frames within UDP packets, allowing them to be transported over the service provider’s network.

S-Tag Configuration:

Q-in-Q tagging, also known as 802.1ad, involves an outer tag (S-Tag) and an inner tag (C-Tag). The service provider network uses the S-Tag to identify and segregate customer traffic. Therefore, each campus switch must have the correct S-Tag (300 in this case) configured to ensure the service provider can correctly handle and route the traffic.

References:

Juniper Networks: Understanding VXLAN

Configuring Q-in-Q Tagging

ï‚· Captive Portal Functionality:

Captive portals are used to enforce user authentication by redirecting web browser requests to a login page until authentication is successful.

ï‚· Operation:

When a user connects to the network, their HTTP requests are intercepted and redirected to the captive portal login page. This process continues until the user provides valid credentials.

ï‚· Implementation:

Juniper Configuration:

shell

Copy code

set security authentication-web redirect-url "http:// "

set security zones security-zone interfaces host-inbound-traffic system-services http

set security zones security-zone interfaces host-inbound-traffic system-services https

set access profile captive-portal

This configuration ensures that all HTTP/HTTPS traffic is redirected to the specified captive portal for authentication.

ï‚· References:

Detailed configuration and operation are documented in "Tech Ops Managed Router Juniper Install Guide" and related documents​​​​.

For devices like printers that do not support 802.1X authentication, you can configure static MAC bypass. This allows traffic from devices with specific MAC addresses to bypass 802.1X authentication and gain network access directly.

References:

From the Juniper documentation, you can implement static MAC bypass for devices that do not support 802.1X by configuring their MAC addresses to be statically permitted on the network.

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

shell

Copy code

# Example configuration for static MAC bypass

set protocols dot1x authenticator interface ge-0/0/1.0 mac-radius static-mac 00:11:22:33:44:55

commit

These configurations and explanations should address the questions accurately based on the provided information and referenced documents.

Understanding Multicast Listener Registration Protocols:

Multicast listener registration protocols are used to manage multicast group memberships on a network.

They allow devices to join or leave multicast groups dynamically.

Protocols Supported by Junos:

MLD (Multicast Listener Discovery):

Used for IPv6 multicast group management. It is the IPv6 equivalent of IGMP.

MLD allows routers to discover multicast listeners on a network.

IGMP (Internet Group Management Protocol):

Used for IPv4 multicast group management.

IGMP enables hosts to join and leave multicast groups and allows routers to manage multicast group memberships.

Verification and Configuration in Junos:

MLD and IGMP are supported on Juniper devices running the Junos operating system.

Configuration examples:

IGMP:

shell

Copy code

set protocols igmp interface ge-0/0/1.0

MLD:

shell

Copy code

set protocols mld interface ge-0/0/1.0

References:

Juniper IGMP Configuration Guide

Juniper MLD Configuration Guide
