Juniper JN0-664 - Service Provider Professional (JNCIP-SP)

In an EVPN (Ethernet Virtual Private Network) environment, MAC address mobility is a critical feature that allows devices to move across different locations while ensuring the network consistently tracks their MAC addresses. Let’s break down the components in the exhibit and analyze the correct statements.

Understanding MAC Mobility and Sequence Numbers in EVPN

In EVPN, MAC mobility is managed through sequence numbers that are included in Type 2 MAC/IP advertisements.

The sequence number tracks MAC movement events and is used to determine the most recent update when a MAC address appears on different PEs (Provider Edge devices).

When a MAC address moves between locations, the EVPN PEs increment the sequence number and advertise it to resolve conflicts and determine which PE has the most up-to-date information.

Now, Let’s Review the Options:

✅ C. It helps the local PE to identify the latest advertisement.

Correct:The sequence number plays a key role in resolving MAC address conflicts. If multiple PEs advertise the same MAC address, the PE compares the sequence numbers to determine which update is the latest.

A higher sequence number indicates a more recent MAC update.

✅ D. It is advertised using a Type 2 message.

Correct:EVPN MAC/IP advertisements use BGP EVPN Type 2 messages to carry MAC addresses, IP addresses (optional), and their associated sequence numbers.

Type 2 advertisements are used to track MAC mobility and IP reachability information in the EVPN.

Why the Other Options Are Incorrect:

❌ A. It identifies MAC addresses that should be discarded.

Incorrect:The sequence number doesn’t identify MAC addresses that need to be discarded.Instead, it resolves conflicts by determining the most recent MAC address advertisement based on the highest sequence number.

❌ B. It resolves conflicting MAC address ownership claims.

Partially true, but misleading:While it’s true that sequence numbers are used in conflict resolution, the sequence number itself doesn’t directly resolve ownership claims. It only helps determine which advertisement is more recent. The actual conflict resolution happens through the comparison of the advertisements and sequence numbers.

Final Answer:

✅ C. It helps the local PE to identify the latest advertisement.

✅ D. It is advertised using a Type 2 message.

Reference from Juniper Documentation:

Juniper EVPN Configuration Guide:

"In EVPN MAC/IP advertisements, sequence numbers track the mobility of MAC addresses and are used to resolve conflicts when the same MAC address is advertised by multiple PEs. The PE with the higher sequence number has the most recent information."

🔗 Juniper BGP EVPN Mobility Documentation

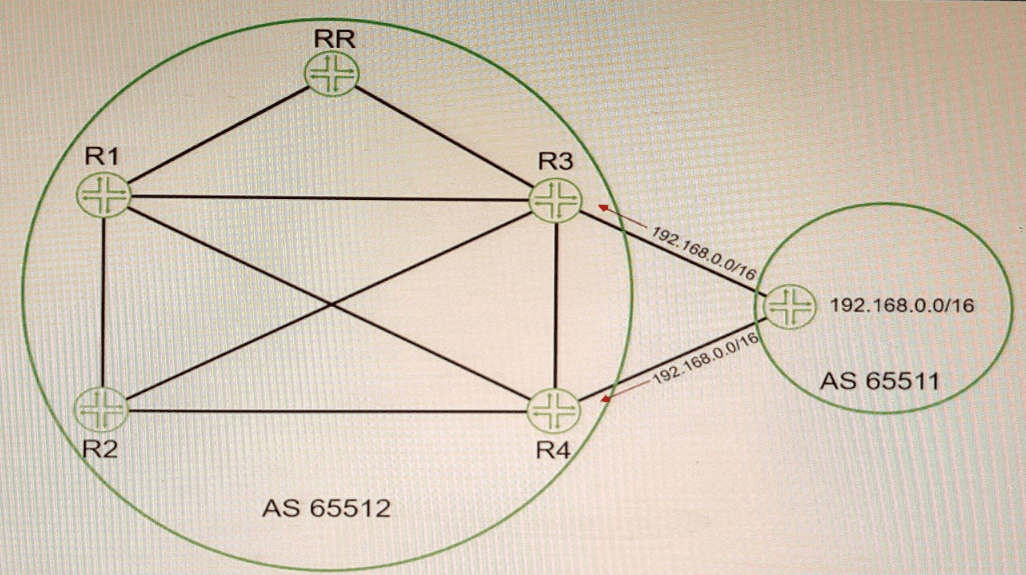

BGP add-path is a feature that allows the advertisement of multiple paths through the same peering session for the same prefix without the new paths implicitly replacing any previous paths. This behavior promotes path diversity and reduces multi-exit discriminator (MED) oscillations. BGP add-path is implemented by adding a path identifier to each path in the NLRI. The path identifier can be considered as something similar to a route distinguisher in VPNs, except that a path ID can apply to any address family. Path IDs are unique to a peering session and are generated for each network3. In this question, we have a route reflector (RR) that receives two routes for the same prefix (192.168.0.0/16) from an EBGP neighbor. By default, the RR will only advertise its best path to its clients (R1 and R2). However, we want R1 and R2 to receive both routes from the RR. To achieve this, we need to configure BGP add-path on the RR and enable it to send multiple paths for the same prefix to its clients.

OSPF uses different types of LSAs to describe different aspects of the network topology. Type 1 LSAs are also known as router LSAs, and they describe the links and interfaces of a router within an area. Type 3 LSAs are also known as summary LSAs, and they describe routes to networks outside an area but within the same autonomous system (AS). By default, OSPF will summarize routes from Type 1 LSAs into Type 3 LSAs when advertising them across area boundaries .

In a PIM Sparse Mode (PIM-SM) domain, Anycast RP is used for load balancing and redundancy by configuring multiple RPs with the same IP address. However, for active multicast sources to be shared between RPs, an additional mechanism is needed since PIM-SM does not automatically synchronize sources between RPs.

Evaluating the Answer Choices

Option A: "Configure MSDP on each RP router." ✅

Multicast Source Discovery Protocol (MSDP) is required in an Anycast RP setup to share active source information between RPs.

MSDP allows RPs to exchange source-active (SA) messages, ensuring that multicast receivers in different regions can still receive traffic from sources registered with different RPs.

Juniper Documentation confirms that MSDP is used to synchronize active sources across multiple RPs in an Anycast RP deployment.

✅ This is a correct answer.

Option B: "Configure anycast PIM with the rp-set statement on each RP router." ✅

Anycast PIM allows multiple RPs to share the same IP address, and the rp-set statement is used to define the set of Anycast RPs.

This enables receivers and sources to register with the closest RP.

However, Anycast PIM alone does not share active source information between RPs; MSDP is still needed for that.

The combination of Anycast PIM (rp-set) and MSDP is the correct approach.

✅ This is a correct answer.

When configuring Class of Service (CoS) properties for output queues, we need to manage packet drops during periods of congestion. Juniper's CoS framework provides several tools to manage congestion, including drop profiles, buffer sizes, and scheduling mechanisms. Let’s break down each option and identify the correct one.

Evaluating the Answer Choices

✅ D. drop profile (Correct Answer)

Why?

A drop profile defines when packets should be dropped based on the queue fill level.

Random Early Detection (RED) or Tail Drop can be used to manage congestion by discarding lower-priority packets first.

Drop profiles are configured under the scheduler to determine how aggressive packet dropping should be during congestion.

Example Juniper Configuration:

schedulers {

best-effort {

drop-profile low-drop;

}

}

drop-profiles {

low-drop {

fill-level 80 drop-probability 50;

}

}

fill-level 80 → When the queue reaches 80% full, packet drops begin.

drop-probability 50 → There is a 50% chance of dropping packets once the threshold is reached.

🔹 Official Juniper Documentation Reference:

🔗 Junos Class of Service Configuration Guide

"A drop profile determines how packets are discarded based on the queue fill level, allowing control over congestion behavior."

Why the Other Options Are Incorrect?

❌ A. buffer size (Incorrect)

Why?

The buffer size determines how many packets the queue can store before congestion occurs.

A larger buffer can delay drops, but it does not actively control dropping behavior.

It affects latency rather than controlling packet drops.

❌ B. priority (Incorrect)

Why?

Priority controls which queue gets serviced first, not how drops are handled.

Higher priority queues are serviced before lower-priority queues, but this does not prevent congestion-related drops.

❌ C. shaping rate (Incorrect)

Why?

Shaping limits the maximum transmission rate of the queue.

While shaping helps reduce congestion, it does not control which packets get dropped during congestion.

Shaping is useful for traffic smoothing, but it does not actively drop packets based on queue fill levels.

Final Answer: ✅ D. drop profile

Controls packet drops based on queue congestion.

Defines RED (Random Early Detection) or Tail Drop mechanisms.

Directly influences drop probability as the queue fills up.

🔹 Official Juniper Reference:

"Drop profiles are used to manage congestion by determining when and how aggressively packets are dropped based on queue fill level."

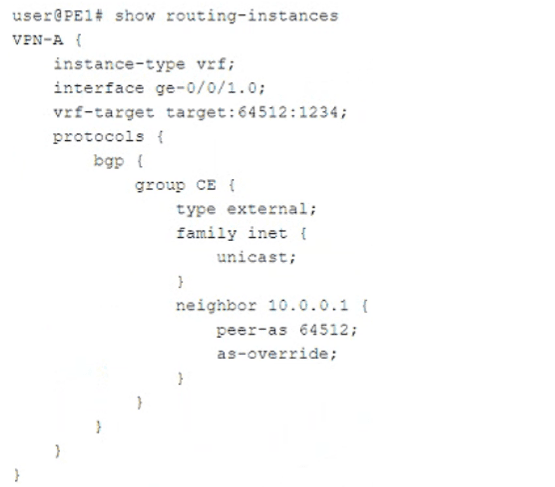

The provided configuration is for a routing instance named VPN-A on a Juniper PE (Provider Edge) router. Let’s break it down:

Instance Type: VRF

The instance-type vrf; statement indicates that this is a Layer 3 VPN (L3VPN) using MPLS VPNs (RFC 4364 – BGP/MPLS IP VPNs).

This confirms that Option D (A Layer 3 VPN is configured) is correct ✅.

VRF Target and Interface Association

The vrf-target target:64512:1234; defines the route target (RT) for importing and exporting VPN routes.

The interface ge-0/0/1.0; binds this interface to the VRF.

BGP Configuration for CE (Customer Edge) Peering

The group CE section configures external BGP (EBGP) (type external;).

The neighbor 10.0.0.1 is in AS 64512 (peer-as 64512;).

The as-override; statement is used.

Evaluating the Answer Choices

✅ Option B: "This VPN connects customer sites that use the same AS number."

The as-override; command allows multiple customer sites that use the same AS number (64512) to communicate over the service provider’s MPLS network.

Normally, BGP prevents routes with the same AS in the AS_PATH from being accepted. The as-override feature replaces the customer's AS number with the provider’s AS, ensuring proper route advertisement.

✅ This statement is correct.

❌ Option A: "This VPN connects customer sites that use different AS numbers."

If the customer sites had different AS numbers, there would be no need for as-override.

The as-override feature is specifically used when all customer sites share the same AS number, ensuring that BGP routes are accepted.

❌ This statement is incorrect.

❌ Option C: "A Layer 2 VPN is configured."

A Layer 2 VPN (L2VPN) configuration would typically use instance-type l2vpn; or EVPN/VPLS-related parameters (e.g., protocols l2vpn or protocols vpls).

Since this configuration uses instance-type vrf; and BGP with a VRF target, it is clearly a Layer 3 VPN (L3VPN).

❌ This statement is incorrect.

✅ Option D: "A Layer 3 VPN is configured."

The instance-type vrf; confirms this is an MPLS Layer 3 VPN (L3VPN).

VRFs, BGP, and route targets (vrf-target) are specific to Layer 3 VPNs.

✅ This statement is correct.

Final Answer:

✅ B. This VPN connects customer sites that use the same AS number.

✅ D. A Layer 3 VPN is configured.

Verification from Juniper Documentation:

Juniper BGP/MPLS Layer 3 VPNs Guide confirms that instance-type vrf is used for L3VPNs.

Juniper BGP Configuration Guide states that as-override is applied when customer sites use the same AS number.

RFC 4364 (BGP/MPLS IP VPNs) explains how route targets and VRFs are used in L3VPN deployments.

Intermediate System to Intermediate System (IS-IS) is a link-state routing protocol designed to move information efficiently within a computer network, a group of physically connected computers or similar devices. It operates in two levels, Level 1 (L1) and Level 2 (L2), and supports hierarchical routing within a multi-area network.

Let's analyze each statement to determine its correctness in the context of IS-IS multi-area networks.

1. **Statement A: Internal L1 PDUs are flooded to the local area's L2 routers.**

- This statement is correct. L1 PDUs (Protocol Data Units) are flooded within the L1 area and also to the L2 routers that are present in the same area. These L2 routers act as the boundary routers that connect the local L1 area to other L1 areas via L2.

2. **Statement B: External L2 PDUs are flooded to all L2 routers in other areas.**

- This statement is correct. L2 PDUs are flooded throughout the entire L2 backbone, which includes all L2 routers in different areas. This ensures that inter-area routing information is shared across the network.

3. **Statement C: Internal L1 PDUs are flooded to all L1 routers in other areas.**

- This statement is incorrect. Internal L1 PDUs are only flooded within the local L1 area. They do not cross L1 area boundaries; inter-area communication is handled by L2 routers.

4. **Statement D: Internal L1 PDUs are only flooded to the local area's L1 routers.**

- This statement is correct. Internal L1 PDUs are indeed only flooded within their local L1 area, and do not go beyond it.

5. **Statement E: External L2 PDUs are only flooded to the local area's L2 routers.**

- This statement is incorrect. External L2 PDUs are flooded to all L2 routers throughout the IS-IS network, not just to those in the local area. This allows L2 routers to maintain a complete map of the network's topology.

**Conclusion**:

Given the analysis, the correct answers are:

**A. Internal L1 PDUs are flooded to the local area's L2 routers.**

**B. External L2 PDUs are flooded to all L2 routers in other areas.**

**D. Internal L1 PDUs are only flooded to the local area's L1 routers.**

**References**:

- Juniper Networks Documentation on IS-IS: [IS-IS Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/is-is-routing-overview.html)

- RFC 1195, Use of OSI IS-IS for Routing in TCP/IP and Dual Environments: [RFC 1195](https://tools.ietf.org/html/rfc1195) which details the operation of IS-IS in multi-area networks.

PIM sparse mode (PIM-SM) is a multicast routing protocol that uses a pull model to deliver multicast traffic. In PIM-SM, routers with receivers send join messages to their upstream neighbors toward a rendezvous point (RP) or a source-specific tree (SPT). The RP or SPT acts as the root of a shared distribution tree for a multicast group. Traffic is only forwarded to routers that request to join the distribution tree by sending join messages. PIM-SM does not flood traffic to all routers or prune routers without receivers, as PIM dense mode does.

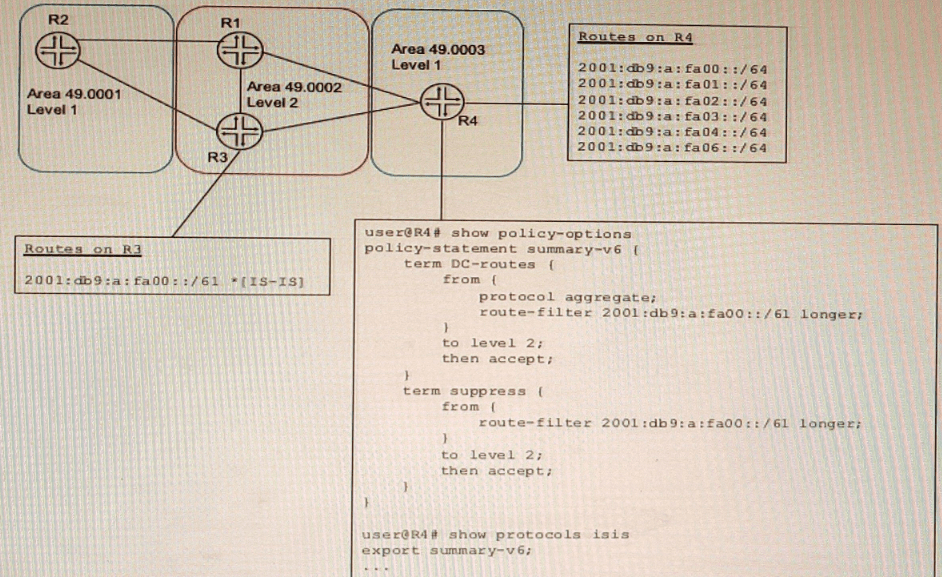

To create a summary route for IS-IS, you need to configure a policy statement that matches the prefixes to be summarized and sets the next-hop to discard. You also need to configure a summary-address statement under the IS-IS protocol hierarchy that references the policy statement. In this case, the policy statement leak-v6 is trying to match the prefix 2001:db9:a:fa00::/61 exactly, but this prefix is not advertised by any router in the network. Therefore, no summary route is created. To fix this, you need to delete the longer keyword from the route-filter term and change the prefix length to /61 exact. This will match any prefix that falls within the /61 range. You also need to delete the export statement under protocols isis, because this will export all routes that match the policy statement to other IS-IS routers, which is not desired for a summary route.
