Juniper JN0-683 - Data Center Professional (JNCIP-DC) Exam

Step 1: Understand the Configuration in the Exhibit

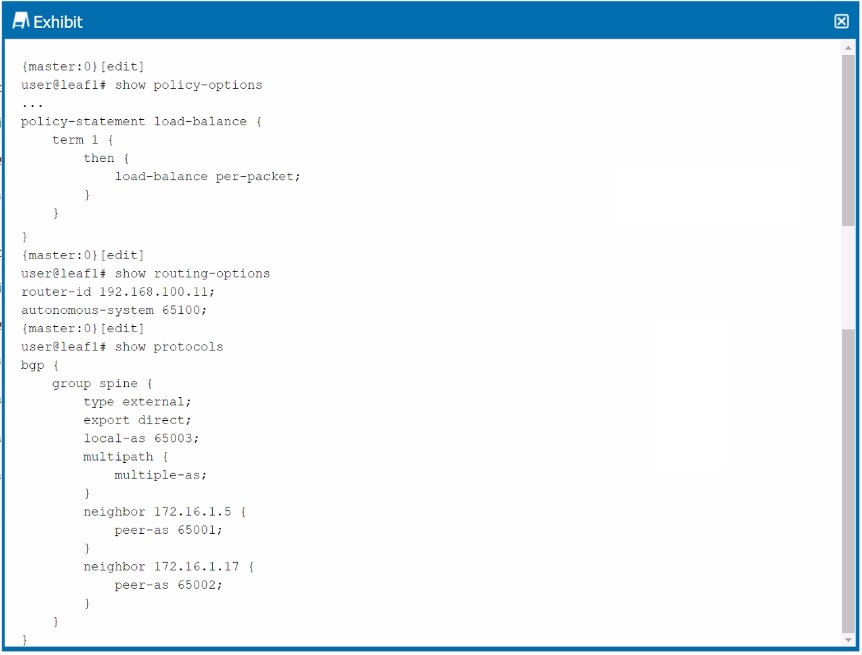

The exhibit provides three configuration snippets from a leaf device (user@leaf#):

Policy Options:

user@leaf# show policy-options

policy-statement load-balance {

term 1 {

then {

load-balance per-packet;

}

}

}

A policy named load-balance is defined, which applies the load-balance per-packet action. In Juniper terminology, per-packet actually means per-flow load balancing (a common point of confusion). This policy is intended to enable load balancing across multiple paths.

Routing Options:

user@leaf# show routing-options

router-id 192.168.100.11;

autonomous-system 65100;

The router ID is set to 192.168.100.11, and the autonomous system (AS) number is 65100. There’s no mention of applying the load-balance policy here, which is a clue to the issue.

BGP Configuration:

user@leaf# show protocols

bgp {

group spine {

type external;

export direct;

local-as 65003;

multipath {

multiple-as;

}

neighbor 172.16.1.5 {

peer-as 65001;

}

neighbor 172.16.1.17 {

peer-as 65002;

}

}

}

BGP is configured with an external group spine, where the leaf device (local AS 65003) peers with spine devices (AS 65001 and 65002).

The multipath multiple-as statement is enabled, which allows BGP to install multiple paths for the same prefix in the routing table, even if the paths come from different AS numbers. This is a prerequisite for load balancing in a multi-AS environment like an IP fabric.

The export direct policy is applied, which likely exports directly connected routes to the spine devices.

Step 2: Identify the Problem

The issue is that traffic from the leaf to the spine devices is not being load-balanced, despite the presence of a load-balance policy and BGP multipath. For load balancing to work in this scenario:

BGP multipath ensures multiple paths are installed in the routing table.

The load-balance per-packet policy is meant to distribute traffic across those paths.

However, the load-balance policy is defined but not applied anywhere in the configuration shown. For load balancing to take effect, the policy must be applied in the correct context.

Step 3: Evaluate the Options

Let’s go through each option to determine the correct solution:

A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.

In Junos, to enable load balancing across multiple paths for forwarding, the load-balance policy must be applied at the forwarding table level. This is done under the routing-options hierarchy using the forwarding-table export statement. For example:

set routing-options forwarding-table export load-balance

This ensures that the load-balancing policy is applied to the forwarding table, allowing traffic to be distributed across multiple equal-cost paths installed by BGP.

B. The multipath multiple-as configuration must be configured for each peer in the BGP spine group.

The multipath multiple-as statement is already configured under the spine group, and it applies to all neighbors in that group (172.16.1.5 and 172.16.1.17). There’s no need to configure it per peer, as the group-level configuration is sufficient. This option is incorrect because the required setting is already in place.

C. The load-balance policy must be applied as an export policy to your BGP.

Applying the load-balance policy as a BGP export policy (e.g., export load-balance under the BGP group) would affect the routes advertised to the spine devices. However, the load-balance per-packet action is a forwarding action, not a route advertisement action. Applying it as a BGP export policy would not achieve the desired load balancing for traffic forwarding and is incorrect.

D. The load-balance policy must have a from statement that matches on protocol bgp.

The load-balance policy currently applies the load-balance per-packet action unconditionally (no from statement). Adding a from protocol bgp condition would make the policy apply only to BGP routes, but this is unnecessary in this context. The policy needs to be applied to the forwarding table to affect traffic, not modified with a from statement. This option doesn’t address the core issue of applying the policy.

Step 4: Determine the Correct Answer

The key issue is that the load-balance policy is defined but not applied. For load balancing to work, it must be applied to the forwarding table under routing-options. This matchesOption A:

A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.

Step 5: Provide Official Juniper Documentation Reference

Since I don’t have direct access to Juniper’s proprietary documents, I can provide an explanation based on standard Junos documentation practices and publicly available resources, such as the Juniper TechLibrary, which is the official source for Junos configuration guides.

In Juniper’s official documentation, specifically in theJunos OS Routing Protocols and Policies Configuration Guide, the process for enabling load balancing is described as follows:

Load Balancing in Junos: To enable per-flow load balancing across multiple paths, you must define a policy with the load-balance per-packet action and apply it to the forwarding table. The relevant configuration hierarchy is:

routing-options {

forwarding-table {

export ;

}

}

Explanation from Documentation: The load-balance per-packet action (which performs per-flow balancing) requires the policy to be applied at the forwarding-table level to influence how traffic is distributed across multiple paths in the forwarding table. Without this, even if BGP installs multiple paths (via multipath), the forwarding engine will not load-balance traffic.

This aligns with the JNCIP-DC exam objectives, which include understanding how to configure and troubleshoot load balancing in an IP fabric, such as applying policies for traffic distribution.

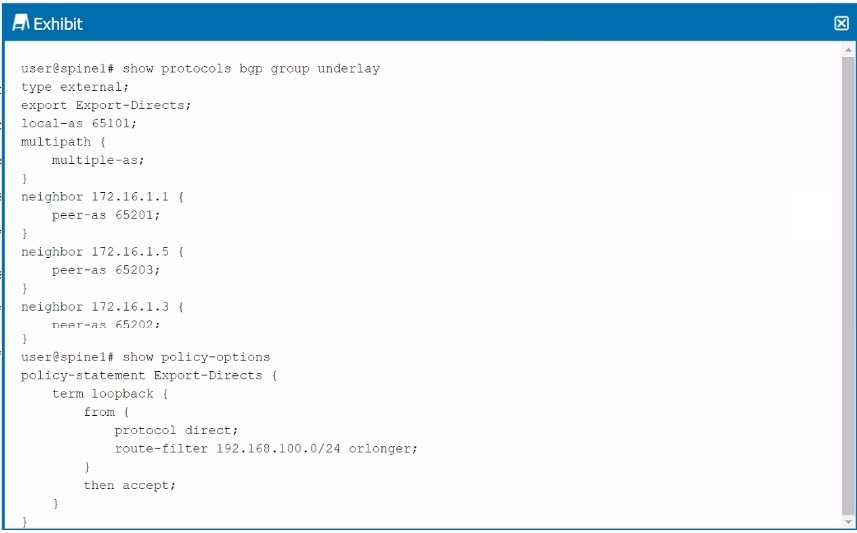

BGP in IP Fabric:

In an IP fabric, Border Gateway Protocol (BGP) is used to manage the routing between leaf and spine devices. Each device can have the same or different Autonomous System (AS) numbers depending on the network design.

Multipath Multiple-AS:

Option B:If every device in the fabric has a different AS number, then enabling Equal-Cost Multi-Path (ECMP) routing requires the multipath multiple-as statement. This configuration allows BGP to consider multiple paths across different AS numbers as equal cost, enabling efficient load balancing across the network.

Same AS Number Configuration:

Option A:It's possible for all leaf devices to use the same AS number in an IP fabric, which simplifies the configuration. EBGP (External BGP) will still function correctly in this setup because BGP considers the peering relationship rather than strictly enforcing different AS numbers in this specific use case.

Conclusion:

Option B:Correct—This statement is essential for enabling ECMP in a multi-AS environment.

Option A:Correct—Leaf devices can share the same AS number without needing special EBGP configuration.

Understanding VRF and Routing Instances:

In an EVPN-VXLAN overlay network, multiple tenants are separated using unique VRF (Virtual Routing and Forwarding) instances. Each VRF instance maintains its own routing table, allowing for isolated routing domains within the same network infrastructure.

Role of Route Distinguisher:

Route Distinguisher (RD):The RD is a unique identifier used in MPLS and EVPN environments to distinguish routes belonging to different VRFs. The RD is prepended to the IP address in the route advertisement, ensuring that routes from different tenants remain unique even if they use the same IP address range.

Correct Property:

D. the route distinguisher value:This is the correct answer because the RD is crucial in determining which routing information belongs to which VRF instance. It ensures that each VRF’s routing table only contains relevant routes, maintaining isolation between tenants.

Data Center References:

The RD is a key element in MPLS and EVPN-based multi-tenant environments, ensuring proper routing segregation and isolation for different VRFs within the data center fabric.

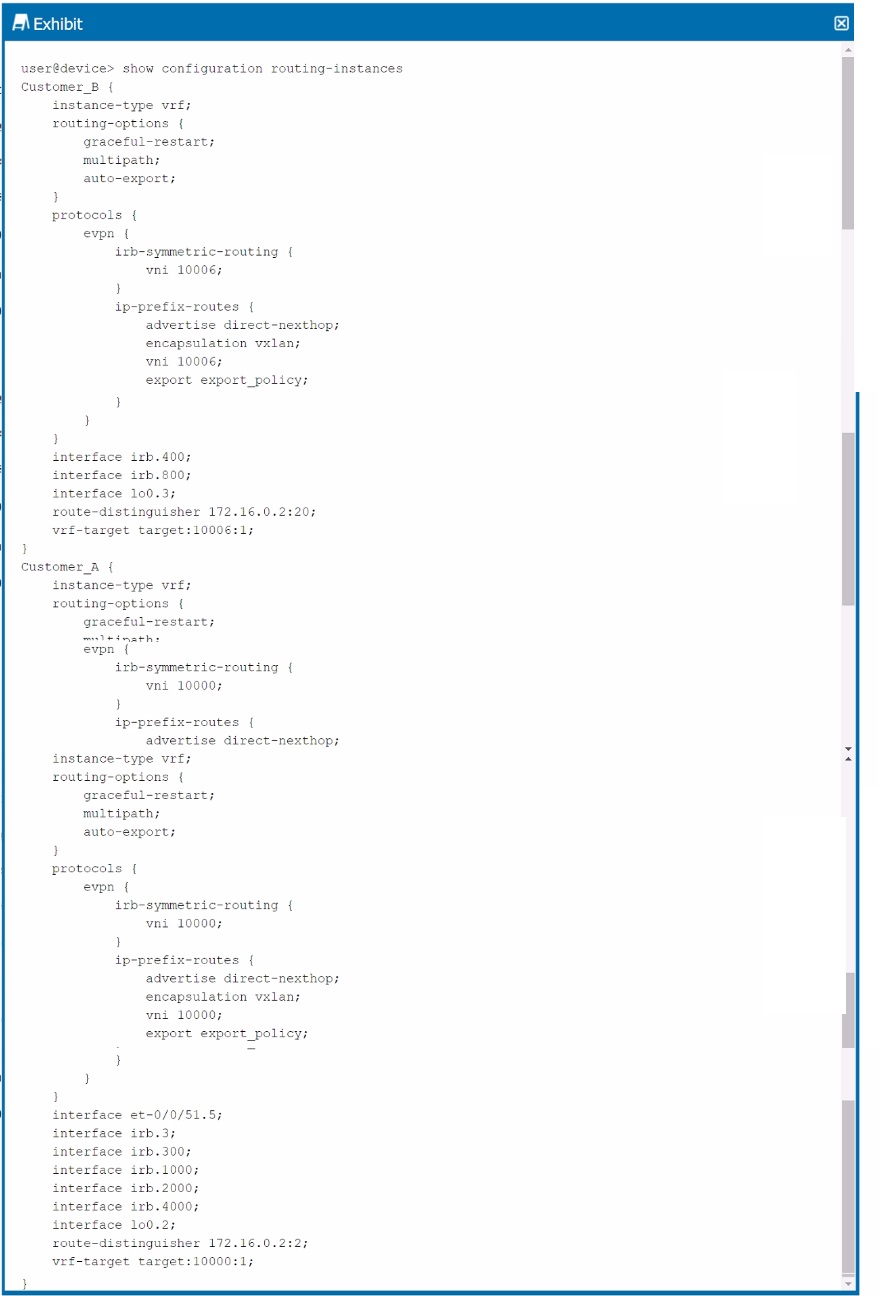

Understanding the Configuration:

The exhibit shows configurations for two VRFs (Customer_A and Customer_B) with specific VLANs and VNIs assigned. Each VRF has interfaces (IRBs) associated with particular VLANs.

Communication Between VLANs and Routing Instances:

Option B:VLAN 400 (irb.400) is part of Customer_B, and there is no direct connection or routing between Customer_A and Customer_B in the configuration provided. Therefore, devices in irb.400 cannot communicate directly with devices in the Customer_A routing instance.

Option D:Since irb.400 (VLAN 400) and irb.800 (VLAN 800) are part of the same routing instance (Customer_B), they can communicate over the fabric using VXLAN encapsulation.

Conclusion:

Option B:Correct—There is no direct communication between devices in irb.400 (Customer_B) and routing instance Customer_A.

Option D:Correct—Devices in VLAN 400 and VLAN 800 can communicate within the Customer_B routing instance over the fabric.

Zero Touch Provisioning (ZTP):

ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.g., FTP, HTTP).

DHCP Server Configuration:

Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.

Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.

Conclusion:

Option B:Correct—MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.

Option D:Correct—Management IP addresses are essential for network communication during ZTP.

Layer 2 and Layer 3 Connectivity Requirements:

To interconnect two data centers across an IP backbone with both Layer 2 (L2) and Layer 3 (L3) connectivity, EVPN-VXLAN (Ethernet VPN with Virtual Extensible LAN) is the idealsolution. EVPN supports L2 VPNs while also enabling L3 connectivity across multiple locations.

Necessary EVPN Route Types:

Type 2 EVPN Routes:These routes are used to advertise MAC addresses for Layer 2 connectivity. They are essential for enabling seamless L2 communication across data centers.

Type 5 EVPN Routes:These routes are necessary for advertising IP prefixes for Layer 3 connectivity between data centers. They enable the exchange of L3 information across the IP backbone, ensuring routed traffic can reach its destination.

Border Leaf Nodes:

Border Leaf Nodes:Ensuring that the border leaf nodes (the entry and exit points for traffic between data centers) can exchange EVPN routes is critical for the correct dissemination of both L2 and L3 information across the data centers.

Conclusion:

Option A:Correct—Type 2 EVPN routes are required for Layer 2 MAC address learning and communication across the DCI (Data Center Interconnect).

Option B:Correct—Border leaf nodes need to exchange EVPN routes to maintain connectivity between data centers.

Option D:Correct—Type 5 EVPN routes are essential for Layer 3 connectivity across the DCI.

OptionsCandEare incorrect because they refer to establishing full mesh VTEPs (VXLAN Tunnel Endpoints) across all spine or leaf nodes, which is unnecessary for the scenario provided. The focus should be on border leaf nodes and appropriate route advertisements for L2 and L3 connectivity.

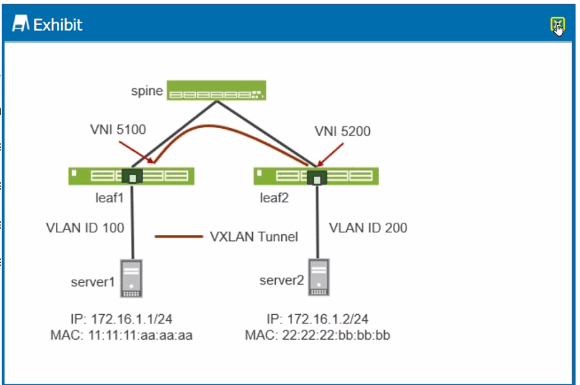

Understanding Network Architectures:

ERB (Edge Routed Bridging) architecture involves routing at the network's edge (leaf nodes), while traffic between leaf nodes is switched. This is commonly used in VXLAN-EVPN setups.

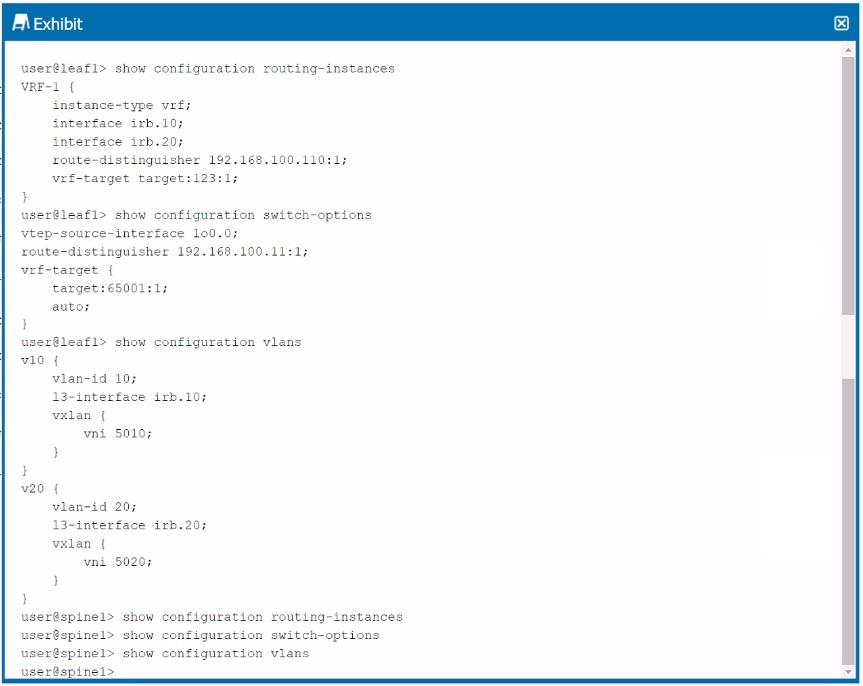

Analysis of the Exhibit:

The exhibit shows configurations related to routing instances, VXLAN, and VLANs, with VNIs being used for each VLAN. This setup is characteristic of an ERB architecture where each leaf device handles Layer 3 routing for its connected devices.

Conclusion:

Option B:Correct—The configuration shown corresponds to an ERB architecture where routing occurs at the network's edge (leaf devices).
