MuleSoft MCIA-Level-1 - MuleSoft Certified Integration Architect - Level 1

Explanation

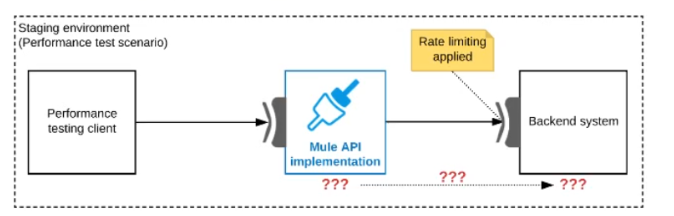

Correct answer is Create a mocking service that replicates the backend system’s production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests

* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.

* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.

* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

CloudHub, part of MuleSoft's Anypoint Platform, is an example of a Platform as a Service (PaaS) offering. PaaS provides a cloud-based platform that allows developers to build, deploy, and manage applications without dealing with the complexities of maintaining the underlying infrastructure. CloudHub provides the necessary tools and services to develop and deploy Mule applications and APIs in the cloud, offering features such as scalability, high availability, monitoring, and management. This allows developers to focus on writing code and developing applications rather than managing servers and infrastructure.

References

MuleSoft CloudHub Documentation

Overview of Cloud Computing Service Models

A canonical data model is used in integration projects to provide a standard way of representing data across different systems and applications. The two main reasons for using a canonical data model are:

A. To have a consistent data structure aligned in processes: By using a canonical data model, you ensure that data is represented uniformly across all processes and systems. This consistency simplifies data integration, reduces transformation logic, and minimizes errors.

E. Because the model isolates the back-end systems and supports Mule applications from change: A canonical data model abstracts the underlying data structures of the back-end systems. This isolation means that changes in the back-end systems do not directly affect the Mule applications. The applications interact with the canonical model, and any required transformations are handled centrally, making the system more adaptable to changes.

Implementation Steps:

Design the Canonical Data Model:

Identify the common data elements and structures used across different systems.

Define a unified schema that represents these elements in a consistent manner.

Implement Data Transformation Logic:

Use MuleSoft DataWeave to transform data between the canonical model and the specific formats required by each system.

Centralize the transformation logic to simplify maintenance and updates.

Integrate with Mule Applications:

Ensure all Mule applications use the canonical data model for data exchange.

Modify existing applications to transform data to and from the canonical model.

Using a canonical data model improves data consistency and system flexibility, making it a valuable approach in integration projects.

References:

MuleSoft Documentation: DataWeave

MuleSoft Documentation: Integration Best Practices

Explanation

CloudHub object store should be in same region where the Mule application is deployed. This will give optimal performance.

Before learning about Cache scope and object store in Mule 4 we understand what is in general Caching is and other related things.

WHAT DOES “CACHING” MEAN?

Caching is the process of storing frequently used data in memory, file system or database which saves processing time and load if it would have to be accessed from original source location every time.

In computing, a cache is a high-speed data storage layer which stores a subset of data, so that future requests for that data are served up faster than is possible by accessing the data’s primary storage location. Caching allows you to efficiently reuse previously retrieved or computed data.

How does Caching work?

The data in a cache is generally stored in fast access hardware such as RAM (Random-access memory) and may also be used in correlation with a software component. A cache’s primary purpose is to increase data retrieval performance by reducing the need to access the underlying slower storage layer.

Caching in MULE 4

In Mule 4 caching can be achieved in mule using cache scope and/or object-store. Cache scope internally uses Object Store to store the data.

What is Object Store

Object Store lets applications store data and states across batch processes, Mule components, and applications, from within an application. If used on cloud hub, the object store is shared between applications deployed on Cluster.

Cache Scope is used in below-mentioned cases:

● Need to store the whole response from the outbound processor

● Data returned from the outbound processor does not change very frequently

● As Cache scope internally handle the cache hit and cache miss scenarios it is more readable

Object Store is used in below-mentioned cases:

● Need to store custom/intermediary data

● To store watermarks

● Sharing the data/stage across applications, schedulers, batch.

If CloudHub object store is in same region where the Mule application is deployed it will aid in fast access of data and give optimal performance.

Correct answer is Create WSDL specification using text editor SOAP services are specified using WSDL. A client program connecting to a web service can read the WSDL to determine what functions are available on the server. We can not create WSDL specification in Design Center. We need to use external text editor to create WSDL.

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

Explanation

Key to this question lies in the fact that Process API are not meant to be accessed directly by clients. Lets analyze options one by one. Client ID enforcement : This is applied at process API level generally to ensure that identity of API clients is always known and available for API-based analytics Rate Limiting : This policy is applied on Process Level API to secure API's against degradation of service that can happen in case load received is more than it can handle Custom circuit breaker : This is also quite useful feature on process level API's as it saves the API client the wasted time and effort of invoking a failing API. JSON threat protection : This policy is not required at Process API and rather implemented as Experience API's. This policy is used to safeguard application from malicious attacks by injecting malicious code in JSON object. As ideally Process API's are never called from external world , this policy is never used on Process API's Hence correct answer is JSON threat protection MuleSoft Documentation Reference : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-json-threat

Explanation

● Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

● Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

● Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

● Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

● XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

● The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

● Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

● Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.

Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

MuleSoft Documentation on Object Store v2

Configuring Persistent Data Storage in MuleSoft

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

MuleSoft IT Operating Model Guidelines

Anypoint Platform Documentation on Decoupling IT Projects
