MuleSoft MCIA-Level-1 - MuleSoft Certified Integration Architect - Level 1

Anypoint Platform offers universal API management and Integration-Platform-as-a-Service (iPaaS) capabilities in a unified platform, meaning that it provides a single control plane to manage both full-lifecycle API management and integration. This allows organizations to easily manage their APIs and integrations, as well as deploy APIs and integrations quickly and efficiently. According to the MuleSoft Certified Integration Architect - Level 1 Course Book, “Anypoint Platform provides a unified platform for managing, deploying, and monitoring both API and integration solutions, allowing organizations to quickly and easily build and manage their APIs and integrations.”

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

References:

Understanding Service Mesh

Service Mesh for Microservices

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

Create a Mule domain project.

Add the Database connector and its configuration to the domain project.

Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

MuleSoft Documentation on Domain Projects

Best Practices for Reusable Configuration in MuleSoft

Explanation

* When you create an Anypoint VPC, the range of IP addresses for the network must be specified in the form of a Classless Inter-Domain Routing (CIDR) block, using CIDR notation.

* This address space is reserved for Mule workers, so it cannot overlap with any address space used in your data center if you want to peer it with your VPC.

* To calculate the proper sizing for your Anypoint VPC, you first need to understand that the number of dedicated IP addresses is not the same as the number of workers you have deployed.

* For each worker deployed to CloudHub, the following IP assignation takes place: For better fault tolerance, the VPC subnet may be divided into up to four Availability Zones.

* A few IP addresses are reserved for infrastructure. At least two IP addresses per worker to perform at zero-downtime.

* Hence in this scenario 2048 IP's are required to support the requirement.

Explanation

Correct answer is VM VM support Transactional Type. When an exception occur, The transaction rolls back to its original state for reprocessing. This feature is not supported by other connectors.

Here is additional information about Transaction management:

Table Description automatically generated

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

MuleSoft Documentation on MUnit

Best Practices for Automated Testing with MUnit

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

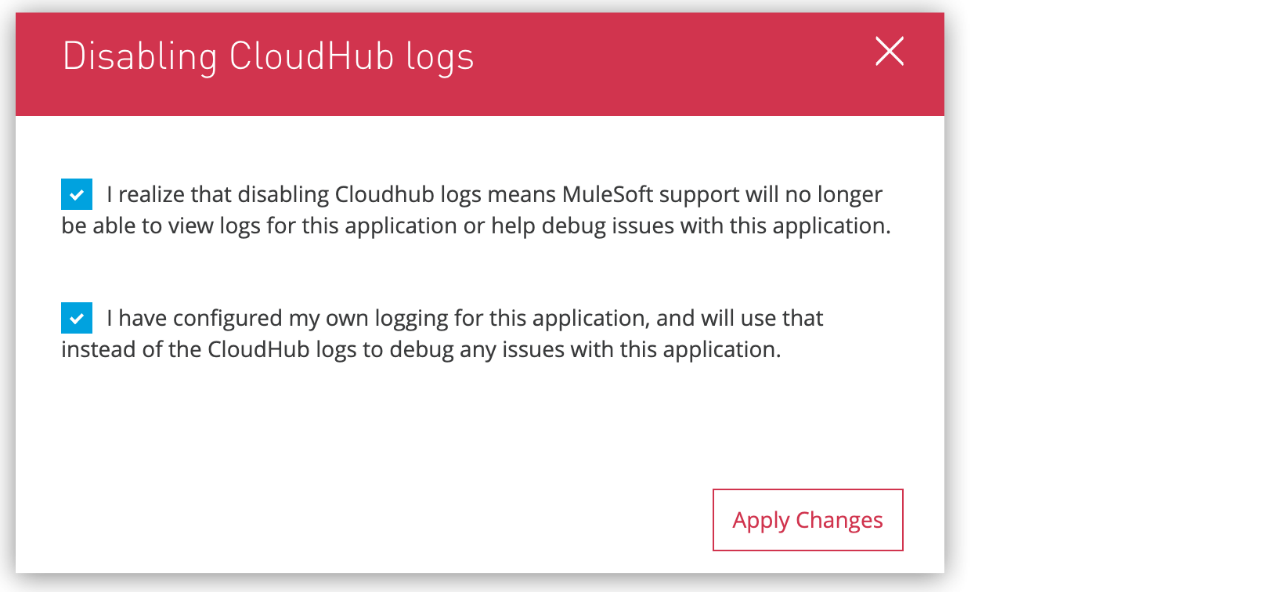

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

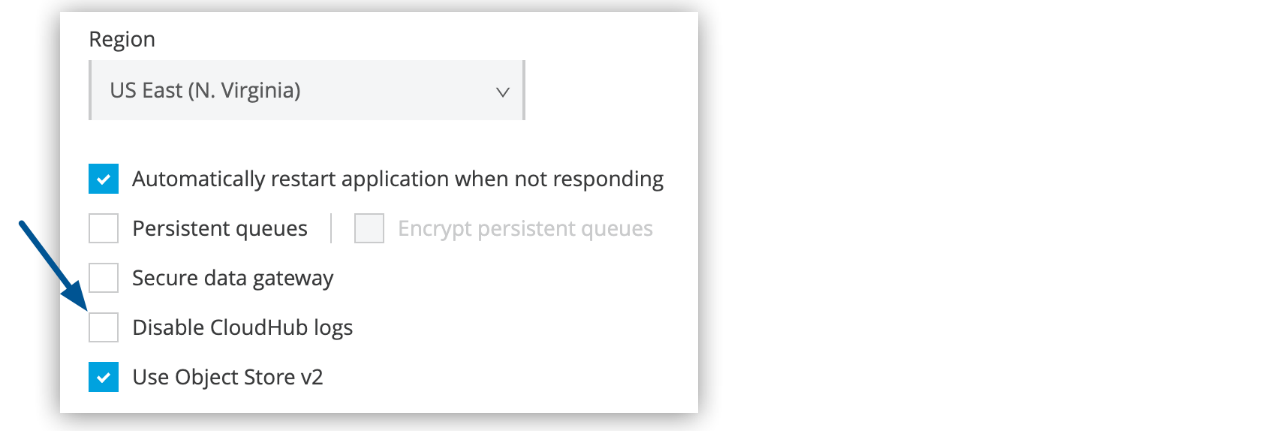

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:
