MuleSoft MCIA-Level-1 - MuleSoft Certified Integration Architect - Level 1

The Salesforce API used to deploy, retrieve, create, update, or delete customization information, such as custom object definitions, using Mule Salesforce Connectors in a Mule application, is the Metadata API. The Metadata API enables programmatic access to the metadata of Salesforce organizations, allowing developers to manage customizations and configurations programmatically.

Using the Metadata API, Mule applications can automate the deployment and management of Salesforce customizations, facilitating continuous integration and deployment processes within Salesforce environments.

References

MuleSoft Documentation on Salesforce Connectors

Salesforce Metadata API Developer Guide

To discover which API specifications have been created within the organization before starting a new project, a developer can use Anypoint Exchange. Anypoint Exchange is a centralized repository on the Anypoint Platform where developers can find, share, and collaborate on API specifications, connectors, templates, and other reusable assets.

In Anypoint Exchange, developers can browse the currently released API specifications, try them out using the built-in testing tools, and access documentation and other resources. This facilitates the reuse of existing APIs and ensures that the new project aligns with the organization's API strategy.

References

MuleSoft Documentation on Anypoint Exchange

Best Practices for API Reuse and Discovery

Explanation

We need to note few things about the scenario which will help us in reaching the correct solution.

Point 1 : The APIs are all publicly available and are associated with several mobile applications and web applications. This means Apply an IP blacklist policy is not viable option. as blacklisting IPs is limited to partial web traffic. It can't be useful for traffic from mobile application

Point 2 : The organization does NOT want to use any authentication or compliance policies for these APIs. This means we can not apply HTTPS mutual authentication scheme.

Header injection or removal will not help the purpose.

By its nature, JSON is vulnerable to JavaScript injection. When you parse the JSON object, the malicious code inflicts its damages. An inordinate increase in the size and depth of the JSON payload can indicate injection. Applying the JSON threat protection policy can limit the size of your JSON payload and thwart recursive additions to the JSON hierarchy.

Hence correct answer is Apply a JSON threat protection policy to all APIs to detect potential threat vectors

Explanation

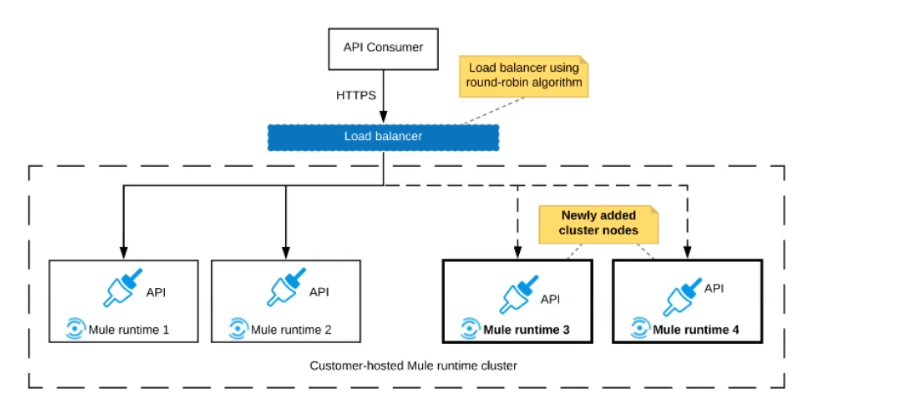

* Clustering is a group of servers or mule runtime which acts as a single unit.

* Mulesoft Enterprise Edition supports scalable clustering to provide high availability for the Mulesoft application.

* In simple terms, virtual servers composed of multiple nodes and they communicate and share information through a distributed shared memory grid.

* By default, Mulesoft ensures the High availability of applications if clustering implemented.

* Let's consider the scenario one of the nodes in cluster crashed or goes down and under maintenance. In such cases, Mulesoft will ensure that requests are processed by other nodes in the cluster. Mulesoft clustering also ensures that the request is load balanced between all the nodes in a cluster.

* Clustering is only supported by on-premise Mule runtime and it is not supported in Cloudhub.

Correct answer is External monitoring tools or log aggregators must be configured to recognize the new nodes

* Rest of the options are automatically taken care of when a new node is added in cluster.

In a typical MuleSoft integration project, the role primarily responsible for building API implementations is the API Developer. The API Developer focuses on writing the code that implements the logic, data transformations, and business processes defined in the API specifications. They use tools like Anypoint Studio to develop and test Mule applications, ensuring that the APIs function as required and integrate seamlessly with other systems and services.

While the API Designer is responsible for defining the API specifications and the Integration Architect for designing the overall integration solution, the API Developer translates these designs into working software. The Operations team typically manages the deployment, monitoring, and maintenance of the APIs in production environments.

References

MuleSoft Documentation on Roles and Responsibilities

Anypoint Platform Development Best Practices

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

https://help.mulesoft.com/s/feed/0D52T000055pzgsSAA .
