MuleSoft MCPA-Level-1-Maintenance - MuleSoft Certified Platform Architect - Level 1 MAINTENANCE

Explanation

Correct Answer: They are typically written using MUnit to run in an embedded Mule runtime that does not require external connectivity.

*****************************************

Below TWO are characteristics of Integration Tests but NOT unit tests:

>> They test the validity of input and output of source and target systems.

>> They must be triggered by an external client tool or event source.

It is NOT TRUE that Unit Tests must be run in a unit testing environment with dedicated Mule runtimes for the environment.

MuleSoft offers MUnit for writing Unit Tests and they run in an embedded Mule Runtime without needing any separate/ dedicated Runtimes to execute them. They also do NOT need any external connectivity as MUnit supports mocking via stubs.

https://dzone.com/articles/munit-framework

Explanation

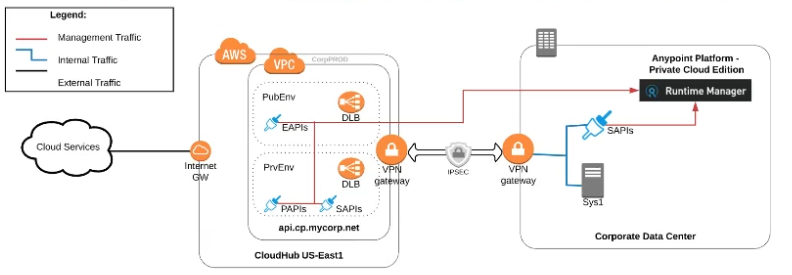

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

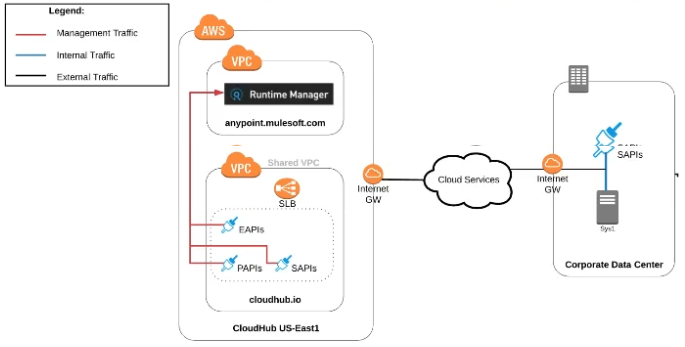

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

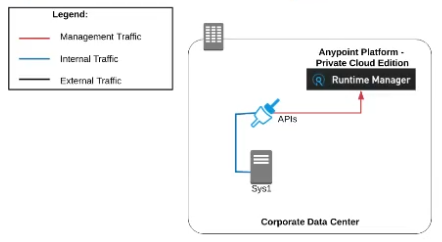

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

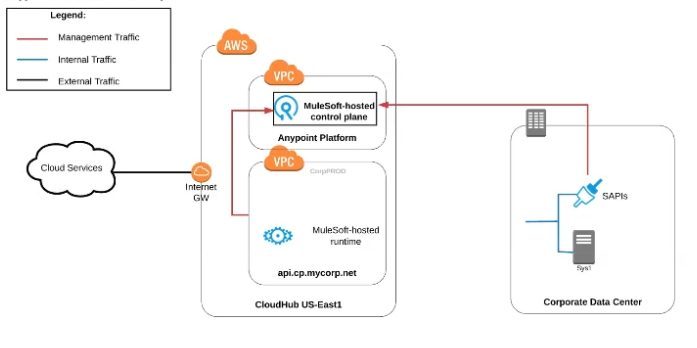

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: Implement different system APIs named createCustomer, amendCustomer, retrieveCustomer and suspendCustomer as they are modular and has seperation of concerns

*****************************************

>> It is quite normal to have a single API and different Verb + Resource combinations. However, this fits well for an Experience API or a Process API but not a best architecture style for System APIs. So, option with just one customerManagement API is not the best choice here.

>> The option with APIs in createCustomerInCRMZ format is next close choice w.r.t modularization and less maintenance but the naming of APIs is directly coupled with the legacy system. A better foreseen approach would be to name your APIs by abstracting the backend system names as it allows seamless replacement/migration of any backend system anytime. So, this is not the correct choice too.

>> createCustomer, amendCustomer, retrieveCustomer and suspendCustomer is the right approach and is the best fit compared to other options as they are both modular and same time got the names decoupled from backend system and it has covered all requirements a System API needs.

Explanation

Correct Answer: Apply a JSON threat protection policy to all APIs to detect potential threat vectors

*****************************************

>> Usually, if the APIs are designed and developed for specific consumers (known consumers/customers) then we would IP Whitelist the same to ensure that traffic only comes from them.

>> However, as this scenario states that the APIs are publicly available and being used by so many mobile and web applications, it is NOT possible to identify and blacklist all possible bad actors.

>> So, JSON threat protection policy is the best chance to prevent any bad JSON payloads from such bad actors.

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

https://www.folkstalk.com/2019/11/mulesoft-integration-and-platform.html

Explanation

Correct Answer: To invoke OAuth 2.0-protected APIs managed by Anypoint Platform, API clients must submit access tokens issued by that same Identity Provider

*****************************************

>> It is NOT necessary that single sign-on is required to sign in to Anypoint Platform because we are using an external Identity Provider for Client Management

>> It is NOT necessary that all APIs managed by Anypoint Platform must be protected by SAML 2.0 policies because we are using an external Identity Provider for Client Management

>> Not TRUE that the application network must include System APIs that interact with the Identity Provider because we are using an external Identity Provider for Client Management

Only TRUE statement in the given options is - "To invoke OAuth 2.0-protected APIs managed by Anypoint Platform, API clients must submit access tokens issued by that same Identity Provider"

References:

https://docs.mulesoft.com/api-manager/2.x/external-oauth-2.0-token-validation-policy

https://blogs.mulesoft.com/dev/api-dev/api-security-ways-to-authenticate-and-authorize/

Explanation

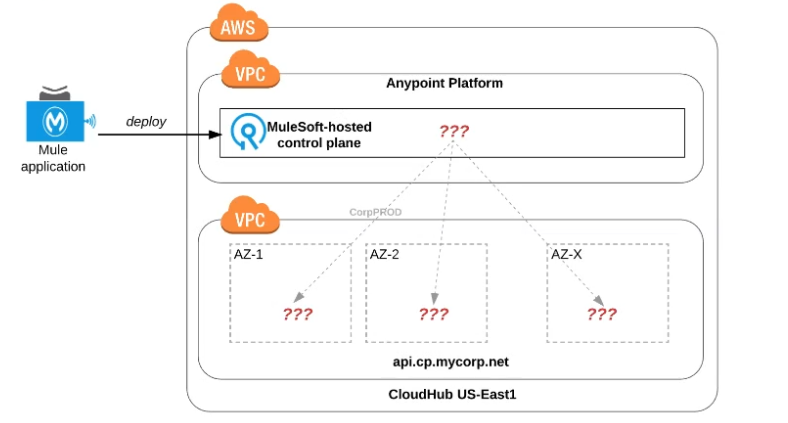

Correct Answer: Workers are randomly distributed across available AZs within that region.

*****************************************

>> Currently, we only have control to choose which AWS Region to choose but there is no control at all using any configurations or deployment options to decide what Availability Zone (AZ) to assign to what worker.

>> There are NO fixed or implicit rules on platform too w.r.t assignment of AZ to workers based on environment or application.

>> They are completely assigned in random. However, cloudhub definitely ensures that HA is achieved by assigning the workers to more than on AZ so that all workers are not assigned to same AZ for same application.

Explanation

Correct Answer: By default, the Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications

*****************************************

>> We CANNOT apply API policies to the Anypoint Platform APIs like we can do on our custom written API instances. So, option suggesting this is FALSE.

>> Anypoint Platform APIs can be used for automating interactions with both CloudHub and customer-hosted Mule runtimes. Not JUST the CloudHub. So, option opposing this is FALSE.

>> Mule Maven plugin is NOT mandatory for deployment to customer-hosted Mule runtimes. It just helps your CI/CD to have smoother automation. But not a compulsory requirement to deploy. So, option opposing this is FALSE.

>> We DO NOT have any such special roles and permissions on the platform to separately control access for some users to have Anypoint CLI and others to have Anypoint Platform APIs. With proper general roles/permissions (API Owner, Cloudhub Admin etc..), one can use any of the options (Anypoint CLI or Platform APIs). So, option suggesting this is FALSE.

Only TRUE statement given in the choices is that - Anypoint CLI and Mule Maven plugin are NOT included in the Mule runtime, so are NOT available to be used by deployed Mule applications.

Maven is part of Studio or you can use other Maven installation for development.

CLI is convenience only. It is one of many ways how to install app to the runtime.

These are definitely NOT part of anything except your process of deployment or automation.
