CompTIA N10-009 - CompTIA Network+ Certification Exam

Jumbo frames are Ethernet frames with a payload greater than the standard 1,500 bytes. Using jumbo frames reduces the number of frames transmitted over the network, thereby reducing the overhead associated with frame headers and processing. The document explains:

“Jumbo frames are used in storage networks to reduce device overhead by lowering the number of frames required for data transfer, which can increase overall throughput and performance.”

Ping sends ICMP Echo Request packets and waits for Echo Replies to verify host reachability and measure round-trip time.

A. tcpdump captures packets but does not test reachability.

B. netstat displays open ports and network sessions.

C. nslookup queries DNS servers for name resolution.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — ICMP operation, troubleshooting tools.

The issue is that no root bridge has been identified. In STP, a root bridge is necessary to manage redundant paths and avoid loops in the network. Without a root bridge, all switches will assume they can forward traffic, causing a network loop and connectivity problems.

=================

An IP Helper (IP Helper Address) allows DHCP requests to pass through routers and reach a DHCP server on another network.

DHCP broadcasts are not forwarded across routers by default, so an IP Helper Address is needed to relay the request.

This is crucial for large networks where a single DHCP server serves multiple subnets.

Option B (Reservation): Ensures a specific IP address is assigned to a MAC address but does not relay DHCP across networks.

Option C (Exclusion): Prevents specific IP addresses from being assigned, but does not help with DHCP relay.

Option D (Scope): Defines the range of IP addresses available for DHCP clients but does not assist in cross-network communication.

? Reference: CompTIA Network+ (N10-009) Official Study Guide – Section: DHCP and IP Addressing

An on-path attack (formerly known as a man-in-the-middle (MITM) attack) involves intercepting and potentially altering communications between two parties without their knowledge. This can be done via techniques like ARP poisoning, rogue access points, or SSL stripping.

Breakdown of Options:

A. Self-signed certificate – These are untrusted SSL certificates but do not intercept traffic.

B. VLAN hopping – VLAN hopping exploits VLAN misconfigurations but does not necessarily intercept communications.

C. On-path attack – Correct answer. This intercepts and modifies traffic between two endpoints.

D. Phishing – Phishing tricks users into revealing credentials rather than intercepting network traffic.

An evil twin attack is when an attacker sets up a rogue access point (AP) with the same SSID as a legitimate one to trick users into connecting. Once users connect, attackers often present fake login pages or capture unencrypted session data to steal login credentials.

A. DNS poisoning manipulates DNS resolution but is not inherent to evil twin.

C. ARP spoofing is a Layer 2 attack involving MAC/IP mapping manipulation.

D. Denial of service can be a side effect but is not the primary objective of evil twin attacks.

The main purpose of an evil twin is credential theft, enabling further unauthorized access to networks or systems.

References (CompTIA Network+ N10-009):

Domain: Network Security — Wireless attacks, rogue APs, evil twins.

To locate a specific access point (AP), the most reliable identifier to view is the BSSID. In 802.11 networks, the BSSID is the radio interface identifier for the AP (typically the AP radio’s MAC address). Unlike an SSID, which can be shared across many APs in the same wireless network (especially in an enterprise deployment using the same SSID across multiple APs), the BSSID uniquely distinguishes one AP radio from another. This is critical during an 802.11ax (Wi-Fi 6) migration, where multiple APs may broadcast identical SSIDs and operate on the same channels in different areas.

While RSSI is useful for physically walking toward the strongest signal (a technique used in locating RF sources), RSSI alone does not confirm you are tracking the correct AP—only that you are near an RF transmitter. Channel number also does not uniquely identify the AP because multiple APs can share the same channel (and channels may overlap depending on band and width). SSID similarly is not unique. Therefore, viewing the BSSID on the analyzer (or Wi-Fi analyzer mode) allows the administrator to confirm the exact AP being measured and located.

WPA2/WPA3 mixed mode provides compatibility for older devices (that only support WPA2) while allowing newer devices to take advantage of stronger WPA3 encryption. This ensures maximum compatibility and security in a mixed-device environment.

A. WPA3 only is most secure but not compatible with legacy devices.

B. WPA2 only is secure but does not future-proof against WPA3-capable devices.

D. WPA/WPA2 mixed mode is weaker due to WPA (deprecated, insecure).

References (CompTIA Network+ N10-009):

Domain: Network Security — Wi-Fi encryption standards, WPA2 vs WPA3, mixed-mode compatibility.

BGP (Border Gateway Protocol) is the only dynamic routing protocol used across the internet. It ' s classified as an Exterior Gateway Protocol (EGP), responsible for routing between different autonomous systems (ASes).

A. EIGRP and D. OSPF are Interior Gateway Protocols (IGPs), used within organizations.

C. RIP is an outdated IGP with limited use, unsuitable for internet-scale routing.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 3.1 – Compare and contrast various routing technologies.

Comprehensive and Detailed Explanation (aligned to N10-009):

For a log collector server, the primary needed service is Syslog, which typically uses UDP port 514. Other ports may be open for management (e.g., 22 for SSH) or SNMP traps (162) if integrated. However, port 80 (HTTP) should not be open unless required, as it increases attack surface and does not directly serve the log collection purpose. Disabling it hardens the server.

A. 22 (SSH) is needed for secure management.

C. 162 (SNMP trap) may be required for monitoring/log correlation.

D. 514 (Syslog) is essential for log collection.

References (CompTIA Network+ N10-009):

Domain: Network Security — Hardening servers, disabling unnecessary services and ports.

To access the internet using static IPs, the firewall (or router) must be configured correctly:

B. Default gateway: This is essential because it tells the firewall where to send outbound traffic destined for outside the local network.

D. One static IP address: The firewall must be assigned one of the static IPs to communicate over the public internet.

The other options are not essential for basic internet connectivity in this context:

A. NTP server: Useful for time synchronization but not required for internet access.

C. The modem’s IP address: Irrelevant unless doing modem-level configuration.

E. DNS servers: Important for name resolution but not for basic layer 3 connectivity.

F. DHCP server: Not used when static IPs are assigned.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 2.2 – Compare and contrast addressing technologies.

===========

A toner and probe tool, also known as a tone generator and probe, is used to trace and identify individual cables within a bundle or to locate the termination points of cables in wiring closets and patch panels. It generates a tone that can be picked up by the probe, helping technicians quickly and accurately identify and label wall plates and wiring. This is the best tool for identifying proper wiring in the Intermediate Distribution Frame (IDF). References: CompTIA Network+ Exam Objectives and official study guides.

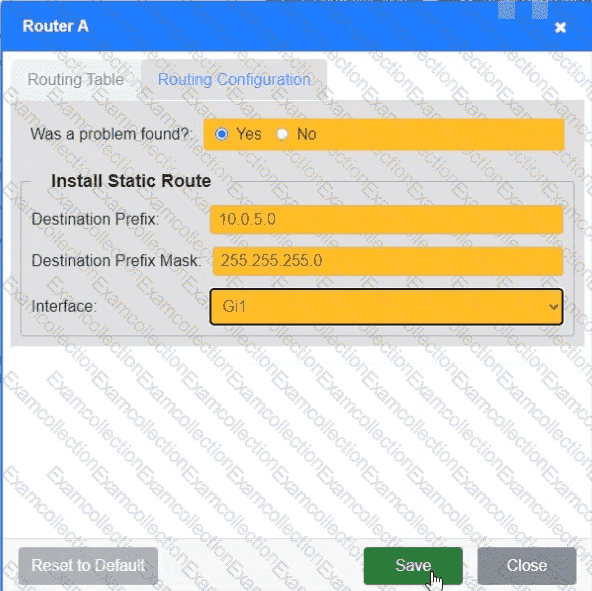

A screenshot of a computer AI-generated content may be incorrect.

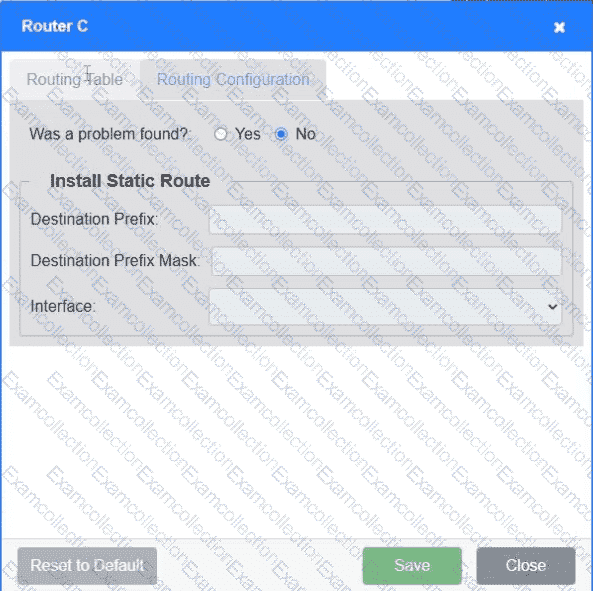

A screenshot of a computer AI-generated content may be incorrect.

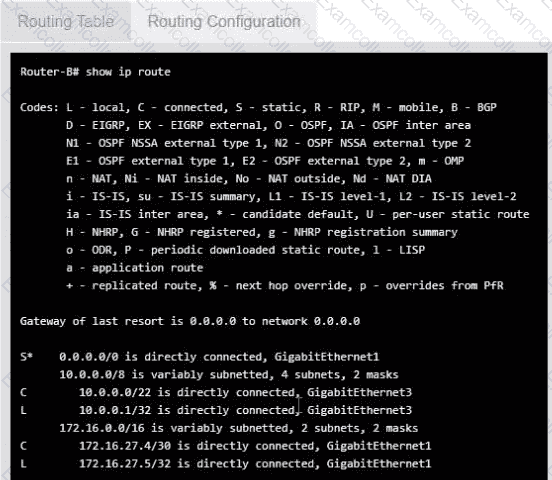

A screenshot of a computer AI-generated content may be incorrect.

The troubleshooting methodology requires following a logical sequence. In this case, the engineer has already identified the problem (firewall blocking traffic) and confirmed it with evidence (packet captures). The next appropriate step is to create a plan of action that outlines how to resolve the issue and considers potential effects.

A. Implementing the solution is premature without planning.

C. Establishing a theory was already completed during problem isolation.

D. Documentation occurs after resolution.

By carefully planning, the engineer ensures that corrective action won’t cause additional outages or security issues, especially given the scale of the incident (3,000 users).

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Troubleshooting methodology, plan of action.

When a switch is improperly connected to a network, it can cause widespread connectivity issues, especially if there’s a misconfiguration in VLAN settings. A Native VLAN mismatch occurs when two switches connected via a trunk link have different native VLANs configured for untagged traffic. This can cause traffic to be sent to the wrong VLAN or dropped, resulting in connectivity loss for users.

Scenario Analysis: The intern likely connected the switch without ensuring that the trunk port’s native VLAN matched the existing network configuration. This is a common issue in Cisco-based networks when trunk links are misconfigured.

Why not VTP update? VLAN Trunking Protocol (VTP) updates propagate VLAN configurations across switches. While a VTP misconfiguration could cause issues, it’s less likely to immediately disrupt connectivity for many users unless the VTP server deleted critical VLANs, which is not implied here.

Why not Port security issue? Port security restricts access based on MAC addresses, typically affecting individual ports, not causing widespread outages.

Why not LLDP misconfiguration? Link Layer Discovery Protocol (LLDP) is used for device discovery, and misconfiguration is unlikely to cause a broad loss of connectivity.
