CompTIA N10-009 - CompTIA Network+ Certification Exam

The correct answer is A. IaC. Infrastructure as Code is used to define and deploy infrastructure through templates, configuration files, or code rather than building everything manually. During a cloud migration, that approach helps keep deployments consistent across environments and reduces the chance of human error.

This fits the question especially well because it mentions consistency, reliability, and efficiency in both provisioning and management. Those are exactly the kinds of benefits IaC is meant to provide. Instead of configuring servers, networks, and services one by one, administrators can reuse tested deployment definitions and apply the same settings repeatedly. That makes rollouts faster and easier to audit.

The other options do not match the task. A CDN improves content delivery performance. SASE is a networking and security architecture. ZTA focuses on access control and trust decisions. All of those are important in the right context, but none is primarily a provisioning and management automation tool.

In a cloud migration, the organization usually wants repeatable builds, standardization, and faster recovery if something has to be recreated. That is why IaC is the strongest answer here. It directly supports automated, dependable, and scalable infrastructure deployment.

For a global streaming service, different countries and regions often have specific legal requirements about what content can be accessed (for example, age restrictions, prohibited material, censorship rules, or licensing constraints). To comply with these local laws at each regional point of presence (PoP), the company should implement content filtering. In Network+ security objectives, content filtering is a control used to allow, block, or restrict access to specific categories of content, URLs, applications, or media based on policy. Applied regionally, it supports geo-policy enforcement by ensuring that users served by a given PoP receive only content permitted in that jurisdiction.

An ACL primarily controls network traffic flows (permit/deny based on IPs, ports, and protocols). While ACLs can help block certain services, they are not designed to classify and regulate streaming media content in a way that aligns with legal content rules. Port security is a switch feature to restrict which devices can connect to a port (MAC-based controls) and is unrelated to regional compliance for streamed media. Key management concerns encryption key handling and protects confidentiality/integrity, but it does not determine which content is allowed in a region. Therefore, regional content filtering is the best match for meeting local legal requirements.

The correct answer is C. Address pool exhaustion. The laptop has assigned itself an address in the 169.254.x.x range, which is an APIPA address. That happens when the device is configured to use DHCP but cannot successfully obtain an address lease from a DHCP server. The missing default gateway and DHCP server entries support that conclusion.

Among the choices, the most likely reason is that the DHCP scope has run out of available addresses. When the pool is exhausted, new clients cannot receive a valid IP configuration and fall back to an automatic private address. As a result, the laptop will not be able to reach internal company resources like the intranet because it is not properly configured for the network.

The other answers do not fit the evidence. A short DHCP lease duration may cause more frequent renewals, but it does not directly explain the self-assigned APIPA address. An IIS server malfunction would affect the web service itself, not the client’s local IP configuration. An IDS misconfiguration also would not normally result in a 169.254 address on the host.

The output clearly indicates a DHCP assignment failure, and from the options provided, address pool exhaustion is the best match.

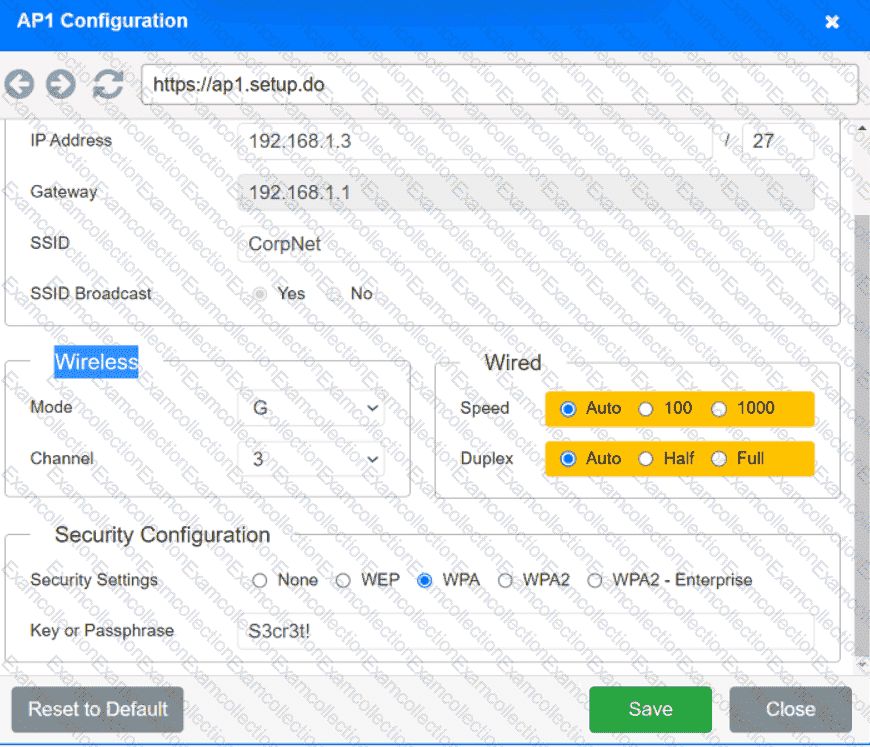

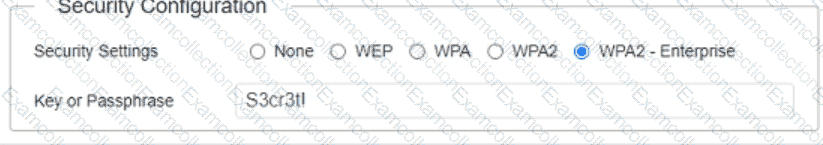

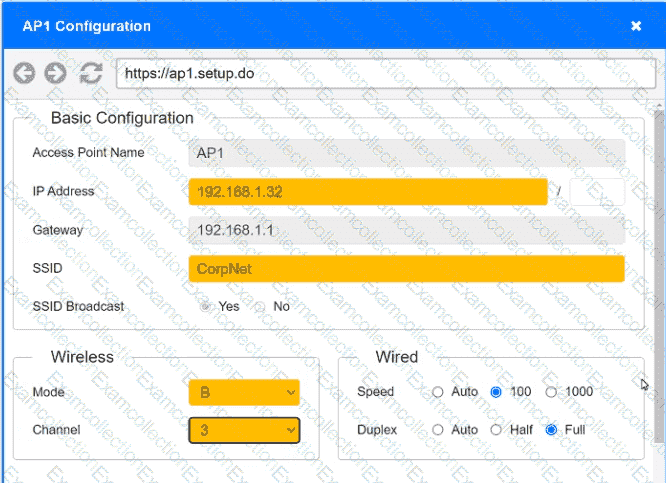

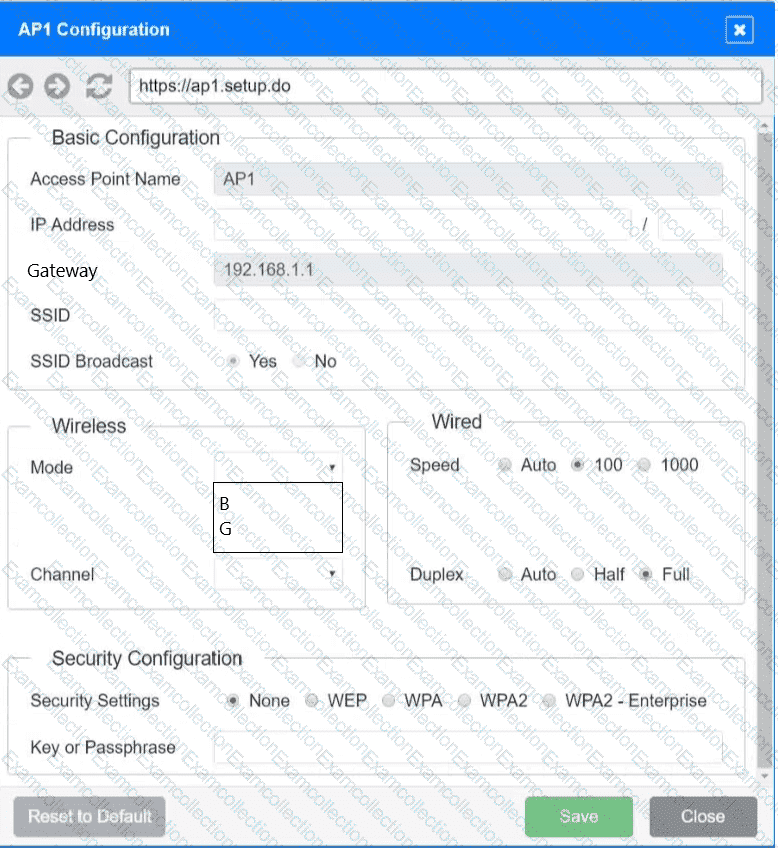

On the first exhibit, the layout should be as follows

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

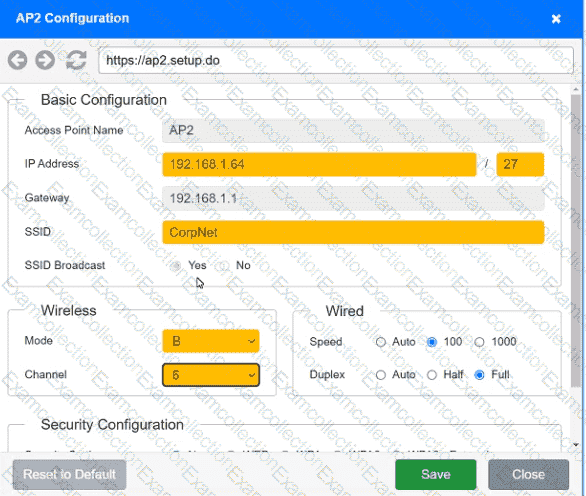

Exhibit 2 as follows

Access Point Name AP2

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

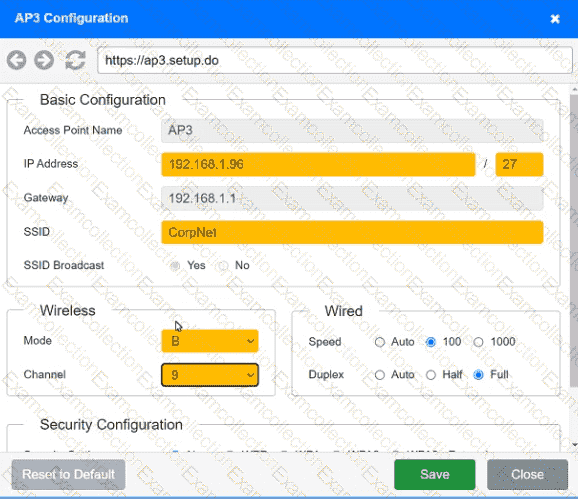

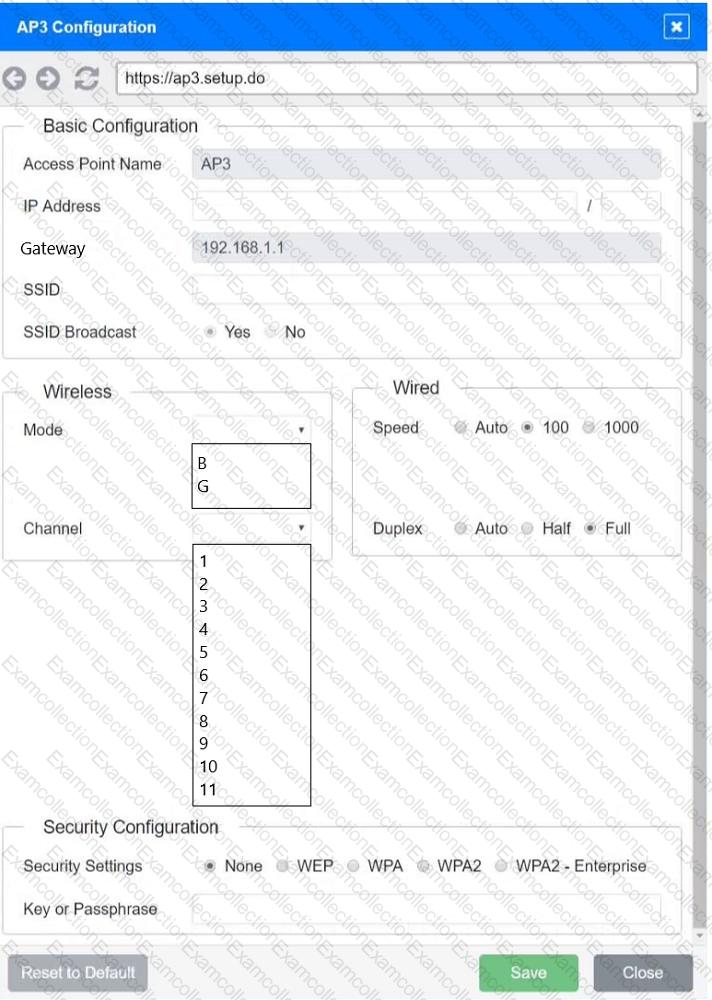

Exhibit 3 as follows

Access Point Name AP3

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

Introduction to Security Zones:

Security zones are logical segments within a network designed to enforce security policies and control access. They help in segregating and securing different parts of the network.

Types of Security Zones:

Trusted Zone: This is the most secure zone, typically used for internal corporate networks where only trusted users have access.

Extranet: This zone allows controlled access to external partners, vendors, or customers.

VPN (Virtual Private Network): While VPNs are used to create secure connections over the internet, they are not a security zone themselves.

Public Zone: This zone is the least secure and is typically used for public-facing services accessible by anyone.

Trusted Zone Implementation:

The trusted zone is configured to include internal corporate users and resources. Access controls, firewalls, and other security measures ensure that only authorized personnel can access this zone.

Internal network segments, such as the finance department, HR, and other critical functions, are usually placed in the trusted zone.

Example Configuration:

Firewall Rules: Set up rules to allow traffic only from internal IP addresses.

Access Control Lists (ACLs): Implement ACLs on routers and switches to restrict access based on IP addresses and other criteria.

Segmentation: Use VLANs and subnetting to segment and isolate the trusted zone from other zones.

Explanation of the Options:

A. Extranet: Suitable for external partners, not for internal-only access.

B. Trusted: The correct answer, as it provides controlled access to internal corporate users.

C. VPN: A method for secure remote access, not a security zone itself.

D. Public: Suitable for public access, not for internal corporate users.

Conclusion:

Implementing a trusted zone is the best solution for controlling access within a corporate network. It ensures that only trusted internal users can access sensitive resources, enhancing network security.

If a ping to 10.0.100.19 is unreachable, the most likely issue is that users are on the wrong subnet and cannot communicate with the server.

Breakdown of Options:

A. The users are on the wrong subnet. ✅ Correct answer. If users are on a different subnet without proper routing, they won ' t reach the server.

B. The DHCP server renewed the lease. – Would change the client’s IP, but the server’s static IP should remain unchanged.

C. The IP address was not reserved. – DHCP reservations matter for dynamic IPs, but RDP servers typically have static IPs.

D. The hostname was changed. – Would affect DNS resolution, but pinging the IP directly would still work.

Comprehensive and Detailed Explanation (aligned to N10-009):

Multimode fiber uses multiple paths (modes) of light that bounce off the cladding to travel through the fiber. This is effective for shorter distances but more prone to dispersion.

A. Twinaxial is copper, not fiber.

B. Coaxial carries electrical signals, not light.

C. Single-mode fiber uses a single light path directly through the core without bouncing.

References (CompTIA Network+ N10-009):

Domain: Networking Concepts — Fiber optics: single-mode vs. multimode.

Microwaves are known to interfere with the 2.4GHz frequency, which is the same frequency used by many wireless networks. This can cause signal degradation and intermittent connectivity issues, especially if the WAP is placed near such devices.

=================

Comprehensive and Detailed Explanation (paraphrased, aligned to N10-009):

HTTPS is HTTP encapsulated in TLS (the successor to SSL), which provides confidentiality, integrity, and server authentication for web traffic.

A. SSH secures remote shell and tunnels, not HTTPS.

C. SCADA refers to industrial control systems, not a transport security protocol.

D. RADIUS is an AAA protocol for authentication/authorization/accounting, not the web encryption layer.

References (CompTIA Network+ N10-009):

Domain: Network Standards, Protocols, and Implementations — Web protocols (HTTP/HTTPS), TLS handshake and purpose, encryption in transit.

Definition of Heat Maps:

A heat map is a graphical representation of data where individual values are represented by colors. In the context of wireless networking, a heat map shows the wireless signal strength in different areas of a building.

Purpose of a Heat Map:

Heat maps are used to illustrate the effectiveness of wireless networking coverage, identify dead zones, and optimize the placement of access points (APs) to ensure adequate coverage and performance.

Comparison with Other Options:

Logical Diagram: Represents the logical connections and relationships within the network.

Layer 3 Network Diagram: Focuses on the routing and IP addressing within the network.

Service-Level Agreement (SLA): A contract that specifies the expected service levels between a service provider and a customer.

Creation and Use:

Heat maps are created using specialized software or tools that measure wireless signal strength throughout the building. The data collected is then used to generate a visual map, guiding network administrators in optimizing wireless coverage.

A UPS (Uninterruptible Power Supply) provides backup power to devices during a power outage, allowing for continuous operation and protecting against sudden shutdowns that could cause data loss or equipment damage. The document confirms:

“A UPS (Uninterruptible Power Supply) is essential for maintaining power to critical devices during an outage, protecting data and ensuring continuous operation until power is restored or a safe shutdown can be performed.”

The best answer is D. TXT. When a provider asks an administrator to prove ownership of a domain, the most common method is to have the administrator place a specific verification value inside a DNS TXT record. The provider then checks public DNS for that value. If the expected text is present, it confirms that the person managing the migration has control over the domain’s DNS settings.

This matches how TXT records are commonly used in real network environments. They are flexible and can store readable text strings for verification, policy, and security-related purposes. In Network+ study material, TXT records are frequently associated with things like domain validation and email-related configurations such as SPF and other verification mechanisms.

The other record types do not fit this task. An A record maps a hostname to an IPv4 address. A CNAME points one name to another name. A PTR record is used for reverse DNS, mapping an IP address back to a hostname. None of those are typically created just to prove domain ownership during provider onboarding.

The key clue is the phrase “domain ownership proof”, which strongly points to a TXT record.

The engineer should use the device’s MAC address to isolate it in a packet capture. A MAC address uniquely identifies a network interface at Layer 2. When troubleshooting wireless disconnections, filtering a packet capture by the client’s MAC address allows the engineer to focus on frames sent to and from that specific device. This can reveal authentication problems, association failures, deauthentication frames, roaming issues, retransmissions, signal-related problems, or other wireless communication events.

The CompTIA Network+ N10-009 objectives include wireless troubleshooting, packet capture analysis, Layer 2 addressing, and identifying network clients. In wireless networks, frames include source and destination MAC addresses, making the MAC address one of the most useful identifiers for isolating a specific client.

ESSID refers to the wireless network name used by clients to identify a WLAN. PSK is the pre-shared key used for authentication in some wireless security configurations. BSSID identifies a specific wireless access point radio, usually represented by the AP’s MAC address. While BSSID can help isolate traffic for a specific AP, the question asks to isolate the affected device. Therefore, the client MAC address is the best answer.

For a web server that requires all connections to be encrypted, port 80 (HTTP) should be disabled. Port 80 is used for unencrypted web traffic, whereas port 443 is used for HTTPS, which provides encrypted communication.

Port 80 (HTTP): This port is used for unsecured web traffic. Disabling this port ensures that all web traffic must use HTTPS, which encrypts the data in transit.

Port 443 (HTTPS): This port is used for secure web traffic via SSL/TLS encryption. Keeping this port open ensures that secure connections can be made to the web server.

Other Ports:

Port 22: Used for SSH, providing secure remote access and file transfers.

Port 587: Used for secure email submission (SMTP) with encryption.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Discusses the roles and security implications of various ports and protocols.

Cisco Networking Academy: Provides training on secure web server configuration and port management.

Network+ Certification All-in-One Exam Guide: Covers port security and best practices for securing web servers.
