CompTIA N10-009 - CompTIA Network+ Certification Exam

Definition of SD-WAN:

Software-Defined Wide Area Network (SD-WAN) is a technology that simplifies the management and operation of a WAN by decoupling the networking hardware from its control mechanism. It allows for centralized management and enhanced security.

Benefits of SD-WAN:

Reduced Provisioning Time: SD-WAN enables quick and easy deployment of new sites with centralized control and automation.

Security: Incorporates advanced security features such as encryption, secure tunneling, and integrated firewalls.

Scalability: Easily scales to accommodate additional sites and bandwidth requirements.

Comparison with Other Technologies:

VXLAN (Virtual Extensible LAN): Primarily used for network virtualization within data centers.

VPN (Virtual Private Network): Provides secure connections but does not offer the centralized management and provisioning efficiency of SD-WAN.

NFV (Network Functions Virtualization): Virtualizes network services but does not specifically address WAN management and provisioning.

Implementation:

SD-WAN solutions are implemented by deploying edge devices at each site and connecting them to a central controller. This allows for dynamic routing, traffic management, and security policy enforcement.

The best answer is C. Link aggregation. The requirements point directly to combining multiple physical links into one logical connection. Link aggregation provides higher total bandwidth, supports redundancy if one member link fails, and simplifies administration because the bundle is managed as a single logical interface instead of several separate ones.

Another important clue is vendor interoperability. Standards-based link aggregation, such as LACP, is designed to work across different vendors when supported properly. That makes it a strong match for inter-data-center switch environments where equipment may not all come from the same manufacturer.

The other choices do not satisfy the full requirement list. Spanning tree helps prevent loops, but it can block redundant links instead of actively using them for extra bandwidth. Setting interface speeds to 10GB increases speed per port, but it does not by itself provide the logical bundling, simplified management, or redundancy benefits described. Jumbo frames can improve efficiency for some traffic types, but they are not the right answer for bandwidth aggregation and resilient uplinks.

Because the question asks for a solution that improves throughput, keeps redundancy, remains cost effective, and is easier to manage, link aggregation is the strongest fit.

A captive portal is designed to present terms, conditions, or usage rules to users and require them to acknowledge/accept those rules before granting network or internet access. In Network+ (N10-009) security and access control concepts, captive portals are commonly associated with guest wireless or public access scenarios, where users are redirected to a web page that displays acceptable-use language and requires a click-through acceptance (and sometimes authentication). This provides a technical enforcement point: users must actively accept the rules to proceed, which supports organizational policy compliance and creates a recordable control in many implementations.

An Acceptable Use Policy (AUP) is the document that defines the rules, but by itself it does not technically force a user to acknowledge them at the time of access. NAC controls who/what can connect and can enforce posture and segmentation, but it does not inherently ensure users “accept” usage rules unless paired with a portal workflow. DNS filtering blocks or allows domain access categories (malware, adult content, etc.), which enforces browsing restrictions but does not guarantee user acceptance of rules. Therefore, the best answer to ensure users accept the rules is captive portal.

===========

BNC connectors are commonly used for coaxial cables, including those connecting to external antennas in Wi-Fi, radio, and surveillance systems.

Breakdown of Options:

A. BNC – Correct answer. Used for coaxial cables in wireless and antenna connections.

B. ST – Used for fiber optic cables, not antennas.

C. LC – A fiber optic connector, not for antennas.

D. MPO – Used for multi-fiber optic cables, not RF antennas.

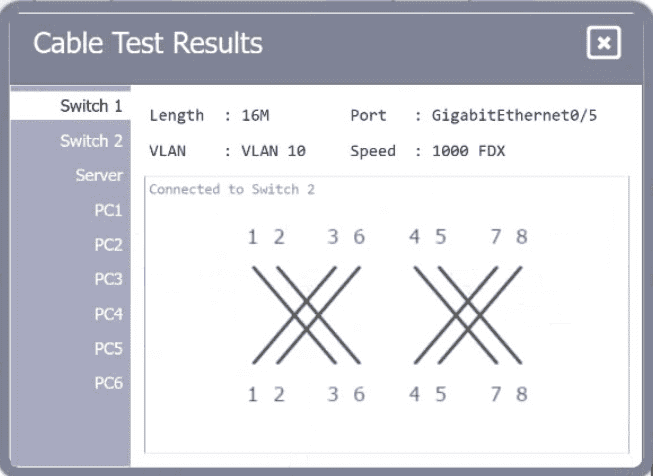

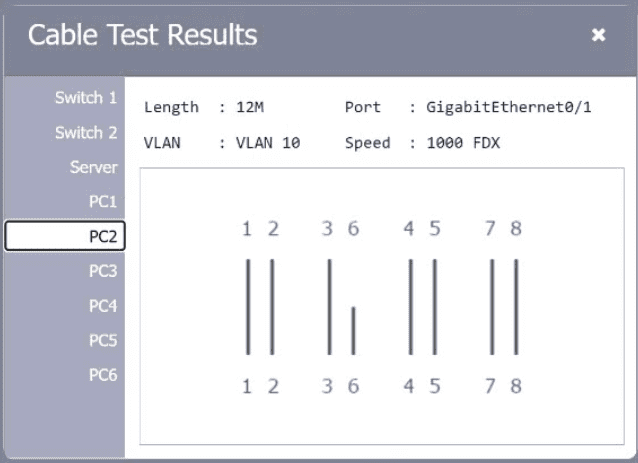

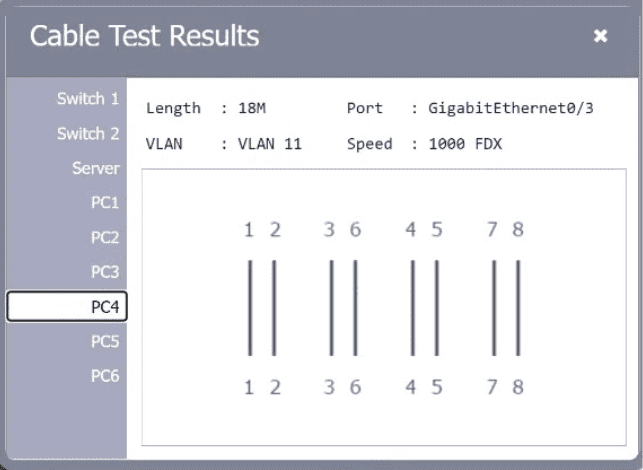

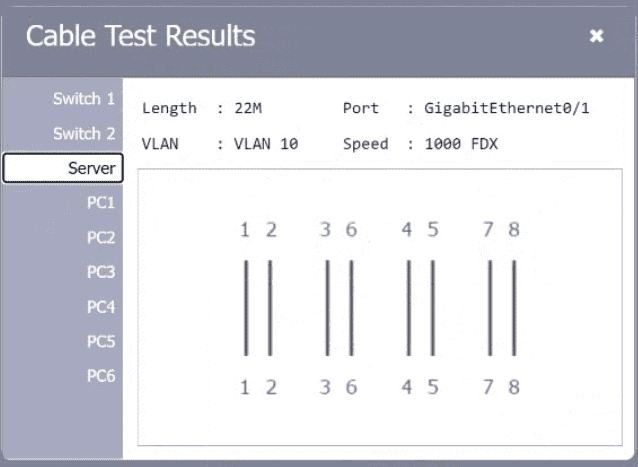

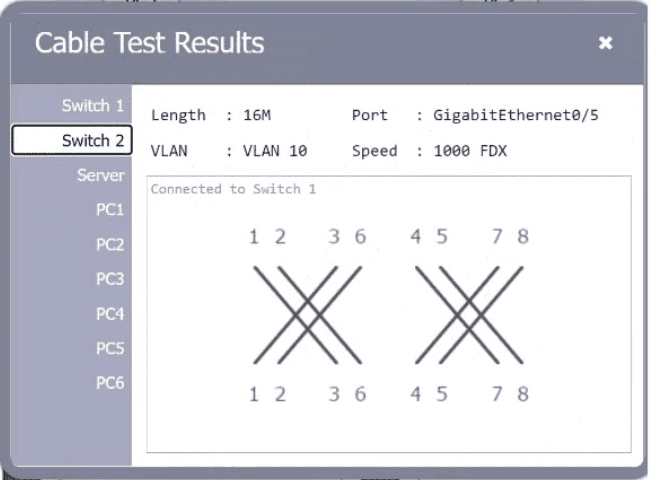

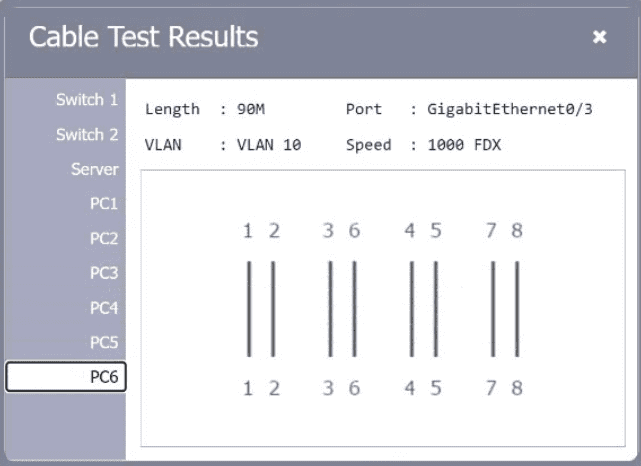

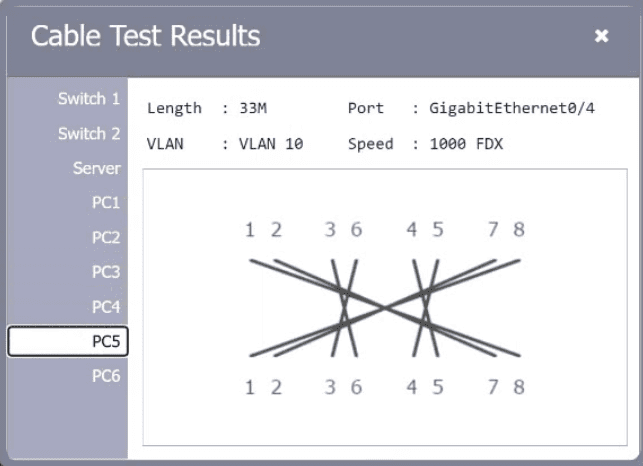

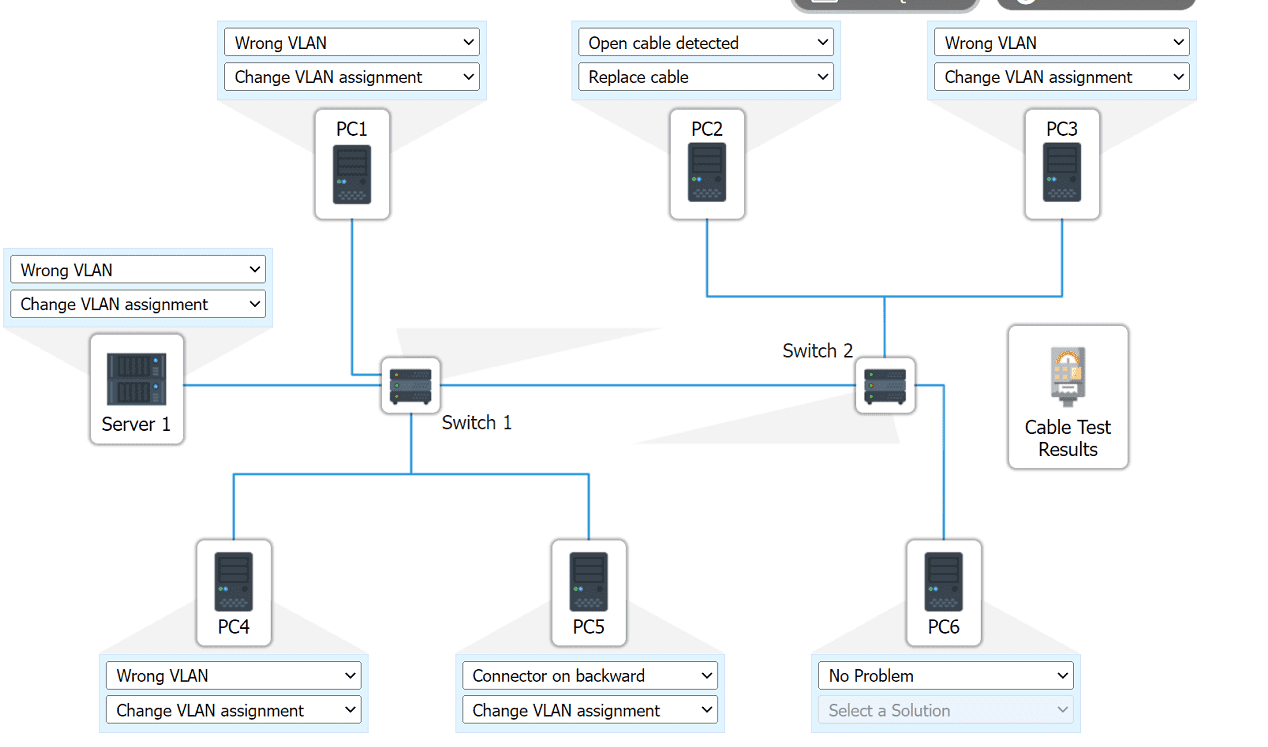

An incorrect pinout on the patch cable could prevent network connectivity due to mismatched wiring. Even if the cables are the correct length and type, a pinout issue can cause continuity problems and prevent data transmission. Proper crimping with the correct pinout is essential for network cables to function. (Reference: CompTIA Network+ Study Guide, Chapter on Network Media and Topologies)

Understanding Subnetting:

The subnet mask 255.255.255.240 (or /28) indicates that each subnet has 16 IP addresses (14 usable addresses, 1 network address, and 1 broadcast address).

Calculating the Subnet Range:

Subnet Calculation: For the IP address 10.0.0.95 with a /28 subnet mask:

Network address: 10.0.0.80

Usable IP range: 10.0.0.81 to 10.0.0.94

Broadcast address: 10.0.0.95

Router Interface Configuration:

Broadcast Address Issue: The IP address 10.0.0.95 is the broadcast address for the subnet 10.0.0.80/28. Configuring a router interface with the broadcast address will cause routing issues as it is not a valid host address.

Comparison with Other Options:

The web server is in a different subnet: The web server (10.0.0.81) is within the same subnet range (10.0.0.80/28).

The IP address space is a class A network: While 10.0.0.0 is a Class A network, this does not explain the routing issue caused by the broadcast address.

The subnet is in a private address space: The private address space designation (RFC 1918) does not impact the routing issue related to the broadcast address configuration.

Resolution:

Reconfigure the router interface with a valid host IP address within the usable range, such as 10.0.0.94.

This describes a Spanning Tree Protocol (STP) loop. If STP isn’t correctly configured or a redundant link is added without STP protection, it causes broadcast storms and network outages.

A. Unused ports disabled would not affect the entire network.

B. Missing default gateway on a switch doesn’t cause total network loss.

**C. Connecting a switch to an access port can cause VLAN mismatches, but not total connectivity loss unless a loop forms.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 3.6 – Explain the characteristics of network topologies and types.

===========

The correct answer is Static because static routes have a lower administrative distance (AD) than most dynamic routing protocols, giving them higher priority when a router selects routes for the same destination network. According to CompTIA Network+ (N10-009) routing objectives, administrative distance is used to determine the trustworthiness of a route source when multiple routing protocols provide a path to the same subnet. The lower the administrative distance, the more preferred the route.

By default, a static route has an administrative distance of 1, which is lower than OSPF (110) and BGP (20 for eBGP, 200 for iBGP). Because of this, when identical routes to a subnet exist from both static and dynamic sources, the router installs the static route in the routing table.

A default route (0.0.0.0/0) is only used when no more specific route exists and does not take precedence over specific static or dynamic routes.

Therefore, when building the routing table for a given subnet and comparing route sources, static routes take precedence due to their lower administrative distance.

Port 587 is the standard default port for sending email (SMTP) with TLS encryption, which is used to secure email transmissions between mail servers or between clients and mail servers. Allowing traffic over port 587 enables secure email sending while maintaining standard protocol usage. (Reference: CompTIA Network+ Study Guide, Chapter on Ports and Protocols)

Twinaxial (Direct Attach Copper / DAC) cables can plug directly into QSFP ports without needing separate optical transceivers. They are cost-effective for short-distance, high-speed connections (commonly in data centers).

A. Multimode fiber requires SFP/QSFP transceivers to convert electrical signals to optical.

C. RG11 is coaxial cable for broadband/cable TV, not used in QSFP ports.

D. Category 6 is twisted-pair Ethernet cabling, not directly compatible with QSFP ports.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — Cable types, QSFP, DAC (Twinaxial), transceiver requirements.

IPv4 addresses are divided into classes:

Class A: Supports 16,777,214 hosts (large enterprises).

Class B: Supports 65,534 hosts (medium to large networks).

Class C: Supports 254 hosts (small to medium networks).

Class D: Used for multicast, not for assigning IPs to hosts.

Step-by-step Calculation:

The network will have 150 users initially, with a projected growth of 10 users, totaling 160 users.

Each user has two devices, so 160 × 2 = 320 IP addresses needed.

A Class C subnet has 254 usable IPs by default, which is not sufficient.

A Class B subnet can support thousands of hosts, making it the most appropriate option.

Incorrect Options:

A. Class D: Reserved for multicast, not for host assignments.

C. Class A: Overkill for a network of this size.

D. Class C: Cannot support 320 hosts without subnetting, making Class B the best choice.

A hot site is a fully operational backup facility with hardware, network, and data synchronization already in place. It allows for immediate failover in the event of a disaster, minimizing downtime.

B. DCI (Data Center Interconnect) connects data centers but doesn’t guarantee availability unless built redundantly.

C. Direct Connect refers to a private link to cloud providers, not disaster recovery.

D. Active-passive can help with failover but may involve delay unless combined with hot site principles.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 4.4 – Summarize business continuity and disaster recovery concepts.

If the IP phone works but the workstation doesn ' t, it indicates that the Voice VLAN is functioning correctly, but the Data VLAN (C) is either misconfigured or missing. The workstation typically connects through the phone, which tags voice and data traffic separately using VLANs.

A. Voice VLAN is for the IP phone, which is already working.

B. Native VLAN is for untagged traffic on trunk ports, but doesn’t control access directly.

D. Trunk port is more relevant to switch interconnections than individual workstation ports.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 2.3 – Given a scenario, configure and verify VLANs.

The three-tier hierarchical model in network design consists of three layers: access, distribution, and core. The access layer is where devices like PCs and printers connect to the network. The distribution layer aggregates the data received from the access layer switches before it is transmitted to the core layer, which is responsible for high-speed data transfer and routing. This approach improves scalability and performance in larger networks. References: CompTIA Network+ Exam Objectives and official study guides.
