CompTIA N10-009 - CompTIA Network+ Certification Exam

If a ping to 10.0.100.19 is unreachable, the most likely issue is that users are on the wrong subnet and cannot communicate with the server.

Breakdown of Options:

A. The users are on the wrong subnet. ✅ Correct answer. If users are on a different subnet without proper routing, they won't reach the server.

B. The DHCP server renewed the lease. – Would change the client’s IP, but the server’s static IP should remain unchanged.

C. The IP address was not reserved. – DHCP reservations matter for dynamic IPs, but RDP servers typically have static IPs.

D. The hostname was changed. – Would affect DNS resolution, but pinging the IP directly would still work.

Fax machines use analog phone lines, which are connected using RJ11 connectors. These are standard telephone connectors with 4 or 6 positions and are used for POTS (Plain Old Telephone Service) lines.

F-type is used for coaxial cables (e.g., TV and cable modems).

RJ45 is used for Ethernet network connections.

SC (Subscriber Connector) is used for fiber optic connections, not analog telephone lines.

📘 Reference:

CompTIA Network+ N10-009 Official Objectives: 2.4 – Compare and contrast common network connectors.

===========

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

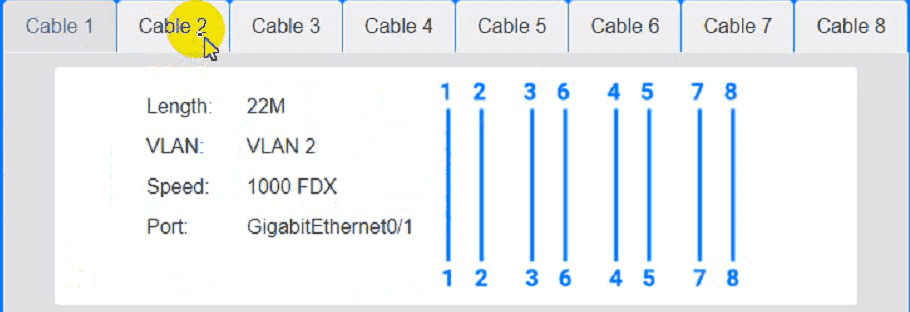

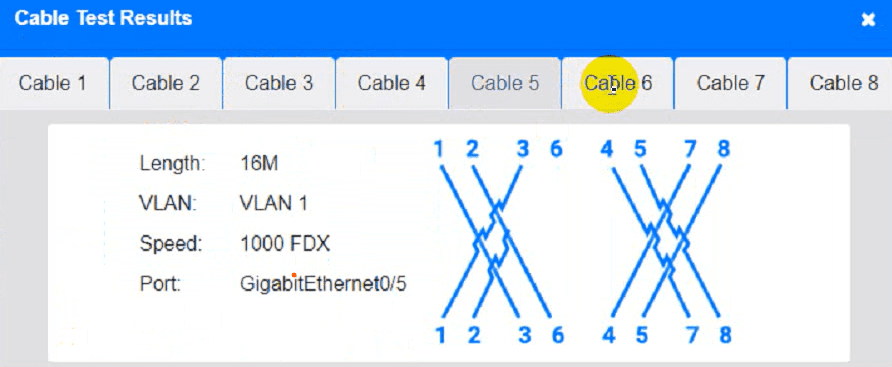

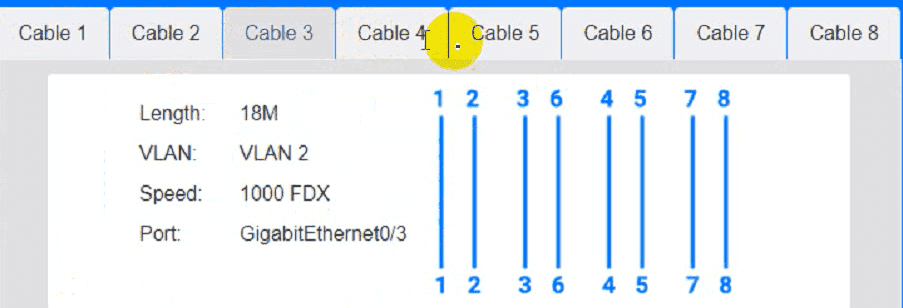

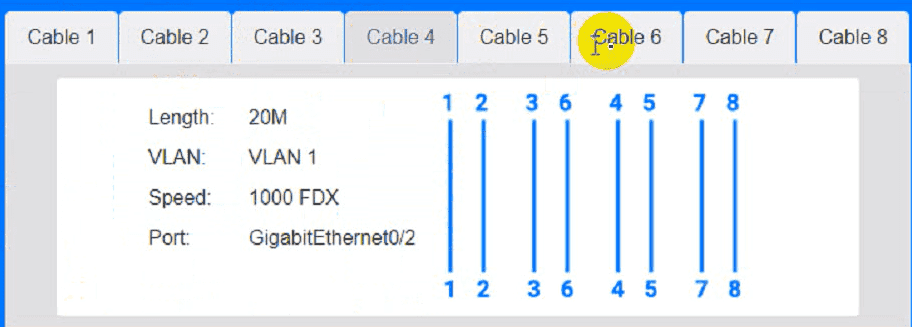

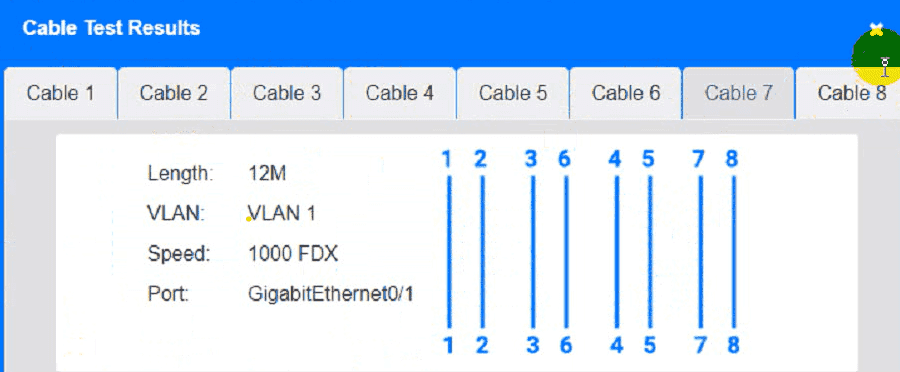

To troubleshoot all the network components and review the cable test results, you can use the following steps:

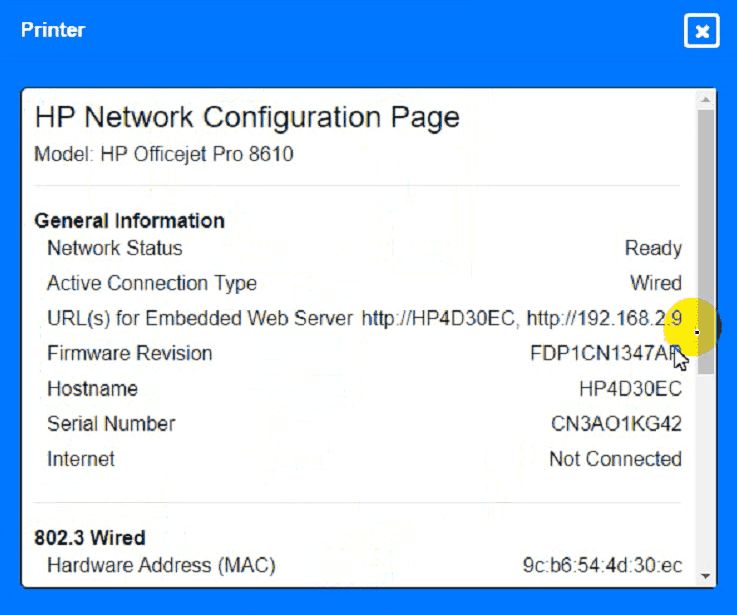

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

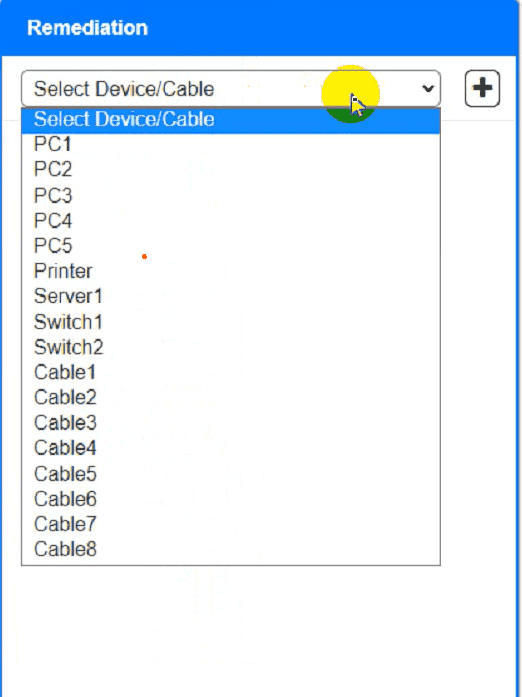

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

To enter commands in each device, you can use the following steps:

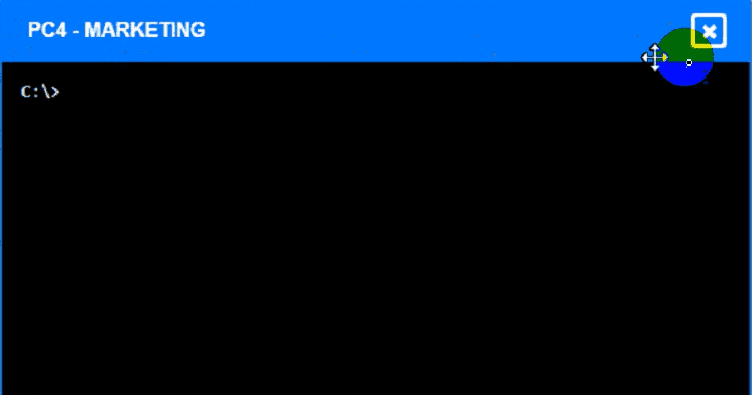

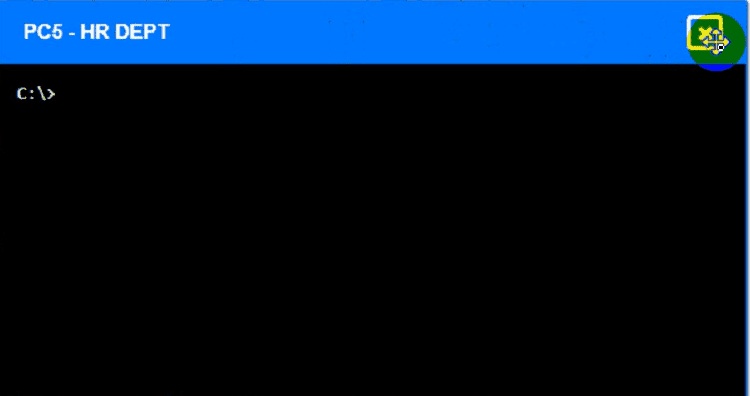

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Single Sign-On (SSO) enables a user to access multiple resources or applications with one set of credentials, improving usability and security. The document confirms:

“Single Sign-On (SSO) allows a user to authenticate once and gain access to multiple resources or applications without needing to log in again for each. It streamlines the login process and improves security by reducing the number of passwords that need to be managed.”

Port 22 is used for SFTP (Secure File Transfer Protocol) and SCP (Secure Copy Protocol), which encrypt file transfers using SSH (Secure Shell). This ensures data is transmitted securely over the network.

•Why not the other options?

•Port 69 (B) – TFTP (Trivial File Transfer Protocol): Transfers files but is not secure (no encryption).

•Port 80 (C) – HTTP: Used for web traffic, not for file transfer.

•Port 3389 (D) – RDP (Remote Desktop Protocol): Used for remote desktop access, not file transfer.

Power over Ethernet (PoE) delivers power to devices such as VoIP phones over the same cables used for data. If the total power requirement of connected devices exceeds the PoE power budget of the switch or injector, some devices may not receive adequate power and could intermittently reboot. This issue would not affect the workstation, which is likely receiving power separately. References: CompTIA Network+ Exam Objectives and official study guides.

Acold disaster recovery (DR) siteis a backup facility equipped withminimal infrastructure, often lacking active systems or real-time data replication. Itsgreatest advantage is cost-efficiency. Cold sites aremuch cheaperto maintain than warm or hot sites, which require continuous synchronization and operational readiness. They are used when low cost is more important than recovery speed.

MAC flooding overwhelms a switch’s CAM (Content Addressable Memory) table by sending a flood of frames with spoofed MAC addresses. Once the CAM table overflows, the switch cannot learn legitimate MAC addresses and defaults to flooding all frames out all ports, effectively turning it into a hub. This allows an attacker to capture traffic not originally destined for their port.

A. ARP poisoning corrupts ARP tables to redirect traffic but does not overflow the CAM table.

B. Evil twin is a wireless rogue AP attack, unrelated to switch behavior.

D. DNS spoofing redirects domain queries, not Layer 2 switching.

References (CompTIA Network+ N10-009):

Domain: Network Security — Switch security, CAM table attacks, MAC flooding.

When a host fails to obtain an IP address from a DHCP server, it assigns itself an APIPA (Automatic Private IP Addressing) address in the 169.254.x.x range, commonly described as a “self-assigned IP.” This prevents communication outside the local link, including reaching the default gateway.

B. RFC1918 addresses are private ranges (10.x.x.x, 172.16–31.x.x, 192.168.x.x), but these are not self-assigned.

C. If the TCP/IP stack were disabled, the host wouldn’t have any IP at all.

D. If a static IP were assigned, it would show a configured value, not self-assigned.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — IP addressing issues, DHCP failures, APIPA behavior.
