Nutanix NCS-Core - Nutanix Certified Services Core Infrastructure Professional (NCS-Core 6.8)

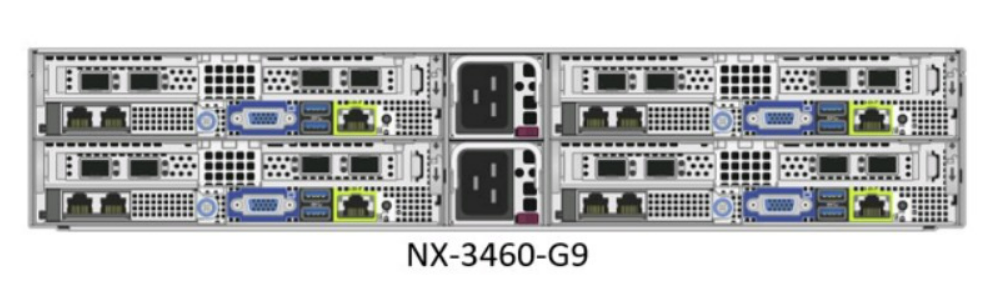

Given that the customer's ToR switches are 25GbE and are already operational, the most reliable and straightforward method for imaging these NX nodes with dual 25GbE and 10GbE ports is to use the 25GbE production switches. The appropriate hardware setup includes:

4 DAC (Direct Attach Cable) cables for connecting the 25GbE NICs on the nodes to the ToR switches.

5 Ethernet cables to manage connectivity between nodes and potentially to a flat Ethernet switch and a laptop for Foundation process control. This setup ensures the fastest and most reliable network performance during imaging, leveraging the existing high-speed infrastructure.References: Nutanix Hardware and Installation Guide, Best Practices for Network Configuration during Foundation.

When a NearSync Replication window is missed due to high write volume during nightly backups, the expected behavior of the system is to adjust the replication schedule temporarily and continuously attempt to return to the configured NearSync schedule. The correct answers are:

Option B, "Protection Domain transitions back to the hourly schedule." If the NearSync cannot maintain the 15-minute schedule due to excessive write volume, it may temporarily fall back to a less frequent schedule, such as hourly, to stabilize.

Option D, "The system continuously tries to get to the NearSync schedule." NearSync is designed to handle transient high-load situations by trying to catch up and revert to the pre-set NearSync schedule as conditions allow.

References:These behaviors are outlined in the Nutanix documentation for NearSync, which describes how the system manages periods of high I/O and missed replication windows.

When Foundation VM and a laptop can ping each other but nodes are not being discovered, it suggests a network protocol issue. The consultant should enable IPv6 and multicast on the switch. Multicast is required for node discovery in many environments, especially when using Nutanix Foundation, as it helps in the detection and communication between nodes and the Foundation VM.References:

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/ )

Ref: https://portal.nutanix.com/page/documents/details/?targetId=Files-v3_6:Files-v3_6

The As-Built Document contains all final cluster configuration details, including initial passwords.

Ref: https://next.nutanix.com/server-virtualization-27/iops-latency-issue-1 168

Ref: https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000CuaDCAS

When VMs on the same node can communicate but fail to connect to other parts of the network following changes made to Top of Rack switches, the issue often stems from a VLAN configuration error on the switches. VMs on the same node communicating successfully indicates that the local switch configuration is intact, but inability to reach external network segments points to an incorrect VLAN setup on the broader network, likely introduced during the recent changes to the Top of Rack switches.References: Nutanix Networking Guide, Troubleshooting Network Connectivity in Nutanix.

The correct container advanced setting to configure in order to prevent ISO container images from exceeding a 100GB limit is "Advertised Capacity." This setting allows administrators to set a maximum storage capacity that is visible and available to the user, irrespective of the actual physical capacity available, thereby preventing over-allocation and management issues in environments where strict capacity limits are required.

References:

Nutanix Certified Services - Core (NCS-Core) Learning Documents

Nutanix Bible: https://www.nutanixbible.com

When forecasting infrastructure requirements for a new program in a Nutanix environment where all existing applications will be decommissioned, the most straightforward method is to disregard any workload calculations that include existing applications. This ensures that the analysis focuses solely on the needs of the new program.

Option A, "Check the Disregard Existing Workloads radio button in the Runway scenario," is the correct choice. Nutanix Runway is a tool designed to help administrators forecast and plan infrastructure requirements based on upcoming needs without being skewed by current utilizations that are scheduled to be decommissioned.

This method allows for a cleaner, more accurate projection of resources needed for the new applications, disregarding any resources currently in use that will no longer be relevant.

References:This approach is detailed in Nutanix planning and forecasting documentation, ensuring administrators can plan accurately for infrastructure changes and needs without the interference of outgoing workloads.
