Netapp NS0-155 - Data ONTAP 7-Mode Administrator

https://library.netapp.com/ecmdocs/ECMP1196979/html/man1/na_snapmirror.1.html

snapmirror initialize [ -S source ] [ -k kilobytes ] [ -s src_snap ] [ -c

create_dest_snap ] [ -w ] destination Starts an initial transfer over the network. An initial transfer is required before update transfers can take place.

The initialize command must be issued on the destination node. If the destination is a volume, it must be restricted (see na_vol(1) for information on how to examine and restrict volumes). If the destination is a qtree, it must not already exist (see na_qtree(1) for information on how to list qtrees). If a qtree already exists, it must be renamed or removed (using an NFS or CIFS client), or snapmirror initialize to that qtree will not work.

snapmirror resync [ -n ] [ -f ] [ -S source ] [ -k kilobytes ] [ -s src_snap ]

[ -c create_dest_snap ] [ -w ] destination Resynchronizes a broken-off destination to its former source, putting the destination in the snapmirrored state and making it ready for update transfers. The resync command must be issued on the destination node.

http://www.netapp.com/us/system/pdf-reader.aspx?m=ds-3177-0512.pdf &cc=us

http://www.netapp.com/us/products/storage-systems/flash-cache/index.aspx?ref_source=ntp141p359372brg-c-26967a63-442e-c7e9-6a73-00002efa4dd6 &gclid=CLLdsqWKrbkCFS4aOgodb1AAuA

Flash Cache is a controller-attached PCIe intelligent caching solution.

Flash Accel is a host-attached caching solution.

Flash Pool utilizes SSDs to enhance performance of disk aggregates (implicitly not controller-wide).

Flash Disk and Flash IO are ambiguous terms.

http://backdrift.org/man/netapp/man1/na_sysstat.1.html

sysstat [ -c count ] [ -s ] [ -u | -x | -m | -f | -i | -b ] [ -d ] [ interval ]

-f For the default format display FCP statistics.

The FCP default output format is as follows:

CPU NFS CIFS FCP Net kB/s Disk kB/s FCP kB/s Cache

in out read write in out age

###% ##### ##### ##### ##### ##### ##### ##### ##### ##### >##

http://hd.kvsconsulting.us/netappdoc/801docs/html/ontap/smg/GUID-866DD79D-D2A6-4FBA-B0BDA63560FECEFF.html

In OnTap 8.0, when NTFS security style is used, only Windows style security objects are used.

For CIFS clients, security is handled using Windows NTFS ACLs.

For NFS clients, the NFS UID (user id) is mapped to a Windows SID (security identifier) and its associated groups. Those mapped credentials are used to determine file access, based on the NFTS ACL.

https://library.netapp.com/ecmdocs/ECMP1196979/html/man1/na_options.1.html

replication.throttle.enable Enables global network throttling of SnapMirror and SnapVault transfers. The default value for this option is off.

replication.throttle.incoming.max_kbs

This option specifies the maximum total bandwidth used by all the incoming (applied at destination) SnapMirror and SnapVault transfers, specified in kilobytes/sec. The default value for this option is unlimited, which means there is no limit on total bandwidth used. This option is valid only when the option replication.throttle.enable is on.

replication.throttle.outgoing.max_kbs

This option specifies the maximum total bandwidth used by all the outgoing (applied at source) SnapMirror and SnapVault transfers specified in kilobytes/sec. The default value for this option is unlimited, which means there is no limit on total bandwidth used. This option is valid only when the option replication.throttle.enable is on.

http://en.wikipedia.org/wiki/SCSI_initiator_and_target

https://library.netapp.com/ecmdocs/ECMP1196986/html/GUID-87340429-8F4A-4AA6-B081-0F5040089C78.html

Data compression requires 64-bit aggregates.

https://library.netapp.com/ecmdocs/ECMP1196979/html/man1/na_lun.1.html

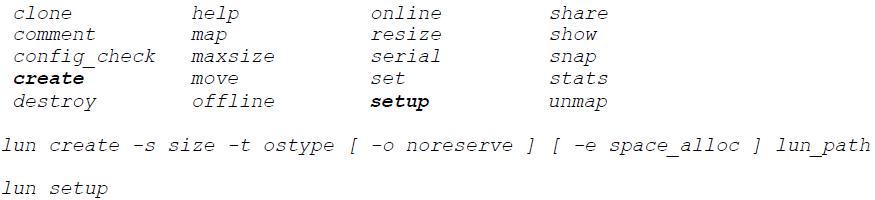

The following commands are available in the lun suite:

Easy to use interactive mechanism for setting up initiator groups, LUNs, and mapping configuration.

lun map [ -f ] lun_path initiator_group [ lun_id ]

Maps a LUN to all the initiators in the supplied group

https://library.netapp.com/ecmdocs/ECMP1196979/html/man1/na_snapvault.1.html

http://www.geekyfacts.com/index.php?option=com_content &view=article&id=64:snapvault

snapvault snap sched [ -f ] [ -x ] [ -o options ] [ volname [ snapname [ schedule ]]]

schedule is cnt[@day_list][@hour_list] or cnt[@hour_list][@day_list]

In the schedule, cnt tells SnapVault how many of the snapshots to keep for primaries and for non-SnapLock secondary volumes. The snapshots will be numbered newest to oldest from 0 to cnt-1. When creating a new snapshot, SnapVault will delete the oldest snapshots, increment by one the number on the remaining snapshots and then create a new number 0 snapshot. If a snapshot is missing from the sequence (e.g. sv.0, sv.1, and sv.3 exist but sv.2 does not), only snapshots that need to be renumbered to make room for the new sv.0 snapshot will be renumbered. In the example, sv.0 and sv.1 would be renamed to sv.1 and sv.2, but sv.3 would remain unchanged.

The cnt in the schedule is interpreted differently for SnapVault secondary SnapLock volumes. For SnapLock secondary volumes, snapshots are created with a name that includes an encoded date and time of when the snapshot is created. These snapshots are never renamed and they are never automatically deleted. These snapshots may be deleted using snap delete after the retention period of the snapshot has expired. If cnt is 0, no snapshots will be taken. If cnt is any non-zero value, snapshots will be taken and no snapshots will be automatically deleted.

If specified, the day_list specifies which days of the week the snapshot should be created. The day_list is a comma-separated list of the first three letters of the day: mon, tue, wed, thu, fri, sat, sun. The names are not case sensitive. Day ranges such as mon-fri can also be given. The default day_list is mon-sun, i.e. every day.

If specified, the hour_list specifies which hours of the day the snapshot should be created, on each scheduled day. The hour_list is a comma-separated list of the hours during the day, where hours are integers from 0 to 23. Hour ranges such as 8-17 are allowed. Also, step values are allowed in conjuction with ranges. For example, 0-23/2 means "every two hours". The default hour_list is 0, i.e. midnight on the morning of each scheduled day.
