Netapp NS0-516 - NetApp Certified Implementation Engineer - SAN Specialist - E-Series

Netapp NS0-516 Premium Access     Download Demo
Page: 1 / 2
Total 64 questions

An administrator is asked to create a Dynamic Disk Pools (DDP) pool from eleven 12 TB disks with the requirement that there is adequate space available for a reconstruction if a drive in the pool fails.

In this scenario, what should the administrator do to satisfy this requirement?

A.

Create the disk pool, and then edit the pool to reserve 12 TB of space

B.

Create the disk pool, and then add another 12 TB drive to the pool

C.

Create the disk pool, and then the system automatically reserves 12 TB of space

D.

Create the disk pool, and then create a hot spare on another 12 TB disk

A customer is running several EF570 systems and uses the ability of the EF-Series systems to run two host protocols at the same time. You are installing a new EF570 that uses the NVMe protocol for a high performance computing application. The controller on-board ports will not connect, but the HIC ports are working fine.

In this scenario, what is the problem?

A.

The on-board host ports are disabled

B.

There is a cable fault preventing the on-board ports from connecting

C.

The on-board ports have the wrong SFPs for the desired network protocol

D.

The switch ports are shut-down

You want to find detailed information about the devices that are connected to the Brocade switch.

In this scenario, which command would accomplish this goal?

A.

portloginshow

B.

zoneshow

C.

nsshow

D.

switchshow

Which two errors would fail a pre-upgrade health check? (Choose two.)

A.

Hot spares are in use

B.

Volumes are reported on a non-preferred path

C.

An excess number of event log events are present

D.

I/O is being processed

An administrator is asked to create an asynchronous mirroring environment that supports multiple mirroring relationships, each with different recovery point objectives (RPOs).

In this scenario, how does the administrator create this environment?

A.

The administrator creates a mirror group with the appropriate RPOs

B.

The administrator creates multiple mirror pairs, each with their own schedule and RPO

C.

The administrator creates a single consistency group with multiple RPOs

D.

The administrator creates multiple mirror consistency groups with the appropriate RPOs

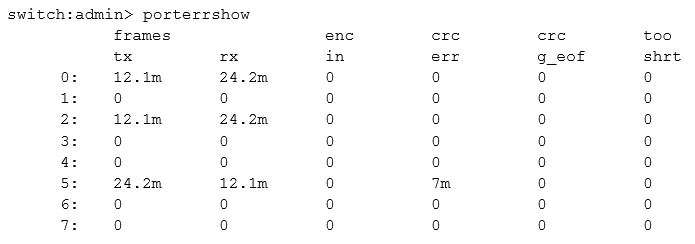

Click the Exhibit button.

Referring to the exhibit, what is the reason for the errors that are shown on port 5 on the switch of one of the fabrics?

A.

protocol errors, encoding errors, or conversion errors

B.

faulty SFPs, cables, or patch panels

C.

twisted cables, wrong plugs, or cable material

D.

wrong switch configuration

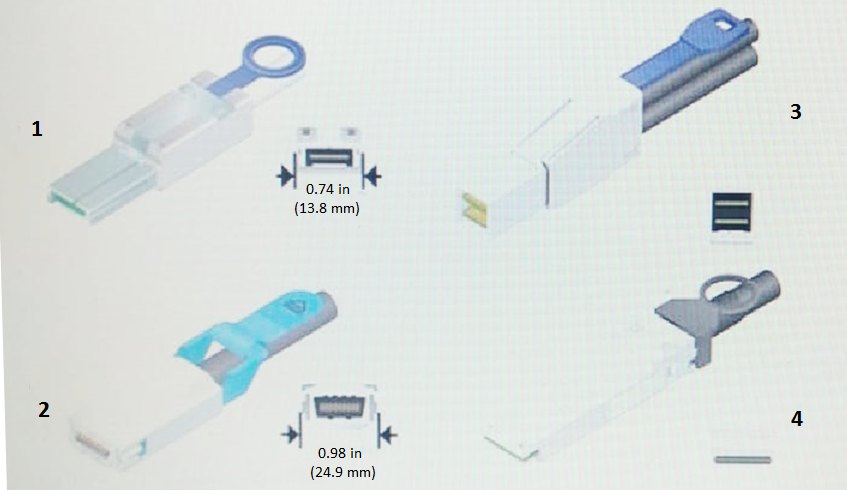

Click the Exhibit button.

Referring to the exhibit, which cable is an InfiniBand 4X connector?

A.

3

B.

1

C.

2

D.

4

An administrator is asked to migrate two DE6600 shelves into a newly deployed E5760 environment that is configured with a stack of two DE460C shelves.

In this scenario, how does the administrator complete this task?

A.

Cable the DE6600s at the beginning of the stack

B.

Cable the DE6600s into a separate stack

C.

Cable the DE6600s at the end of the stack

D.

Cable the DE6600s between the DE460C shelves

Your company has deployed an E2824 and has decided to change the host protocol from iSCSI to FC. You use the storage array profile to review the installed SFPs.

In this scenario, which set of supported data rates indicates that you are using dual-purpose SFPs?

A.

25 Gbps, 10 Gbps

B.

32 Gbps, 16 Gbps, 8 Gbps, 4 Gbps

C.

16 Gbps, 10 Gbps, 8 Gbps, 4 Gbps

D.

16 Gbps, 8 Gbps, 4 Gbps

A customer is configuring an EF570 system on an internal network. Due to security concerns, the network does not have Internet access. The customer wants to regularly send standard support data to NetApp.

In this scenario, what should the customer do to accomplish this task?

A.

Enable AutoSupport with a set interval and with the store locally option selected, manually move the data to a server with Internet access, and then send the data to NetApp.

B.

Open a support ticket with NetApp to enable AutoSupport local functionality, manually move the data to a server with Internet access, and then send the data to NetApp.

C.

Set up a script to initiate Collect Support Data on a set interval, manually move the data to a server with Internet access, and then send the data to NetApp.

D.

Set up a script to initiate Collect Support Data, remove the extra log files, manually move the data to a server with Internet access, and then send the data to NetApp.
