Netapp NS0-521 - Implementation Engineer - SAN ONTAP Exam

To verify compatibility in an iSCSI storage environment before a NetApp ONTAP software upgrade, the following tools are recommended:

Interoperability Matrix Tool (IMT): This tool helps verify the compatibility of different components, including network switches, hosts, and storage systems, ensuring that the planned upgrade will be supported.

Active IQ OneCollect: This tool collects comprehensive configuration and performance data from the storage environment, which can be used to assess the current setup and identify any compatibility issues before the upgrade.

For further details, refer to:

NetApp Interoperability Matrix Tool

Active IQ OneCollect Documentation

When setting up a NetApp ONTAP AFF system for both NVMe/TCP and iSCSI, a critical task required for SAN configuration is to configure Logical Interfaces (LIFs). LIFs are necessary for network connectivity and are used by both NVMe/TCP and iSCSI protocols to communicate between the storage system and the host.

The configuration of LIFs involves creating and managing these interfaces to ensure they are correctly mapped and available for use by the respective protocols. This step is essential for the SAN setup to function properly.

For more detailed steps on configuring LIFs, you can refer to NetApp's documentation:

How to Configure NVMe/TCP with ONTAP​ (NetApp Community)​.

SAN Configuration with ONTAP​ (NetApp)​.

To configure Foreign LUN Import (FLI) on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs, the following actions are required:

Create zoning from the third-party array to the cluster: Proper zoning ensures that the NetApp cluster can communicate with the third-party storage array.

Convert a single FC port on each controller to an FC initiator port: This is necessary for the NetApp system to initiate the connection and access the LUNs on the third-party array.

For more information, refer to:

NetApp Documentation on Foreign LUN Import

In NetApp ONTAP 9.13.1, one of the automatic features that can be used with iSCSI isLIF failover. This feature ensures that in the event of a network failure or a node issue, the Logical Interface (LIF) will automatically fail over to another available port, maintaining connectivity and minimizing disruption to iSCSI traffic.

For more information, refer to:

NetApp ONTAP 9.13.1 Features

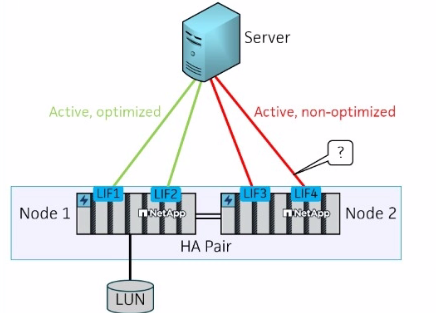

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would becomeActive/Nonoptimized. After the failover, the LIFs from Node 1 that were activeand optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

In a two-node NetApp AFF ASA cluster, the recommended minimum number of paths for a SAN environment from the client host perspective is 4. This configuration ensures high availability and load balancing, which are critical for maintaining performance and resilience in a SAN environment. Each host should have at least two paths to each controller to achieve this setup.

For more detailed information, you can refer to:

NetApp SAN Configuration

NetApp All-Flash SAN Array Documentation

To concurrently serve a namespace over NVMe/FC, a LUN over FCP, a LUN over iSCSI, and an NFS export, only one data SVM (Storage Virtual Machine) is required. NetApp ONTAP allows a single SVM to supportmultiple SAN and NAS protocols simultaneously, enabling efficient and consolidated management of storage resources.

For more information, refer to:

NetApp Documentation on SVM Configuration

NetApp SVM Best Practices

NetApp ONTAP 9.14.1 supports up to a 16-node cluster for SAN and NAS configurations. Given a current 10-node cluster, you can add up to 6 additional nodes to reach the maximum supported node count. This expansion capability ensures scalability for growing storage needs while maintaining high availability and performance.

For more information, refer to:

NetApp Storage Limits Documentation​ (NetApp)

In a multitenant environment where a user needs access only to perform replication within a specific SVM to another cluster, the default rolevsadmin-backupis appropriate. This role provides thenecessary permissions to manage backup and replication tasks without granting broader administrative rights.

For more details, see:

NetApp Documentation on User Roles

NetApp Community Discussion on Roles
