Fortinet NSE4_FGT-7.2 - Fortinet NSE 4 - FortiOS 7.2

Fortinet NSE4_FGT-7.2 Premium Access     Download Demo
Page: 3 / 6
Total 170 questions

FortiGate is operating in NAT mode and is configured with two virtual LAN (VLAN) subinterfaces added to the same physical interface.

In this scenario, which statement about VLAN IDs is true?

A.

The two VLAN subinterfaces can have the same VLAN ID only if they belong to different VDOMs.

B.

The two VLAN subinterfaces must have different VLAN IDs.

C.

The two VLAN subinterfaces can have the same VLAN ID only if they have IP addresses in the same subnet.

D.

The two VLAN subinterfaces can have the same VLAN ID only if they have IP addresses in different subnets.

Which of the following statements is true regarding SSL VPN settings for an SSL VPN portal?

A.

By default, FortiGate uses WINS servers to resolve names.

B.

By default, the SSL VPN portal requires the installation of a client's certificate.

C.

By default, split tunneling is enabled.

D.

By default, the admin GUI and SSL VPN portal use the same HTTPS port.

44

Which statement about the policy ID number of a firewall policy is true?

A.

It is required to modify a firewall policy using the CLI.

B.

It represents the number of objects used in the firewall policy.

C.

It changes when firewall policies are reordered.

D.

It defines the order in which rules are processed.

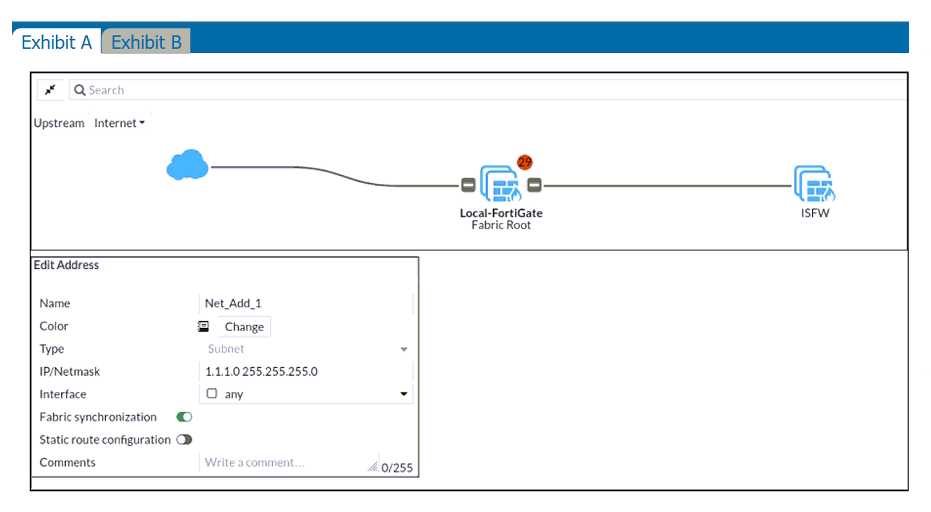

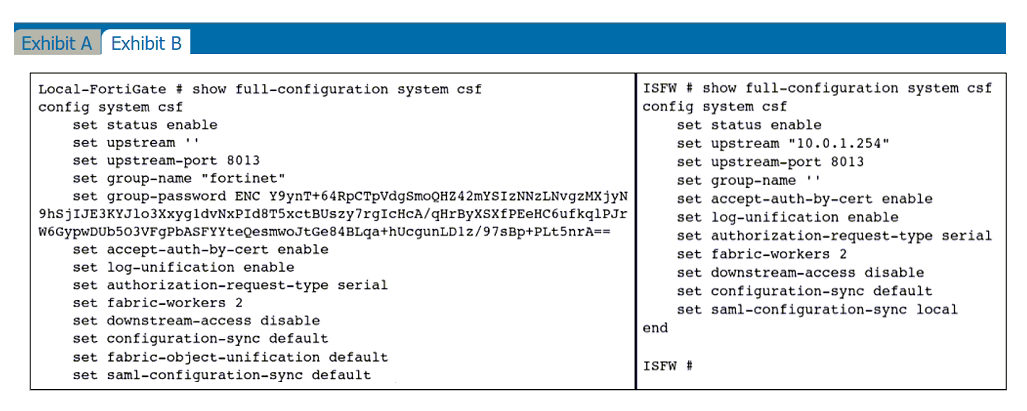

Refer to the exhibits.

An administrator creates a new address object on the root FortiGate (Local-FortiGate) in the security fabric. After synchronization, this object is not available on the downstream FortiGate (ISFW).

What must the administrator do to synchronize the address object?

A.

Change the csf setting on ISFW (downstream) to set configuration-sync local.

B.

Change the csf setting on ISFW (downstream) to set authorization-request-type certificate.

C.

Change the csf setting on both devices to set downstream-access enable.

D.

Change the csf setting on Local-FortiGate (root) to set fabric-object-unification default.

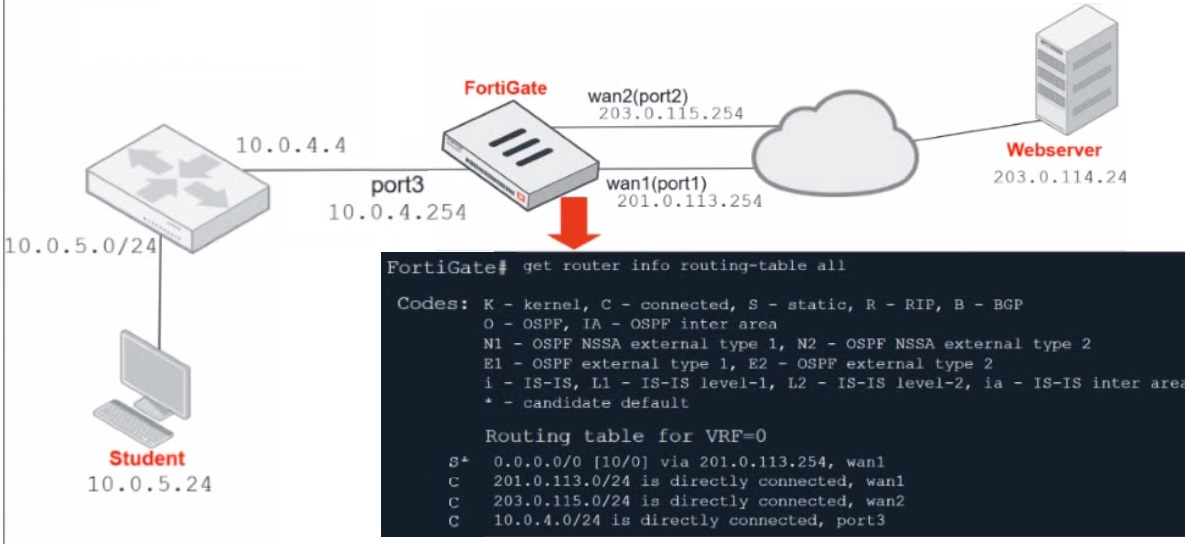

Refer to the exhibit.

Which contains a network diagram and routing table output.

The Student is unable to access Webserver.

What is the cause of the problem and what is the solution for the problem?

A.

The first packet sent from Student failed the RPF check.

This issue can be resolved by adding a static route to 10.0.4.0/24 through wan1.

B.

The first reply packet for Student failed the RPF check.

This issue can be resolved by adding a static route to 10.0.4.0/24 through wan1.

C.

The first reply packet for Student failed the RPF check .

This issue can be resolved by adding a static route to 203.0. 114.24/32 through port3.

D.

The first packet sent from Student failed the RPF check.

This issue can be resolved by adding a static route to 203.0. 114.24/32 through port3.

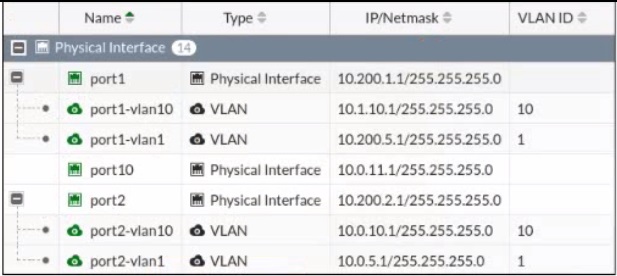

Refer to the exhibit.

Given the interfaces shown in the exhibit. which two statements are true? (Choose two.)

A.

Traffic between port2 and port2-vlan1 is allowed by default.

B.

port1-vlan10 and port2-vlan10 are part of the same broadcast domain.

C.

port1 is a native VLAN.

D.

port1-vlan and port2-vlan1 can be assigned in the same VDOM or to different VDOMs.

Which statement about video filtering on FortiGate is true?

A.

Video filtering FortiGuard categories are based on web filter FortiGuard categories.

B.

It does not require a separate FortiGuard license.

C.

Full SSL inspection is not required.

D.

its available only on a proxy-based firewall policy.

Which two protocols are used to enable administrator access of a FortiGate device? (Choose two.)

A.

SSH

B.

HTTPS

C.

FTM

D.

FortiTelemetry

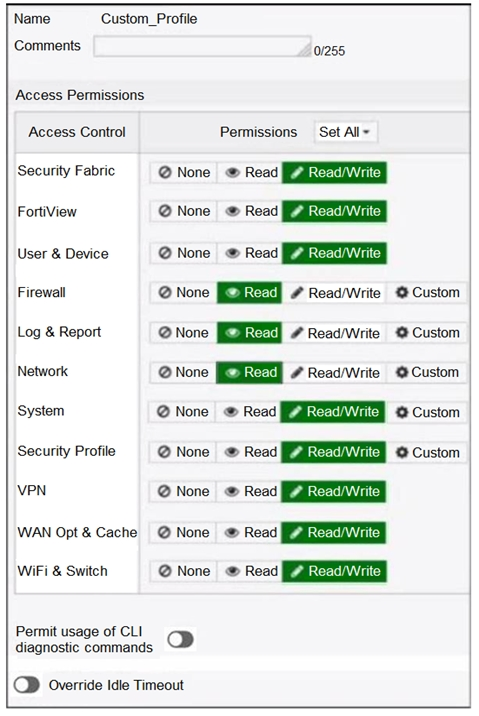

Refer to the exhibit.

Based on the administrator profile settings, what permissions must the administrator set to run the diagnose firewall auth list CLI command on FortiGate?

A.

Custom permission for Network

B.

Read/Write permission for Log & Report

C.

CLI diagnostics commands permission

D.

Read/Write permission for Firewall

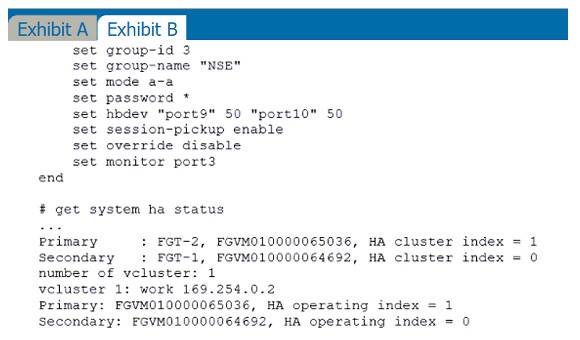

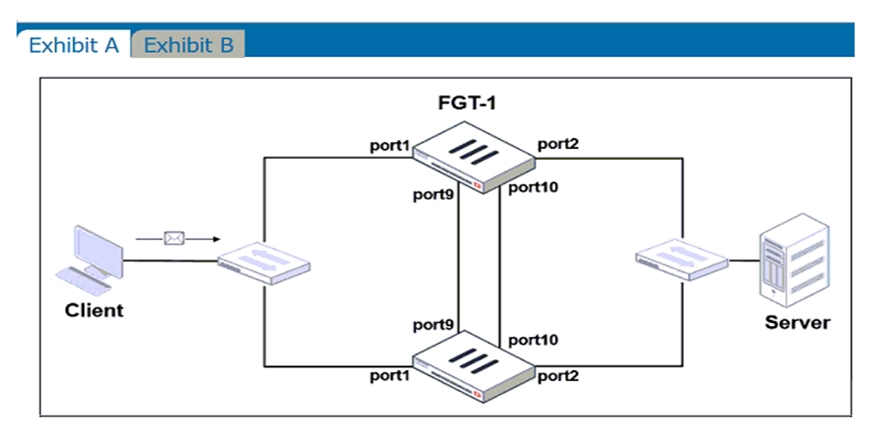

Refer to the exhibits.

Exhibit A shows a topology for a FortiGate HA cluster that performs proxy-based inspection on traffic. Exhibit B shows the HA configuration and the partial output of the get system ha status command.

Based on the exhibits, which two statements about the traffic passing through the cluster are true? (Choose two.)

A.

For non-load balanced connections, packets forwarded by the cluster to the server contain the virtual MAC address of port2 as source.

B.

The traffic sourced from the client and destined to the server is sent to FGT-1.

C.

The cluster can load balance ICMP connections to the secondary.

D.

For load balanced connections, the primary encapsulates TCP SYN packets before forwarding them to the secondary.
