The integration between FortiNAC-F and Mobile Device Management (MDM) platforms (such as Microsoft Intune, VMware Workspace ONE, or Jamf) is a critical component for providing visibility into mobile assets that do not connect directly to the managed infrastructure via standard wired or wireless protocols.

According to theFortiNAC-F MDM Integration Guide, the communication between the FortiNAC-F appliance and the MDM server is handled throughREST APIcalls. FortiNAC-F acts as an API client, periodically polling the MDM server to retrieve device metadata, compliance status, and ownership information. If communication is failing, it is most likely because the API credentials (Client ID/Secret) are incorrect, the MDM ' s API endpoint is unreachable from the FortiNAC-F service port, or the SSL certificate presented by the MDM is not trusted by the FortiNAC-F root store.

While SSH (B) is used for switch CLI management and the Security Fabric (A) uses proprietary protocols for FortiGate synchronization, neither is the primary vehicle for MDM data exchange. SOAP API (D) is an older protocol that has been largely replaced by REST in modern FortiNAC integrations.

" FortiNAC integrates with MDM systems by utilizingREST APIcommunication to query the MDM database for device information. To establish this link, administrators must configure the MDM Service Connector with the appropriateAPI URLand authentication credentials. If the ' Test Connection ' fails, verify that the FortiNAC can reach the MDM provider via theREST APIport (usually HTTPS 443). " —FortiNAC-F Administration Guide: MDM Integration and Troubleshooting.

The correct answer is D . The question is about guest onboarding , and the exhibit shows the Guest Network using gateway 10.20.1.250 . In a Layer 3 captive network design, FortiNAC-F provides DHCP and DNS services to isolated or captive-network hosts, but the DHCP scope must still give the endpoint the correct default gateway for the network where that endpoint is placed. The study guide specifically warns that, when configuring Layer 3 captive network scopes, the administrator must think from the isolated host’s perspective for the IP pool and gateway configuration . It also states that each captive network interface configuration includes an IP address, subnet mask, default gateway, and one or more DHCP scopes.

Option A , 10.0.1.254 , is the infrastructure gateway on the FortiNAC-F service/production-side segment, not the guest network gateway. Option B , 10.0.1.110 , is the FortiNAC-F interface address shown in the diagram, not the default gateway for guest clients. Option C , 10.10.1.250 , is the gateway for the Isolation Network , not the Guest Network . Since the administrator is configuring guest onboarding, the DHCP scope for guest users must hand out 10.20.1.250 as the gateway.

TheFortiNAC-F Manager (FortiNAC-M)is designed as a centralized management platform for large-scale distributed environments where multiple FortiNAC-F Control and Application (CA) appliances are deployed across different sites. According to theFortiNAC-F Manager Administration Guide, the deployment of a Manager simplifies administrative overhead in three specific ways:

First, it providesGlobal Version Control (B). The Manager serves as a central repository for firmware and software updates, allowing administrators to push specific versions to all managed CAs simultaneously, ensuring consistency across the entire fabric. Second, it enablesPooled Licenses (D). Instead of purchasing and managing individual licenses for every CA, licenses are centralized on the Manager. The Manager then distributes these licenses to the CAs as needed based on their host counts. This " floating " license model optimizes cost and prevents individual sites from running out of capacity while others have excess. Third, it offersGlobal Visibility (E). The Manager aggregates host and device data from every managed CA into a single console. This " single pane of glass " allows an administrator to search for a specific MAC address or user across the entire global organization without logging into individual servers.

While the Manager can assist with configuration templates, authentication security policies (C) and infrastructure modeling (A) are still predominantly managed at the local CA level to ensure site-specific logic and performance.

" The FortiNAC Manager provides a central management console for multiple FortiNAC-F servers (CAs). Key benefits include: •License Management: Licenses are pooled on the Manager and allocated to managed CAs as needed. •Software Management: Firmware updates can be centrally managed and pushed to all CAs from the Manager. •Centralized Monitoring: Provides a global view of all hosts, adapters, and events across the entire managed environment. " —FortiNAC-F Manager Administration Guide: Overview and Benefits.

In FortiNAC-F,Device Profiling Rulesare used to automatically identify and categorize devices (such as IP cameras, printers, or IoT devices) based on fingerprints like DHCP fingerprints, OIDs, or MAC prefixes. When a device matches a rule, it appears in theProfiled Devicesview.

However, matching a rule does not automatically register the device in the database unless the rule is configured to do so. If the devices appear in the view but remain " Unknown " and show " No " in the registration column, it indicates that the " Confirm " (or " Auto-register " ) action has not been triggered. In the Device Profiling Rule configuration, there is a setting called " Allow Auto-Approval " or " Confirm " . If this is not enabled, the system identifies the device but waits for an administrator to manually approve the match before changing the host status from " Unknown " to " Registered " .

This is a common " safety " configuration used during the initial deployment phase to ensure that the profiling rules are accurate before the system begins automatically granting network access based on those matches.

" If a device matches a rule but is not registered, check the rule configuration. TheConfirmoption (within the Method or Rule settings) determines if the system automatically registers the device upon a match. IfConfirmis not enabled, the device will remain in the ' Profiled ' state with a registration status of ' No ' until an administrator manually promotes the device. " —FortiNAC-F Administration Guide: Device Profiling Rules.

The correct answer is C . The Port Changes view is the correct troubleshooting location when FortiNAC-F changes endpoint network access, such as moving a switch port into a different VLAN. The study guide states that any time FortiNAC-F changes network access for an endpoint, the change is documented in Network > Port Changes . This view shows the date and time of the change, whether a CLI configuration was executed, the reason for the change, the role or access policy that caused it, the port that was changed, and the VLAN the port was changed to.

This directly matches the troubleshooting requirement in the question: the administrator needs to know when the VLAN change happened and why FortiNAC-F made that network access decision. Option A , Security Event view, is used for security-related events, not detailed port-level VLAN-change history. Option B , Reports view, is too broad and not the operational audit trail for a specific access change. Option D , Admin Auditing, tracks administrative actions, but an automatic policy-driven VLAN assignment is documented under Port Changes, not primarily as an admin audit event.

In FortiNAC-F,MAC notification traps(also known as MAC Move or MAC Change traps) are essential for achieving real-time visibility of endpoint connections and disconnections. When a device connects to a switch port, the switch generates an SNMP trap that informs FortiNAC-F of the new MAC address on that specific interface. This allows FortiNAC-F to immediately initiate the profiling and policy evaluation process without waiting for the next scheduled L2 poll.

According to theFortiNAC-F Administration GuideandSwitch Integrationdocumentation, MAC notification traps should be configured onall ports except uplink ports. Uplink ports are the interfaces that connect one switch to another or to the core network. Because these ports see the MAC addresses of every device on the downstream switches, enabling MAC notification on uplinks would cause the switch to send a massive volume of redundant traps to FortiNAC-F every time any device anywhere in the downstream branch moves or reconnects. This can overwhelm the FortiNAC-F process queue and degrade system performance.

By only enabling these traps on " edge " or " access " ports—where individual endpoints like PCs, printers, and VoIP phones connect—FortiNAC-F receives precise data regarding exactly where a device is physically located. Uplinks should be identified in the FortiNAC-F inventory as " Uplink " or " Learned Uplink, " which tells the system to ignore MAC data seen on those specific ports.

" To ensure accurate host tracking and optimal system performance, SNMP MAC notification traps must be enabled on all access (downlink) ports.Do not enable MAC notification traps on uplink ports, as this will result in excessive and unnecessary trap processing. Uplink ports should be excluded to prevent the system from attempting to map multiple downstream MAC addresses to a single infrastructure interface. " —FortiNAC-F Administration Guide: SNMP Configuration for Network Devices.

The correct answers are A and C . Fortinet’s FortiNAC-F 7.6 documentation states that, to receive and interpret traps from devices or applications, those devices or applications must be modeled in FortiNAC and must have an associated IP address. That validates option A directly. The same Fortinet Trap MIB Files documentation also lists a FortiNAC-OS requirement: the snmp option must be included in the set allowaccess command. That validates option C .

Option B is wrong because Trap MIB integration is not limited to SNMPv3. Fortinet states that Trap MIB supports receiving SNMPv1 and SNMPv2 traps from external devices, while SNMPv3 is discussed separately for traps that populate host and user records.

Option D is the trap. The Fortinet documentation explicitly says IP address OID, MAC address OID, and user ID OID are not all required ; any one OID can be used to identify the host or user that triggered the trap. So the statement that both the IP address OID and MAC address OID must be configured is false.

Questions no:22

Verified Answer: D

Comprehensive and Detailed 250 to 300 words each Explanation with Exact Matched Extract from FortiNAC-F Administrator library and documentation for current versions (including F 7.2, 7.4, and 7.6) documents:

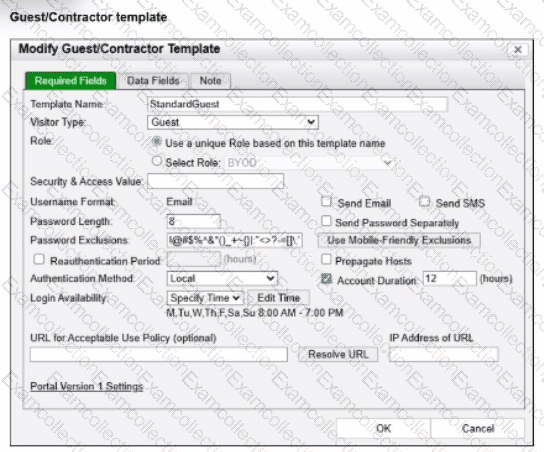

In FortiNAC-F, the expiration of a guest or contractor account is determined by the configuration settings within theAccount Creation Wizardand the associatedGuest/Contractor Template. While a template can define a default " Account Duration " (as seen in the 12-hour setting in the second exhibit), theAccount Creation Wizardallows an administrator to manually specify or override the start and end parameters for a specific user session.

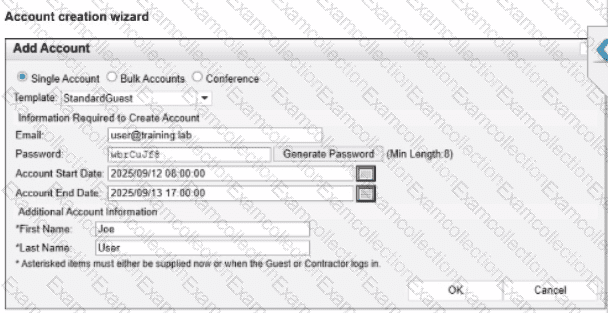

According to theFortiNAC-F Administration Guideregarding guest management, theAccount End Datefield in the creation wizard is the definitive timestamp for when the account object will be disabled or deleted from the system. In the provided exhibit (Account Creation Wizard), the administrator has explicitly set theAccount Start Dateto2025/09/12 08:00:00and theAccount End Dateto2025/09/13 17:00:00.

Even though the template indicates an " Account Duration " of 12 hours, this value typically serves as a pre-populated default. When a manual date and time are entered into the wizard, those specific values take precedence for that individual account. The account will remain active and valid until5:00 PM (17:00:00)on the following day,2025/09/13. It is also important to note the " Login Availability " from the template (8:00 AM - 7:00 PM); while the accountexistsuntil the 13th at 17:00:00, the user would only be able to authenticate during the active hours defined by the login schedule on both days.

" When creating an account, the administrator can select a template to provide default settings. However, specific values such as theAccount End Datecan be modified within theAccount Creation Wizard. The date and time specified in the ' Account End Date ' field determines the absolute expiration of the account. Once this time is reached, the account is moved to an expired state and the user ' s network access is revoked. " —FortiNAC-F Administration Guide: Guest and Contractor Account Management.

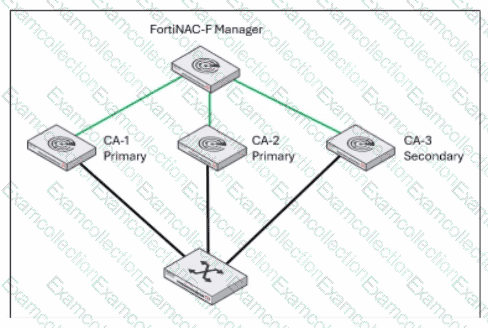

In anN+1 High Availability (HA)configuration, a single secondary Control and Application (CA) server provides backup for multiple primary CA servers. The FortiNAC-F Manager (FortiNAC-M) acts as the centralized orchestrator for this cluster, monitoring the health of all participating nodes.

According to theFortiNAC-F 7.6.0 N+1 Failover Reference Manual, when a primary CA (such asCA-2in the exhibit) fails, the secondary CA (CA-3) is automatically promoted by the Manager to take over the specific workload and database functions of that failed primary. Crucially, the documentation specifies that even after this promotion, the system architecture maintains its N+1 logic. The secondary CA effectively " assumes the identity " of the failed primary while continuing to operate within the N+1 framework established by the Manager.

It doesnotmerge with CA-1 to form a traditional 1+1 active/passive cluster (A), nor does it engage in load balancing (D), as FortiNAC-F HA is designed for redundancy and failover rather than active traffic distribution. Furthermore, CA-3 does not " share " management with CA-1 (C); it independently handles the tasks originally assigned to CA-2. Throughout this failover state, the Manager continues to oversee the group, and CA-3 remains the designated secondary unit currently acting in a primary capacity for the downed node until CA-2 is restored.

" In an N+1 Failover Group, theSecondary CAis designed to take over the functionality ofany single failed primary componentwithin the group. The FortiNAC Manager monitors the primaries and initiates the failover to the secondary... Once failover occurs, the secondary continues to operate as the backup unit for the failed primary while remaining part of the managed N+1 HA configuration. " —FortiNAC-F 7.6.0 N+1 Failover Reference Manual: Failover Behavior Section.
