Fortinet NSE6_FMG_AD-7.6 - Fortinet NSE 6 - FortiManager 7.6 Administrator

The correct answer is B. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages. To achieve full synchronization, you must run the Import Configuration tool on FortiManager to synchronize the policy package.”

The guide also states: “After every retrieve, auto-update, or revert operation, you must use Import Configuration to ensure the policy information is synchronized.”

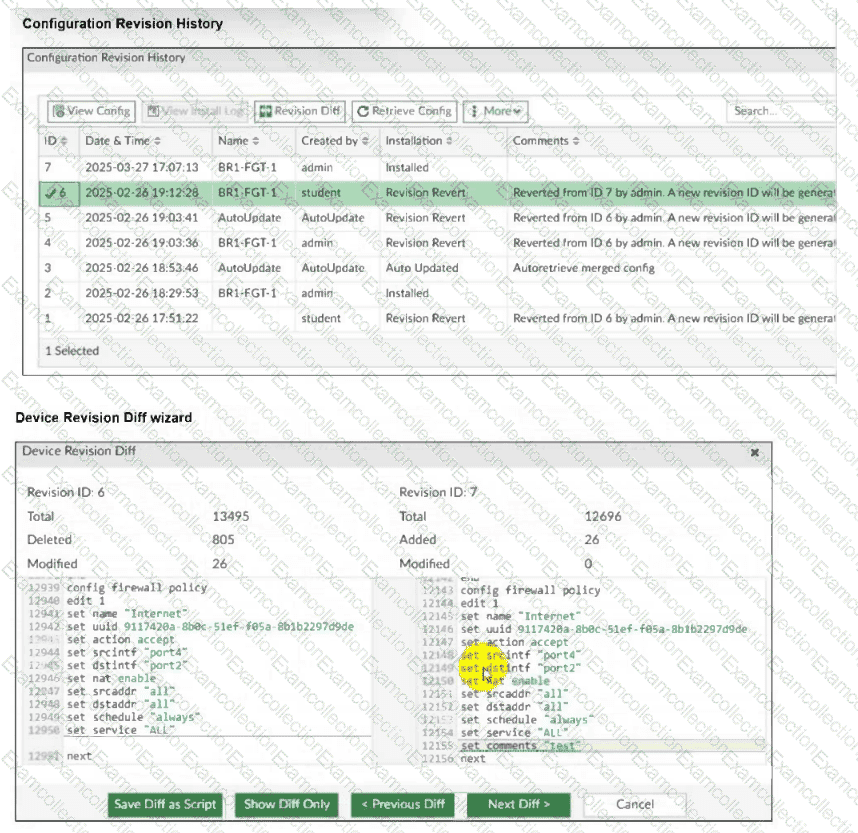

In the exhibit, the missing unset comment for policy ID 1 is a policy package issue, not just a device-level revert issue. Reinstalling the existing policy package does not automatically rebuild it from the reverted revision. The administrator must import the firewall policies again so the policy package reflects the reverted policy state. That is why the comment was not removed.

=========

The correct answers are A and E. The study guide explicitly states under Database Integrity that scheduled backups “Automatically executes database integrity commands” and “Does not automatically make corrections”. That exactly verifies A.

It also states in Best Practices—Database Integrity: “Always follow the proper upgrade path” and “If you don’t, it may cause inconsistencies in the database.” That exactly verifies E.

B is incorrect because diagnose dvm check-integrity verifies and corrects device manager database issues such as device states, memberships, lock statuses, and duplicate VDOM entries, not a corrupted file system. C is incorrect because locked device status issues are listed under diagnose dvm check-integrity, not diagnose cdb check adom-integrity. D is not a stated FortiManager best practice in the uploaded guide.

The correct answer is C. The FortiManager 7.6 Administrator Study Guide states that after adding the root FortiGate of a Security Fabric, all downstream devices in the fabric are automatically added as Unauthorized in the root ADOM. That directly matches option C.

This is important because the administrator created a FortiGate-only ADOM named Training, not a Fabric ADOM. The lab guide explains that a FortiGate ADOM is intended for FortiGate devices, while the Fabric type is the special ADOM type that allows FortiGate and other device types together.

So the downstream members are not automatically authorized, and they do not immediately appear as managed devices inside the Training ADOM. They first appear as unauthorized devices in the root ADOM, where the administrator can review and authorize them.

=========

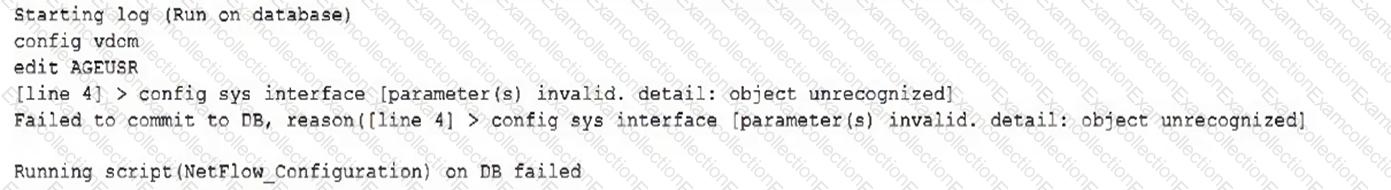

The correct answer is B. The error occurs because the script is being run on the policy package database, but the failing command is config sys interface, which is a device-level configuration command, not a policy-layer command. The lab guide gives the exact relationship: “Because the scripts target the device database, first, you will run the scripts against the device database, and then install the scripts on the managed devices” and “The scripts contain configuration changes related to device-level settings.”

By contrast, the lab guide shows Policy Package or ADOM Database scripts being used for firewall objects and policies in a policy package.

So this NetFlow script must be run on the device database, then installed. The issue is not VDOM permissions, metadata variables, or normalized interfaces.

Enabling a workflow with approval ensures that any policy package changes must be reviewed and approved before installation, preventing administrators from repeating configuration mistakes and enforcing change control.

The correct answers are A and C. The FortiManager 7.6 Administrator Study Guide states: “An ADOM revision creates a snapshot of all policy and object configurations for the ADOM”. The lab guide says the same thing in practical terms: “An ADOM revision creates a snapshot of the policy and object configuration for the ADOM” and that these revisions are useful for comparing differences and reverting to a previous revision.

Because the revision is a snapshot of the ADOM’s policy-and-object state, it saves the current ADOM policy/object state, which supports A and directly proves C. B is false because the study guide warns: “ADOM revisions can significantly increase the size of the configuration backup files.” D is not supported by the uploaded sources.

=========

This point is not covered in the uploaded FortiManager 7.6 study guide, so the answer is based on Fortinet’s official FSSO documentation. Fortinet documents that in FSSO Collector Agent deployments, the FortiGate connects to the Collector Agent on TCP port 8000 by default, and if a different port is not configured, that is the port that must be reachable. Fortinet also explains that the DC agents monitor user logon events and pass the information to the Collector Agent, which stores the information and sends it to the FortiGate.

So, when login events are not reaching FortiGate, the most effective first troubleshooting step is to verify connectivity on TCP 8000 between the Collector Agent and FortiGate. Options A, B, and C are less direct and do not test the actual transport path used by the Collector Agent to send FSSO information to FortiGate.

FortiManager global policies and objects are shared across ADOMs, but they are not applied automatically to every package. The study guide states that when you create a global policy package, you can choose the ADOMs you want to apply it to, and you can even pick specific policy packages in individual ADOMs. That directly validates B.

A is also correct because the lab guide explicitly says you can promote ADOM objects to global objects by right-clicking an ADOM object and selecting Promote to Global.

C is incorrect because when Automatically Install Policies to ADOM Devices is enabled, FortiManager installs without giving you a preview/accept step first; the lab warns to use it only when you are sure of the changes.

D is incorrect because FortiManager imports device policies into an ADOM policy package, not into the global package for synchronization.

Enabling workflow mode along with the ADOM lock feature ensures that all configuration changes go through a centralized review and approval process before installation, allowing controlled and coordinated management of firewall policies by multiple administrators.
