The correct answer is A. Design. In the FortiSIEM 7.4 User Guide’s anomaly detection workflow, the first configuration step is Step 1: Design. In that step, FortiSIEM requires the analyst to identify the fields that will be analyzed by the machine learning job. The guide states that under Design, the analyst must identify Fields to Analyze, and explains that these fields are considered for anomaly detection and must currently be numerical fields. The guide also identifies the time field requirement for statistical deviation algorithms and notes that a FortiSIEM report is used to provide the dataset. The Prepare Data step comes later and is used to load or prepare the data source for training. The Train step runs the algorithm against the prepared dataset. The Schedule step is used after training to run inference. Therefore, the selection of fields to analyze belongs to the Design phase, not Prepare Data, Train, or Schedule. This sequence matters because FortiSIEM must know which numerical fields are relevant before it can prepare, train, or run inference on the machine learning job.

The correct answer is A. FortiSIEM agent. The FortiSIEM Study Guide identifies FortiSIEM agents as the component responsible for “file, log monitoring, and UEBA.” It also explains that FortiSIEM agents can be installed on endpoints or servers to provide data collection functions that native syslog may not provide. For Windows systems specifically, the guide states that Windows servers do not natively send syslog messages and that a FortiSIEM Windows agent can be installed to perform that function. The FortiSIEM 7.4 User Guide also confirms that FortiInsight UEBA functionality runs as an integrated module within the FortiSIEM Windows Agent in newer releases. SSH and SNMP are access or monitoring protocols; they can support discovery or performance monitoring, but they are not the UEBA data-sending component. A FortiSIEM worker performs analysis and search functions inside the FortiSIEM architecture; it is not installed on endpoints to collect UEBA telemetry. Therefore, the FortiSIEM agent is the correct mechanism for sending UEBA-relevant endpoint data to FortiSIEM.

FortiSIEM supports both global thresholds and per-device/per-device-object thresholds for some performance events. The Study Guide states that FortiSIEM can define “per-device-object thresholds or global thresholds” for performance events, and separately explains that global thresholds are referenced by the rules engine by default. Therefore, the correct statement is that FortiSIEM uses global and per-device thresholds for performance metrics. Options A, B, and D are too restrictive or false because FortiSIEM does not use only one fixed threshold model.

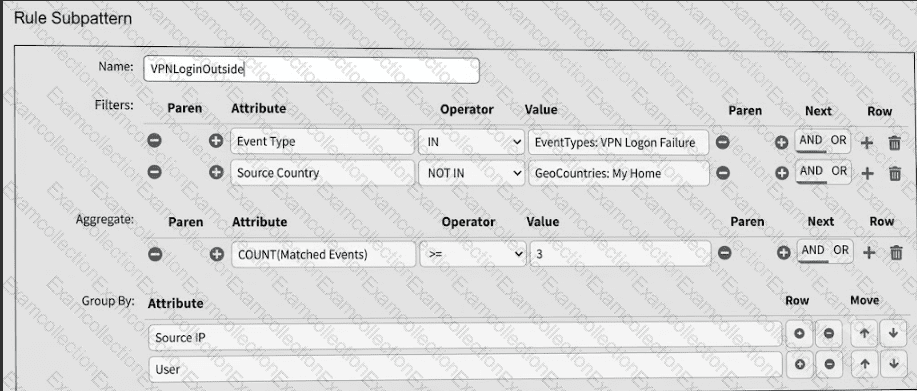

The rule is matching VPN logon failure events where the Source Country is outside the configured home country . In the exhibit, the filter section shows Event Type IN EventTypes: VPN Logon Failure and Source Country NOT IN GeoCountries: My Home . That means the source must be outside the home-country geo group. The aggregate condition shows COUNT(Matched Events) > = 3 , so the rule is looking for at least three matching failed VPN logon events. The Group By section uses Source IP and User , so FortiSIEM evaluates the count per unique source IP and user combination, not by different countries.

The FortiSIEM Study Guide explains that a rule subpattern contains three components: Filter , Aggregate , and Group By . It states that the filter identifies the matching event group, the aggregate function specifies how many events must match, and Group By combines events with the same grouped attributes into one row while the count tracks those events.

Option A is wrong because the rule does not count different countries. Options C and D are wrong because the source country is explicitly NOT IN My Home, not inside the home country.

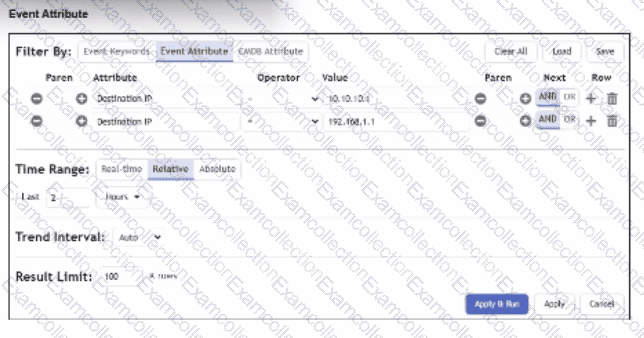

The correct answer is B because the analyst is searching for events to either of two destination IP addresses, but the filter uses the wrong Boolean relationship. The FortiSIEM Study Guide explains structured searches with multiple conditions and states that “when you use multiple conditions, you must specify the next logical operator between conditions.” It gives a direct example: when searching for events from two specific devices, the first condition is one IP address, the second condition is another IP address, and “the next logical operator between the two conditions is an OR operator, because the search is for events from condition 1 OR condition 2.” The same logic applies here. A single event cannot usually have Destination IP equal to 10.10.1.1 and Destination IP equal to 192.168.1.1 at the same time. Using AND requires both conditions to be true simultaneously, so no results are returned. The correct operator between the two Destination IP conditions is OR.

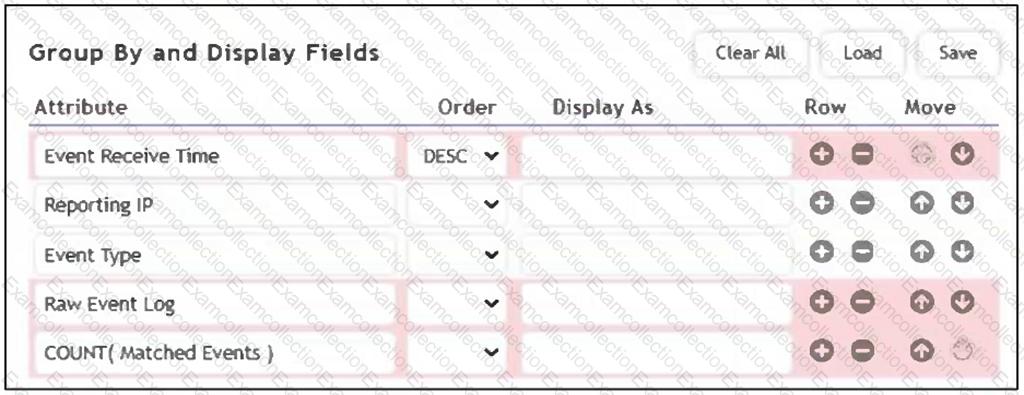

The fields are highlighted in red because unique values such as Event Receive Time and Raw Event Log cannot be used in group-by operations. Grouping requires aggregatable or consistent values across events, while these fields are unique to each event, making them incompatible for grouping.

The correct answer is A because the highlighted fields are not valid for that grouped/aggregated display configuration. The FortiSIEM 7.4 User Guide notes that some event attributes, functions, and queries are not supported in specific analytics result-filter and display contexts. It lists date fields, including examples such as Event Receive Time , and also lists Raw Event Log and Binary Raw Event Log among unsupported fields for that context. The reason is practical: grouping requires stable values that can combine multiple events into meaningful grouped rows. Attributes such as Event Receive Time and Raw Event Log are highly specific to individual events. If every event has its own receive timestamp or unique raw log content, grouping by those fields defeats aggregation and can create one row per event rather than meaningful grouped output. COUNT(Matched Events) itself is a valid aggregate expression when used correctly. Event Receive Time is available in logs, but it is not appropriate as a grouped field in the configuration shown. Therefore, the red highlighting indicates invalid grouped fields caused by unique/non-groupable values.

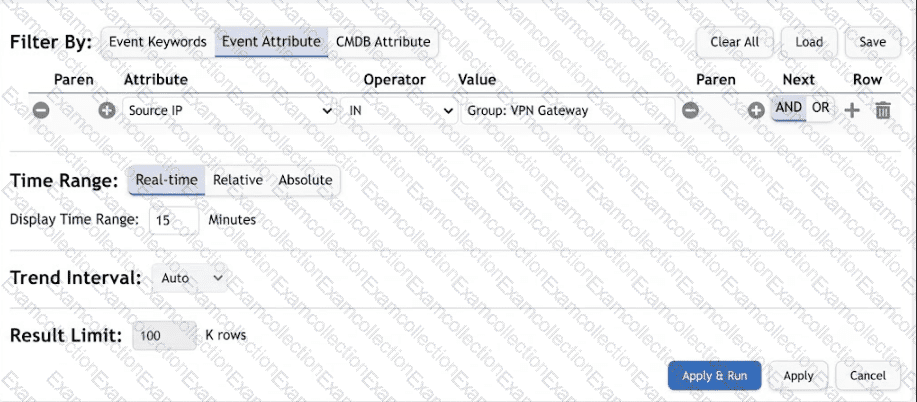

The correct answer is A. A configuration management database (CMDB) device group . In the exhibit, the analytics filter uses Source IP IN Group: VPN Gateway . In FortiSIEM analytics, values shown as Group: for IP/device-related attributes commonly reference FortiSIEM CMDB groups, not firewall address groups or rule folders. The FortiSIEM 7.4 User Guide explains how CMDB groups are inserted into queries: to add a CMDB group, the user selects an attribute, selects an operator such as IN , and then selects a value from CMDB. The guide gives a direct example where a reporting IP is matched using a firewall device group, expressed as a condition equivalent to “reptDevIpAddr IN Firewall group.”

This matches the exhibit’s structure: Source IP is the event attribute, IN is the operator, and Group: VPN Gateway is the selected CMDB group value. A FortiSIEM watchlist is different; the Study Guide describes watchlists as containers of similar items that can be referenced in searches, rules, and reports, but they are managed under Resources > Watch Lists, not shown here as a CMDB-style device group value. A FortiGate address group exists on FortiGate, not as this FortiSIEM analytics CMDB group reference.

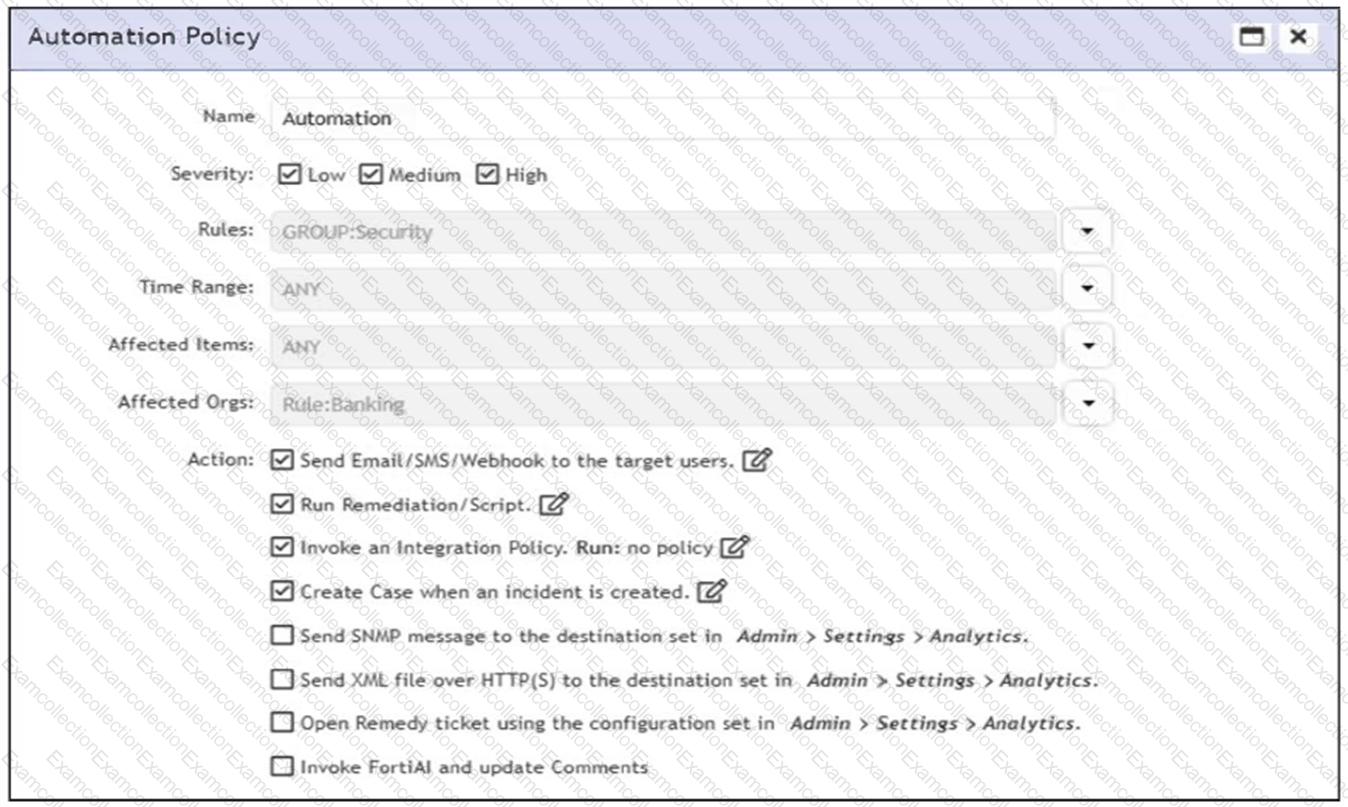

When an associated rule triggers, FortiSIEM performs all selected actions in the automation policy. In this case, it will send an email/SMS/webhook, run the remediation script, invoke the integration policy (even if none is currently defined), and create a case. All checked actions are executed.

The correct answer is B because FortiSIEM automation policies are designed to execute the actions selected in the policy when the policy criteria match. The FortiSIEM Study Guide states that automation policy actions define what occurs when policy criteria match. It lists possible automation actions such as sending an alert, invoking an integration policy, sending SNMP or HTTPS XML notifications, opening a remedy ticket or creating a FortiSIEM case, sending email or SMS, and running a remediation script. The same Study Guide explains that users can configure “any combination of actions.” Therefore, there is no single-action precedence rule where remediation overrides all other selected actions or email runs only because it appears first. If multiple action checkboxes are selected, FortiSIEM executes the configured selected actions according to the automation policy. In the exhibit, multiple actions are selected, including email/SMS/webhook, remediation/script, integration policy, and case creation. Option C is incorrect because the absence of a defined integration policy does not make FortiSIEM ignore the other selected actions. The policy runs the selected configured actions.

The correct answer is D. ZTNA tags. FortiSIEM 7.4 includes FortiEMS endpoint tagging integration. The FortiSIEM 7.4 User Guide states that FortiSIEM supports discovery of FortiEMS servers by using the FortiEMS Management Server API with basic username/password authentication. It also explains that after FortiEMS discovery, FortiSIEM can tag or untag a host by using classification tags on the FortiEMS server. In a ZTNA deployment, those tags are imported by member Fortinet devices, especially FortiGate firewalls, and are referenced in ZTNA firewall rules. The guide gives a common use case in which a host is tagged as suspicious or potentially compromised so firewall rules can isolate it or allow only minimal traffic. Host software versions, FortiSIEM license information, and host login credentials are not the FortiEMS API information relevant to this ZTNA tagging workflow. The API integration supports retrieving FortiEMS-managed host context and using classification/ZTNA tags for automated response and policy enforcement.
