Fortinet NSE7_CDS_AR-7.6 - Fortinet NSE 7 - Public Cloud Security 7.6.4 Architect

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiCNAPP 24.x Administration Guide regarding Microsoft Azure onboarding and feature activation:

Separation of Integration Types (Option D): In FortiCNAPP, onboarding a cloud account via the automated configuration approach often initializes the Cloud Security Posture Management (CSPM) and Cloud Infrastructure Entitlement Management (CIEM) features. However, Workload Scanning (specifically Agentless Scanning) is treated as a distinct integration type within the platform.

Guided Configuration Requirement: Even after the account is onboarded, the administrator must navigate to the Integrations or Onboarding section and specifically add the Workload Scanning integration for that Azure account. This "Guided Configuration" ensures that the necessary additional permissions (such as those required to create snapshots of disks and scan them) and resources (like the scanner VNet or regional scanners) are properly deployed within the Azure environment.

Why other options are incorrect:

Option A & B: Automated onboarding already handles the creation of necessary App Registrations and Service Principals. Manually adding more without following the specific integration workflow will not activate the workload scanning engine.

Option C: Threat policies are used to generate alerts based on existing data. If the raw workload scanning data is not being received from Azure, a policy will have no data to analyze; the issue is at the ingestion/integration layer, not the policy layer.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 AWS Administration Guide and the Public Cloud Security documentation regarding AWS CloudFormation templates:

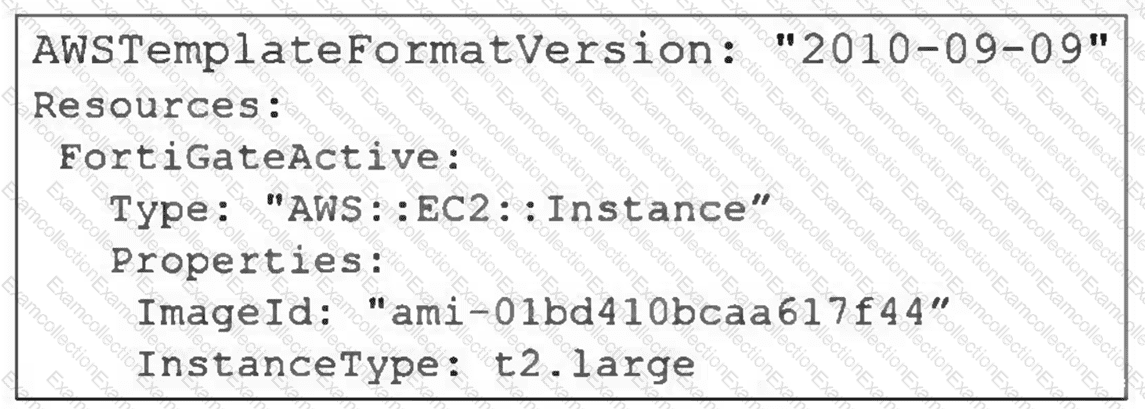

YAML Format and Comments (Option D): The exhibit provided (image_dce708.png) displays an AWS CloudFormation template in YAML (YAML Ain't Markup Language) format. Unlike JSON, YAML natively supports inline and block comments using the # character. An administrator can simply add # followed by the instruction next to the InstanceType line, and the CloudFormation parser will ignore it during stack creation.

Infrastructure as Code (IaC) Best Practices: In a multinational deployment environment, using comments in YAML templates is a critical best practice for documentation. It allows the lead administrator to provide context for regional teams (e.g., "Change t2.large to a supported instance type in your region") directly within the code.

Why other options are incorrect:

Option A: The aws cloudformation update-stack command is used to apply changes to an existing stack. While you can provide a "Description" for the stack, it does not allow you to inject comments into the source template file itself.

Option B: The AWSTemplateFormatVersion "2010-09-09" is the only currently supported version for CloudFormation. Changing this would not impact comment functionality, as comment support is a property of the YAML file format, not the template version.

Option C: Converting the template to JSON would be counterproductive because the standard JSON specification does not support comments. If the template were in JSON, the administrator would actually need to convert it to YAML to add comments.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

As per the FortiOS 7.6 AWS Administration Guide and FortiWeb 7.4 cloud deployment documentation, understanding the AWS infrastructure layer is critical for integrating Fortinet virtual appliances. The two features that define AWS Network Access Control Lists (NACLs) are:

Stateless Nature (Option A): Unlike Security Groups, which are stateful (automatically allowing return traffic), NACLs are stateless. This means that if you allow inbound traffic on a specific port, you must also explicitly configure an outbound rule to allow the response traffic to leave the subnet. NACLs evaluate inbound and outbound traffic independently.

Default Configuration (Option C): Every VPC comes with a default NACL. By default, this NACL is configured to allow all inbound and outbound traffic. This is designed to ensure connectivity is not blocked until a custom security posture is defined. However, any custom NACL created manually starts by denying all traffic until rules are added.

Why other options are incorrect:

Option B: NACLs are associated at the subnet level, not the instance level. Security Groups are the components tied directly to an instance’s Elastic Network Interface (ENI).

Option D: NACLs and Security Groups provide defense-in-depth and are designed to be used simultaneously. Traffic must pass through the NACL (subnet level) and then the Security Group (instance level) to reach its destination.

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the "pattern" of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor. By using Traffic Analytics, the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify "top talkers," visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical "identification and analysis" of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.
