Fortinet NSE7_EFW-7.2 - Fortinet NSE 7 - Enterprise Firewall 7.2

Option B is correct because each FortiGate in the Security Fabric can send logs to FortiAnalyzer for centralized logging and analysis12. This allows you to monitor and manage the entire Security Fabric from a single console and view aggregated reports and dashboards.

Option A is incorrect because the root FortiGate is not the only device that can send logs to FortiAnalyzer. The root FortiGate is the device that initiates the Security Fabric and acts as the central point of contact for other FortiGate devices3. However, it does not have to be the only log source for FortiAnalyzer.

Option C is incorrect because the FortiGate devices performing NAT or UTM are not the only devices that can send logs to FortiAnalyzer. These devices can perform additional security functions on the traffic that passes through them, such as firewall, antivirus, web filtering, etc4. However, they are not the only devices that generate logs in the Security Fabric.

Option D is incorrect because the last FortiGate that handled a session in the Security Fabric is not the only device that can send logs to FortiAnalyzer. The last FortiGate is the device that terminates the session and applies the final security policy5. However, it does not have to be the only device that reports the session information to FortiAnalyzer. References: =

1: Security Fabric - Fortinet Documentation1

2: FortiAnalyzer Demo6

3: Security Fabric topology

4: Security Fabric UTM features

5: Security Fabric session handling

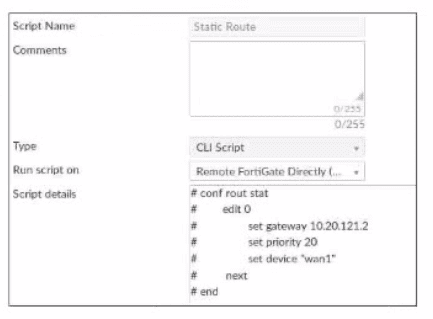

The commands that start with the # sign did not run because they are treated as comments in the CLI script. Incomplete commands can cause CLI scripts to fail because they are not recognized by the FortiGate device. The other options are incorrect because static routes can be added using CLI or GUI, and CLI scripts do not need to start with #!. References := Configuring custom scripts | FortiManager 7.2.0 - Fortinet Documentation, section “CLI script syntax”.

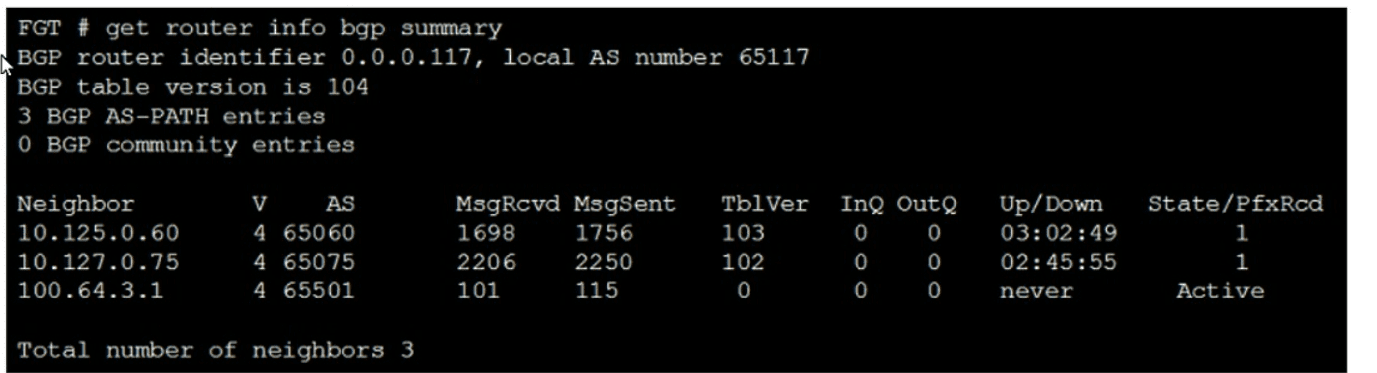

The output of the BGP (Border Gateway Protocol) summary shows details about the BGP neighbors of a router, their Autonomous System (AS) numbers, the state of the BGP session, and other metrics like messages received and sent.

From the BGP summary provided:

A. External BGP (EBGP) exchanges routing information.

This conclusion can be inferred because the AS numbers for the neighbors are different from the local AS number (65117), which suggests that these are external connections.

B. The BGP session with peer 10.127.0.75 is established.

This is indicated by the state/prefix received column showing a numeric value (1), which typically means that the session is established and a number of prefixes has been received.

C. The router 100.64.3.1 has the parameter bfd set to enable.

This cannot be concluded directly from the summary without additional context or commands specifically showing BFD (Bidirectional Forwarding Detection) configuration.

D. The neighbors displayed are linked to a local router with the neighbor-range set to a value of 4.

The neighbor-range concept does not apply here; the value 4 in the 'V' column stands for the BGP version number, which is typically 4.
