The correct answers are A and B .

For UDP , the study guide states this directly: “For UDP, the session state can have only two values: 00 when traffic is only one way, and 01 when traffic is two ways. For ICMP, the protocol state is always 00.”

That makes B correct and D incorrect.

For TCP , the study guide explains that the protocol state is a two-digit number, where the first digit is the server-side state and the second digit is the client-side state . It also states that the first digit is 0 when the session is not subject to any inspection , and the TCP state table shows that value 1 = ESTABLISHED

So, for a normal non-proxied/non-inspected TCP session, proto_state=01 means the TCP session is in the ESTABLISHED state. An established TCP session means the three-way handshake has completed, which requires traffic in both directions. That is why A is correct.

The study guide also says: “proto_state=11 means that the TCP three-way handshake for both server-side and client-side is completed (ESTABLISHED).”

This confirms that TCP state value 1 represents an established state.

Why C is not selected: the study guide defines value 5 as TIME_WAIT and says: “When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds… This is the state value 5.”

So proto_state=05 represents a closing/closed TCP session in TIME_WAIT , not the normal bidirectional state the question is testing.

Therefore, the verified answers are A and B .

The correct answer is C. 64.26.151.37 .

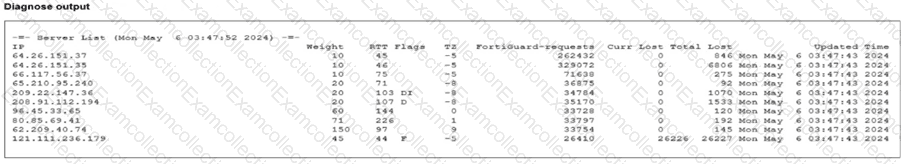

The study guide explains the FortiGuard flags shown by diagnose debug rating:

D = Default

I = Initial

T = Timing

F = Failed and specifically: “F = The server is down”

So even though 121.111.236.179 has the lowest RTT in the exhibit, it has the F flag, meaning FortiGate considers that server failed/down , so it will not be chosen.

To determine which active server is selected, the FortiOS administration guide states:

“The server list is sorted first by weight. The server with the smallest RTT appears at the top of the list regardless of weight. … Therefore the top position in the list is selected based on RTT while the other positions are based on weight.”

Among the valid, non-failed choices in the exhibit:

64.26.151.37 → RTT 45

209.22.147.36 → RTT 103

96.45.33.65 → RTT 144

208.91.112.194 → RTT 107

The active server with the lowest RTT is 64.26.151.37 , so that is the server FortiGate will choose.

So the verified answer is: C .

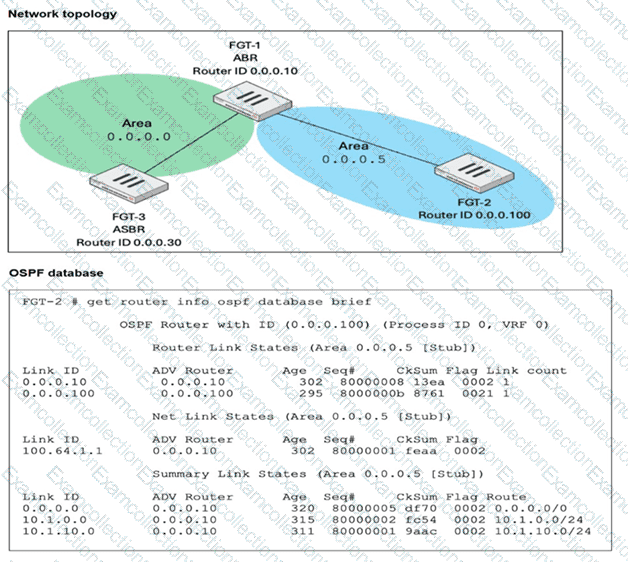

The get router info ospf database brief output on FGT-2 clearly indicates that Area 0.0.0.5 is configured as a [Stub] area.

In OSPF, a Stub Area is specifically designed to reduce the size of the Link State Database (LSDB) on internal routers. The primary behavior of a Stub area is that it does not accept Type 5 (AS External) LSAs .

FGT-3 is the ASBR (Autonomous System Border Router) and is importing static routes, which are generated as Type 5 LSAs in the OSPF domain.

FGT-1 acts as the ABR (Area Border Router). Because Area 0.0.0.5 is a Stub area, FGT-1 blocks these Type 5 LSAs from entering Area 0.0.0.5.

Consequently, FGT-2 will not receive the specific external routes advertised by FGT-3. Instead, the ABR (FGT-1) injects a default route (0.0.0.0/0) into the Stub area to allow connectivity to the external world, which is visible in the database output.

While the question text mentions FGT-3 not receiving routes, the definitive configuration shown in the exhibit is the Stub area setting, which directly corresponds to the blocking of Type 5 LSA propagation (Option A).

https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-Static-URL-filter-actions-explained/ta-p/206632

FortiOS supports both route types described in the question. The FortiOS 7.6 Administrator Study Guide states that a static route can reference one or more SD-WAN zones and that FortiOS consequently installs an individual route for every member of the selected zone. It also states: “Alternatively, you can configure per-member static routes for more granular control over traffic.” Therefore, options A and B are incorrect. Fortinet’s official configuration guidance likewise shows static routes referencing an SD-WAN zone .

The relevant duplicate-route restriction is based on the destination prefix. Fortinet courseware explains: “FortiOS doesn’t allow you to configure a static route for the same destination that references an interface.” Accordingly, a route referencing an SD-WAN zone and another route referencing one of that zone’s members cannot use identical destination subnets. They can use different or overlapping destination prefixes—for example, a less-specific route through the zone and a more-specific route through the individual member. The source subnets are not the required differentiator, eliminating option D.

============

The best verified answer is C .

The study guide says that when FortiGate is in conserve mode, it activates protection measures to recover memory space:

“System configuration cannot be changed”

“FortiGate skips quarantine actions (including FortiSandbox analysis)”

It also explains that inspection behavior can be reduced while in conserve mode:

“pass (default): All new sessions pass without inspection until FortiGate switches back to non-conserve mode.”

“The av-failopen setting also applies to flow-based antivirus inspection.”

The FortiOS administration guide summarizes this behavior as:

“This causes functions such as antivirus scanning to change how they operate to reduce the functionality and conserve memory without compromising security.”

That is why C is the closest correct choice: FortiGate can reduce functionality of some processes, especially antivirus-related inspection, to preserve memory.

Why the other options are wrong:

A is wrong because FortiGate does not automatically reboot as a default conserve-mode action. A reboot can be configured through an automation stitch , but that is an optional administrator-defined response, not the built-in conserve-mode behavior

B is wrong because the documentation does not say FortiGate switches from proxy-based inspection to flow-based inspection. Instead, it may pass traffic without inspection depending on av-failopen settings

D is not generally correct for conserve mode . The study guide says FortiGate starts dropping new sessions only when memory usage exceeds the extreme threshold : “If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked.”

So the verified answer is: C .

The correct answer is B. Assertion dump .

The study guide states: “SAML attributes are pieces of information about a user that are exchanged between IdPs and SPs during the SAML authentication process. These attributes are included in the SAML assertion, which is built by the IdP as part of the authentication process.”

The same study guide page for real-time SAML troubleshooting shows the section labeled **** Assertion Dump **** , and inside that assertion it displays the actual user attributes, such as:

< saml:Attribute Name= " username " >

< saml:Attribute Name= " groups " >

It also explicitly marks this part as “Attributes sent by IdP”

Why the other options are wrong:

A. Bindings HTTP post is incorrect because bindings define how SAML messages are transported , not the section that contains the attributes. The study guide says: “Bindings: Define how SAML protocol messages are transmitted over different communication channels.”

C. Authentication request is incorrect because that is built by the SP and sent toward the IdP, not where the IdP’s user attributes are shown. The study guide’s flow says the SP “Builds auth request” and the IdP later “Builds auth response.”

D. Authentication response is broader than the exact section being asked. The exact section in the study guide where the IdP-provided attributes are shown is the Assertion dump .

So the verified answer is: B .

The correct answer is C. The session is offloaded using NPU .

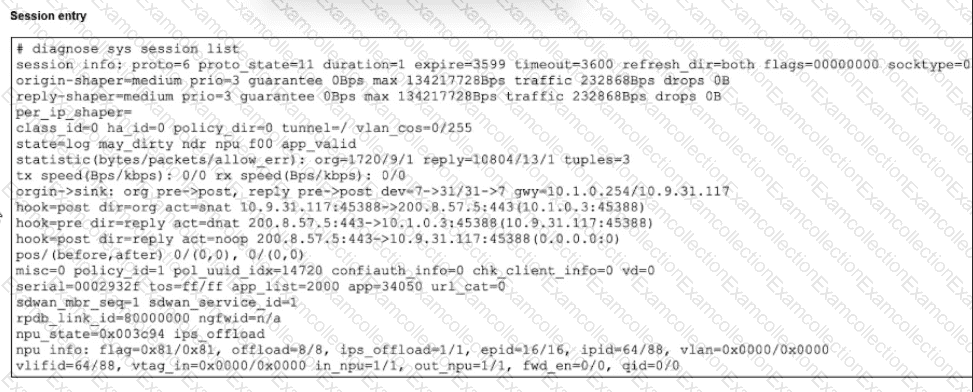

The exact session example in the study guide shows:

proto=6 → this is a TCP session

expire=3599 → the session will expire in 3599 seconds , not in one second

hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388)

hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388)

npu info: ... offload=8/8 ...

and the slide explicitly states: “Offloaded in both directions using NP6”

The study guide also explains this exact point clearly:

“Counters for hardware acceleration—The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8.”

Why the other options are wrong:

A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.

B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP 10.1.0.3 is the SNAT-translated source address , not the final destination.

D is not the best answer for this single-select question . The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state .

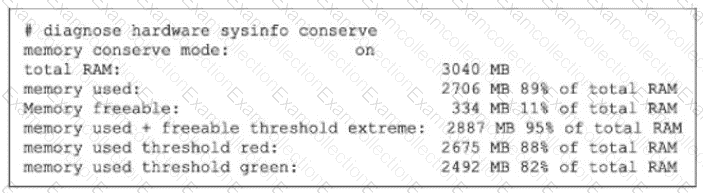

The exhibit shows:

memory conserve mode: on

memory used: 2706 MB 89% of total RAM

memory used threshold red: 2675 MB 88% of total RAM

memory used + freeable threshold extreme: 2887 MB 95% of total RAM

The study guide states that the default thresholds are:

Extreme = 95%

Red = 88%

Green = 82%

So this FortiGate is in conserve mode because memory usage is 89% , which is above the red threshold (88%) , but it has not yet reached the extreme threshold (95%) .

The study guide then explains exactly what happens during conserve mode:

“For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):

config system global

set av-failopen [off | pass | one-shot]

pass (default): All new sessions pass without inspection”

It also says:

“The av-failopen setting also applies to flow-based antivirus inspection.”

And the same page adds:

“If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked.”

Therefore, with default settings and with memory usage below the extreme threshold , FortiGate is allowing new sessions that require inspection, but bypassing inspection . That matches C .

Why the other options are wrong:

A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass , meaning they pass without inspection

B is wrong because if memory rises another 6% , it reaches 95% , which is the extreme threshold . At that point, the study guide says all new sessions that require inspection are blocked

D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold , and the exhibit shows it is currently at 89% , not 95%
