Fortinet NSE7_FSN_AR-7.6 - Fortinet NSE 7 - Secure Networking 7.6 Architect

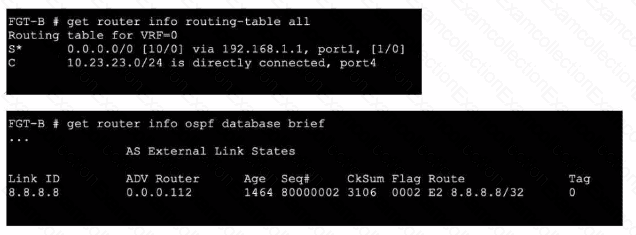

The 8.8.8.8/32 route is visible in the OSPF database on FGT-B but not installed into the routing table—the most likely explanation is that FGT-B is filtering it from being installed.

The correct answers are C and D .

The study guide states: “SSL certificate inspection relies on extracting the FQDN of the URL from either: TLS extension server name indication (SNI), SSL certificate common name (CN).” It also says: “When using SSL certificate inspection, FortiGate is not decrypting the traffic. It is only inspecting the server digital certificates and the SNI field, which are interchanged before the encryption.”

This proves the second part of the answer:

under SSL certificate inspection , FortiGate does not decrypt the traffic

therefore, if the traffic is allowed , it still passes without decryption

That makes D correct.

For the SNI mismatch behavior, the FortiOS administration guide describes the default Server certificate SNI check behavior as:

“Enable: If it is mismatched use the CN in the server certificate for URL”

So if the SNI does not match the CN or any SAN, FortiGate falls back to using the CN from the Subject field for URL handling under the default setting. That makes C correct.

Why the other options are wrong:

A is wrong because with the default SNI-check behavior, when the SNI mismatches the certificate identity, FortiGate does not continue using the mismatched SNI . Instead, it uses the CN in the server certificate for the URL .

B is not the best answer in this single pair selection . While certificate inspection does not decrypt traffic, the key default behavior the documents explicitly highlight for this mismatch case is:

use the CN when SNI mismatches , and

certificate inspection does not decrypt allowed HTTPS traffic .

So the verified answers are: C, D .

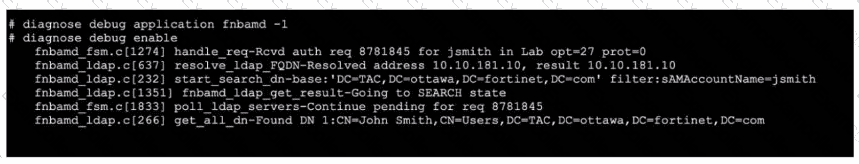

The exhibit shows these key lines:

handle_req-Rcvd auth req ... for jsmith in Lab

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:

handle_req-Rcvd auth req ... for jsmith in Lab ...

That supports A : Lab is the configured LDAP server name being used for this authentication request.

For the LDAP flow stage, the study guide states:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.

That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.

Why the other options are wrong:

B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.

C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '

To display debug output on FortiGate devices, you must always run both the application-specific debug command and the global debug enable command. The command diagnose debug application ike -1 sets up the detail level for the IKE daemon debug, but it does not display any debug output on its own. As described in the FortiOS CLI debugging manuals, the command diagnose debug enable activates debug output on the console, making all previously set debugs visible. This is especially important for VPN troubleshooting—without the enable command, no output appears even if there is VPN traffic.

The correct diagnostic sequence is:

diagnose debug application ike -1

diagnose debug enable

This procedure is found in every FortiOS CLI debug tutorial and troubleshooting workflow.

The Network Security Support Engineer 7.6 Study Guide explicitly explains this debug message:

“iprope_in_check() check failed, drop” means the packet is destined to a FortiGate IP address and one of these conditions applies:

The service is not enabled

The service is using a different TCP port

The source IP address is not included in the trusted host list

The packet matches a local-in policy with action deny

That directly confirms C. Trusted host list misconfiguration .

Why D is the second valid choice:

The FortiOS administration guide explains that:

“IP pools and VIPs are considered local IP addresses if responding to ARP requests on these external IP addresses is enabled … the FortiGate is considered a destination for those IP addresses … once an IP pool or VIP has been configured … the FortiGate considers it as a local address and will not forward traffic based on the routing table.”

Because iprope_in_check() is a local-in/local-destination type failure, a VIP or IP pool misconfiguration can cause traffic to be treated as destined for the FortiGate itself, which can then trigger this drop condition if the matching local service/local-in handling is not valid. So D is the closest supported second answer from the available choices.

Why the other options are wrong:

A is wrong because policy route problems are not the documented meaning of this specific debug message. The study guide instead ties iprope_in_check() check failed, drop to management/local-in conditions.

B is wrong because the study guide says traffic shaping drops appear as: “Denied by quota check”
