Fortinet NSE7_FSN_AR-7.6 - Fortinet NSE 7 - Secure Networking 7.6 Architect

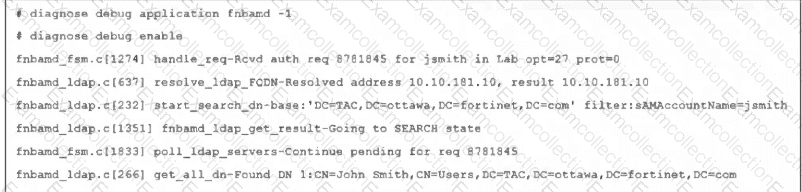

The exhibit includes these key debug lines:

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explains that in regular bind , LDAP authentication has four steps , and that during step 2 , FortiGate searches the LDAP tree to find the user’s DN:

“During the second step, FortiGate does a search query in the LDAP database to find the user’s location—in other words, the user’s DN. If the user is found, the server replies with the user’s DN.”

It also states for the real-time debug of step 2:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user’s full DN.”

That directly proves:

D is correct because the debug is showing step 2: Search Request

A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com

Why the other options are wrong:

B is wrong because binding with the user’s credentials is step 3 , not the step shown here. The study guide says: “Step 3 – Bind user credentials” and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... '

C is wrong because collecting user group information is step 4 , not the step shown in the exhibit. The study guide says: “The last step is to get the user group information” and shows step 4 with Attr query / memberOf search

The partial output from diagnose hardware sysinfo memory provides details on system RAM allocation. According to Fortinet ' s technical documentation for memory troubleshooting and Linux memory management (which FortiOS is based on):

MemFree is the portion of physical memory not currently allocated to any running process or kernel function. Thus, 708880 kB is available and can be immediately used by user-space programs or system operations.

Inactive refers to pages in the memory cache that were previously in use for I/O or file system buffering but are now not actively referenced. These pages are retained in memory for quick access if needed again, but can be reclaimed for other memory operations if demand increases. The value 98908 kB here represents currently unused cache pages (inactive pages), ready for repurposing or deletion if the system requires more RAM.

Cached represents the total amount of system memory allocated to cache, which includes both active and inactive cache pages. It does not, by itself, represent I/O cache exclusively, nor does " inactive " mean memory “will never be used” as the kernel can re-purpose inactive pages on demand.

The correct answer is B .

The study guide states that for TCP , the protocol state is a two-digit number . The first digit is the server-side state and is 0 when the session is not subject to inspection . The second digit is the client-side state . It also shows that value 1 = ESTABLISHED

So, for a normal TCP session with no inspection, proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That makes B correct.

Why the other options are wrong:

A is wrong because for UDP , the study guide says 00 = one-way traffic and 01 = two-way traffic

C is wrong because 10 does not represent the normal established TCP session described in the study guide. The established example shown is based on state value 1 , and the guide explicitly highlights proto_state=11 when both server-side and client-side TCP handshakes are completed

D is wrong because for ICMP , the study guide says “the protocol state is always 00”

====
