Based on the ArchiMate 3 documents or objectives, the diagram uses a composition relationship to indicate that the financial processing function consists of three sub-functions A, B, and C. A composition relationship is a type of structural relationship that represents a whole-part hierarchy between elements. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1.

Comprehensive and Detailed In-Depth Explanation:

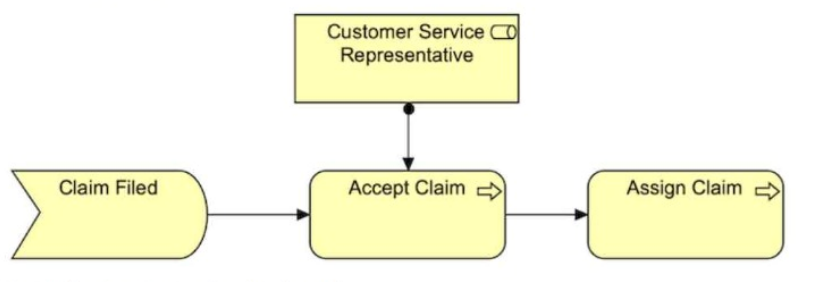

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.

"Claim Filed" is a Business Event, which means it represents anexternal occurrence that initiates a process.

"Accept Claim" is a Business Process, meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process, which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process, but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.→❌Incorrect

TheCustomer Service Representative role is involved only in the "Accept Claim" process, but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.

✅B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.→❌Incorrect

WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.

The key relationship is between the business processes, not the role.

✅C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.→❌Incorrect

TheCustomer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagramshows process flow, not an explicit review process.

✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.→✅Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer:✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.
