Based on the ArchiMate 3 documents or objectives, a data object is a passive structure element that represents a piece of data that can be manipulated by behavior elements such as application functions or services. A passive structure element is a structural element that cannot perform behavior. Active structure elements can perform behavior on passive structure elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.2 Passive Structure Elements 1.

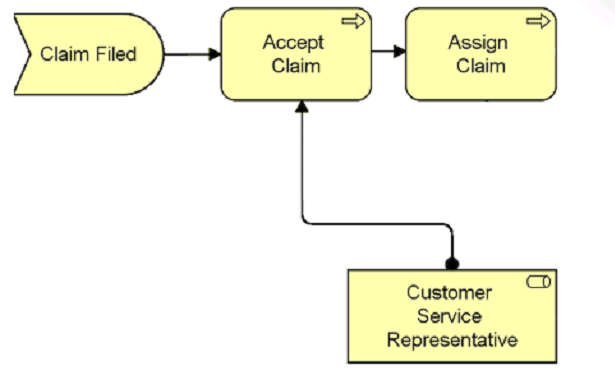

The correct answer is D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process. This is because the diagram shows a business event (Claim Filed) that initiates a business process (Accept Claim) which is performed by a business role (Customer Service Representative). The business process then triggers another business process (Assign Claim) which is also performed by the same business role. The diagram does not show any information flow or assignment relationships between the elements.

Comprehensive and Detailed In-Depth Explanation:

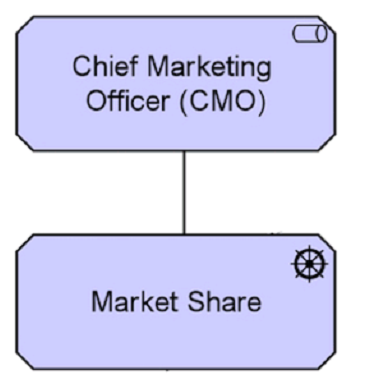

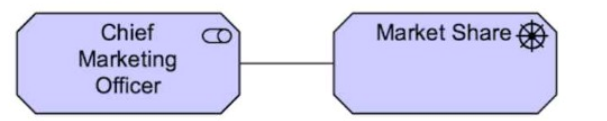

TheChief Marketing Officer (CMO)in this diagram is depicted as astakeholder, as it representsan individual or a group with concerns about market share.

InArchiMate 3.2, astakeholderis an entity thathas an interest in the outcomes of enterprise architecture, business processes, or strategic goals. TheMarket Shareconcept represents abusiness driver or key metric, which directly aligns withstakeholder concernsin an organization.

Analysis of Answer Choices:

✅A. Business Actor→❌Incorrect.

ABusiness Actorrepresents anorganizational entity that performs behavior(e.g., a company, department, or system).

TheCMO is an individual with a concern (Market Share), not a system or department performing business processes.

ArchiMate 3.2 Specification, Section 6.2.1, states that aBusiness Actor is an operational entity rather than a strategic role or stakeholder.

✅B. Role→❌Incorrect.

ARolerepresents aresponsibility or job function assigned to actors, but thediagram does not depict responsibilities or assigned functions.

Arole is usually linked to a business actor, while theCMO in this context is linked to a business concern (Market Share).

ArchiMate 3.2 Specification, Section 6.3.1, states thatroles are used to define responsibilities, whereas stakeholders are used to define concerns.

✅C. Stakeholder→✅Correct Answer

TheCMO represents a strategic position with concerns about business performance, making it aStakeholderin ArchiMate.

ArchiMate 3.2 Specification, Section 6.2.1, definesStakeholder as an entity concerned with outcomes and business goals, exactly fitting the context of this diagram.

✅D. Actor→❌Incorrect.

AnActorin ArchiMate is used to defineentities performing business behaviors(such as a department or a system).

TheCMO is not performing an explicit business function but rather has concerns about market performance.

Final Answer:✅C. Stakeholder

References:

ArchiMate 3.2 Specification: Sections 6.2.1 (Stakeholder), 6.3.1 (Role), and 6.2.1 (Business Actor).

Archi User Guide: Defining stakeholders and their concerns in Enterprise Architecture.

Comprehensive and Detailed in Depth Explanation:TheCourse of Actionelement representswhat an enterprise has decided to doin order to achieve a strategic objective. Itdefines high-level actions and strategiesthat guidebusiness capabilities and activities.

TheArchiMate 3.2 Specificationstates thatCourses of Action define the high-level choices and strategic actions taken by an organization.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Based on the ArchiMate 3 documents or objectives, the ArchiMate standard provides a set of entities and relationships for representing Architecture Description. Architecture Description is a work product used to express an architecture for a system-of-interest. The ArchiMate language is an open and independent modeling language for Enterprise Architecture that is supported by different tool vendors and consulting firms.

References: The ArchiMate® Enterprise Architecture Modeling Language | The Open Group Website 1; ArchiMate® 3.2 Specification, Chapter 1 Introduction, Section 1.1 Objective 2.

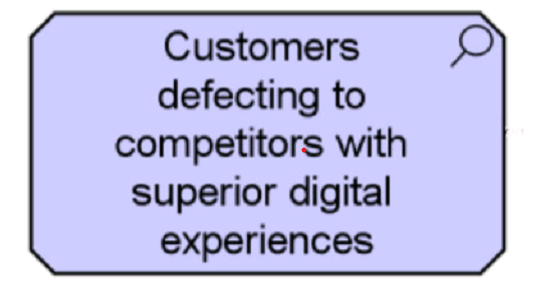

Based on the ArchiMate 3 documents or objectives, an assessment represents the result of an analysis of the state of affairs of the enterprise with respect to some driver. An assessment may reveal strengths, weaknesses, opportunities, or threats for some area of interest. An assessment is a motivation element that can be associated with other motivation elements such as stakeholders, drivers, goals, outcomes, etc. The notation for an assessment is a rectangle with a rounded top and a horizontal line inside it. The symbol in this question is an assessment that expresses the analysis of ArchiSurance’s situation.

References: ArchiMate® 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Motivation Elements 1; Assessment ArchiMate | QualiWare Center of Excellence 2.

According to the application layer metamodel, the passive counterpart of the application component is the data object, which represents data structured for automated processing. A data object can be accessed or manipulated by an application component or an application function.

References: ArchiMate® 3.2 Specification, Chapter 8: Application Layer1; Application Layer in ArchiMate Part 1 - Metamodel2.

According to the ISO/IEC 42010 standard1, an architecture viewpoint is a specification of the conventions for constructing and using a view. A view is a representation of a whole system from the perspective of a related set of concerns. An architecture view on an Enterprise Architecture is a representation of a part or whole of an Enterprise Architecture from the perspective of one or more stakeholders and their concerns.

The ArchiMate language provides a flexible approach in which architects and other stakeholders can use their own views on the Enterprise Architecture. In this approach, architecture views are specified by architecture viewpoints. Architecture viewpoints define abstractions on the set of models representing the Enterprise Architecture, each aimed at a particular type of stakeholder and addressing a particular set of concerns2.

Comprehensive and Detailed In-Depth Explanation:

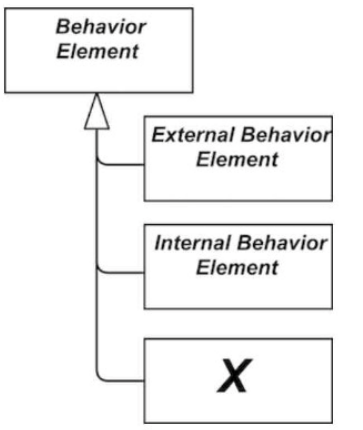

The diagram represents ametamodel fragmentbased onArchiMate 3.2, specifically focusing onBehavior Elements.

Behavior Elementis ageneral categorythat consists ofexternal and internal behavior elements.

External Behavior Elementrepresents behavior that is externally observable by other components (such as aserviceor aninterface).

Internal Behavior Elementrepresents behavior that is performed within an entity (such as afunction, process, or interaction).

The elementXisa specialized form of an Internal Behavior Element.

According toArchiMate 3.2 Specification, Section 5.2,internal behavior elements include processes, functions, interactions, and events.

Function (A)❌→Incorrect

AFunctionis an internal behavior element, but it isnot the correct specialization in this hierarchy.

Functions are usuallystructured ways of performinginternal operations rather than discrete occurrences.

Service (B)❌→Incorrect

AServiceis anexternal behavior element, meaning it isnot classified under internal behavior elements.

SinceX is placed under Internal Behavior Elements, this cannot be the correct answer.

Interface (C)❌→Incorrect

AnInterfaceis not a behavior element; instead, it is part of the structure that exposes services.

The hierarchy in the question doesnot deal with structural elements, making Interface an incorrect choice.

Event (D)✅→Correct Answer

Events represent discrete occurrences that can trigger other behaviorswithin the architecture.

Events belong to Internal Behavior Elementsbecause they drive processes and functions.

According toArchiMate 3.2 Specification, Section 5.2.1,an Event is classified as an Internal Behavior Elementalongside functions and processes.

Final Answer:✅D. Event

References:

ArchiMate 3.2 Specification: Sections 5.2 (Behavior Elements) and 5.2.1 (Event as an Internal Behavior Element).

Archi User Guide: Understanding Behavior Elements and their hierarchy.
